Revolutionizing Inspections Using Industrial Radiography

Revolutionizing Inspections Using Industrial Radiography

Table Of Contents

  • History of Industrial Radiography, and its growth through the ages
  • Industrial Radiography- An Overview
  • Radiation Sources Used in Industrial Radiography
  • Image Formation in Industrial Radiography
  • Principles Used in Industrial Radiography
  • Careers in Industrial Radiography
  • Safety in Industrial Radiography
  • Conclusion
  • Key Takeaways

Industrial radiography, a pioneering technique within the field of non-destructive testing (NDT), has fundamentally transformed the landscape of material and structural evaluation.

Its origin and evolution highlight human innovation and the unceasing pursuit of safer and more efficient industrial procedures.

History of Industrial Radiography, and its growth through the ages

The inception of industrial radiography can be credited to Wilhelm Conrad Roentgen's discovery of X-rays in 1895, which could penetrate solid objects and capture images on photographic plates, opening new possibilities for industrial applications.

The early 20th century witnessed rapid developments in radiography as an inspection tool.

In 1902, the establishment of the American Society for Testing Materials (ASTM) played a pivotal role in standardizing radiographic techniques and procedures.

By the 1920s, radiography had gained significant traction across industries such as aerospace, automotive, and construction.

It became a means to inspect welds, castings, and critical components.

The onset of World War II marked a critical juncture for industrial radiography.

The demand for reliable and Non-destructive Testing Methods to inspect military equipment, including aircraft and submarines, drove substantial advancements in radiographic technology.

Radiography's role in ensuring the integrity of these essential assets underscored its significance in the field of Non-destructive Testing (NDT).

After World War II, industrial radiography continued its rapid evolution.

The development of more powerful X-ray sources like betatrons and linear accelerators expanded its capabilities, enabling the inspection of denser and thicker materials.

Additionally, the introduction of Radiographic Film and the emergence of Computed Radiography and digital radiography techniques further refined the inspection process, making it more efficient and versatile.

The impact of industrial radiography on NDT cannot be overstated.

Its non-invasive nature permits the exploration of internal structures without compromising the integrity of the object under scrutiny.

This holds exceptional importance in industries where safety and reliability are paramount, such as nuclear power, aerospace, and oil and gas.

Radiography's knack for detecting flaws, defects, and discontinuities in materials and welds guarantees that critical components meet stringent quality and safety benchmarks.

The integration of advanced image processing and computer-assisted analysis has elevated radiography to new echelons of precision and accuracy.

This has empowered engineers and inspectors to make informed decisions based on quantitative radiographic imagery data.

Industrial Radiography- An Overview

Industrial radiography is a specialized Non-destructive Testing (NDT) technique used for inspecting the internal structure of materials and components without causing damage to them.

It relies on the principles of X-ray or gamma-ray radiation to create images of the interior of objects, helping to detect flaws, defects, or irregularities that may compromise their integrity or safety.

Radiography Testing stands as a subset of industrial radiography.

Although both employ X-rays or gamma rays for non-destructive examination, radiographic testing is distinctly focused on detecting and assessing flaws and discontinuities within materials and components.

This technique finds its primary utility in quality control and non-destructive testing (NDT), specifically targeting issues like cracks, porosity, or inclusions present in welds, castings, and other pivotal elements.

Consequently, it serves as a vital instrument in safeguarding the reliability and safety of industrial components and structures.

Radiation Sources Used in Industrial Radiography

Radiation sources are a fundamental component of industrial radiography, providing the necessary energy to create X-rays or gamma rays for inspecting materials and components without causing damage.

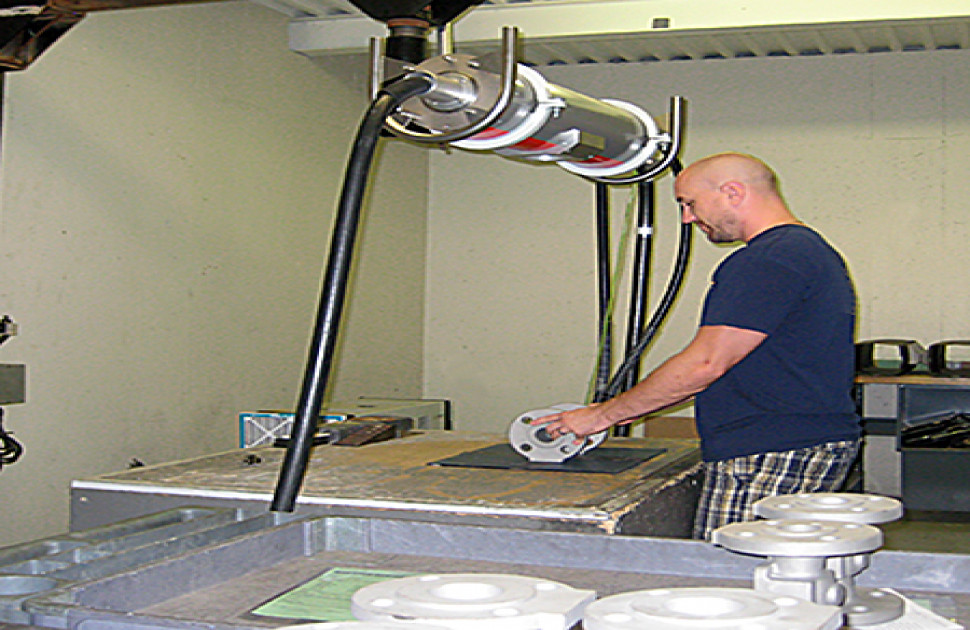

X-ray Machines:

  • X-ray machines generate X-rays through the process of bremsstrahlung radiation. High-energy electrons are accelerated and directed onto a target material, usually tungsten, causing the release of X-rays.
  • The energy of X-rays produced can be adjusted by varying the voltage applied to the machine. Higher voltage results in more penetrating X-rays capable of examining denser materials.
  • X-ray machines offer precise control over radiation energy levels and are commonly used for a wide range of industrial radiographic applications.

Radioactive Isotopes:

  • Radioactive isotopes used in radiography, such as iridium-192 and cobalt-60, emit gamma rays during their natural radioactive decay. These gamma rays serve as the radiation source.

  • Unlike X-ray Machines, the energy of gamma rays emitted by isotopes is fixed and cannot be adjusted. The choice of isotope depends on the material being inspected.

  • Radioactive isotopes are portable and require minimal equipment setup, making them suitable for remote or field inspections.

Image Formation in Industrial Radiography

Image formation is a critical aspect of industrial radiography, as it enables the visualization of an object's internal structure by capturing the interaction of X-rays or gamma rays with the material.

Film Radiography:

  • In film radiography, a sheet of photographic film is placed behind the object under examination.

As X-rays or gamma rays pass through the object, they interact with the film, creating a latent image.

  • This latent image is initially invisible and represents variations in radiation intensity caused by differences in material density within the object.

  • After exposure, the film undergoes chemical development.

During this process, the latent image becomes visible as variations in silver density on the film, correspond to the object's internal structure.

  • The developed film provides a two-dimensional X-ray image, with denser areas appearing darker and less dense regions appearing lighter.

Digital Radiography:

  • Digital radiography employs digital detectors, such as amorphous silicon panels or scintillators coupled with photodetectors.

These detectors convert incident X-rays or gamma rays into electrical signals.

  • When radiation interacts with the digital detector, it generates electrical signals proportional to the intensity of the radiation. These signals are then converted into digital data.

  • The digital data is processed by a computer and displayed as a digital X-ray image on a screen.

This image can be manipulated, enhanced, and stored electronically for analysis.

  • Digital radiography offers immediate image acquisition, adjustable image parameters, and electronic storage and transmission of images, enhancing inspection efficiency and versatility.

In both film and digital radiography, the final images reveal the inner structure of the examined object.

Variations in material density within the object result in different levels of radiation absorption, which manifest as variations in brightness or contrast in the images.

These images are crucial for skilled radiographers and inspectors to identify and assess defects, flaws, or irregularities, ensuring the integrity and safety of materials and components in various industries.

Principles Used in Industrial Radiography

Industrial Radiography operates on several key principles and methods, which include:

  • Inverse Square Law:

The Inverse Square Law states that the intensity of radiation decreases with the square of the distance from the source.

In Radiography Testing, this principle is crucial for understanding how the radiation intensity decreases as it travels through the material being inspected.

Radiographers must consider this law to ensure proper exposure and image quality.

  • Penetration and Absorption:

X-rays and gamma rays have varying degrees of penetration through different materials.

Denser materials absorb more radiation, resulting in darker areas on the radiographic image.

Radiography Testing relies on this principle to reveal internal structures and detect defects by observing variations in absorption within the material.

  • Contrast:

Contrast in radiography refers to the difference in radiation absorption between the object being inspected and any defects or irregularities.

Radiographers use techniques to enhance contrast, such as adjusting exposure settings or using contrast media, to make defects more visible.

  • Image Quality Indicators (IQIs):

IQIs, also known as penetrameters or step wedges, are placed next to the object under inspection.

These devices contain a series of steps of varying thicknesses, allowing radiographers to evaluate the image quality by assessing the visibility of the steps.

It helps ensure that the radiograph meets quality standards and provides adequate sensitivity to detect defects.

  • Radiographic Techniques:

Radiography Testing includes various techniques, such as:

1. Manual Radiography:

Involves handheld X-ray machines or gamma-ray sources, with the radiographer positioning the source and film or detector to capture the image.

2. Computed Radiography (CR):

Computed Radiography Uses digital imaging plates to capture the radiation, allowing for computer processing and analysis of the radiographic image.

3. Digital Radiography (DR):

Utilizes digital detectors that directly convert X-rays into digital data for immediate viewing and analysis.

Radiography Testing employs these principles and techniques to identify defects, cracks, inclusions, and other anomalies in materials and components.

The precise application of these principles ensures the reliability and safety of industrial equipment, structures, and products across various industries, including aerospace, manufacturing, and construction.

Careers in Industrial Radiography

  • Radiographic Testing (RT) Technician:

RT technicians operate X-ray or gamma-ray equipment to conduct radiographic inspections.

They position equipment, set exposure parameters, and ensure safety measures are in place.

RT technicians interpret radiographic images to identify defects and irregularities in materials and components.

  • Radiation Safety Officer (RSO):

RSOs oversee radiation safety programs in industrial radiography.

They ensure compliance with safety regulations, conduct radiation safety training, and manage the safe use and disposal of radiation sources.

RSOs play a crucial role in maintaining a safe work environment.

  • Radiographic Interpreter:

Radiographic interpreters are experts in analyzing radiographic images.

They work closely with RT technicians to interpret images and identify defects or anomalies.

Radiographic interpreters often hold advanced certifications and provide valuable insights into inspection results.

  • Quality Control Inspector:

Quality control inspectors in industrial radiography assess the overall quality of radiographic images and inspection processes.

They ensure that inspections meet industry standards, and that equipment is functioning correctly.

  • Project Manager:

Project managers oversee radiographic inspection projects.

They coordinate teams of technicians, manage budgets, and ensure that inspections are completed on schedule and within safety guidelines.

Safety in Industrial Radiography

  • Training and Certification:

Individuals working in industrial radiography must undergo comprehensive training and obtain appropriate certifications.

Training covers radiation safety, equipment operation, and inspection techniques.

  • Radiation Protection:

Effective radiation protection measures are essential.

This includes wearing appropriate protective gear, ensuring proper shielding of radiation sources, and using lead aprons and barriers to reduce radiation exposure.

  • Regulatory Compliance:

Adherence to regulatory guidelines and standards is critical.

In the United States, the Nuclear Regulatory Commission (NRC) and Agreement State agencies regulate the use of radiation sources in industrial radiography.

  • Radiation Monitoring:

Continuous monitoring of radiation levels in work areas and on personnel is essential.

Dosimeters worn by radiography personnel measure their radiation exposure, and regular monitoring helps ensure safe levels of exposure.

  • Emergency Procedures:

Radiography operations should have well-defined emergency procedures in place.

These procedures cover scenarios such as equipment malfunctions, accidental exposure, or radiation leaks.

  • Secure Storage and Transportation:

Radiation sources must be securely stored when not in use and transported safely to and from work sites.

Proper labelling and packaging are crucial to prevent accidents during transportation.

  • Radiation Awareness:

All personnel working near radiographic equipment should be aware of the potential radiation hazards and should be trained in safety protocols.

  • Safety:

Promoting a culture of safety within the organization is paramount.

This includes fostering a mindset where safety is a top priority and ensuring that safety protocols are consistently followed.

Industrial radiography offers rewarding careers in Non-destructive Testing and quality control, but safety is of utmost importance.

Ensuring the well-being of personnel and the environment requires strict adherence to safety procedures, ongoing training, and regulatory compliance.

Proper safety measures not only protect individuals but also contribute to the accuracy and reliability of radiographic inspections.


The history of industrial radiography stands as a tribute to human ingenuity and the ceaseless pursuit of excellence in industrial processes.

From its modest origins with Roentgen's revelation of X-rays to its indispensable role in NDT across various industries today, industrial radiography has continually pushed the boundaries of what is achievable.

The impact of industrial radiography on inspection processes is pivotal, as it has fundamentally transformed how we ensure the quality and safety of materials and components.

By providing a non-destructive means to reveal hidden flaws and imperfections, industrial radiography has become an indispensable tool for guaranteeing the structural integrity of various industries.

The future of industrial radiography holds great promise, with ongoing advancements in digital imaging, automated inspection, and the integration of artificial intelligence, we can anticipate even greater efficiency and precision in defect detection and inspection workflows.

The ongoing fusion of radiography with emerging technologies is set to elevate standards further, reinforcing its vital role in upholding the reliability and safety of critical components across industries.

Key Takeaways

  • Industrial radiography has revolutionized inspections by offering a Non-destructive Testing Methods for ensuring material and component quality and safeguarding structural integrity.
  • Ongoing technological advances in digital imaging and automation are shaping the future of inspections, promising greater efficiency and precision in detecting defects in critical components.


1. LabTesting

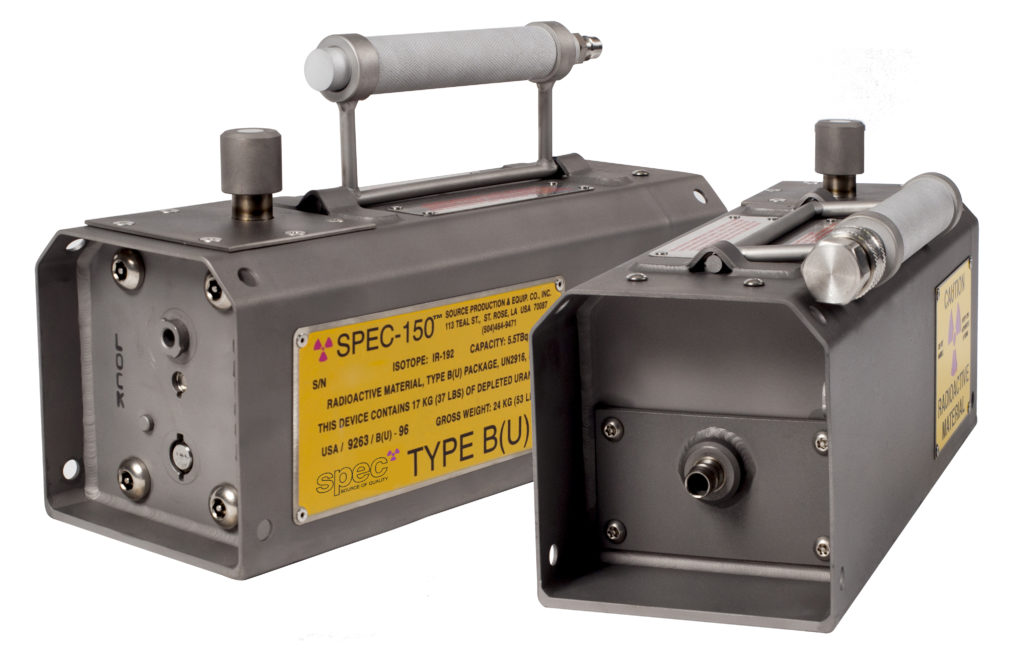

2. Spec150
