Top Non-Destructive Testing Techniques for Aviation Industry

Top Non-Destructive Testing Techniques for Aviation Industry

Image Credit: @ AZoM

Defects such as geometrical faults, material thickness, welding faults, bonding faults, delamination, wrinkles, porosity, dry patches, foreign objects, cracks, or corrosion can be found using aerospace non-destructive testing. Customers can do this to guarantee the integrity and dependability of their products while they are in use, saving them time and money when reviewing, troubleshooting, or doing research.

Safety and dependability are given top priority in the aviation sector. Non-destructive testing or NDT methods are used to guarantee the integrity of aircraft structures and components. NDT methods make it possible to find and access flaws or anomalies without endangering the aircraft. These methods are essential for keeping an aircraft airworthy, avoiding catastrophic breakdowns, and guaranteeing the safety of both passengers and crew.

Here Are A Few Non-Destructive Testing Techniques in Aviation Industry

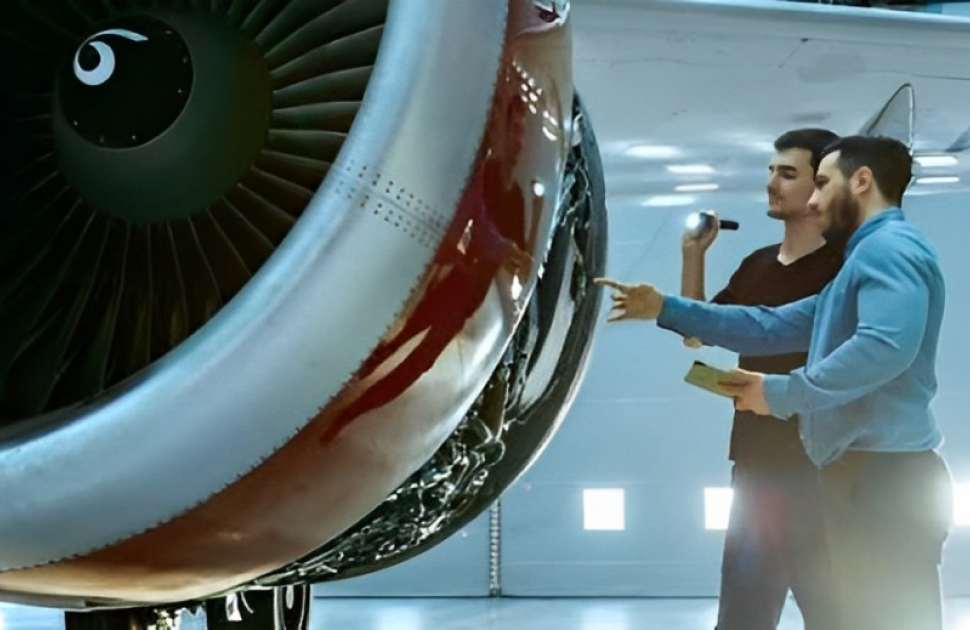

1. Visual Inspection

Non-destructive testing or inspection techniques are commonly used in a variety of industries to gather data or information about specific buildings. NDT procedures are used to evaluate a structure or asset without permanently destroying or altering it, as the term implies. Using NDT, an inspector can examine a material's characteristics and structural integrity to see whether it has any flaws or defects. Visual examination is one of the most commonly used NDT techniques. This NDT technique, also known as visual testing, is thought to be the most fundamental and traditional of its kind. After all, the naked eye, or sense of sight, as well as one's hearing, smell, and touch, were what were initially necessary to visually assess assets.

Visual testing entails the inspector physically inspecting each component of an item, as the name suggests. The presence of safety risks, hazards, and non-compliant situations in a worksite is identified by routine visual inspections carried out by safety officials and professional miners, for instance, in the mining industry. Components used in lifting activities are examined visually during these examinations. By carefully examining individual parts, the inspector can assess the structural integrity of machinery like bulldozers and subterranean excavators through visual testing. Visual testing considers welding quality as well as the existence of any surface flaws, corrosion, deterioration, blockages, and foreign materials in the asset being inspected, just like Eddy Current Testing (ECT), Ultrasonic Testing (UT), and other NDT procedures.

Advantages of Visual Inspection in NDT

  • One of the NDT techniques with the highest cost-effectiveness is visual inspection. In comparison to other NDT techniques, it is a reasonably cheap technique because it requires little equipment.
  • An immediate appraisal of the investigated thing is possible with a visual examination. It offers immediate findings, enabling inspectors to notice problems or abnormalities immediately in the Aviation Industry.
  • A non-invasive procedure, visual inspection doesn't involve any physical touch or potentially harmful energy sources. It is a secure technique that does not compromise the object being examined's integrity.
  • Visual inspection is available to a wide range of inspectors because it doesn't call for specialized training or equipment. It can be done by skilled professionals, such as engineers, technicians, or even shop floor operators.
  • Visual examination can assist stop future damage or failure by early detection of surface flaws and anomalies. It enables preventive maintenance and repair, lowering the possibility of expensive fixes or disastrous failures.
  • To improve fault detection, visual inspection can be performed in conjunction with other NDT techniques. By giving a visual depiction of the studied object, it can supplement techniques like ultrasonic testing, radiography, or magnetic particle inspection.

2. Laser Testing Methods

Ultrasonic waves can be produced and detected in materials using lasers. With the growth in the use of composite materials and sandwich structures in industries, laser-based NDT procedures became more widely accepted. For subsurface flaws including disbonds, delaminations, sheared cores, and undetectable damage in aircraft, missiles, and marine composites, these types of structures required rapid and extensive inspection.

Holography Laser Testing Method

High-frequency vibration is used in holography testing procedures to find disbands or uneven internal structures. Real-time inspection of complicated components such as aviation engine turbine blades felt metal engine seals, and plasma-coated artificial hip and knee joints is done using this non-destructive testing technique.

Laser Shearography Testing Method

Laser shearography is a method of testing that uses an interferometer to find the out-of-plane derivative of the material's deformation caused by subsurface faults' uneven strain fields. Applying vacuum, vibration, or thermal stress effects to the laminar structure's weakest bond causes out-of-plane stress. At video frame rates, shearography testing can detect strain changes down to 0.1 microstrains.

Laser Profilometer Testing Method

For cylindrical items, laser profilometer testing techniques are largely preferred. The main application is for evaluating severely deteriorated flaws during pipeline inspections. The idea behind how laser profilometry testing operates is based on how the laser beam is processed after being bent by the test object profile. With an accuracy of 0.03mm and a resolution of 0.05mm, the profilometer method effectively assesses critical information relating to repair and operability.

Advantages of Laser Testing Techniques in NDT

  • Remote and non-contact testing is feasible.
  • Adaptable and with a small footprint Inspection of small objects with intricate geometries is possible.
  • The capacity to fully cover inspection samples and use high-frequency beam scanning to detect very minute faults.

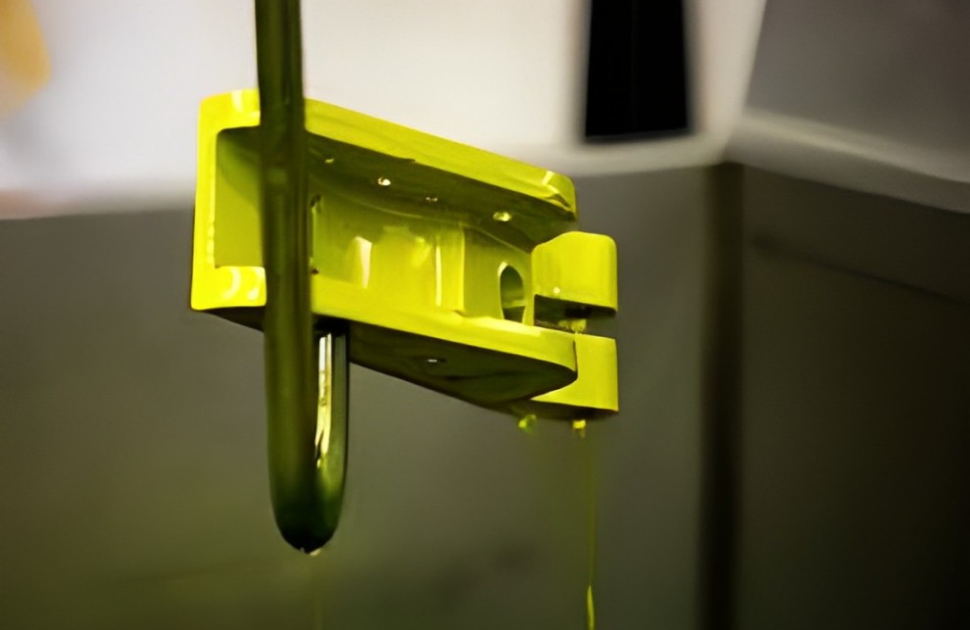

3. Liquid Penetrant Testing

One of the most commonly used Nondestructive Testing techniques is liquid penetrant examination. By injecting a very thin liquid into a material imperfection and pulling the liquid out with a developer that resembles chalk, liquid penetrant tests look for material flaws that are visible at the surface. Although welds are the most frequently evaluated item, liquid penetrant testing is also frequently used to inspect plates, bars, pipelines, castings, and forgings.

It's crucial to keep in mind that penetrant is a very thin liquid that can leak through even the slightest gap.

As a result, the penetrant will go behind the welds and through layers of unfused material if an assembly contains stitch welds or material that is not sealed by a weld. In these places, penetrants can be nearly impossible to remove. If additional welding is done, the trapped penetrant will result in faulty welds, or it will flow out over time and contaminate process fluids and paint.

Advantages of Liquid Penetrant Testing in NDT

  • Heightened sensitivity to minor surface irregularities Simple inspection of components with intricate shapes.
  • Rapid and affordable inspection of huge areas and quantities of parts or materials. Directly on the surface of the part is a visible representation of the fault.
  • Using aerosol spray cans, the procedure is lightweight, handy, and affordable.
  • The relative size, shape, and depth of the fault can be shown via indications.

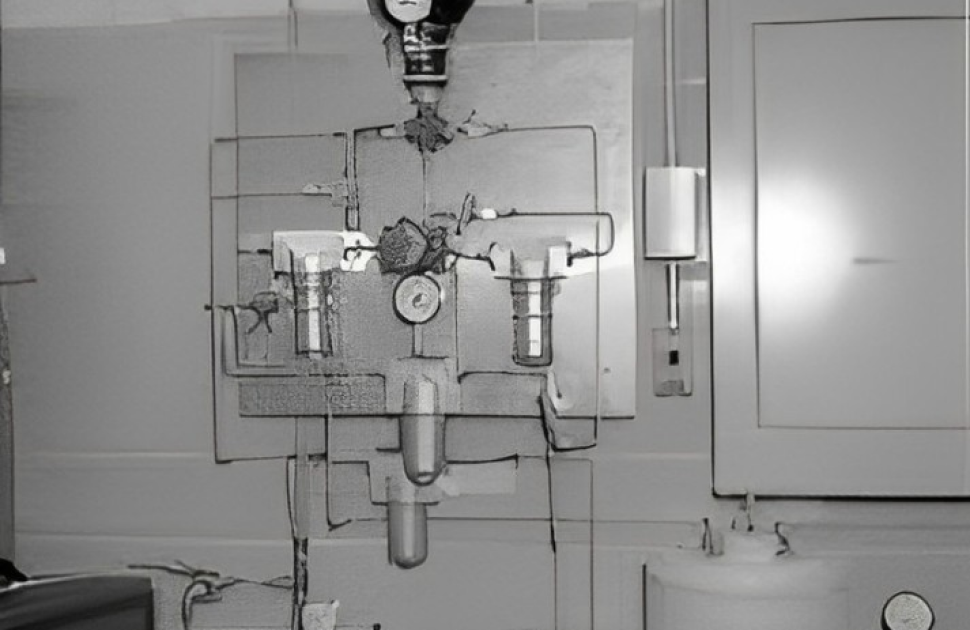

4. Acoustic Emission Testing

NDT Technique called acoustic emission testing uses the discharge of ultrasonic stress waves to spot flaws in materials in the Aviation Industry. These ultrasonic waves originate from within the material being inspected rather than being introduced from an outside source, as they are in ultrasonic testing. One of the most popular and effective non-destructive testing techniques i.e., testing that enables inspectors to gather information on materials without causing harm to them is acoustic emission testing.

Acoustic emission testing has the main benefit of enabling inspectors to test a material's whole load history without harming it. Due to its high cost, AE has traditionally only been employed for assessing and maintaining expensive structures. But as a result of recent advancements, AE equipment has become more affordable and usable for a variety of inspection applications.

An inspector uses one or more sensors to capture elastic ultrasonic waves moving over the surface of a solid material during an acoustic emission test. Any flaw that an acoustic wave encounters as it passes over or through the surface of an item can alter the wave's speed and amplitude. And inspectors watch for these alterations to spot any flaws. 20 KiloHertZ (KHZ) and 1 MegaHertZ (MHZ) of ultrasonography are frequently utilized for acoustic emission testing. One MegaHertZ is equivalent to one million Hertz, or cycles per second, while one KiloHertZ is equal to one thousand Hertz, or cycles per second.

Advantages of Acoustic Emission Testing in NDT

  • AE testing is highly sensitive to the initiation and propagation of damage in materials or structures. It can detect active defects, such as cracks, delaminations, and material degradation, even in their early stages. This early detection helps prevent catastrophic failures and allows for timely maintenance or repairs in Aviation Industry.
  • This kind of Non-Destructive Testing provides real-time monitoring capabilities, allowing for continuous assessment of the tested object's condition. It captures and analyzes acoustic signals during loading or operation, providing immediate feedback on any changes.
  • It enables the localization and identification of the source of acoustic emissions. By analyzing the characteristics of the emitted signals, such as waveforms, amplitude, and time of arrival, the location and type of damage can be determined in the Aerospace Industry.
  • AE testing provides information about the structural integrity of materials or structures under operational conditions. It can evaluate the behaviour of the tested object under different loads, assess the presence of hidden defects, and determine the need for maintenance or repair.
  • AE testing is a noninvasive technique that does not require physical contact with the tested object. The sensors used for AE monitoring can be attached to the surface of the structure or embedded within the material. This makes it suitable for testing large or complex structures, such as bridges, pressure vessels, or pipelines, without causing disruption or damage.
  • It applies to a variety of materials, including metals, composites, concrete, and ceramics. It can be used in different industries, such as aerospace, civil engineering, oil and gas, and manufacturing. AE testing is effective for both laboratory-based research and field testing.
  • AE testing provides quantitative data about the detected acoustic emissions, such as the amplitude, frequency, and energy content of the signals. This allows for statistical analysis, trending, and comparison with baseline data to assess the severity and progression of damage over time.
  • AE testing enables the identification of potential failure modes and their associated risks. By continuously monitoring acoustic emissions, it helps in developing proactive maintenance strategies and determining the optimal time for inspections or repairs. This can lead to cost savings and increased safety.

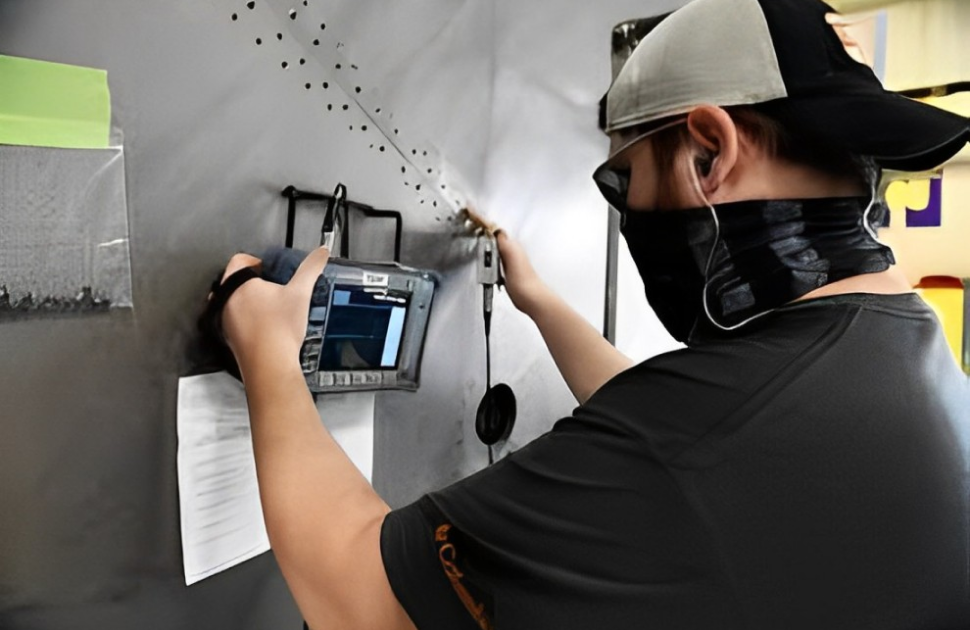

5. Eddy Current Testing

One of the non-destructive testing techniques that leverages the electromagnetism principle to find flaws in conductive materials is eddy current testing. In close proximity to the test surface, a specially made coil powered by an alternating current is inserted, creating a fluctuating magnetic field that interacts with the test part and causes eddy currents in the area. Then, changes to the alternative current flowing in the primary excitation coil are measured, along with variations in the changing phases and magnitude of these eddy currents.

Variations in electrical conductivity, the test part's magnetic permeability, or the existence of any discontinuities will affect the eddy current, which will vary the measured current's phases and amplitude in turn. Defects are found by interpreting the changes as they are displayed on a screen.

Advantages of Eddy Current Testing in NDT

  • Eddy current testing is highly sensitive to surface defects such as cracks, pits, corrosion, and material loss. It can detect and characterize these types of flaws, even when they are very small or not readily visible to the naked eye.
  • Eddy current testing is a fast inspection technique that provides immediate results. The inspection process is typically quick and can be performed in real-time, allowing for efficient evaluation of large areas or high-volume production environments.
  • It is a noncontact method, meaning that it does not require physical contact with the test object. This makes it suitable for delicate or fragile components, as it minimizes the risk of damage during the inspection process.
  • It can detect variations in the electrical conductivity of a material. It is particularly useful for identifying inconsistencies or changes in the material composition, such as heat treatment effects, alloy sorting, or the presence of foreign materials.
  • Eddy current testing allows for the adjustment of the testing parameters to control the depth of penetration. This flexibility enables inspectors to focus on specific regions of interest and adapt the technique to the thickness and conductivity of the material being inspected.

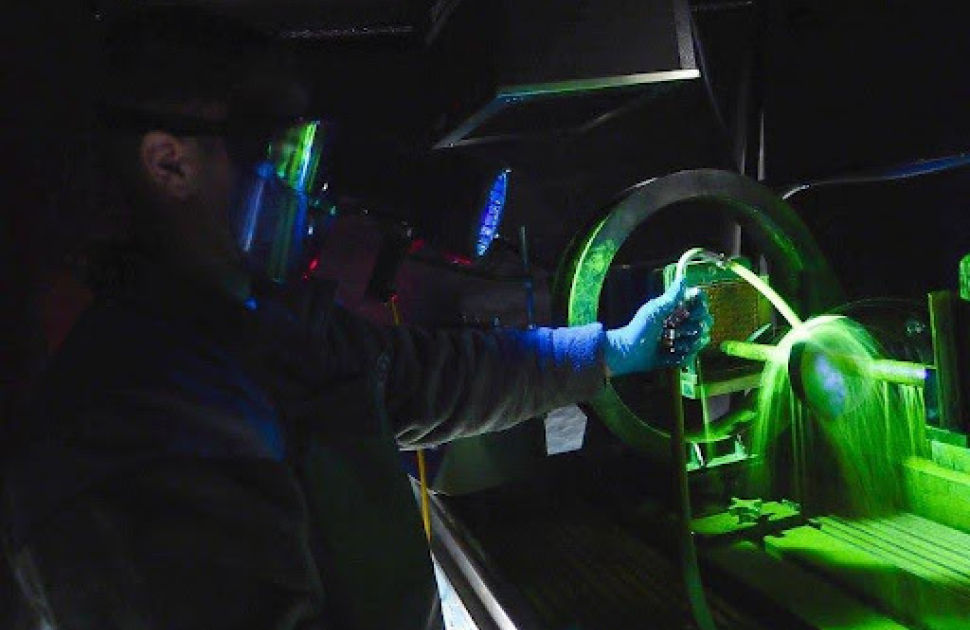

6. Magnetic Particle Testing

A nondestructive inspection technique called magnetic particle inspection, often known as MT or MPI, allows for the detection of linear faults that are present at or close to ferromagnetic materials' surfaces. It is primarily thought of as a surface investigation technique.

A very efficient approach for locating surface breaking and minor sub-surface flaws in magnetic materials, such as cracking, porosity, cold lap, and lack of sidewall fusion in welds, is magnetic particle inspection (MPI). There are numerous different methods. The most flexible method uses a magnetic "ink" made of iron powder particles suspended in a liquid carrier base, a 110-volt AC hand-held electromagnetic yoke magnet, and white strippable paint as a contrasting background.

The yoke magnet is used to magnetize the area. The lines of magnetic force will sag around any surface or barely subsurface flaws that are present. When the magnetic ink is applied, the iron powder particles will fill in the defect's gap and provide a clear indication against the background of white contrast.

Advantages of Magnetic Particle Testing in NDT

  • Magnetic particle inspection can detect both surface and close-to-surface flaws.
  • Rapid examination and immediate outcomes Inspectors are able to see indications on the specimen's surface and find flaws that have been covered up.
  • Check irregularly shaped elements, such as connecting rods, crankshafts, and exterior splines.

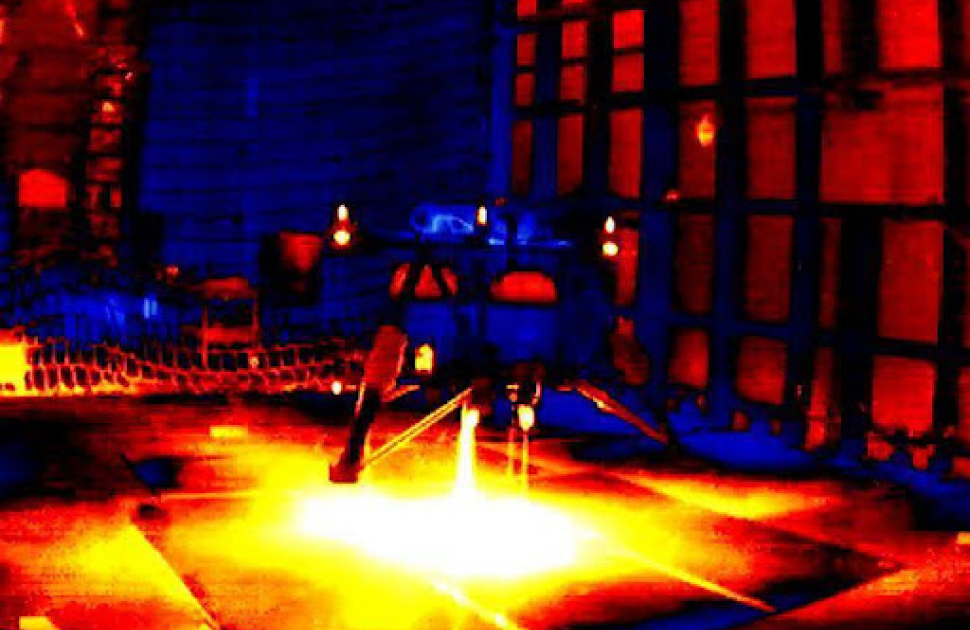

7. Infrared Evaluating

Thermal imaging is used in infrared evaluation, commonly referred to as infrared non-destructive testing, to identify and assess flaws or irregularities in materials or structures. It entails analyzing the infrared radiation that an object emits in order to ascertain its thermal properties and spot any irregularities.

Here is how NDT uses infrared evaluation

Principles of Infrared Radiation

Everything that is warmer than absolute zero emits infrared radiation. The temperature and thermal characteristics of the object determine the quantity and distribution of radiation. This radiation is observed and measured using infrared cameras is a crucial part of Non-Destructive Testing in the Aerospace Industry.

Equipment

Specialized tools like infrared cameras or thermal imaging systems are needed for infrared evaluation. These tools are capable of spotting and logging temperature changes in Aviation Industry on an object's or structure's surface. During an infrared evaluation, a thermal stimulus, such as a heat source or a change in temperature, is applied to the object or structure being evaluated in order to detect defects.

Any imperfections or abnormalities will alter the heat distribution and produce fluctuations in surface temperature when the object reacts to the stimuli. The infrared camera records the radiation that is released to produce a thermal image of the object or structure. With different colors or grayscale levels showing temperature changes, this graphic depicts the dispersion of surface temperature.

Analysis and Interpretation

Potential flaws or inconsistencies are found by analyzing the thermal image at the manufacturing and testing phases in Aviation Industry. Anomalies in temperature, such as in hot or cold regions, might point to problems such as voids, moisture intrusion, cracks, delaminations, or structural damage.

Quantitative Measurement

Temperature variations can also be measured quantitatively using infrared analysis in Aviation Industry. It is possible to determine the severity or scope of a fault by contrasting the temperature readings at particular places or regions.

Advantages of Infrared Evaluation in NDT

  • It is appropriate for evaluating inaccessible or dangerous regions because it is non-contact in Aviation Industry.
  • Rapid infrared evaluation enables quick inspection of huge areas. Additionally, by sensing temperature differences on the surface, it can find subsurface flaws.
  • Some restrictions apply to infrared evaluation. It may not be able to find internal problems but is largely helpful for surface and near-surface defects.
  • The accuracy and dependability of the results can be impacted by elements like the object's emissivity, surface characteristics, and environmental factors.
  • It aids in finding concealed flaws, keeping track of thermal performance, and ensuring the robustness and security of materials and structures in the Aviation Industry.

Conclusion

The foundation of quality control and safety assurance in the aviation sector is non-destructive testing methods. By using these NDT Techniques in Aviation Industry structural and component flaws and anomalies, preserve the aircraft's airworthiness and enhance passenger safety. Each NDT approach, from eye inspection to cutting-edge techniques like ultrasonic testing, eddy current testing, and radiographic testing, is essential for spotting possible problems and enabling prompt maintenance. The aviation industry's unblemished safety record and the highest standards of quality and dependability depend on the continued development and implementation of NDT Techniques.

For more details and insights head to OnestopNDT.
