Liquid Penetrant Testing: The Basics, Usage, and Benefits

Liquid Penetrant Testing: The Basics, Usage, and Benefits

Table Of Content

  • What is Liquid Penetrant Testing?
  • Types of Penetrants
  • Applications of Liquid Penetrant Testing
  • Steps of Liquid Penetrant Testing
  • Benefits and Limitations of Liquid Penetrant Testing

When it comes to non-destructive testing (NDT) techniques, one method that stands out for its effectiveness and versatility is Liquid Penetrant Testing (LPT).

This technique allows us to uncover even the tiniest of surface defects on various materials, ensuring the quality and integrity of the examined components.

Now we will analyze the basics, usage, and benefits of penetrants used in LPT and explore the diverse applications that make this technique indispensable across industries.

Liquid Penetrant Testing, commonly known as dye penetrant inspection, is a reliable method used to detect surface-breaking defects in non-porous materials such as metals, plastics, ceramics, and composites.

It involves the application of a liquid penetrant onto the material's surface, allowing it to seep into any cracks, voids, or discontinuities present.

After a specified penetration time, the excess penetrant is removed, and a developer is applied, causing the penetrant trapped in defects to migrate to the surface, making them visible to the naked eye.

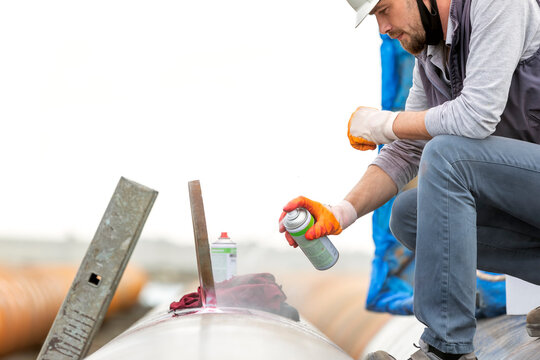

What is Liquid Penetrant Testing?

Liquid Penetrant Testing, or liquid penetrant inspection, is a widely used non-destructive testing method and the oldest one. It is also known as dye penetrant inspection.

The liquid penetrant testing takes advantage of capillary action, that is, the capacity of the liquid to run into breaks or holes without any external aid, and also, in opposition to external forces like gravity, to identify any kind of defect.

After a while, an excess amount of surface penetrant is removed and a developer is applied. The developer pulls the penetrant from the surface-breaking defects and exposes it and the resting period is called the dwell time.

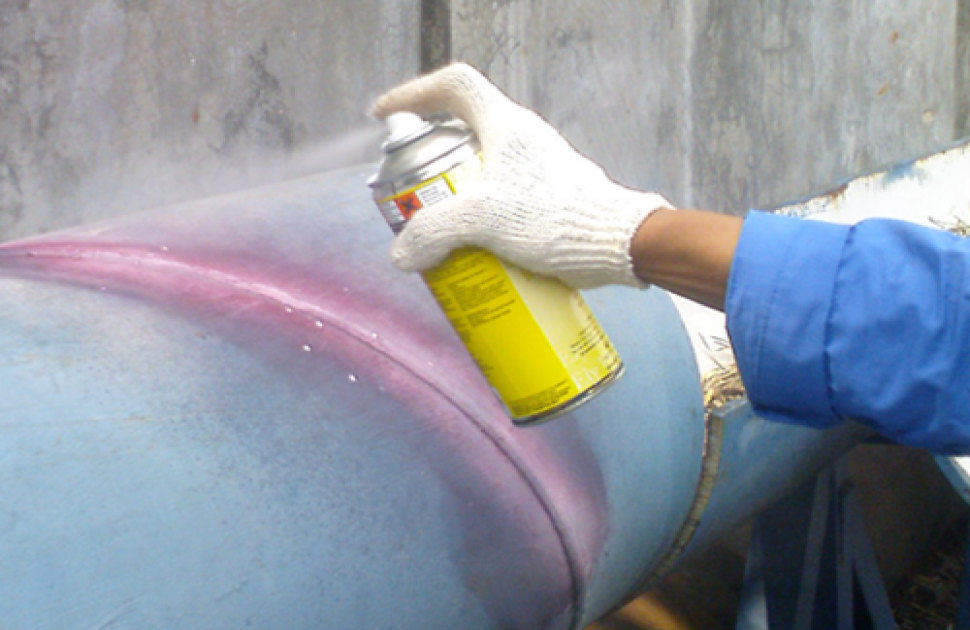

The dye-penetrant solvent-removable technique is the most common as it is reasonable and very adaptable. Typically, it is available in three aerosol cans: cleaner, penetrant, and developer.

The aerosol cans are very flexible, which enables them to be taken up ladders, inside boilers, down into wells, and into very compact places.

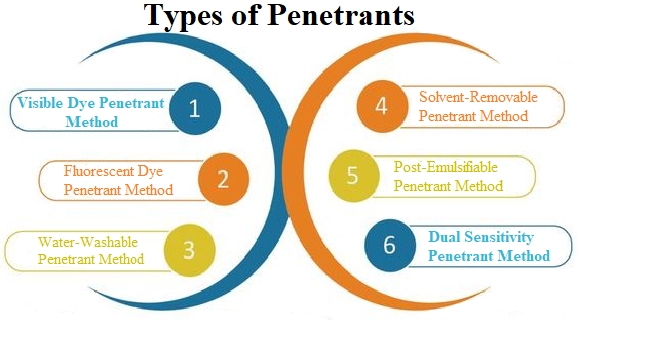

Types of Penetrants

There are several types of penetrants commonly used for Non-destructive Testing (NDT) and other applications. Here are some of the main types:

1. Visible Dye Penetrant Method

The visible dye penetrant method is one of the most straightforward techniques. It involves applying a brightly colored dye to the surface, allowing the penetrant to seep into any cracks or defects. After cleaning the surface, the dyed penetrant trapped in flaws becomes readily visible to the naked eye.

2. Fluorescent Dye Penetrant Method

Similar to the visible dye method, the fluorescent dye penetrant method employs a penetrant containing fluorescent dyes. When subjected to ultraviolet (UV) light, the trapped dye fluoresces, making even tiny defects highly visible under proper lighting conditions.

3. Water-Washable Penetrant Method

The water-washable penetrant method employs a water-soluble penetrant. After the penetration time, the excess penetrant is removed, and the component is washed with water. Any penetrant left in the flaws becomes visible after applying a developer, offering a simple and environmentally friendly process.

4. Solvent-Removable Penetrant Method

In the solvent-removable penetrant method, a solvent-removable penetrant is used. After the penetrant has been given sufficient time to seep into defects, the excess penetrant is wiped off, and a developer is applied. This method offers high sensitivity and is commonly used in precision industries.

5. Post-Emulsifiable Penetrant Method

Post-emulsifiable penetrants are versatile and can be water-washable or solvent-removable. They involve applying a special emulsifier after the penetration time. The emulsifier removes excess penetrant from the surface but leaves penetrant trapped in defects. A developer is then applied, revealing the flaws.

6. Dual Sensitivity Penetrant Method

The dual sensitivity penetrant method combines the use of two different penetrants—one with high sensitivity and another with lower sensitivity. This method allows inspectors to identify both small and larger defects during a single inspection, enhancing overall flaw detection capabilities.

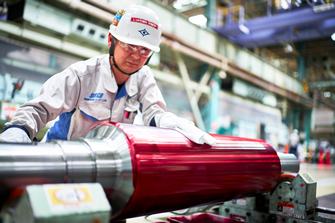

Applications of Liquid Penetrant Testing

Liquid Penetrant Testing finds applications in a myriad of industries, contributing significantly to quality assurance and safety.

1. Aerospace Industry

In the Aerospace Industry, the reliability of components is paramount. LPT is used to inspect critical parts such as turbine blades, engine components, and structural elements. The technique helps detect cracks and defects that might compromise the structural integrity of aircraft, ensuring passenger safety.

2. Automotive Manufacturing

Liquid Penetrant Testing is widely employed in the automotive industry to inspect components like engine blocks, suspension parts, and brake components. By identifying surface cracks and defects, manufacturers can prevent potential failures and maintain the quality of their products.

3. Oil and Gas Sector

In the oil and gas industry, where equipment is subjected to extreme conditions, LPT plays a vital role. It is used to inspect pipelines, storage tanks, and drilling equipment, ensuring the integrity of these components and preventing leaks that could lead to environmental disasters.

4. Railway Infrastructure

Railway companies use Liquid Penetrant Testing to inspect crucial components of their infrastructure, including rails and welds. By detecting flaws early on, they can prevent accidents and ensure the reliability of their systems.

Also Read, Advantages and Disadvantages of Liquid Penetrant Testing

Steps of Liquid Penetrant Testing

The proper methods for conducting liquid penetrant testing differ across many factors, like the size and type of the material, the type of penetrant system, the type of discontinuities anticipated in the component, and the state and setting under which the inspection is being conducted.

Nevertheless, the following are the common steps taken in liquid penetrant testing:

1. Surface preparation

The first step of Liquid Penetrant Testing is surface preparation, which is one of the most important steps.

The requirements for the testing are that the surface should not have any water, grease, oil, or any other type of impurity that can lead to obstruction in the flow of the liquid into the defects.

The object of penetrant testing might be required to be marked if mechanical operations such as sanding, grit blasting, or machining are being carried out. These and other mechanical operations may smudge metal over the defect opening and stop the penetrant from entering.

2. Penetrant application

After the surface is prepared and cleaned, the penetrant material is applied using a brush, spray, or dipping the part in a penetrant solution. Both visible and fluorescent dye penetrants are capable of being applied.

The method of application is up to the individual, but factors like the size and shape of the object under test, the equipment that is available for the test, and the specifications of the test description that are appropriate for the samples can also have an impact.

3. Penetrant dwell time

The penetrant is given some time to stay on the surface before being pulled down into the cracks or areas of defect. The total amount of time the penetrant is on the surface is called the penetrant dwell time.

The dwell time is often mentioned in the penetrant procedure being followed or by the penetrant producers.

The dwell time differs based on the type of penetrant material, its application, the type of discontinuity being inspected, and the form of the material being inspected.

Typically, the dwell time can be between 5 and 60 minutes. Unless the penetrant dries, there is no side effect to applying the penetrant for a long period of time. The dwell time is typically determined through experimentation and may be precise for a particular application.

4. Excess Penetrant Removal

The next step, which is the removal of excess penetrant, is fragile as it requires the excess penetrant to be taken off of the surface without removing a minimal amount of penetrant from the defects.

This step may include additional work depending on the system of penetration, like direct cleaning with water, cleaning with a solvent, or first treating the part of the object using an emulsifier and then cleaning with water.

If the liquid used is a visible dye, then the excess penetrant is taken off using a solvent. With excess fluorescent dye, it may be rinsed with water or emulsified before being rinsed.

5. Developer Application

To extract the penetrant stuck in the cracks or flaws back to the surface, a thin layer of developer is put on the surface.

There are a wide variety of developers available on the market that can be applied with the help of a spray for wet developers, dipping the part into the solution, or dusting it with a dry powder.

The subsequent indications are larger than the real flaw. They have a great range of contrast between the penetrant and developer, thus making them more observable to help in the inspection.

6. Indication Development

Like the penetrant dwell time, the developer is also required to stay on the surface of the object to allow the removal of the trapped penetrant from any surface defects.

The minimum time required for a developer to remain on the surface is about 10 minutes and might be more, based on the characteristics of the cracks.

7. Inspection

Using a visual examination, trained or certified personnel conduct inspections. It is done with proper lighting to identify any indications of defects that may be present.

In the case of Fluorescent Penetrants, the indications are detected in a dark condition with the help of a high-intensity UV lamp or black light, whereas with visible dye, they require adequate white light.

The obtained sample will be accepted or rejected based on the requirements or acceptance criteria followed for the order.

Also Read, A Closer Look At Establishing Acceptance Criteria For Liquid Penetrant Testing

8. Clean Surface

The final step in the process is to clean the surface of the part of the object to remove the developer from the parts that were discovered to be acceptable.

Benefits and Limitations of Liquid Penetrant Testing

The liquid penetrant testing has various benefits and limitations:

Benefits of Liquid Penetrant Testing

Liquid Penetrant Testing is a relatively quick, easy, and cost-effective method of surface inspection. The technique is non-destructive, so the test samples are not damaged during testing.

It can be conducted on various kinds of equipment, regardless of its shape or size, although the volume of equipment and the facility used for testing can produce some limitations. They possess great sensitivity to small surface discontinuities.

The liquid penetrant test can be used with a wide range of materials, from metallic to non-metallic, magnetic to non-magnetic, and conductive to non-conductive.

A visual representation of the defect is shown directly on the part surface. The process is convenient, reasonable, and portable due to the use of aerosol sprays.

Indications can expose the relative size, shape, and depth of the flaw. It is an easy technique and involves the least amount of training.

Limitations of Liquid Penetrant Testing

The major drawback of Liquid Penetrant Testing is that the defect should be open to the surface. The surface finish also affects the accuracy of the testing, as materials with porous surfaces cannot be examined using this technique.

The surface is required to be clean and smooth. Any impurities like dirt, paint, oil, rust, and grease are to be removed before the inspection. Therefore, cleaning the part before testing is a vital part of this technique.

The liquid penetrant examiner should have access to the surface being examined. The metal smudge from shot blasting, grit blasting, or wire brushing should be cleaned before the liquid penetrant testing.

There are various steps required to perform and control the testing process. Thus, the chemicals used need to be properly handled and disposed of. Fumes can prove to be dangerous and combustible without proper ventilation.

Conclusion

Liquid Penetrant Testing is a versatile and powerful technique that offers valuable insights into the quality and integrity of various materials.

The different types of penetrants cater to diverse inspection needs, while the applications span across industries, safeguarding everything from aircraft to railway tracks.

As technology continues to evolve, so does the effectiveness of Liquid Penetrant Testing, making it an indispensable tool for ensuring the safety and reliability of countless structures.
