A Closer Look At NDT In Aerospace Applications

A Closer Look At NDT In Aerospace Applications

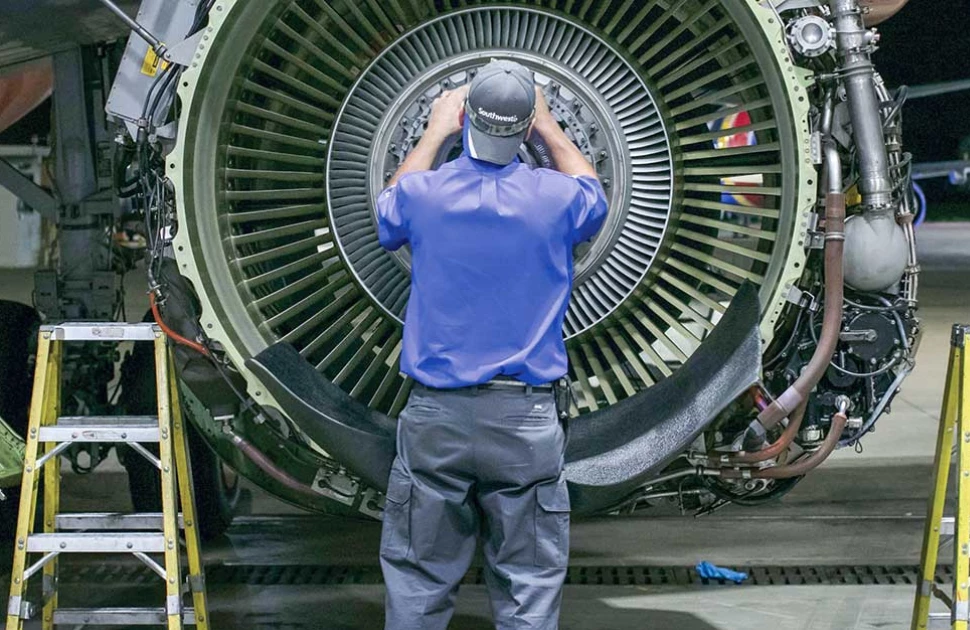

Non-Destructive Testing (NDT) plays a crucial role in ensuring the safety, reliability, and efficiency of aerospace components and structures. With the stringent requirements and rigorous standards in the aviation industry, NDT Techniques have become indispensable tools for identifying defects and flaws without causing damage to the tested materials. Let's delve into the various NDT methods employed in aerospace applications, their significance, and the challenges they help overcome.


Ultrasonic Testing (UT)

Ultrasonic Testing (UT) is a powerful non-destructive testing technique widely used in various industries, including aerospace, to detect defects in materials and welds. This method uses high-frequency sound waves, known as ultrasonic waves, to inspect the internal structure of components without causing damage. It plays a crucial role in ensuring the safety and reliability of critical components in aerospace engineering.


Principles of Ultrasonic Testing

Ultrasonic waves are mechanical vibrations with frequencies higher than the upper limit of human hearing, typically above 20,000 Hz. The testing equipment consists of a transducer that emits ultrasonic waves into the material being inspected. When these waves encounter material boundaries or defects, such as cracks, voids, or inclusions, they reflect back to the transducer.

Generation of Ultrasonic Waves

In UT, a piezoelectric crystal in the transducer converts electrical energy into mechanical vibrations, creating ultrasonic waves. The waves are transmitted through the material in a controlled manner.

Receiving and analyzing the Signals

The same transducer functions as a receiver, detecting the reflected waves that bounce back from material interfaces and defects.

Interpretation of UT Results

The time taken for the ultrasonic wave to travel from the transducer to the defect and back determines the location of the flaw.

Penetrant Testing and Magnetic Particle Testing

Nondestructive Testing is a crucial technique used in various industries, including aerospace, to assess the integrity and reliability of components without causing any damage. Two prominent methods within NDT used in aerospace applications are Penetrant Testing (PT) and Magnetic Particle Testing (MT).

Further Reading, Pipeline Isometric Drawings

Penetrant Testing (PT)

Penetrant Testing is a widely used NDT method in the aerospace industry to detect surface defects, such as cracks, porosity, and other discontinuities, in non-porous materials. The process involves the following steps:

a. Cleaning

The surface of the aerospace component is thoroughly cleaned to remove any contaminants that could hinder the inspection process.

b. Penetrant Application

A liquid penetrant with high surface wetting ability is applied to the component's surface. The penetrant seeps into any surface-breaking defects.

c. Dwell Time

The penetrant is left on the surface for a specific dwell time, allowing it to penetrate and fill any defects.

d. Excess penetrant removal

After the dwell time, the excess penetrant is removed from the surface while ensuring that the penetrant remains within defects.

e. Developer Application:

A developer, typically a white powder or liquid, is applied to draw out the trapped penetrant from the defects, making them visible.

f. Inspection

Inspectors examine the component under appropriate lighting conditions to identify any indications, such as colored bleed-out from defects, indicating potential flaws.

PT is a versatile method capable of detecting defects that might not be visible to the naked eye, making it indispensable in the aerospace industry for ensuring component integrity and safety.


Magnetic Particle Testing (MPT)


Magnetic Particle Testing is another crucial NDT technique used in aerospace applications to inspect components made from ferromagnetic materials for surface and near-surface defects. The process involves the following steps:

a. Magnetization

The aerospace component is magnetized using a magnetic field through direct magnetization (using a magnetic yoke) or indirect magnetization (using coil or central conductor methods).

b. Particle application

Ferromagnetic particles, either dry or suspended in a liquid carrier, are applied to the magnetized surface. These particles are attracted to and gather at areas of Magnetic Flux Leakage, highlighting surface defects.

c. Inspection

Inspectors examine the component under appropriate lighting conditions, and the accumulated magnetic particles form visible indications that indicate defects. MT is especially useful for detecting defects like surface cracks, seams, laps, and other surface discontinuities in materials like steel and iron, commonly used in aerospace applications.


Conventional or Standard UT

Conventional or Standard Ultrasonic Testing (UT) is a widely used application of Non-Destructive Testing (NDT) in the aerospace industry. UT utilizes high-frequency sound waves to inspect aerospace components for defects, measure material thickness, and assess material properties. This non-contact method is particularly valuable for evaluating the integrity of critical aerospace parts. Here's how Conventional UT is applied in the aerospace sector:

Principles of Ultrasonic Testing (UT)

UT operates on the principle of sending ultrasonic waves into a material and analyzing the waves' reflections to detect internal and surface defects. A transducer generates the ultrasonic waves and also receives the reflected signals. When the ultrasonic waves encounter interfaces within the material, such as boundaries between different materials or the presence of defects, part of the energy is reflected back to the transducer. The time taken for these echoes to return to the transducer, as well as their amplitude and frequency, provide valuable information about the material's internal structure and the presence of defects.


Aerospace Applications

Conventional UT is extensively applied in the Aerospace Industry due to its ability to inspect a wide range of materials and detect various types of defects. Some common aerospace applications of Conventional UT include:

a. Aircraft Fuselage Inspection

UT is used to assess the integrity of the aircraft fuselage for defects like cracks, corrosion, and delaminations in composite structures. Regular inspections help ensure the structural safety and airworthiness of the aircraft.

b. Wing and Tail Inspection

Critical components like wings and tails are subject to high stress during flight. UT is employed to detect defects, such as disbonds, voids, or hidden cracks, that could compromise their structural integrity.

c. Engine Component Inspection

UT is used to examine engine components, such as turbine blades and rotors, to detect flaws or material degradation that could impact engine performance.

d. Weld Inspection

Welding is a common method of joining components in the aerospace manufacturing industry. Conventional UT is used to inspect welds for defects like lack of fusion, porosity, or cracks, ensuring the strength and reliability of the joints.

e. Bolt and Fastener Inspection

UT can be used to inspect bolts and fasteners for flaws, such as stress corrosion cracking or improper tightening, to prevent potential failures in critical connections.

Further Reading, Compressive Guide On Computed Radiography

Phased-Array UT (PAUT)


Phased Array Ultrasonic Testing (PAUT) is an advanced application of NDT widely used in the aerospace industry. PA-UT utilizes multiple ultrasonic elements (transducers) to steer and focus ultrasonic beams electronically. This sophisticated technique allows for precise and efficient inspection of aerospace components, providing enhanced capabilities compared to conventional ultrasonic testing. Here's how Phased-Array UT is applied in the aerospace sector:

Principle of Phased-Array Ultrasonic Testing (PAUT)

PA-UT operates on the same basic principles as conventional ultrasonic testing but employs a phased-array transducer that consists of multiple individual elements. These elements can be electronically controlled to introduce time delays in the ultrasonic wavefronts. By varying these time delays, the ultrasonic waves can be directed at different angles and focal points, allowing for more flexibility and control over the inspection process.

Aerospace Applications

PA UT is extensively applied in the aerospace industry due to its ability to provide high-resolution imaging and detection of complex defects in critical components. Some common aerospace applications of Phased Array Ultrasonic Testing include:

a. Composite Material Inspection

In modern aerospace manufacturing, composite materials are extensively used due to their lightweight and high-strength properties. PA UT can inspect composite structures for defects such as delaminations, disbonds, and voids, ensuring the structural integrity of these components.

b. Turbine Blade Inspection

Turbine blades are critical components in aircraft engines, and their integrity is of the utmost importance. PA UT is employed to inspect turbine blades for internal defects like cracks or voids, ensuring safe and efficient engine operation.

c. Weld Inspection

PA UT is used to inspect welded joints in aerospace components, such as aircraft fuselages or engine parts. It can detect flaws like lack of fusion, porosity, and cracks in welds, ensuring the reliability of these connections.

d. Thickness Measurement

PA UT is employed to accurately measure the thickness of aerospace components, such as aircraft skins and engine casings, to monitor wear and corrosion and ensure structural integrity.

e. 3D Imaging

Phased-array transducers can be used to perform 3D imaging by scanning the ultrasonic beam in multiple directions, providing a comprehensive view of internal structures and defects.


Eddy Current


Eddy Current Testing (ECT) is a widely used application of NDT in the aerospace industry. ECT is a non-contact method that employs induced electrical currents to inspect and assess the integrity of aerospace components without causing any damage. This technique is particularly valuable for detecting surface and near-surface defects as well as measuring material properties. Here's how Eddy Current Testing is applied in the aerospace sector:

Principles of Eddy Current Testing (ECT)

ECT is based on the principle of electromagnetic induction. When an alternating current is passed through a coil, it generates a changing magnetic field around the coil. When this coil, often referred to as a probe, is brought close to a conductive material, such as a metallic aerospace component, eddy currents are induced in the material. The presence of defects or variations in material properties alters the behavior of these eddy currents, leading to changes in the impedance of the probe coil. By measuring these changes, inspectors can identify defects and evaluate material characteristics.

Aerospace Applications

Eddy Current Testing is widely applied in the Aerospace Industry due to its sensitivity and versatility in detecting various types of defects. Some common aerospace applications of ECT include:

a. Surface Crack Detection

ECT is highly effective in detecting surface cracks in aerospace components such as aircraft fuselages, wings, and engine parts. It can identify even small cracks that might not be visible to the naked eye.

b. Corrosion Inspection

The aerospace industry faces challenges related to corrosion on components exposed to harsh environmental conditions. ECT can detect and assess the extent of corrosion damage without the need for direct physical contact.

c. Heat Exchanger and Tube Inspection

In aircraft heat exchangers and cooling systems, ECT is used to inspect tubes for defects, erosion, or pitting, which can affect heat transfer efficiency.

d. Bolt Hole Inspection

ECT can be applied to inspect bolt holes for defects, cracks, or thread damage in critical aerospace connections.

e. Material Sorting

ECT is used to sort and classify materials, ensuring that the correct alloys and materials are used in aerospace manufacturing processes.


Multi-Coil Array Probes

Multi-coil Array Probes consist of an array of individual coils, each capable of generating its own electromagnetic field and detecting eddy current responses independently.

Multi-coil Array Probes find extensive applications in the Aerospace Industry due to aerospace components' stringent quality and safety requirements. They are used for inspecting various critical parts, such as:

a. Aircraft Engine Components

Turbine blades, compressor discs, and other engine parts are subject to intense stress and temperature variations, making them crucial candidates for inspection using multi-coil array probes.

b. Aerospace Structures

Multi-coil array probes can assess the integrity of aircraft and spacecraft structures, ensuring they remain free from defects that could compromise safety and performance.

c. Composite Materials

In modern aerospace design, composite materials are extensively used. Multi-coil array probes can efficiently inspect composite components for delaminations, voids, and other defects.

d. Fastener Inspection

The probes can be used to inspect fasteners and connections in aerospace assemblies to detect corrosion, fatigue, or other issues that may affect structural integrity.

Non-Destructive Testing (NDT) is indispensable in the aerospace industry, ensuring the integrity and reliability of vital components and structures. With ongoing advancements in NDT technology, aerospace engineers can consistently enhance safety and efficiency, providing secure air travel for passengers and cargo. As the aerospace industry evolves, NDT will undoubtedly remain a cornerstone of aviation excellence, reinforcing the commitment to maintaining the highest standards of Aircraft Safety and performance. For more information do check OnestopNDT!
