Magnetic Particle Inspection: The What, Why, and How

Magnetic Particle Inspection: The What, Why, and How

Sources - MME Group

Table of Content


Introduction to Magnetic Particle Inspection

Magnetic Particle Inspection (MPI) traces its roots back to ancient times, where historical records showcase instances of its application in a rudimentary manner.

This method has evolved into a sophisticated and indispensable technique over centuries for flaw detection within a variety of materials.

Magnetic Particle Inspection (MPI), tracing its roots to ancient times with rudimentary applications, has evolved into a sophisticated Non-destructive Evaluation (NDE) method.

This NDE Technique, also referred to as magnetic particle testing, MPI examination, MPI inspection, magnaflux testing, or magnetic particle testing, plays a pivotal role in flaw detection within ferromagnetic materials.

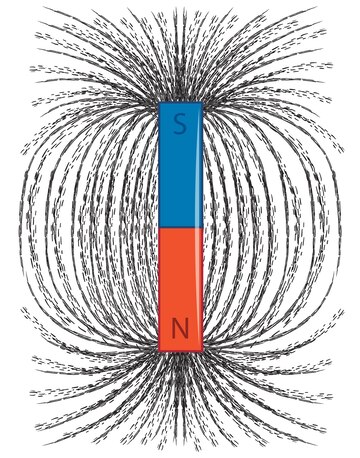

A depiction of magnetic lines of force

MPI, leveraging magnetic principles, identifies surface and near-surface flaws, ensuring the safety and reliability of materials across diverse industries.

Its significance spans crucial sectors like aerospace, Automotive, construction, and manufacturing, where it's employed to scrutinize welds, castings, and forgings, safeguarding vital machinery and infrastructure.

The evolution of MPI mirrors technological advancements, enhancing accuracy and broadening its applications.

As industries continue to rely on the precision of MPI Testing, its indispensable role in quality assurance and risk mitigation becomes more pronounced.

This introduction aims to explore the Principles of Magnetic Particle Testing, methodologies, and advancements defining Magnetic Particle Inspection, shedding light on its pivotal role in ensuring the structural integrity of materials across various sectors, including MPI examination, MPT Testing, MPI inspection, magnaflux testing, and magnetic particle testing.

Principles of Magnetic Particle Inspection

Understanding magnetic fields is fundamental to MPI, a critical aspect of Non-Destructive Evaluation (NDE).

The study of magnetism has a rich history that spans centuries, from ancient observations in Greece and China to William Gilbert's 16th-century establishment of the Earth as a giant magnet.

Further advancements by Faraday and Maxwell in the 19th century laid the foundation for our modern understanding of magnetic fields.

These historical insights provide context for the practical utilization of magnetic fields in MPI within NDT

In MPI, ferromagnetic materials serve as the focal point for flaw detection, leveraging their responsiveness to magnetic forces.

By harnessing magnetic fields, flaws within these materials are identified through the way they interact with these forces.

MPI in NDT

Magnetic Particle Inspection (MPI) stands as a crucial method in Non-destructive Evaluation (NDE), relying on magnetic fields for flaw detection.

Ferromagnetic Materials

These materials respond to magnetic fields, revealing flaws or defects within the subject under inspection during testing.

Detection Method

MPI works by magnetizing the test object and applying ferrous particles to reveal flaws.

Types of MPI

There are two primary MPI Methods: yoke and prod techniques, both involving magnetic field generation to detect defects.

MPI Services

Companies offer Magnetic Particle Inspection services to industries, ensuring the detection of flaws in various ferromagnetic materials.

MPI within NDE is a cornerstone NDE Technique that capitalizes on the inherent properties of ferromagnetic materials and magnetic fields to identify flaws, contributing significantly to the integrity assessment of various structures and components.

Equipment and Components used in MPI

The Magnetic Particle Inspection apparatus and components include the following:

1. Magnetizing Equipment

Magnetizing equipment in MPI serves the crucial function of inducing a magnetic field in the test object, aiding in flaw detection.

* Electromagnetic Yokes

Portable devices that generate magnetic fields through a coil are commonly used for ferromagnetic material inspections.

* Permanent Magnet Prods

The MPI Procedure utilizes a permanent magnet to produce the required magnetic field, ideal for smaller or localized inspections.

* AC/DC Currents

Equipment capable of providing both alternating current (AC) and direct current (DC) to magnetize the test object, allowing for versatility in testing various materials.

2. Particle Media

Particle media are integral to MPI, aiding in flaw visualization by highlighting areas of Magnetic Flux Leakage caused by defects.

A technician spraying particle media while performing MPI testing

* Iron-Based Particles

These iron-based particles are most commonly used due to their excellent response to magnetic fields, enhancing the visibility of defects.

* Dry and Wet Particles

The particulate matter is offered in a dry form for convenience and a wet form with suspension liquids for better adhesion to the test object.

* Fluorescent Particles

Utilized in conjunction with UV light for enhanced visibility, particularly in low-light conditions or for intricate inspections.

Magnetic Particle Inspection services and companies specialising in Non-Destructive Evaluation (NDE) rely heavily on the efficacy of these equipment types and particle media to accurately identify and assess flaws in ferromagnetic materials. The selection of appropriate equipment and particle media greatly influences the precision and reliability of NDE inspections, ensuring the integrity of critical components and structures.

MPI Procedures and Techniques

Observable defects on a nut under Magnetic Particle NDE inspection

The Magnetic Particle Inspection has many facets that are to be kept in mind. These steps include:

1. Preparation Steps

* Surface Cleaning

Thoroughly clean the surface using solvents or cleaners to remove dirt, grease, and other contaminants that could obscure flaws during inspection.

* Surface Roughening

In some cases, surfaces might be lightly roughened to improve particle adhesion and facilitate flaw detection.

Demagnetization

Precautionary demagnetization of the test object to prevent any residual magnetism that could interfere with subsequent inspections.

2. Application of Magnetic Particles

* Dry Particle Application

Sprinkle or spray dry magnetic particles uniformly onto the magnetized surface. These particles adhere to areas of Magnetic Flux Leakage caused by defects.

* Wet Suspension Method

Immersing the test object in a suspension of magnetic particles in a liquid carrier or applying the suspension by spraying to achieve a thorough coverage of the surface.

3. Inspection Methods

* Visual Inspection

Inspectors visually examine the surface under suitable lighting conditions. They look for indications such as particle clustering, which could signify the presence of flaws.

* Fluorescent Inspection

Using UV light in a darkened environment to enhance the visibility of indications, particularly helpful for detecting small or subsurface flaws.

4. Visualizing and Interpreting Results

* Indication Assessment

Trained NDT Inspectors assess the indications formed by magnetic particles, considering their size, shape, and location, to determine the nature and severity of flaws.

* Record Keeping

Detailed documentation of findings and indications to track the history of inspections and monitor any changes or trends in the material's condition over time.

The Magnetic Particle Inspection (MPI) procedure, a foundational NDE Method, demands meticulous preparation, precise application of magnetic particles, and the use of various inspection techniques.

These steps ensure accurate flaw detection, aiding in maintaining the integrity and safety of materials across diverse industries.

Advantages and Limitations

Magnetic Particle Inspection being performed on a component

The advantages and disadvantages of Magnetic Particle Inspection include:

1. Advantages of MPI

Sensitivity to Surface Flaws

MPI is highly effective in detecting surface flaws, cracks, and discontinuities in ferromagnetic materials, providing accurate flaw identification.

Cost-Efficient Method

Compared to other NDE Methods, MPI is relatively cost-effective, making it a preferred choice for routine inspections.

Portable Equipment

The equipment used for MPI is often portable and adaptable, allowing for on-site inspections in various industries.

Versatility

Suitable for ferrous materials and complex shapes, it is applicable across diverse industries.

2. Benefits in Various Industries

Aerospace and Aviation

MPI ensures the integrity of critical components like engine parts, landing gear, and aircraft structures.

Automotive Industry

Used for quality control in manufacturing and inspecting engine components, gears, and suspension parts.

Oil and Gas

Vital for Inspecting Pipelines, offshore structures, and equipment for flaws that could compromise safety.

Manufacturing and Welding: Ensures the quality of welds and fabricated components, minimising defects.

Limitations and Challenges

Surface Limitation

Primarily detects surface flaws, limiting the detection of subsurface defects unless they cause surface disruptions.

Material and Size Constraints

Limited to ferromagnetic materials and may not be suitable for very thin or small components.

Surface Condition Requirement

Requires a clean and prepared surface for effective flaw detection.

Factors Affecting Accuracy and Limitations

Magnetic Field Strength

Insufficient magnetism may lead to undetected flaws, while excessive magnetism might mask smaller defects.

Orientation of Defects

Flaws not oriented in the direction of the magnetic field may be missed during inspection.

Material Composition

Variations in material composition and magnetic properties affect the sensitivity of MPI.

Magnetic Particle Inspection (MPI) stands as a versatile and cost-effective method with significant advantages in flaw detection, particularly in industries reliant on ferromagnetic materials.

However, limitations related to surface detection, material constraints, and factors affecting accuracy need consideration for effectiveness and reliability.

Safety Considerations

Observing the results of Magnetic Particle Inspection under UV light

Safety measures are fundamental during MPT to ensure the well-being of personnel, equipment integrity, and efficient inspection procedures.

Personal Protective Equipment (PPE)

Adequate provision and utilization of PPE such as gloves, goggles, and aprons protect inspectors from potential exposure to chemicals and particles.

Ventilation Systems

Ensuring proper ventilation in work areas mitigates the risks associated with fumes from chemicals used in the process, safeguarding respiratory health.

Safe Chemical Handling

Adherence to proper handling and storage procedures for magnetic particles and suspension liquids minimizes spillage risks and potential exposure.

Equipment Maintenance

Regular maintenance and calibration of MPT equipment are essential to prevent malfunctions or accidents during inspections, ensuring reliable results.

Training and Awareness

Comprehensive training programs create awareness among inspectors about potential hazards, safe practices, and emergency response protocols, promoting a safety-conscious culture.

Worksite Precautions

Establishing clear work procedures, delineating hazardous areas, and instituting emergency response plans contribute significantly to a safe working environment.

Prioritizing stringent safety measures during MPT not only ensures the safety of personnel involved but also upholds the integrity of the inspection process and the reliability of results. Emphasising safety protocols fosters a culture of responsibility and efficiency within the MPT procedures.

Conclusion

The importance of MPI in ensuring the integrity and safety of critical components within engineering disciplines cannot be overstated.

MPI's significance in engineering and industry lies in its ability to identify surface flaws accurately, contributing to the safety and reliability of structures and equipment.

As NDE Technology advances, the evolution of MPI and other NDE methods continues, with emerging technologies enhancing inspection capabilities.

Looking toward the future, innovations in MPI and NDE methods anticipate the development of more sophisticated, precise, and efficient Inspection Techniques.

Advancements in sensor technology, automation, and data analytics are poised to revolutionize MPI, enabling faster and more accurate inspections.

These developments promise enhanced reliability, reduced inspection times, and improved defect characterization, ensuring continued excellence in the field of NDE.

In conclusion, MPI remains a cornerstone in NDE, playing a crucial role in ensuring the safety, reliability, and integrity of materials and structures across diverse industries.

The continuous evolution and integration of emerging technologies affirm the promising future of MPI and its enduring significance in the realm of engineering and industry.

Key Takeaways

  • From ancient rudimentary applications to its sophisticated role today, Magnetic Particle Inspection (MPI) has evolved into a critical Non-destructive Evaluation (NDE) method.
  • Recognized as MPI examination, MPT testing, or Magnetic Particle Testing, MPI serves as a pivotal technique in flaw detection within ferromagnetic materials across multiple sectors.
  • Understanding magnetic fields forms the core of MPI, leveraging historical insights from luminaries like William Gilbert, Faraday, and Maxwell. This method relies on ferromagnetic materials' responsiveness to magnetic forces for detecting flaws, using NDE Techniques like yoke and prod methods to generate magnetic fields.
  • The MPI apparatus includes magnetizing equipment and particle media, vital components ensuring accurate inspections.
  • The inspection procedure involves meticulous surface preparation, precise particle application, and Various Inspection Techniques, culminating in detailed result visualization and interpretation.
  • MPI offers sensitivity to surface flaws, cost-efficiency, and versatility, benefiting industries like aerospace, Automotive Industry, and manufacturing. However, limitations regarding surface detection, material constraints, and factors affecting accuracy need consideration.
  • Safety measures during MPI are fundamental, ensuring personnel safety, equipment integrity, and reliable inspection procedures.
