Advancements in Ultrasonic Testing: Revolutionizing Safety in Oil and Gas Industries

Advancements in Ultrasonic Testing: Revolutionizing Safety in Oil and Gas Industries

Table of Content

Industries like oil, gas, and chemicals face severe equipment failures, posing risks to workers, stakeholders, and the environment, and daily exposure to hazardous substances accelerates degradation. This peril is amplified by the daily handling of hazardous substances, which exert corrosive pressures, undermining the integrity of equipment over time. Nonetheless, the swift expansion of the sector introduces a conundrum: how to strike a balance between ensuring safety and maintaining productivity.

This challenge underscores the importance of prioritizing safety through regular inspections, a practice commonly referred to as Non-Destructive Evaluation (NDE) or NDT in the oil and gas sector. By employing techniques like Ultrasonic Testing, companies can mitigate the risks associated with equipment failure.

Ultrasonic testing equipment, such as Ultrasonic Thickness Gauges, plays a pivotal role in ensuring the effectiveness and efficiency of inspections. Ultimately, the benefits of ultrasonic testing in the oil and gas industry are manifold. By proactively assessing equipment integrity, companies can safeguard both their profits and the environment, fostering a sustainable future for the sector.

What is the Ultrasonic Testing?


Ultrasonic testing is a non-destructive testing method widely used across various industries to assess the integrity of materials and detect flaws. By utilising high-frequency sound waves, UT enables precise inspection of internal structures without causing any damage.

Ultrasonic testing, commonly known as UT, is a versatile non-destructive testing technique used to detect internal defects or discontinuities in materials such as metals, plastics, composites, and ceramics. It relies on the principle of sending high-frequency sound waves through the material and analysing the reflected waves to identify irregularities.

Ultrasonic Testing is an indispensable inspection method in the oil, gas, and chemical industries, offering simplicity, speed, accuracy, and versatility in assessing equipment integrity and enhancing safety standards.

Eager to learn more about Ultrasonic Testing? – click to explore!

Ultrasonic Testing in the Oil and Gas Industry


The cost of Ultrasonic Testing Equipment failure within oil, gas, and chemical industries on workers, shareholders, equipment, and the environment is often devastating. This is a very real, very common risk, as the hazardous nature of substances handled daily puts enormous, corrosive pressure on the equipment’s structural integrity. A catalogue of historical equipment failures has led to the strict preventative safety testing and regulations we have today.

Whilst increased awareness is good, these industries are experiencing huge growth in demand, creating an ‘every second (and penny!) counts’ culture that is struggling to strike a balance that meets safety standards and production targets. This time and financial strain have seen equipment frequently pushed beyond its intended capacity and lifespan. However, it is the opposite approach that protects profits and secures a more profitable future. A regular safety inspection regime will help put such companies on a stronger stance in an increasingly sustainable world.

You can also explore various Inspection Techniques for the Oil and Gas Industry

Advantages of Ultrasonic Testing

The advantages of Ultrasonic Testing, apart from the ones mentioned above, also include:

1. Non-destructive nature:

UT is an NDT Method, meaning it does not cause damage to the tested material. This allows for repeated inspections without compromising the integrity of the equipment, providing ongoing assurance of safety and reliability.

2. Versatility:

UT can be applied to a wide range of materials, including metals, plastics, and composites, making it suitable for diverse industrial applications. Its versatility allows for comprehensive inspections of various components, from pipelines to pressure vessels, enhancing overall inspection capabilities.

3. Real-time results:

UT provides instant feedback, allowing inspectors to promptly assess the condition of equipment and make informed decisions regarding maintenance and repairs. This real-time data facilitates timely intervention, reducing the risk of unexpected failures and associated costs.

4. Cost-effectiveness:

Despite its advanced technology, UT is a cost-effective inspection method compared to traditional techniques. Its efficiency in detecting defects early on helps avoid expensive repairs or replacements, ultimately saving companies money in the long run.

5. Safety:

By identifying potential hazards such as corrosion or cracks, UT contributes to overall safety in the workplace. By addressing these issues promptly, UT helps mitigate the risk of accidents, injuries, and environmental incidents, safeguarding both personnel and the surrounding environment.

6. Regulatory compliance:

UT assists companies in meeting regulatory requirements and industry standards for equipment integrity and safety. By conducting regular UT inspections companies demonstrate their commitment to compliance and uphold their reputation as responsible operators in the oil, gas, and chemical industries.

Ultrasonic Testing offers numerous advantages, including maintaining productivity, guaranteeing accuracy, non-destructive nature, versatility, real-time results, cost-effectiveness, safety, and regulatory compliance. These benefits make it an indispensable tool for ensuring the integrity and reliability of equipment in demanding industrial environments.

Ultrasonic Testing Applications for Upstream, Midstream, and Downstream Oil and Gas


Industry is crucial for ensuring the integrity and safety of pipelines, storage tanks, and pressure vessels. Properly conducted ultrasonic testing can detect flaws such as corrosion, cracks, and weld defects, helping to prevent costly failures and environmental disasters. In the oil and gas industry, the terms upstream, midstream, and downstream refer to different stages of the production and distribution process. The applications of UT within different sectors of the Oil and Gas industry include:

1. Upstream:

The upstream sector involves activities related to the exploration and production of crude oil and natural gas. This includes locating oil and gas reserves, drilling wells, and extracting hydrocarbons from underground reservoirs.

  • Inspecting drilling equipment:

UT is utilised to assess the integrity of drilling equipment, including drill pipes, casings, and downhole tools. This non-destructive inspection technique helps identify defects such as corrosion, cracks, and wall thickness variations, ensuring the reliability and safety of drilling operations.

  • Inspecting pipelines:

UT plays a crucial role in Inspecting Pipelines used for transporting crude oil and natural gas from extraction sites to processing facilities. By detecting flaws and defects in pipeline walls, UT helps prevent leaks, ruptures, and environmental contamination, thereby safeguarding both personnel and the environment.

  • Inspecting well casings:

UT is employed to evaluate the condition of well casings, which provide structural support and prevent groundwater contamination during drilling and production activities. UT helps detect defects such as corrosion, erosion, and casing wall thinning, ensuring the integrity and longevity of wellbore infrastructure.

2. Midstream:

The midstream sector focuses on the transportation, storage, and processing of crude oil, natural gas, and refined products. This includes pipelines, tanker ships, storage tanks, and processing facilities such as refineries and liquefied natural gas (LNG) plants.

  • Assessing pipeline integrity:

UT is used extensively in midstream operations to assess the integrity of pipelines used for transporting oil, gas, and refined products over long distances. By conducting non-destructive evaluations of pipeline walls, UT helps identify corrosion, erosion, and other defects that could compromise pipeline safety and reliability.

  • Assessing storage facilities:

UT is applied to assess the integrity of storage tanks and facilities used for storing crude oil, refined products, and chemicals. By detecting defects such as corrosion, pitting, and weld imperfections, UT helps prevent leaks, spills, and environmental incidents, ensuring the safe and efficient storage of hazardous substances.

3. Downstream:

The downstream sector encompasses refining crude oil into various petroleum products such as gasoline, diesel, jet fuel, and lubricants. It also includes distribution and marketing activities, such as fuel retailing and petrochemical manufacturing.

  • Ensuring refinery reliability:

UT is employed in downstream operations to ensure the reliability and safety of refinery equipment and processes. By conducting non-destructive inspections of equipment such as pressure vessels, heat exchangers, and piping systems, UT helps identify defects such as corrosion, erosion, and cracking, thereby minimising the risk of equipment failure and process disruptions.

  • Petrochemical processes:

UT is used to inspect critical components of petrochemical plants, including reactors, columns, and storage tanks. By detecting defects such as corrosion, stress corrosion cracking, and weld defects, UT helps maintain the integrity and efficiency of petrochemical processes, ensuring product quality and safety.

It is a versatile NDE method widely employed throughout the oil and gas supply chain. From upstream drilling operations to downstream refining and petrochemical processes, it plays a critical role in ensuring the integrity, reliability, and safety of equipment and infrastructure in the oil and gas industry.

Future Expansion Plans


The demand for Ultrasonic Testing is anticipated to escalate as industries increasingly prioritise safety and efficiency in their operations. The oil and gas sector, in particular, is poised to witness significant growth in the adoption of UT due to its effectiveness in ensuring the integrity and reliability of critical infrastructure. As the industry evolves, future expansion plans for UT in the oil and gas sector are likely to focus on the following areas:

Innovative Technologies:

Continued advancements in UT technology are expected to drive future expansion in the oil and gas industry. Innovations such as Cygnus Instruments' Multiple-Echo technique demonstrate the ongoing development of UT methods to meet evolving industry needs. These advancements aim to enhance the accuracy, efficiency, and reliability of UT inspections, ensuring a comprehensive assessment of equipment integrity.

Enhanced Equipment Design:

Future expansion plans for UT in the oil and gas sector will also involve advancements in equipment design to address industry-specific challenges. Products like the Cygnus 1 Intrinsically Safe ultrasonic thickness gauge exemplify this trend, with designs tailored to withstand the demanding conditions encountered in volatile environments. Such equipment enhancements underscore UT's adaptability and reliability in ensuring safety and integrity in the oil, gas, and chemical industries.

Integration with Visual Inspection Solutions:

As part of future expansion plans, UT is expected to be increasingly integrated with Visual Inspection solutions, particularly for assessing oily products and surface anomalies. This integrated approach combines the strengths of both UT and visual inspection methods, enabling comprehensive evaluation of equipment integrity and safety in oil and gas operations.

Future expansion plans for Ultrasonic Testing in the oil and gas industry will be characterised by advancements in technology, equipment design, and integration with visual inspection solutions. These developments aim to enhance the effectiveness, efficiency, and reliability of UT inspections, ensuring the continued safety and integrity of critical infrastructure in the oil, gas, and chemical sectors.

How does Cygnus 1 Intrinsically Solution help in Ultrasonic Testing?

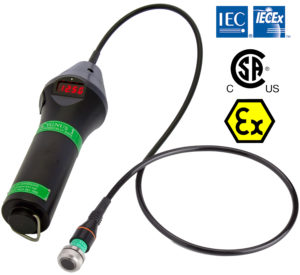

Durability in volatile environments is invaluable. Cygnus 1 Intrinsically Safe ultrasonic thickness gauge boasts an extremely rugged, shock-proof, and splash-proof (IP65 rated) construction. It is the only one of its kind in the world certified to Class 1, Div 1 (“Zone 0”) for ATEX, IECEx, and CSA-US – specifically designed for measuring metal thickness to determine wastage or corrosion in Zone 0, Zone 1 hazardous and potentially explosive environments. This heavy-duty unit is supplied ready to use and offers up to 12 hours of continuous testing before a recharge is necessary, with no plant shutdown or hot work permit required.

The virtually indestructible exterior houses a remarkable set of components, viewed via a bright LED display with a polarised filter, in either metric or imperial measurement to suit the user’s preference. These features include an echo strength indicator to aid measurement, stable calibration linear accuracy, no zero adjustment, and sound velocity settings. The gauge can also be used with a range of varied frequency probes or a right-angle probe – more practical for reaching areas with restricted access.

Here the advantages are divided into two key pressures:

Maintaining productivity:

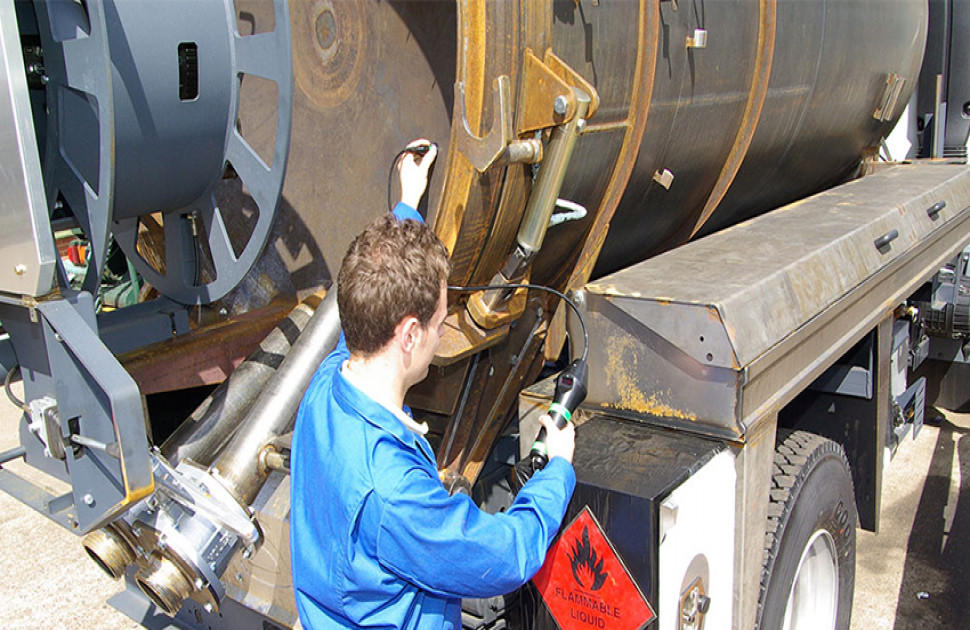

Time is precious, both to the production chain and the equipment inspector. The good news is ultrasonic testing can be applied to a system in operation, meaning production is unaffected. Cygnus gauges accommodate multiple probe sizes, shapes, and angles to accomplish this, and advanced data-logging capability provides instant results that are automatically saved, eliminating manual data recording.

Guaranteeing Accuracy:

Accuracy is key when performing inspection in such demanding environments because time is, and efficiency has to be, super tight. To maximize speed and accuracy, Cygnus Instruments pioneered the Multiple-Echo technique, which has long since been the industry standard for through-coating material thickness measurement and is required by classification societies for ultrasonic thickness measurements. It gives error-checked, reliable remaining metal thickness and guarantees crucial savings in time and money as it eliminates the need to remove and reapply coatings. What’s more, it avoids the risk of exposing the material under test to further corrosion.

You can explore the Cygnus Intrinsically Safe UTG Solution here
