Non-destructive testing inspection is of paramount importance in industries like construction, manufacturing, and aerospace. To conduct these inspections effectively, though, many professionals find it difficult to grasp the optimal NDT techniques. The challenge often lies in balancing accuracy with time and resource constraints, leaving teams wondering how to maximise their NDT processes without compromising safety and reliability.
Fortunately, there are strategies and techniques that can streamline NDT inspections, reducing errors while improving speed. From choosing the right tools to adopting best practices, these solutions can empower your team to conduct NDT more effectively and confidently. NDT training is vital in industries where safety and reliability are paramount. This includes aerospace, automotive, construction, and oil & gas, among others. By identifying potential issues early, NDT in Aviation helps prevent catastrophic failures, ensuring the longevity and safety of critical components and systems.
What is the meaning of NDT Inspection?
NDT Inspection is a process that involves the examination of materials and structures to detect defects or irregularities without compromising their integrity. It’s a non-invasive technique that relies on various physical principles, such as sound, radiation, and magnetism, to assess the internal and external condition of an object.
The Basic Principle of NDT revolves around detecting discontinuities or defects in materials using various testing methods that do not cause any harm to the object being inspected. These efficient NDT methods rely on physical phenomena such as acoustic waves, electromagnetic radiation, and capillary action to reveal hidden flaws.
Step-by-Step NDT Inspection Process

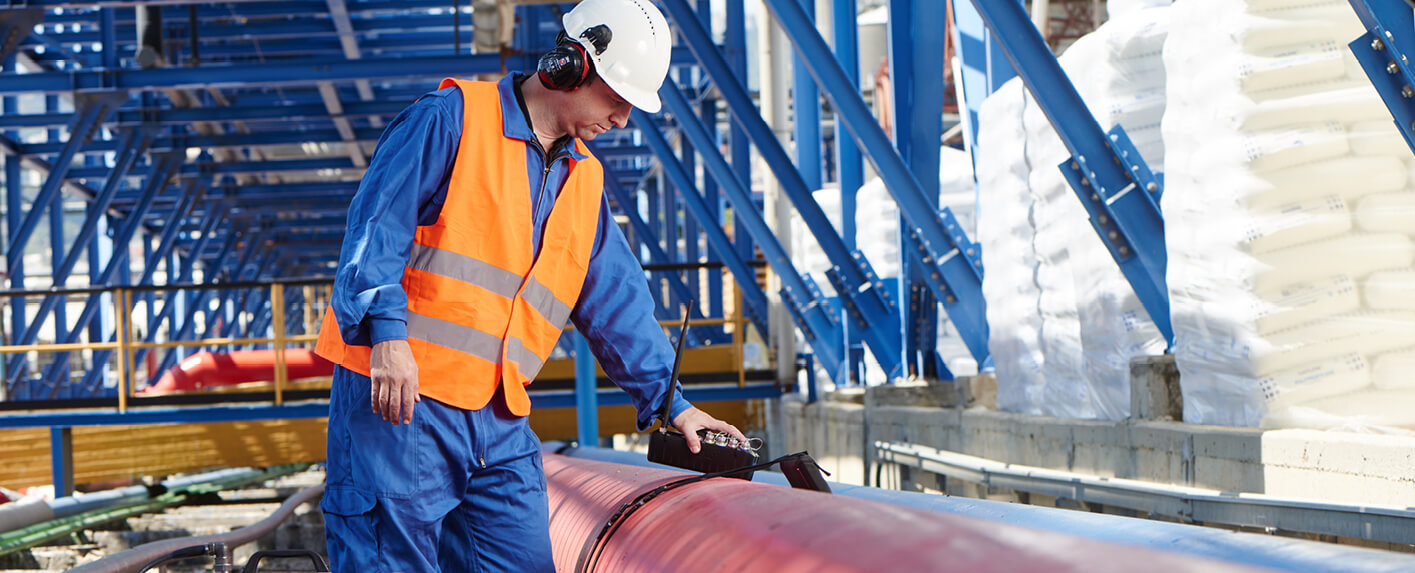

Image Credit: Eddyfi Technologies
Once safety precautions are in place, the NDT inspection process typically involves preparing the equipment, conducting the inspection according to established procedures, and analysing the results. It is important to follow each step carefully to ensure accurate and reliable results.
1. Pre-Inspection Procedures
Before conducting an NDT inspection, it’s essential to prepare the material and equipment. This includes cleaning the material to remove any dirt or contaminants, setting up the inspection area, and ensuring that all equipment is in working order.
2. Conducting the Inspection
During the inspection, follow the method-specific procedures carefully to ensure accurate results. This may involve scanning the material, applying test substances, or analysing the data collected by the equipment.
3. Post-Inspection Analysis
After the inspection, the results must be analysed to identify any defects. This step often requires specialised software or expertise to interpret the data accurately. The findings are then documented and reported.
How to Perform NDT Testing?
NDT testing can be performed efficiently by ensuring that all equipment is properly calibrated and maintained. Additionally, having well-trained and experienced technicians can help streamline the testing process and ensure accurate results.
1. Selecting the Right NDT Method
Choosing the appropriate NDT Method depends on the material being tested, the type of defects you’re looking for, and the environment in which the inspection will take place. Consider factors such as material properties, defect size, and accessibility when selecting a method.
2. Equipment Calibration
Accurate NDT results depend on properly calibrated equipment. Regular calibration ensures that the equipment is functioning correctly and that the readings are accurate. This step is critical to the reliability of the inspection results.
3. Safety Precautions
Safety is paramount in NDT, particularly when using methods involving radiation or high-frequency sound waves. Inspectors must follow all safety guidelines, including the use of personal protective equipment (PPE) and adherence to regulatory standards.
4. Practices for Efficient NDT Inspections
Efficient NDT inspections utilise advanced technology like phased array ultrasonics and Digital Radiography and ensure proper technician training for accurate results and effectiveness.
5. Regular Training and Certification
To maintain high standards in NDT, inspectors must undergo regular training and certification. This ensures that they are up to date with the latest NDT Techniques and industry standards, which is crucial for performing efficient and accurate inspections.
6. Utilising Advanced Technologies
Advancements in technology, such as automated inspection systems and digital imaging, have significantly improved the efficiency and accuracy of NDT. Utilising these technologies can reduce inspection times and enhance defect detection.
7. Continuous Monitoring and Feedback
Implementing a system of continuous monitoring and feedback helps identify areas for improvement in the NDT process. Regular reviews of inspection procedures and outcomes ensure that the process remains efficient and effective.
Types of NDT Methods
NDT encompasses a variety of methods, each suited to different types of materials and defects. Some of the most widely used NDT testing methods are Visual Testing, Ultrasonic Testing, Radiographic Testing, Magnetic Particle Testing, Liquid Penetrant Testing, and Eddy Current Testing.
1. Visual Testing
Visual Testing is the most basic form of NDT, where inspectors visually examine the surface of a material for any signs of damage or defects. While simple, it’s an essential first step in many inspection processes.
2. Ultrasonic Testing
Ultrasonic Testing uses high-frequency sound waves to detect internal flaws in materials. This method is particularly effective for inspecting thick materials and is commonly used in the aerospace and automotive industries.
3. Radiographic Testing

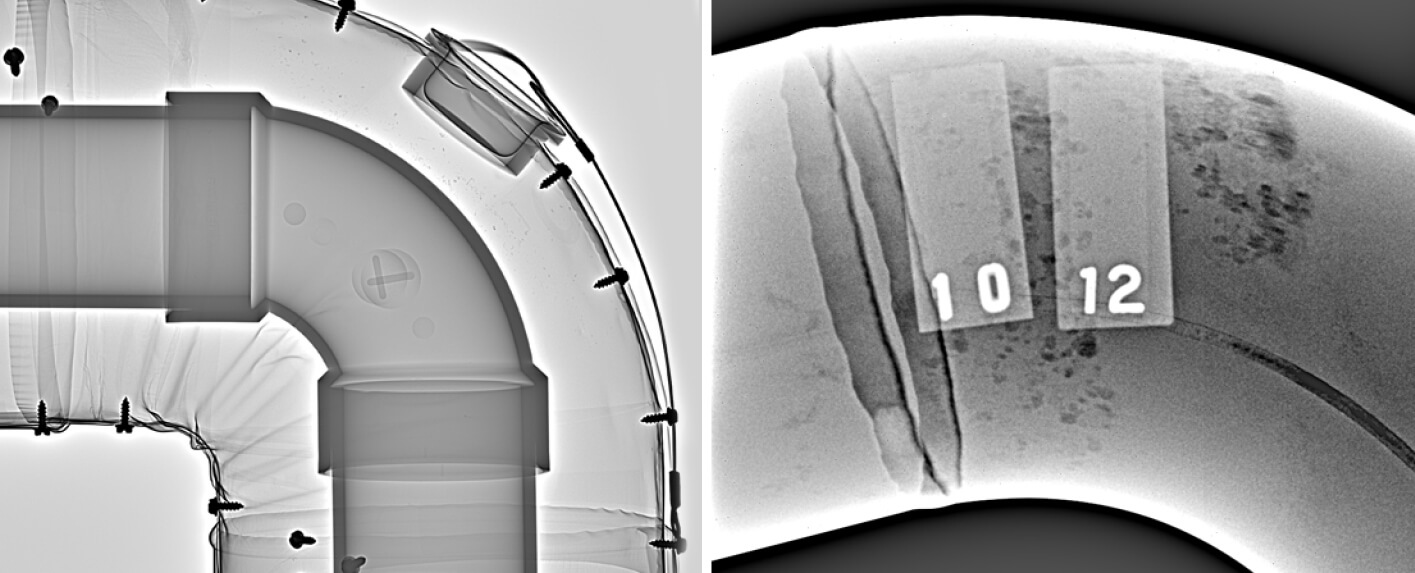

Radiographic Testing involves the use of X-rays or gamma rays to produce images of the internal structure of a component. It’s similar to medical radiography but is used to inspect materials like metals and composites.
4. Magnetic Particle Testing
Magnetic Particle Testing is used to detect surface and near-surface defects in ferromagnetic materials. It involves applying a magnetic field to the material and then sprinkling it with magnetic particles, which cluster around defects, making them visible.
5. Liquid Penetrant Testing
Liquid Penetrant Testing is used to identify surface-breaking defects in non-porous materials. The process involves applying a liquid penetrant to the surface, allowing it to seep into cracks, and then removing the excess liquid before applying a developer that draws out the penetrant from the defects.
6. Eddy Current Testing
Eddy Current Testing is used to detect surface and sub-surface defects in conductive materials. It works by inducing electrical currents in the material and measuring the response, which changes in the presence of defects.
Key Takeaways
- The NDT is continuously evolving, with advancements in technology leading to more precise and efficient inspection methods.
- As industries continue to demand higher safety and reliability standards, NDT will play an increasingly critical role in ensuring the integrity of materials and structures.
- To stay competitive in the NDT field, it’s essential to stay informed about the latest developments, invest in continuous education, and adopt new technologies.
- By doing so, you’ll be well-equipped to perform efficient and accurate NDT inspections, meeting the ever-growing demands of modern industries.
FAQs
1. How does NDT ensure safety in industrial applications?
A: NDT ensures safety by detecting defects and inconsistencies in materials and structures before they lead to failures. This allows for timely maintenance and repairs, preventing accidents and ensuring the reliability of critical components.
2. Can NDT be used on all materials?
A: NDT can be used on a wide range of materials, including metals, composites, ceramics, and plastics. However, the choice of NDT method will depend on the material’s properties and the type of defects being sought.
3. How often should NDT be performed?
A: The frequency of NDT depends on the industry, the material or structure being inspected, and regulatory requirements. Regular inspections are required by law in some industries, while usage or environmental factors may also call for inspections.
4. What are the challenges of NDT?
A: Challenges in NDT include the need for highly skilled personnel, the cost of advanced equipment, and the difficulty of detecting very small or subsurface defects. Additionally, certain NDT methods may be limited by the material properties or the environment in which the inspection is conducted.
