Introduction
Computed Radiography (CR) and Digital Radiography (DR) are two digital techniques within Radiographic Testing (RT), one of the core NDT methods. Both replaced film, but they go about it in completely different ways.
Within the field of X-ray imaging, these two technologies represent distinct approaches for capturing and processing radiographic data, each possessing its own unique set of advantages and limitations.
Originating in the 1980s, Computed Radiography has historical roots and serves as a transitional technology between traditional film-based radiography and the digital age.
It relies on special plates containing photostimulable phosphors that retain X-ray images when exposed.
These latent images are subsequently converted into a digital format through laser scanning.
On the other hand, Digital Radiography, a more recent innovation emerging in the late 20th century, uses solid-state detectors — either amorphous selenium panels, which convert X-rays straight into charge, or amorphous silicon panels, which first convert X-rays to light using a scintillator such as cesium iodide.
This technology eliminates the need for traditional chemical processing and delivers real-time results with exceptional image clarity.
Exploring the fundamental distinctions between Computed Radiography and Digital Radiography offers a comprehensive understanding of their unique attributes.
This knowledge empowers informed decision-making across diverse applications, ranging from healthcare to industrial flaw detection.
This article delves into the fundamental disparities between Computed Radiography and Digital Radiography, exploring the principles, functions, and components of these technologies.
As the field of radiography continues to evolve, understanding the distinctions between CR and DR becomes increasingly vital for informed decision-making in healthcare, industry, and beyond.
The Basic Principles of Computed Radiography
Computed Radiography (CR) is a radiographic imaging technique that enables the capture of X-ray images in a digital format.
It's widely used in healthcare for medical diagnostics and in various industries for Non-destructive Testing.
CR technology has been instrumental in improving image quality, storage, and transmission of radiographic data.
The basic principles used in Computed Radiography include:
Phosphor Plate Sensitization
The core of CR technology is a photostimulable phosphor plate.
This plate is highly sensitive to X-ray radiation. When exposed to X-rays, the phosphor absorbs that energy and pushes electrons into trapped, higher-energy states known as color centers. The plate now holds a latent image that stays there until it is read out.
X-ray Exposure
When a patient or object is exposed to X-rays, some of the radiation passes through and interacts with internal structures or materials.
The X-rays that pass through the object interact with the CR phosphor plate placed behind it.
Latent Image Formation
The interaction between X-rays and the CR phosphor plate results in the formation of a latent (invisible) image.
The trapped electrons hold that image until the plate is read out.
Plate Retrieval
After X-ray exposure, the Computed Radiography phosphor plate is removed from the X-ray cassette and processed within a CR reader device.
Laser Scanning
In the CR reader, a laser scans the phosphor plate.
The energy from the laser light releases the trapped electrons, which drop back to their ground state.
As they do so, they emit visible light in proportion to the amount of energy stored during X-ray exposure.
Light Detection
The emitted light is captured by a photosensitive detector within the Computed Radiography reader, converting the light into an electrical signal.
Digital Conversion
The electrical signals are then processed and converted into digital data.
Each part of the plate corresponds to a pixel in the digital image, with varying intensity values based on the X-ray exposure.
Image Display and Analysis
The digital image can be displayed on a computer screen, allowing for manipulation, analysis, and enhancement of the radiographic data.
This digital format facilitates easy storage, transmission, and sharing of images.
Computed Radiography involves the use of a photostimulable phosphor plate to capture X-ray images.
It utilizes the principles of energy absorption, latent image formation, and subsequent digital conversion to create high-quality digital radiographs.
This technology has significantly advanced the field of radiography by providing efficient, flexible, and easily accessible imaging solutions.
Function of Computed Radiography (CR) in Radiography
Computed Radiography serves several vital roles in radiography:
Image Acquisition
CR technology captures X-ray images digitally, enabling detailed examination of internal structures in medical diagnoses and industrial inspections.
Image Enhancement
CR systems often incorporate software tools for improving image quality by adjusting contrast, brightness, and sharpness, enhancing diagnostic precision.
Storage and Retrieval
CR stores digital images electronically, eliminating the need for physical film storage. It facilitates easy retrieval and comparison of past images.
Transmission and Sharing
Digital CR images can be electronically transmitted, enabling remote consultations and image sharing among professionals, particularly valuable in telemedicine and collaboration.
Quantitative Analysis
CR technology permits precise measurements and quantitative analysis of image structures, useful for wall-thickness measurement on pipework, corrosion depth estimation, and sizing weld defects against known reference standards.
Dose Reduction
CR has a much wider exposure latitude than film, so shots that would have been scrapped as under- or over-exposed can often still be salvaged. That cuts down on retakes and, with them, cumulative dose. It's worth being clear though — dose per exposure isn't automatically lower than film, and CR is generally less dose-efficient than a modern flat panel.
Components of Computed Radiography
Computed Radiography systems comprise several essential elements:
X-ray Source
The radiation source used for exposing the subject or object to X-rays.
Phosphor Plates
These imaging receptors replace traditional X-ray film and store X-ray energy using photostimulable phosphor materials.
Cassettes
Light-tight cassettes enclose the phosphor plates, safeguarding them from light and contaminants.

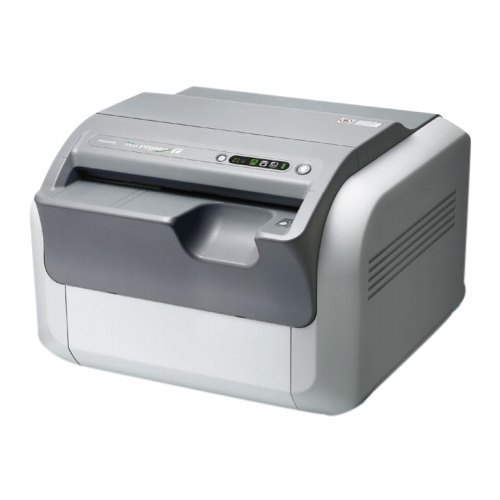

CR Reader
After exposure, the cassettes are inserted into a Computed Radiography reader. This device includes a laser system for scanning the phosphor plates and a detector for capturing the emitted light.
Computer System
A computer system processes and displays radiographic images, featuring software for image manipulation, enhancement, storage, and retrieval.
Display Monitor
Digital radiographic images are presented on a computer monitor for interpretation by radiologists, clinicians, or inspectors.
Network Integration
Many CR systems are seamlessly integrated into healthcare or industrial networks, allowing effortless image transmission to various destinations, including picture archiving and communication systems (PACS) or remote workstations.
Quality Control Features
Computed Radiography systems may incorporate quality control features like automatic exposure control and calibration to ensure image accuracy and consistency.
Computed Radiography fulfills essential functions in radiography, encompassing image acquisition, enhancement, storage, transmission, analysis, and dose management.
Its core components include X-ray sources, phosphor plates, cassettes, CR readers, computer systems, monitors, network connectivity, and quality control tools, collectively delivering efficient and high-quality digital radiographic imaging.

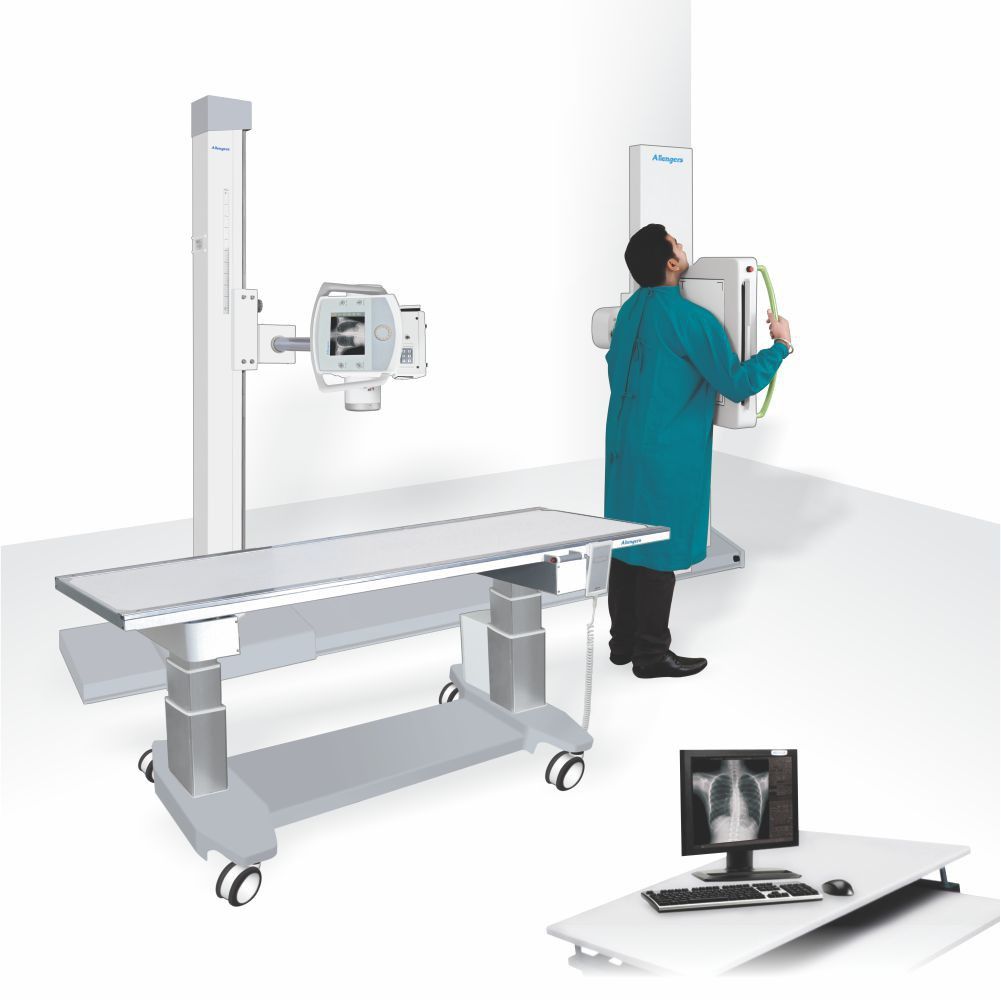

Basic Principles of Digital Radiography
Digital Radiography (DR) is a state-of-the-art radiographic imaging technique that has revolutionized the field of medical diagnostics and industrial Non-destructive Testing.
Unlike traditional film-based radiography, Digital Radiography captures and processes X-ray images in a digital format, offering several advantages, including real-time image acquisition, enhanced image quality, efficient workflow, and precise dose control.
DR systems use solid-state detectors that convert the X-ray signal into an electrical charge, either directly or via a scintillator, giving you an image within seconds of the exposure.
In this section, we will explore the fundamental principles and components of Digital Radiography, shedding light on its technological intricacies and key functions in the realm of radiological imaging.
Digital Radiography relies on advanced technology to capture and process X-ray images. Its basic principles include:
Direct Conversion
DR detectors come in two types, and it's worth knowing which one you're buying. Direct conversion panels use amorphous selenium to turn X-ray photons straight into electrical charge, with no light stage in between — this gives sharper edges because there's no light spread. Indirect conversion panels, which are far more common in industry, use a scintillator such as cesium iodide or gadolinium oxysulfide to convert X-rays into visible light, which an amorphous silicon or CMOS photodiode array then reads as charge. Indirect panels are usually more rugged and cheaper; direct panels usually win on resolution.
Digital Signal
The electrical charges generated by X-ray interaction are converted into a digital signal, creating a digital image with a wide dynamic range and excellent contrast.
Immediate Image Acquisition
DR systems provide real-time or near-real-time image acquisition. Faster capture means fewer wasted shots and less repeat exposure.
Dose Optimization
DR systems can adjust exposure levels in real time, optimizing radiation dose while maintaining image quality.
Function of Digital Radiography (DR) in Radiography
Digital Radiography serves several crucial functions in radiography:
High-Quality Imaging
Digital Radiography technology offers exceptional image quality, with high resolution and contrast, enabling accurate diagnosis and visualization of anatomical structures.
Efficiency
Digital Radiography systems provide rapid image acquisition and immediate results, streamlining workflow in healthcare and industry.
Dose Reduction
Digital Radiography allows for precise dose control, minimizing radiation exposure to patients and workers.
Image Storage and Retrieval
Digital images are stored electronically, making it easy to archive and retrieve past radiographs for comparison and analysis.
Digital Enhancement
DR systems offer image processing tools for adjusting contrast, brightness, and other parameters to improve diagnostic accuracy.
Components of Digital Radiography
The key components of Digital Radiography consist of the following:
X-ray Machine
The X-ray source generates ionizing radiation used for imaging.
Digital Detector Panel
This panel replaces film or phosphor plates. Depending on the type, it either converts X-ray photons straight into charge (a-Se) or converts them to light first and then to charge (a-Si or CMOS with a scintillator). Panels are also available as linear diode arrays for in-line and rotating-scan work.
Control Console
The console controls exposure parameters, image processing, and image display.
Computer System
A computer processes, stores, and displays digital images. It includes software for image manipulation and analysis.
Monitor
Digital radiographic images are viewed and interpreted on a computer monitor.
Network Connectivity
DR systems are often integrated into healthcare or industrial networks for image sharing, storage, and transmission.
Quality Control Tools
DR systems may include features like automatic exposure control and calibration to ensure image quality and consistency.
Digital Radiography converts the X-ray signal into an electrical charge inside the detector itself, which is what gives it the speed, image quality and dose control it's known for.
Its components include the X-ray machine, digital detector panel, control console, computer system, monitor, network connectivity, and quality control tools, collectively providing efficient and high-quality digital radiographic imaging.

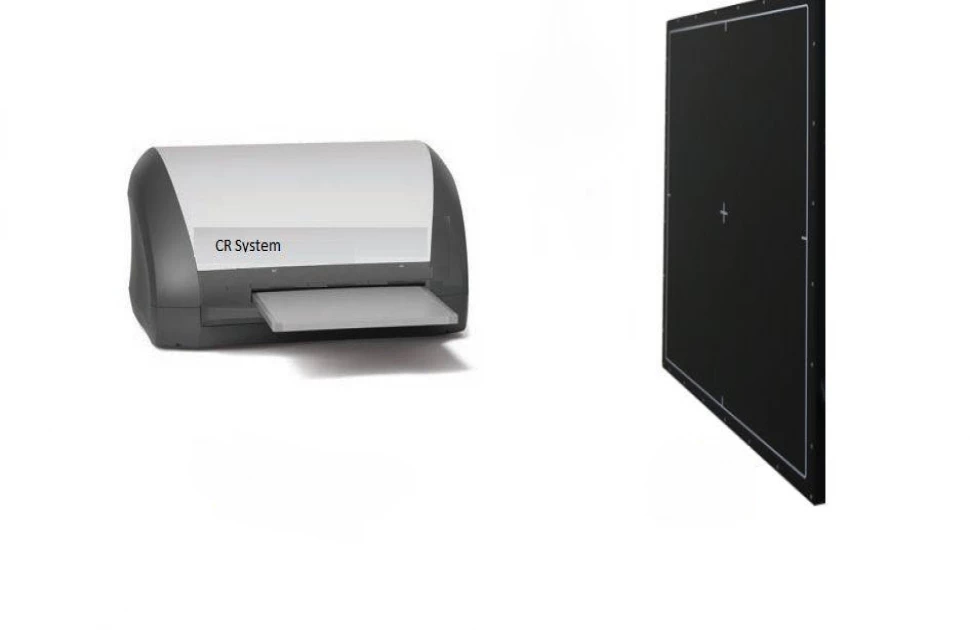

Summarization of the Differences between Computed Radiography and Digital Radiography
Parameter | Computed Radiography (CR) | Digital Radiography (DR) |
|---|---|---|
Image capture | A reusable photostimulable phosphor plate holds a latent image, which a laser reads out later in a CR scanner. | A detector panel converts the X-ray signal into charge on the spot. No plate, no scanner. |
Image quality | Depends on plate condition, scan settings and processing parameters, so it varies from plate to plate. | More consistent, with better SNR and dynamic range. The trade-off is that basic spatial resolution is fixed by pixel pitch. |
Acquisition time | Roughly one to three minutes per plate once scanning and erasing are counted. | Seconds. The image is on screen almost as soon as the exposure ends. |
Workflow | You handle the cassette, load the plate, scan it, erase it, reload. Fine for a handful of shots, tedious over hundreds. | Expose and review. The value shows up when you're repeating the same shot again and again. |
Flexibility on site | Strong. Plates are thin and flexible, so they wrap around the pipe and slot into tight spaces. | Limited. Panels are rigid and bulky, though flexible detectors are starting to reach the market. |
Dose | Wide exposure latitude helps, but lower DQE usually means longer exposures than DR. | Higher DQE, so shorter exposures for the same image quality. |
Maintenance | The scanner needs regular servicing, and plates scratch and pick up artifacts over time. Treat them as consumables. | Fewer moving parts, but a dropped panel is an expensive repair rather than a cheap swap. |
Initial cost | Lower. You can usually keep your existing X-ray source and just add plates and a scanner. | Considerably higher upfront, with the payback coming from throughput. |
Best suited to | Field and rope-access work, pipeline girth welds, CUI surveys, awkward geometry and low-volume inspection. | Fixed installations, in-line production inspection, castings and high-volume repeat work. |
Conclusion
The disparities between Computed Radiography and Digital Radiography manifest in various aspects.
Digital Radiography (DR) notably excels in image quality, acquisition speed, workflow efficiency, and dose optimization because the detector converts the X-ray signal into a digital one on the spot, with no plate handling or scanning in between.
However, it is imperative to emphasize that the choice between Computed Radiography (CR) and Digital Radiography (DR) should not be based solely on these differences.
Factors like budget constraints and specific application needs must be considered when making a decision.
Looking ahead, both Computed Radiography (CR) and Digital Radiography (DR) will continue to hold significant roles in radiography.
Computed Radiography may remain a cost-effective choice in certain situations, while DR is poised for further advancement, potentially integrating innovations such as artificial intelligence for image analysis and optimization.
The future holds promise for the ongoing evolution and enhancement of these technologies, solidifying their vital roles in the field of radiological imaging.
In practice, most inspection companies end up running both, CR for field work and awkward geometry, DR for the fixed, repetitive jobs.
Their continued coexistence ensures a comprehensive approach to radiographic imaging, addressing a wide spectrum of requirements and challenges in the years to come.
Key Takeaways
Digital Radiography (DR) offers superior image quality, speed, workflow efficiency, and dose optimization because conversion happens inside the detector, with no intermediate plate or scanning step.
The choice between Computed Radiography (CR) and Digital Radiography (DR) should consider factors such as budget constraints and specific application needs.
Both technologies will continue to play vital roles in radiography, with DR poised for further advancements.
References
- ASTM E2007 – Standard Guide for Computed Radiography
- ASTM E2445 / E2446 – Standard Practice for Classification and Qualification of Computed Radiography Systems
- ASTM E2597 – Standard Practice for Characterization of Digital Detector Arrays
- ISO 17636-2 – Non-destructive testing of welds — Radiographic testing with digital detectors
- NDT Resource Center — Radiography section
