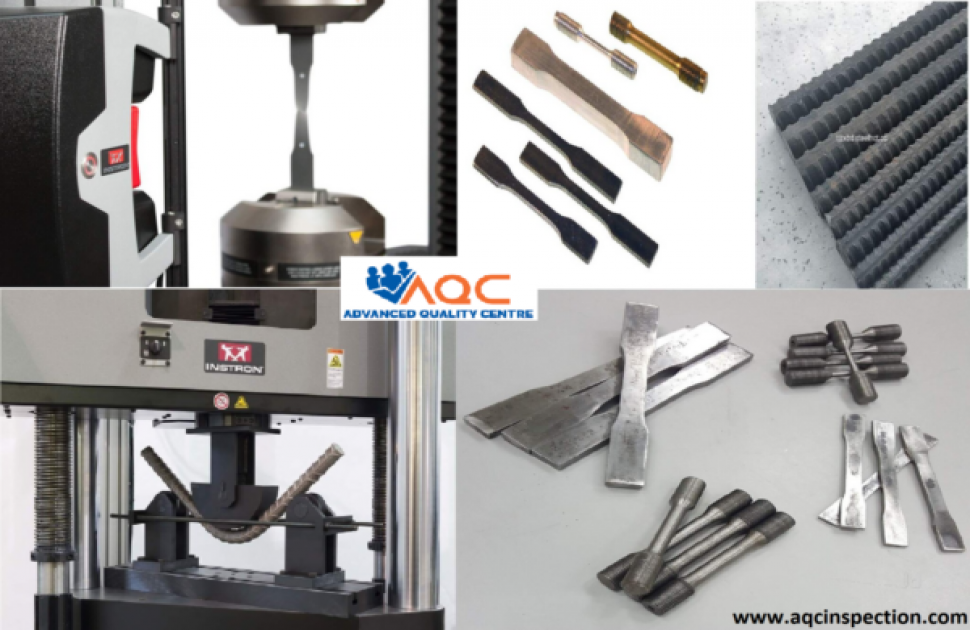

What is Mechanical Testing or Material Testing?
Mechanical testing involves finding the strength of the material or quality of the material by application of load mechanically.
There are different mechanical tests for materials. They are the Tensile Test, Bend Test, Impact Test, Macro Etch Test, Micro Analysis, Intergranular Corrosion Test, Vickers Hardness Test, Brinell Hardness Test, and Spectro Chemical Analysis.
What are the Types of Mechanical Testing?
There are 6 types of Mechanical Testing. Mechanical Testing plays a crucial role in understanding the behaviour and properties of materials under various conditions.
These tests provide essential data for engineers and researchers to assess the suitability, reliability, and performance of materials in different applications.
Here are six types of mechanical testing methods used to measure the strength and characteristics of materials:
1. Tensile Testing
Tensile Testing Determines the tensile strength, yield strength, and elongation of a material by subjecting it to axial tension until failure.
Key parameters include ultimate tensile strength (UTS) and modulus of elasticity.

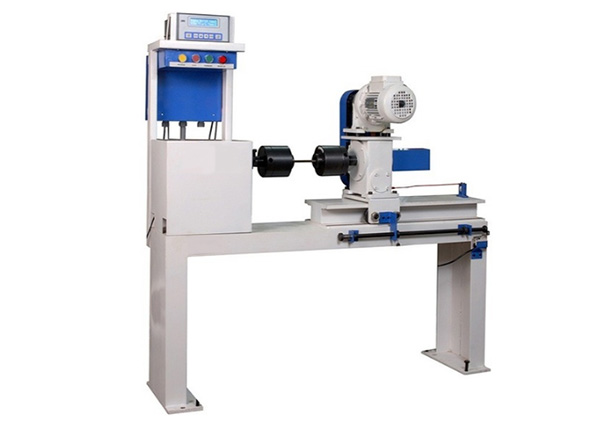

2. Torsion Testing
Evaluates a material's resistance to twisting or torsional loading.
Provides insights into shear strength, modulus of rigidity, and ductility.
3. Fatigue Testing
Assesses a material's endurance limit and fatigue life by subjecting it to repeated cyclic loading.
Essential for predicting failure due to cyclic stresses, common in structural components.

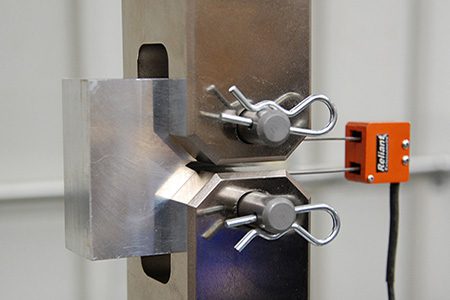

4. Fracture Mechanics Testing
Analyzes a material's resistance to crack propagation and fracture toughness.
Helps in understanding how defects and cracks affect the structural integrity of materials.

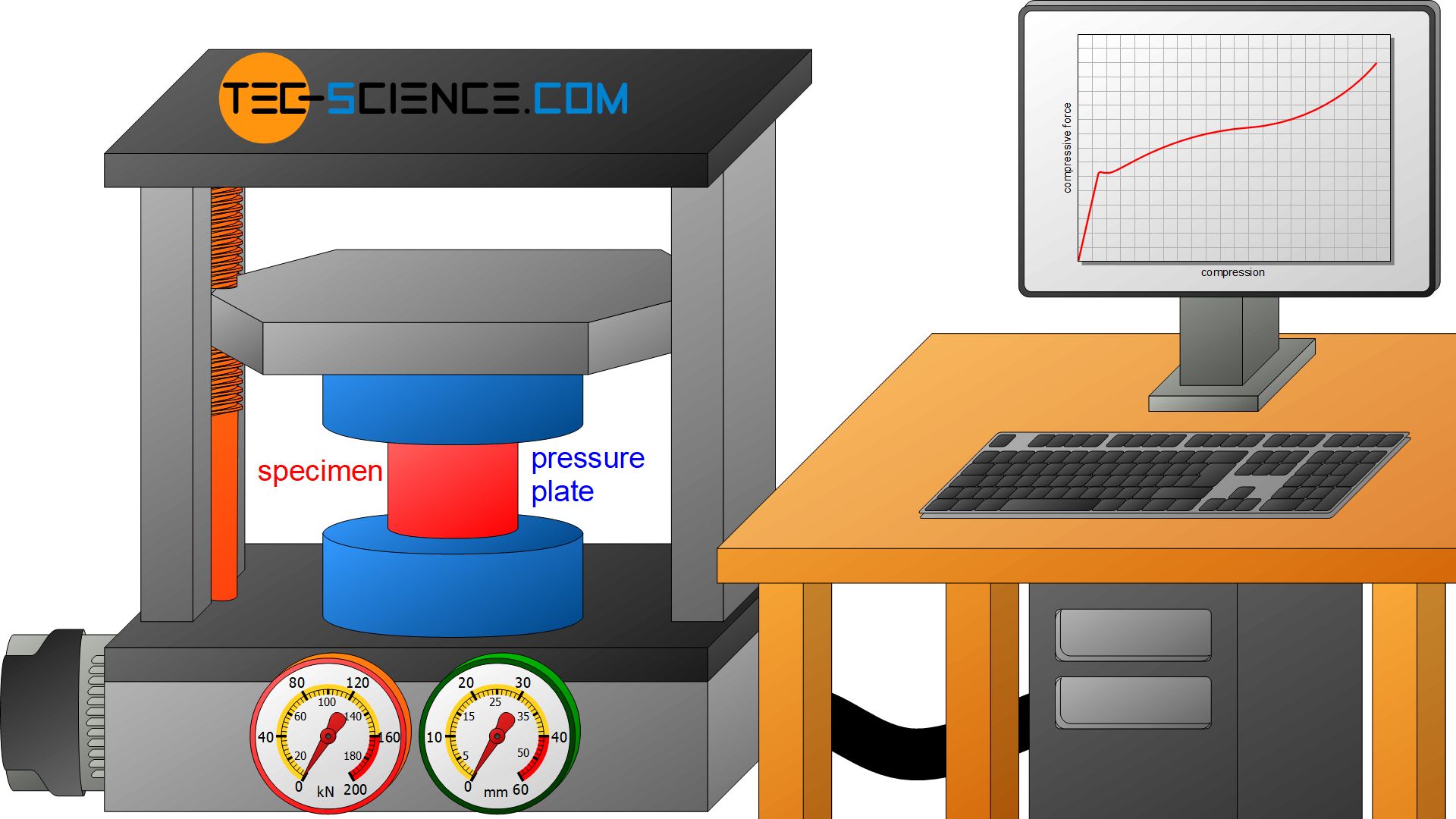

5. Compressive Testing
Determines the compressive strength and behaviour of materials under crushing or squashing loads.
Crucial for assessing the stability and load-bearing capacity of structures and components.

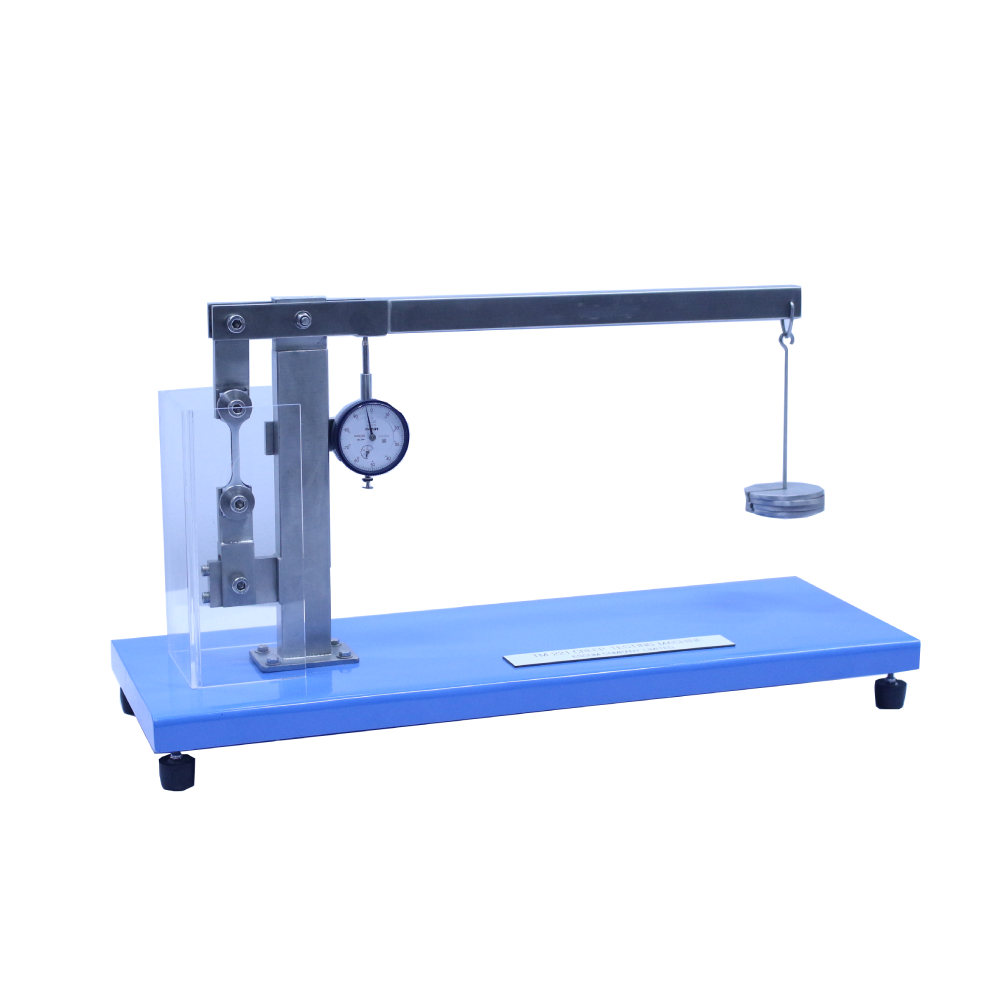

6. Creep Testing
Examines a material's deformation over time under constant load and elevated temperatures.
Essential for understanding the long-term behaviour and performance of materials in high-temperature applications.
These mechanical testing methods provide valuable insights into material behaviour, aiding in the design, selection, and quality control of materials across various industries.
Material Test Reports (MTRs) summarise the results of these tests, providing essential information for material specifications and quality assurance processes.
Metallurgical testing supplements mechanical analysis, offering deeper insights into material microstructures and properties.

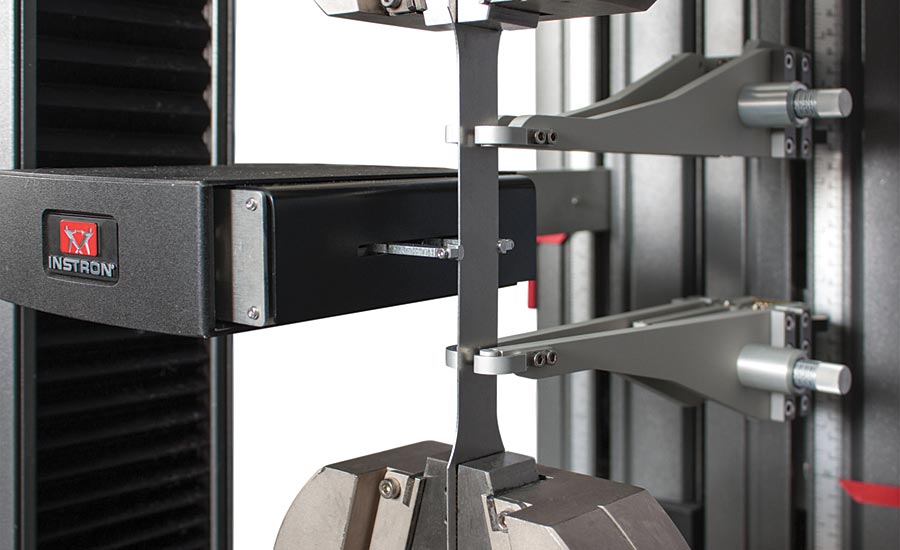

Why is Mechanical Testing on Materials Required?
Mechanical tests mentioned above are essential for materials to conclude the quality of materials.
The material grades are designed for some specific application, to withstand the loads and environment in the application.
The materials grades should achieve the minimum specified property.
These minimum required quality specifications are verified by the manufacturer after pouring the material and the manufacturer should provide a mill test report.
Tests to Measure Materials Mechanical Properties
Mechanical properties of materials are essential for assessing their suitability and performance in various applications.
Several tests are employed to measure these properties accurately:
1. Impact Testing
Impact testing evaluates a material's ability to withstand sudden loading or shock.
It helps determine the material's toughness and resilience, crucial for applications subjected to impact or dynamic loading conditions.
Common methods include Charpy and Izod tests, which measure the energy absorbed by a material during fracture.
2. Hardness Testing
Hardness testing measures a material's resistance to indentation or scratching.
It provides valuable information about the material's strength, wear resistance, and machinability.
Techniques such as Rockwell, Brinell, and Vickers hardness tests are widely used to quantify hardness.
3. Corrosion Resistance
Corrosion resistance testing assesses a material's ability to withstand degradation when exposed to corrosive environments.
It helps in selecting suitable materials for applications where corrosion is a concern, such as marine, aerospace, and chemical industries.
Various methods, including salt spray testing and electrochemical techniques, are employed to evaluate corrosion resistance.
NDT Methods enable the assessment of material properties and integrity without causing damage to the specimen.
They are essential for inspecting components in service or during manufacturing without compromising their structural integrity.
Common NDT techniques include Ultrasonic Testing (UT), radiographic testing (RT), magnetic particle testing (MPT), and Liquid Penetrant Testing (LPT).
Non-destructive testing (NDT) and Non-destructive Evaluation (NDE) are integral parts of material testing and quality control processes, ensuring the reliability and safety of engineered components and structures.
These NDT Methods provide valuable insights into material conditions, defects, and performance characteristics, facilitating informed decision-making in various industries.

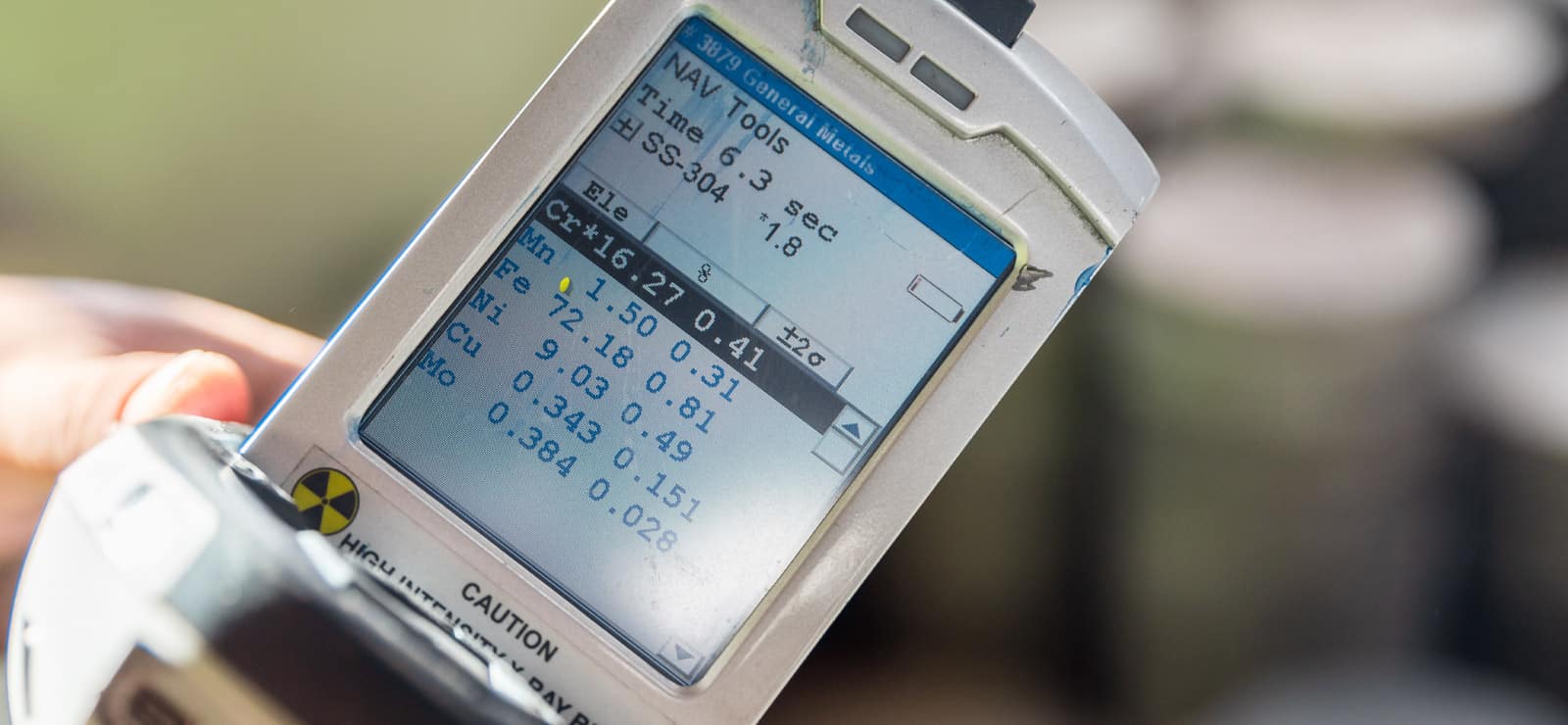

What is MTC / What is Mill Test Report?
Mill test reports MTC are also called Material Test Reports.
It is a quality document produced by the manufacturer that conforms to the created material and meets the Chemical content and Physical property requirements mentioned in the standard.
A Mill Test Certificate should mention the Standard that it follows. The material, which is tested for, the heat Number for the pouring, and the Dimensions of the material.
Chemical composition noted, Physical Properties such as Tensile strength, Yield Strength, Elongation property, and Impact Property if required for the grade. Hardness property if required for the grade and additional special property if anything is required as per standard.
Types of Mill Test Report
There are two types of MILL Test Report as per EN 10204,
a) MTC 3.1 – Is issued by the manufacturer with no involvement of a customer representative or a third-party witness.
b) MTC 3.2 – The test is carried out by the Manufacturer in the presence of a Customer Representative, or a third-party witness authorized by the customer.

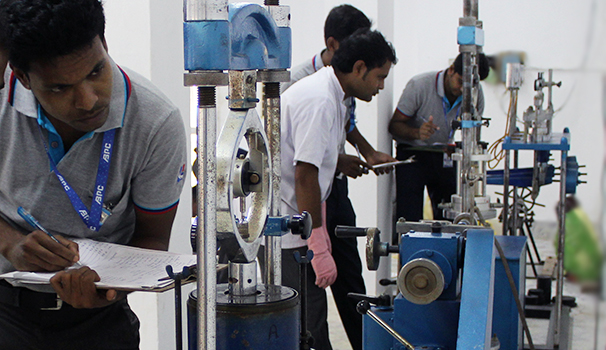

Mechanical Tests by Material Testing Laboratories
Material testing laboratories conduct a variety of mechanical tests to assess the properties and performance of materials:
- Tensile testing, torsion testing, hardness testing, impact testing, and fatigue testing are common methods employed.
- These tests provide crucial data on a material's strength, ductility, toughness, and other mechanical properties.
- Material test reports (MTRs) summarise the results, aiding in material selection, quality control, and compliance with industry standards.
- Metallurgical testing supplements mechanical analysis, offering insights into material microstructures and behaviour.
Is Industrial Mechanical Testing Important?
Industrial mechanical testing is of paramount importance for several reasons:
- It ensures the reliability, safety, and performance of engineered components and structures.
- Mechanical testing helps identify material defects, weaknesses, and failure modes, enabling preventive measures to be taken.
- Compliance with regulatory standards and industry specifications necessitates thorough mechanical testing.
- It facilitates research and development efforts, leading to the advancement of materials and technologies.
Why Should You Invest in Mechanical Testing?
Investing in mechanical testing offers numerous benefits
- It assures material quality and suitability for intended applications, reducing the risk of product failure and liability.
- Early detection of material issues through testing can prevent costly recalls, repairs, or accidents.
- Mechanical testing aids in the optimization of material selection, design, and manufacturing processes, leading to improved product performance and longevity.
- Demonstrating compliance with mechanical property requirements enhances market competitiveness and customer trust.
- Mechanical testing is indispensable for ensuring the integrity, performance, and safety of materials and products across various industries.
- Investing in comprehensive mechanical testing not only mitigates risks but also fosters innovation and quality improvement initiatives.
Key Takeaways
Mechanical testing encompasses various methods like tensile, torsion, and impact testing, essential for evaluating material strength and performance.
Material Test Reports (MTRs) provide critical data summarizing test results, aiding in material selection and quality assurance.
Investing in mechanical testing ensures product reliability, safety, and compliance with industry standards, enhancing competitiveness and customer trust.
FAQs
1. What are the benefits of investing in mechanical testing?
Ans: Mechanical Testing ensures material quality, detects issues early, optimizes processes, and demonstrates compliance.
2. Why is industrial mechanical testing important?
Ans: It ensures reliability, safety, and compliance, and fosters innovation in materials and technologies.
