Transforming Non-destructive Testing Procedures Through Robotics

Transforming Non-destructive Testing Procedures Through Robotics

Table Of Contents

  • Introduction
  • Why is Robotics Equipment popular in NDT?
  • Examples of Robotics Technology Applications in NDT
  • The Growth of Robotics Industries
  • Robotics Inspection Technologies
  • Conclusion

Introduction

In the chronicles of technological evolution, the advent of robotics stands as a testament to human ingenuity and innovation.

Its origin, rooted in the mid-20th century, coincided with the captivating visions of science fiction luminary Isaac Asimov, who introduced the world to his 'Three Laws of Robotics,' envisioning a harmonious coexistence between machines and humanity.

These laws not only sparked our imaginations but also laid the ethical and moral foundation for the development of intelligent machines.


Since those early days, the field of robotics has not only flourished but also gained unprecedented momentum.

Its integration into various industries has been nothing short of transformative.

Robotics is no longer confined to the realm of speculative fiction; it has become an indispensable reality.

From revolutionizing manufacturing processes and precision surgery in healthcare to enhancing space exploration and simplifying everyday tasks, the impact of robotics spans a vast spectrum of applications.

This article delves into the remarkable journey of robotics, from its humble origins to its status as a driving force reshaping the landscape of modern civilization.

Why is Robotics Equipment popular in NDT?

The incorporation of robotics into the domain of Non-destructive Testing (NDT) marked a pivotal moment in the field's evolution.

This fusion of technology and NDT found its initial roots in the late 20th century, particularly during the 1980s and 1990s.

In this era, advancements in computer technology and robotics engineering converged, leading to the creation of specialized robotic equipment tailored for NDT applications.

The key driving force behind the rapid adoption of robotics in NDT lies in its ability to enhance precision, efficiency, and safety.

Unlike human inspectors, robotic systems can navigate challenging environments, such as pipelines, hazardous areas, or remote locations, with exceptional precision and consistency.

They can tirelessly conduct inspections, often in real-time, and capture extensive data with superior accuracy.

Furthermore, robots can execute these tasks without requiring breaks, significantly reducing downtime and associated costs.

This fusion of advanced robotics and NDT not only streamlines inspection processes but also elevates the reliability and comprehensiveness of data acquisition, ensuring the integrity of critical infrastructure and industrial components.

Robotics is vital to Non-destructive Testing processes for the following reasons:

  • Enhanced Precision:

Robots can execute Non-destructive Testing inspections with high precision, minimizing the risk of human error and ensuring accurate and consistent results.

  • Remote Inspection:

In hazardous or hard-to-reach environments, robots allow for remote inspection, protecting human operators from potential dangers such as radiation, extreme temperatures, or confined spaces.

  • Consistency:

Robots maintain a consistent inspection speed and methodology, reducing variability in results compared to human inspectors.

  • Efficiency:

Automation through robotics speeds up the inspection process, leading to faster turnaround times and increased productivity in industries that rely on NDT.

  • Repeatability:

Robots can repeatedly inspect the same components with the same level of accuracy, making them ideal for quality control and long-term monitoring.

  • Access to Confined Spaces:

Robots can access tight or confined spaces that may be challenging or unsafe for human inspectors, making them valuable for inspecting pipelines, tanks, and complex machinery.

  • Data Collection:

Robots can collect and record vast amounts of data during inspections, which can be analyzed for trends and used for predictive maintenance.

  • Reduced Downtime:

Robotic NDT inspections can often be conducted while machinery or equipment is in operation, minimizing downtime for maintenance.

  • Cost-Effective:

Over time, robotic NDT can be more cost-effective than manual inspection, as it reduces labor costs and improves overall efficiency.

  • Safety:

By eliminating or reducing the need for humans to perform NDT in dangerous environments, robotics enhances safety and reduces the risk of accidents or exposure to hazardous substances.

  • 24/7 Operations:

Robots can work around the clock, allowing for continuous monitoring and inspection, which is particularly valuable in industries like energy production and aerospace.

  • Advanced Sensors:

Robots can be equipped with a variety of advanced NDT sensors and tools, expanding the range of inspections they can perform and improving detection capabilities.

  • Quality Assurance:

Robotic NDT helps ensure that products and structures meet quality standards and regulatory requirements, reducing the likelihood of defects going unnoticed.

  • Documentation:

Robotic systems can automatically generate detailed inspection reports, including images and data, for documentation and compliance purposes.

  • Complex Geometry:

Robots can adapt to inspect components with complex shapes and geometries, where manual inspections may be challenging.

Robotics in NDT offers a multitude of advantages, including precision, safety, efficiency, and the ability to access challenging environments.

These benefits make robotic NDT a valuable tool in various industries where quality control and asset integrity are paramount.

Don't Miss Out, Step By Step Guide: How To Create Accurate Pipeline Isometric Drawings

Examples of Robotics Technology Applications in NDT

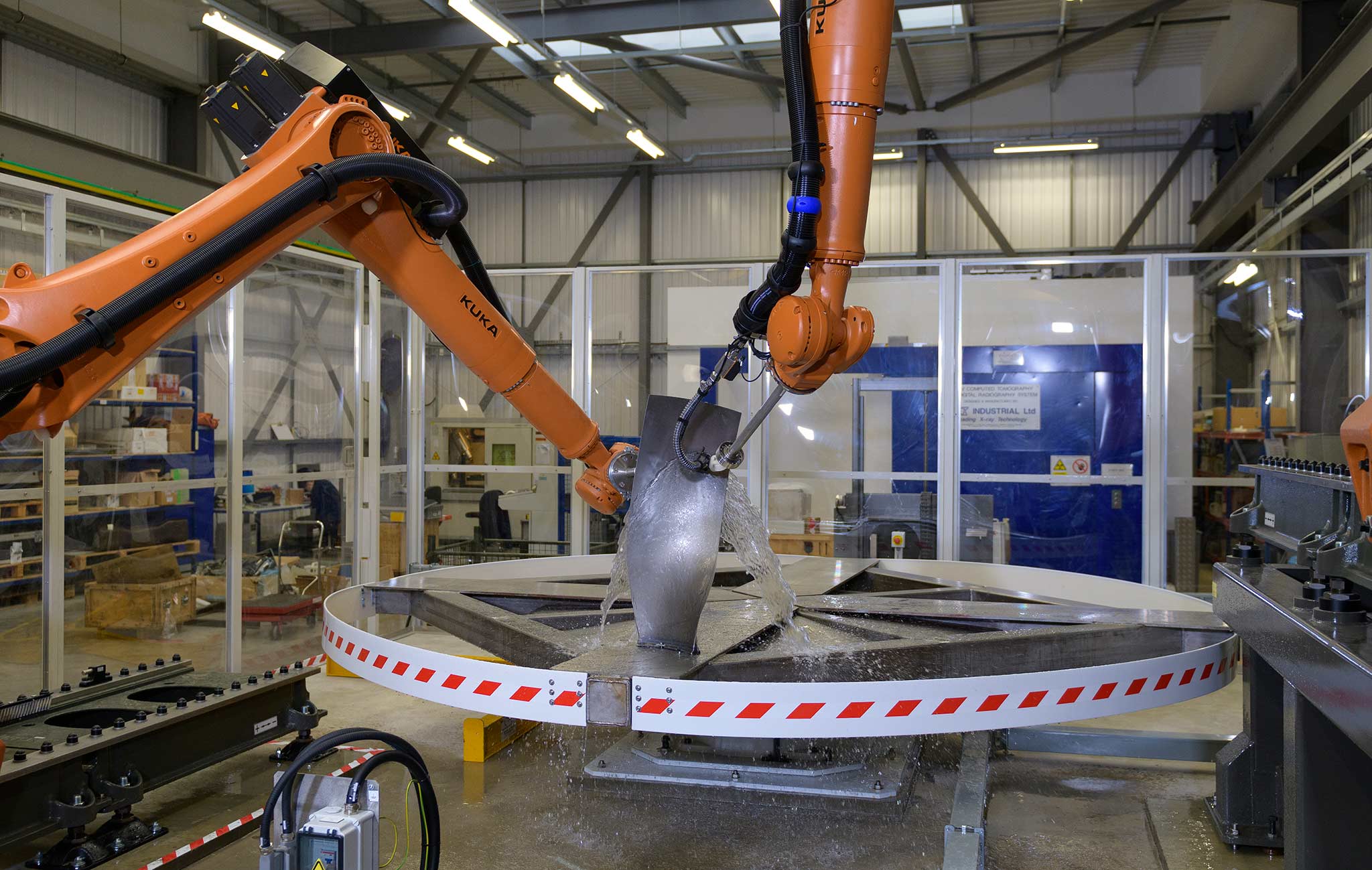

The applications of Robotics in Non-destructive Testing include:

  • Weld Examination:

Robotic arms equipped with NDT sensors like ultrasonic or eddy current probes can meticulously scan welds in industries like manufacturing, construction, and aerospace to identify flaws and ensure structural integrity.

  • Pipeline Inspection:

Specialized robotic crawlers or autonomous drones are deployed to evaluate both the inner and outer surfaces of pipelines, searching for corrosion, cracks, and other defects, thus averting leaks and environmental harm.

  • Nuclear Sector:

Within nuclear power plants, robots play a vital role in remotely inspecting critical components such as reactor vessels and steam generators, where radiation makes human access impossible.

  • Aircraft Examination:

Robotic systems are utilized for scrutinizing aircraft surfaces and components, seeking hidden defects, fatigue cracks, and other issues to guarantee aviation safety.

  • Underwater Assessment:

Submersible robots equipped with NDT capabilities are used for examining underwater structures such as offshore oil platforms, bridges, and ship hulls, where human divers may face hazards.

  • Preservation of Historical Artifacts:

Robots equipped with NDT sensors are employed to inspect and safeguard historical artifacts like paintings and sculptures, all without physical contact.

  • Quality Control in Automotive Manufacturing:

Robotic arms equipped with ultrasonic or laser-based Non-destructive Testing systems assess automotive components, including welds and body panels, to uphold quality and safety standards.

  • Wind Turbine Blade Checkup:

Drones equipped with cameras and NDT sensors evaluate the integrity of wind turbine blades, aiding in the early identification of damage and improving energy efficiency.

  • Railway Track Evaluation:

Autonomous robots or drones fitted with sensors verify railway tracks for defects, wear and tear, and misalignments, thus preventing potential accidents.

  • Bridge Integrity Assessment:

Robotic climbers or drones are employed for appraising the structural soundness of bridges, with a focus on critical elements like cables, joints, and support structures.

  • Space Exploration Maintenance:

During space missions, robots undertake inspections and maintenance tasks on spacecraft, ensuring their continued functionality in the extreme conditions of space.

  • Quality Assurance in the Food Industry:

Robots equipped with Non-destructive Testing sensors are employed for inspecting food products to identify defects, and foreign objects, and ensure quality control in food processing and packaging.

Discover More Fascinating Reads, Rebound Hammer Test: An Overview

The Growth of Robotics Industries

The utilization of robotics within Non-destructive Testing (NDT) commenced in the mid-20th century, particularly in sectors like aerospace and nuclear power, where precision and safety were paramount.

However, early robotic NDT systems were typically large, expensive, and limited in their functionalities.

The growth of the robotics industry can be attributed to technological progress in sensors, artificial intelligence, and robotics, which have substantially enhanced the capabilities of robotic NDT systems.

Smaller, more adaptable robots have emerged, capable of navigating intricate environments and conducting a wide array of inspections.

The application of robotics in NDT has extended beyond traditional industries, encompassing automotive, oil and gas, construction, and various other sectors.

Robots are now employed for tasks such as weld inspections, corrosion assessment, material characterization, and flaw detection.

Robotics have facilitated NDT inspections in remote or perilous environments, such as deep-sea pipelines, nuclear reactors, and space exploration missions.

They provide a protective barrier for human inspectors from exposure to radiation, extreme temperatures, or toxic substances.

The introduction of automation through robotics has led to heightened inspection efficiency, ultimately reducing downtime for critical machinery and equipment.

Substantial cost savings are realized through improved asset management and predictive maintenance.

The robotics in the NDT sector benefits greatly from the incorporation of advanced sensors, including ultrasonic, eddy currents, magnetic particles, and thermal imaging sensors.

These sensors amplify detection capabilities and streamline data collection processes.

Robotics facilitate the accumulation of substantial volumes of inspection data, which can be subjected to analysis through artificial intelligence (AI) and machine learning (ML) for predictive maintenance and trend identification.

Developments in autonomous robotics empower robots to make real-time decisions during inspections, adapting to changing conditions seamlessly.

Smart robots possess the ability to collaborate effectively with human operators for the execution of more intricate tasks.

Some robotic NDT systems are undergoing miniaturization and becoming more portable, easing deployment in diverse scenarios.

The robotics industry, inclusive of robotics in NDT, has garnered substantial investments and witnessed robust market expansion.

This growth is underpinned by escalating demand for automation and stringent quality assurance standards across diverse industries.

The robotics sector has experienced remarkable growth, with this trend extending into Non-destructive Testing (NDT).

Technological advancements, increased automation, and the capability to navigate challenging environments have established robotics as a pivotal tool in safeguarding the integrity and safety of critical infrastructure and industrial processes.

The continued evolution of robotics is anticipated to usher in transformative changes in NDT practices in the forthcoming years.

Robotics Inspection Technologies

Some important inspection technologies utilized in robotics include:

  • Ultrasonic Testing (UT):

Ultrasonic Testing uses high-frequency sound waves to penetrate materials and detect internal defects or discontinuities.

Robots equipped with ultrasonic transducers can scan welds, pipelines, and various materials to identify cracks, voids, or material thickness variations.

  • Eddy Current Testing (ECT):

Eddy Current Testing relies on electromagnetic induction to detect surface and subsurface defects and variations in conductivity.

Robots with ECT probes are used for inspecting aircraft components, heat exchangers, and conductive materials, particularly in aerospace and manufacturing.

  • Magnetic Particle Testing (MT):

Magnetic Particle Testing involves applying magnetic particles to a component and using magnetic fields to reveal surface and near-surface defects.

Robotic systems can apply magnetic particles and scan large areas efficiently for cracks and defects in materials like steel and iron.

  • Radiographic Testing (RT):

Radiographic Testing uses X-rays or gamma rays to create images of the internal structure of materials, revealing hidden flaws.

Remote-controlled robots are employed in nuclear power plants and other high-radiation environments to conduct radiographic inspections for safety and maintenance purposes.

  • Thermal Imaging:

Thermal imaging cameras detect temperature variations to identify anomalies or defects in materials.

Robots equipped with thermal cameras are used for detecting overheating in electrical components, identifying insulation problems, and monitoring equipment in various industries.

  • Acoustic Emission Testing (AE):

Acoustic Emission Testing monitors the release of acoustic waves during stress or deformation, which can indicate the presence of defects.

Robotic systems equipped with AE sensors can perform continuous monitoring of critical structures, such as pressure vessels, to detect early signs of damage or fatigue.

  • Laser Scanning:

Laser scanning uses lasers to create precise 3D models of surfaces and structures for defect detection and dimensional analysis.

Robots with laser scanners are used in industries like construction and manufacturing to inspect complex geometries, such as welds and turbine blades.

  • X-ray Computed Tomography (CT):

CT combines X-ray imaging with computer processing to create detailed 3D images of internal structures.

Robotic CT systems are used for inspecting aerospace components, electronic assemblies, and other intricate structures where traditional X-ray methods may be insufficient.

  • Digital Imaging:

Digital imaging involves capturing high-resolution images of components for detailed inspection and analysis.

Robots with high-quality cameras are used for visual inspection, crack detection, and documentation purposes in manufacturing and maintenance.

These inspection technologies in robotics have revolutionized NDT by enhancing accuracy, efficiency, and safety.

Robots equipped with these sensors and tools can access challenging environments, reduce human exposure to hazards, and provide more consistent and comprehensive inspection results, making them invaluable across various industries.

Conclusion

The integration of robotics into Non-destructive Testing (NDT) has ushered in a transformative era marked by precision, efficiency, and safety improvements.

This partnership has expanded the scope of inspections, making them more consistent and accessible across diverse industries.

The future of robotics in NDT looks promising, driven by advancements in AI, sensors, and automation.

Expectations include even greater versatility, cost-effectiveness, and adaptability for complex inspections.

Predictive maintenance will become routine, mitigating risks, and reducing downtime.

As industries continue to evolve, robotics in NDT remains a steadfast ally in ensuring structural integrity, safety, and reliability.

It's a journey toward a safer, more reliable, and technologically advanced future in the dynamic landscape of NDT.
