High-Temperature Hydrogen Attack is a degradation process in which metals exposed to hydrogen at high temperatures undergo a reaction between hydrogen and carbon within the steel. Thickness and flaw inspection solutions process leads to internal decarburisation, weakening the metal structure, and forming methane gas bubbles within the steel’s matrix. Over time, these internal voids and cracks cause structural integrity to degrade, sometimes leading to catastrophic failures if undetected.
HTHA Prode is particularly important in industries such as petrochemical refining, where equipment like pressure vessels, heat exchangers, and reactors operate under extreme temperatures and hydrogen-rich environments. Equipment failure due to undetected HTHA can result in unscheduled shutdowns, costly repairs, and severe safety hazards.
Detecting HTHA is challenging because the damage is typically internal and microscopic, often not visible at the surface or detectable by standard thickness measurements alone. Advanced ultrasonic testing, especially with HTHA probe, is a key solution because it allows for high-sensitivity internal inspection, which lets operators find the early signs of HTHA.
HTHA Probe Technology

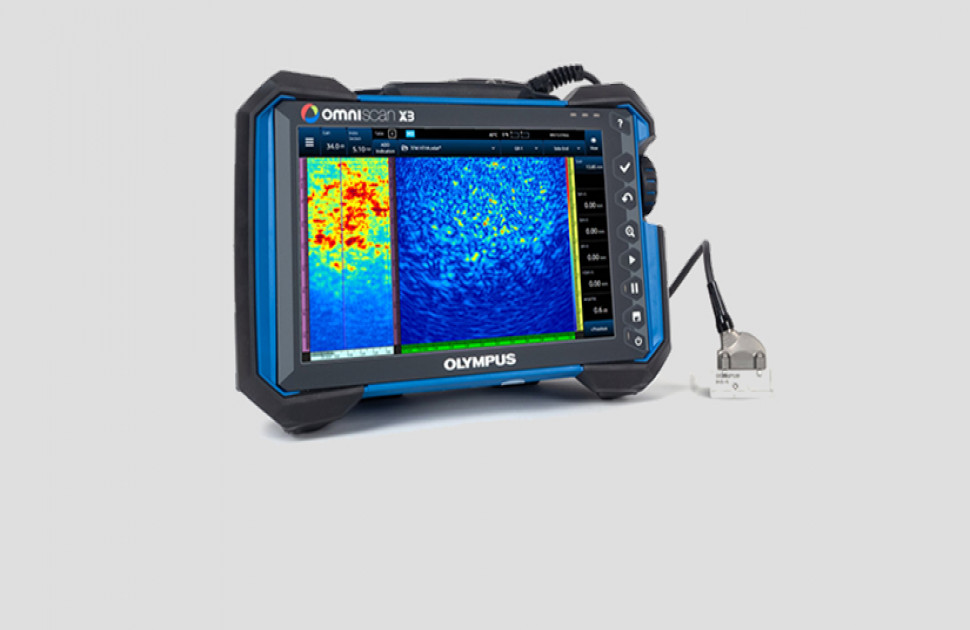

Image Credit: Olympus
HTHA probes are specialised ultrasonic devices designed for two main purposes, thickness measurement techniques and flaw detection solutions in HTHA susceptible equipment.
1. Measuring Thickness: Detecting subtle changes in Wall Thickness that indicate potential damage.
2. Detecting Internal Flaws: Identifying micro-cracks, voids, and other structural anomalies caused by HTHA.
These probes use advanced ultrasonic testing methods, such as phased-array ultrasonic testing and Time-of-flight Diffraction, to get a clear picture of the inside structure of a material. Unlike traditional ultrasonic thickness gauging, which often struggles with detecting microstructural changes associated with HTHA, HTHA probes are designed to achieve precise sensitivity to these complex internal flaws.
What are the Key Features of HTHA Probes?
Image Credit: Sonatest
HTHA probes offer high-resolution imaging, compatibility with materials, and advanced flaw detection algorithms, making them crucial for industries like oil and gas, aerospace, and manufacturing. Here are the key features of HTHA probes.
1. Phased-Array Ultrasonic Testing (PAUT)
Phased Array Ultrasonic Testing technology enables the control of multiple ultrasonic elements in a probe, allowing technicians to manipulate and steer the ultrasonic beam at different angles. This results in a comprehensive cross-sectional view of the material, revealing both surface and internal flaws. In order to find the scattered and frequently microscopic damage that HTHA causes, PAUT is crucial.
2. Time-of-Flight Diffraction (TOFD)
TOFD is another advanced ultrasonic technique often used with HTHA probes. It detects flaws by analysing the diffraction of sound waves around a flaw or defect. TOFD can provide highly accurate data on the size and depth of cracks or voids and is especially effective when paired with PAUT for HTHA detection.
3. Customisable Inspection Patterns
The array of Transducers in a phased array probe can be configured to inspect various zones of interest within a material. By focusing on high-risk areas, operators can ensure maximum detection sensitivity where HTHA is most likely to occur.
4. High-Resolution Imaging
HTHA probes provide high-resolution data, essential for identifying the subtle changes in a material’s internal structure due to HTHA. This capability enables early detection, even when flaws are still microscopic.
5. Real-Time Data Analysis
Many HTHA probes are equipped with software that allows for real-time data processing, visualisation, and analysis. This immediate feedback aids in rapid assessment, allowing technicians to make quick decisions during inspection.
Important Applications of HTHA Probes in Industry
HTHA risk assessment relies on ultrasonic waves that penetrate the material and reflect back when they encounter changes in the internal structure, such as a crack or void. Any internal flaws or wall thickness measurement occurs when an ultrasonic pulse enters a material, resulting in reflections or scattering of the wave, which the probe's transducers then capture. This is vital in oil and gas inspection solutions and Wall Thickness Subsea Inspections.
Phased-array probes are a common choice from thickness and flaw inspection solutions. HTHA probes are critical in industries where equipment is subject to high temperatures and hydrogen exposure. Here are some key applications.
1. Petrochemical and Refining Industry:
HTHA is a significant risk in petrochemical refineries, where vessels, reactors, and pipelines operate in extreme conditions. Using HTHA probes in these settings helps detect early-stage HTHA, allowing for preemptive repairs or replacements that prevent unscheduled shutdowns or catastrophic failures.
2. Power Generation:
In power plants, HTHA can have an impact on boilers, steam lines, and other crucial components, particularly in coal and gas power plants that occasionally encounter hydrogen and high temperatures. Regular inspection with HTHA probes ensures the structural integrity of these components, reducing the risk of breakdowns and costly repairs.
3. Steel and Heavy Manufacturing:
Steel and other metals used in heavy manufacturing may encounter HTHA in hydrogen-rich, high-temperature processes. Inspecting equipment with HTHA probes helps manufacturers detect damage early and maintain operational safety.
4. Aerospace and Defence:
Although less common, certain aerospace components exposed to hydrogen in high-temperature environments can be subject to HTHA. Periodic inspections using HTHA probes ensure structural integrity and flight safety.
What are the Advantages of HTHA Probe Technology?
HTHA probe technology offers benefits like early damage detection, cost-effective repair prevention, operational safety maintenance, structural integrity, and flight safety in industries like aerospace and defence.
1. High Detection Accuracy:
HTHA probes offer an exceptional level of sensitivity and resolution, enabling early detection of HTHA damage. Early detection allows for targeted maintenance, potentially preventing costly downtime.
2. Reduced Downtime and Maintenance Costs:
Proactive identification of HTHA damage allows for scheduled maintenance, minimising unplanned outages. This translates to cost savings and efficient resource management for facilities.
3. Improved Worker Safety:
Early HTHA detection helps avoid sudden equipment failures, which could lead to hazardous situations. Reliable HTHA probe inspections reduce the risk of catastrophic failures, ensuring a safer work environment.
4. Data-Rich Inspections for Predictive Maintenance:
Many HTHA probes offer software that generates detailed reports and analytics. This data enables predictive maintenance programs, allowing companies to address potential issues before they become critical.
Challenges and Limitations of HTHA Probes
While HTHA probes offer many benefits, there are some limitations and considerations to keep in mind:
1. Requirement for Skilled Technicians:
The advanced technology used in HTHA probes requires highly trained technicians. Proper training is essential to ensure accurate data interpretation and optimal use of the equipment.
2. High Initial Investment:
HTHA probes are advanced tools, often requiring a higher initial investment compared to traditional Ultrasonic Inspection Equipment. However, their accuracy and potential for reducing risk often make them cost-effective in the long term.
3. Environmental Constraints:
Extreme environmental conditions, such as extremely high temperatures, can limit HTHA probe performance. Probes designed for HTHA are generally more robust but may still need adaptations for specific temperature or environmental factors.
Key Takeaways
- HTHA probes have changed the way thickness and flaw inspection is done in high-risk industries by making it easier to find high-temperature hydrogen attacks in a reliable and accurate way.
- By offering high-resolution imaging of internal material structures and early-stage flaw detection, HTHA probes enable industries to prevent costly downtimes and improve safety.
- HTHA probes and related ultrasonic inspection tools are likely to become even more integral to industrial maintenance programs.
- Companies that invest in HTHA probe technology are better equipped to safeguard assets, maintain continuous operations, and ensure a safe working environment.
