How to Pick the Right Ultrasonic Couplant for Your Application?

How to Pick the Right Ultrasonic Couplant for Your Application?

Sources - ZGS

Table of Content

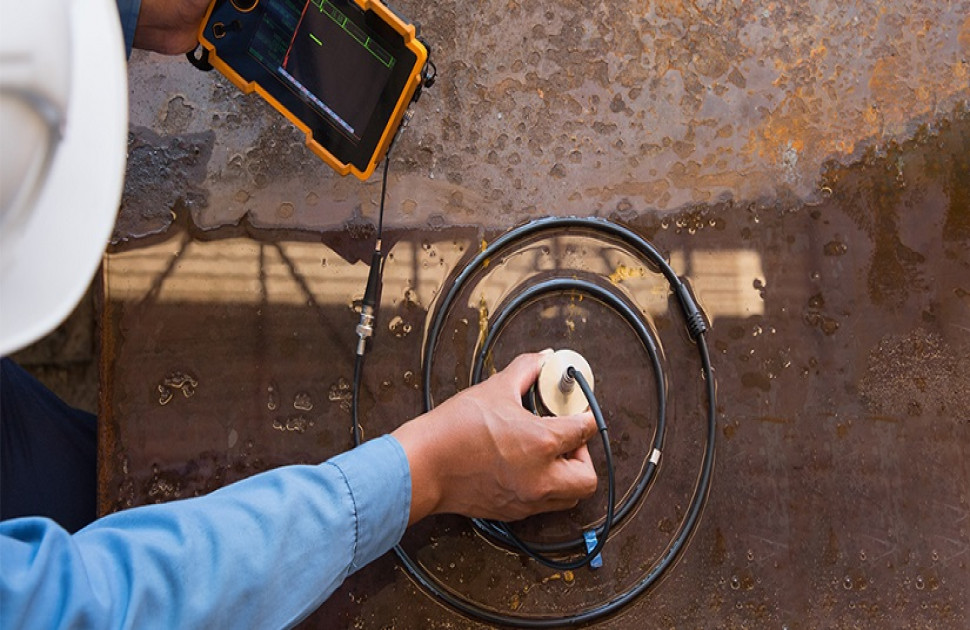

Ultrasonic testing is an effective non-destructive technique used in many industries to measure thickness, inspect materials for defects, and carry out quality checks. A critical component in this process is the ultrasonic coupling, i.e., a medium that helps transfer sound waves between the transducer and the test material.

Ultrasonic couplant selection can significantly impact test results, as it ensures sound waves travel seamlessly, leading to more accurate and consistent data. Choosing ultrasonic couplants is essential for achieving reliable and precise UT results. Factors such as viscosity, temperature stability, and compatibility with materials being tested should be considered when selecting the appropriate couplant for NDT Applications.

Parts inspected can vary in surface texture, material type, and size, each affecting the choice of couplant needed to ensure reliable ultrasonic transmission without damaging the part. For example, rough surfaces need a thicker couplant, smooth surfaces need a thinner one, and material compatibility is crucial to prevent corrosion or damage.

Test conditions like inspection angle and temperature affect couplant choice, with thicker couplants for vertical or overhead inspections and temperature-specific formulations for freezing or ignition risks.

Factors to Consider When Choosing an Ultrasonic Couplant

What is the best couplant for UT? The type of couplant to be used varies from each project, and there is no ideal couplant. But there are a few factors to consider when choosing an ultrasonic couplant. Here are the critical considerations for couplant selection that determine the best fit for your ultrasonic testing needs.

1. Temperature Compatibility

Different applications involve varying temperature ranges, from ambient room temperatures to extreme heat or cold. Couplants are designed to withstand specific temperature ranges, so selecting a temperature-compatible option is crucial.

I. Standard Temperature Couplants:

For general applications where temperatures remain below 125°C (257°F), a standard temperature couplant is usually sufficient. These couplants are often water-based and provide effective transmission for most Routine Inspections.

II. High-Temperature Couplants:

Applications in industries like power generation or heavy manufacturing may involve high-temperature surfaces. In these cases, you’ll need high-temperature ultrasonic couplants that can maintain stability up to 600°C (1112°F) or higher. High-temperature couplants, often oil- or silicone-based, are engineered to resist evaporation, degradation, and changes in viscosity under heat.

III. Low-Temperature Couplants:

For environments with temperatures significantly below freezing, a cold-resistant couplant is necessary. Low-temperature couplants remain fluid even in freezing conditions, ensuring a reliable signal without compromising measurement accuracy.

2. Viscosity and Flowability

Viscosity, or how thick or thin a substance is, is determined by a couplant’s flowability. The viscosity you need will depend on the test material’s surface, orientation, and testing environment.

I. Gel Couplants:

Thick, gel-based couplants are ideal for vertical surfaces or overhead testing as they cling to the surface without dripping. They are also helpful in applications where you need to apply the couplant in specific spots.

II. Liquid Couplants:

Thinner, liquid couplants spread easily over large, flat surfaces. They’re ideal for high-coverage testing, where the couplant needs to cover broad areas without being reapplied frequently. Understanding how viscosity impacts coverage and stability can prevent issues like couplant run-off, inconsistent application, or excess couplant waste.

3. Acoustic Properties

To optimise signal quality, the acoustic impedance of the couplant should match the test material as closely as possible. Acoustic impedance measures how well sound travels through a substance, and proper matching minimises sound reflection and improves signal transmission.

I Water-Based Couplants:

Generally suitable for metals and other common materials, water-based couplants have acoustic properties that work well with materials of moderate impedance.

II. Glycerin and Synthetic-Based Couplants:

If you’re testing materials with unique acoustic properties, synthetic-based or glycerin-based couplants may be necessary. They provide more precise acoustic matching, ensuring accurate signal transfer and clearer results.

Choosing NDT couplants with optimal acoustic properties for your material type leads to stronger signals, reduced noise, and better measurement fidelity.

4. Material Compatibility and Corrosion Resistance

The interaction between the couplant and the test material is an important consideration, especially in industries where material integrity is critical.

I. Non-Corrosive Couplants:

Non-corrosive couplants are essential when testing metals prone to oxidation or corrosion. Certain high-performance materials, like those used in aerospace or Automotive Industries, require corrosion-resistant couplants to prevent long-term damage.

II. Speciality Couplants for Sensitive Materials:

If you’re testing plastics, composites, or rare alloys, look for couplants that are chemically compatible with these materials. Some couplants can interact with specific surfaces and cause degradation or affect the material’s structural integrity over time.

Ensuring compatibility reduces the risk of unintended damage and enhances the durability of both the test material and your equipment.

5. Environmental and Health Considerations

With increasing awareness of environmental impact and workplace safety, eco-friendly and user-safe couplants are in high demand.

I. Biodegradable Couplants:

Ideal for outdoor or environmentally sensitive applications, biodegradable couplants are easy to clean and leave less impact on the surroundings.

II. Non-Toxic, Odorless Options:

To reduce health risks for technicians, many couplants are available in non-toxic, odorless formulations. These are especially useful in Confined or poorly ventilated environments, where fumes and odors can pose a health hazard.

III. Hypoallergenic Options:

Certain workplaces require hypoallergenic couplants to minimize the risk of allergic reactions, making them safer for users who might be sensitive to specific chemicals.

Using environmentally friendly and non-toxic couplants not only protects the health of users but also simplifies disposal processes, which is advantageous in high-frequency testing environments.

6. Couplant Applications with Specific Requirements

Each Ultrasonic Testing Method may have unique requirements that influence the choice of couplant. The primary types of ultrasonic testing include flaw detection, thickness measurement, and phased array inspections, each with specific needs:

I. Flaw Detection:

Non-drip, high-viscosity couplants are preferred for flaw detection as they ensure even distribution and avoid disrupting the signal.

II. Thickness Gauging:

Low-viscosity couplants with high acoustic accuracy are ideal for Ultrasonic Thickness Gauging, providing consistent results without the need for excessive reapplication.

III. Phased Array Testing:

Couplings that match acoustic impedance better and stay stable at room temperature are helpful for complex testing methods like Phased Array Ultrasonic Testing since these things affect the quality of data in high-resolution scans.

IV. Inspection Volume:

When inspecting a large number of parts, it’s crucial to choose a couplant that is easy to apply and remove, as this will help minimize the time spent on the UT inspection process compared to inspecting just a few parts.

V. Price Point:

The best couplant for your application strikes a balance between cost and performance, ensuring both efficiency and quality.

Selecting the correct couplant for each testing application type can greatly improve signal strength and result accuracy.

Common Types of Couplant in Ultrasonic Testing

With so many types of couplants available, each suited for different conditions, here are some commonly used types and their typical applications.

1. Water-Based Couplants:

These versatile couplants work for most general-purpose applications and are cost-effective. They are often used for testing metals, composites, and other common materials.

2. Oil-Based Couplants:

Oil-based formulations are designed for high-temperature applications, often found in industries like metalworking or power generation.

3. Silicone-Based Couplants:

Known for their heat resistance, silicone-based couplants are also suited for high-temperature applications but may not be compatible with some materials.

4. Speciality Couplants:

Tailored for extreme environments, such as deep-sea testing or ultra-high temperatures, speciality couplants are engineered for challenging applications that require superior performance.

Maintenance and Testing of Ultrasonic Couplants

Image Credit: Olympus

Regular testing and maintenance of your couplant can help ensure consistent performance. Before using a couplant in a full-scale application, conduct a test run on similar material under similar conditions. This practice allows you to confirm the couplant’s effectiveness, stability, and compatibility with the test material.

Proper storage of couplants for Ultrasonic Testing is also essential, as some couplants can degrade over time if exposed to air or temperature fluctuations. Keeping couplants sealed, away from extreme temperatures, and following the manufacturer’s guidelines will extend their shelf life and maintain their performance.

Key Takeaways

  • Choosing the right ultrasonic couplant involves understanding the unique needs of your application and balancing factors like temperature range, viscosity, acoustic properties, and environmental impact.
  • An informed selection process not only ensures accurate readings but also contributes to the longevity of your equipment and the safety of your personnel.
  • By carefully considering these factors, you’ll be equipped to select a couplant that enhances the quality of your ultrasonic testing, leading to more reliable data and successful inspections every time.
