Redefining NDT: How Phased Array UT (PAUT) Outperforms Radiographic Testing (RT)

Redefining NDT: How Phased Array UT (PAUT) Outperforms Radiographic Testing (RT)

Table Of Content

  • Glimpse into PAUT
  • Advantages of PAUT
  • PAUT vs. Radiographic Testing
  • Conclusion

Phased Array Ultrasonic Testing (PAUT) and Radiographic Testing (RT) are both critical techniques in the realm of non-destructive testing. PAUT uses ultrasonic waves to detect flaws in materials, while RT uses X-rays to examine the internal structure. PAUT's flexibility and precision make it a superior choice for various scenarios.

Here is why phased array UT beats Radiography Testing. PAUT offers several distinct advantages that make it preferable over RT. Its ability to electronically steer and focus ultrasonic beams allows for comprehensive inspections with improved accuracy. Additionally, PAUT is faster, requires minimal setup time, and provides real-time imaging, enhancing efficiency.

Radiographic testing, though widely used, has its limitations.RT involves exposure to ionizing radiation, which poses health risks to personnel and requires safety measures. Furthermore, RT produces 2D images, which can sometimes lead to difficulties in accurate defect characterization.

As technology advances, Phased Array Ultrasonic Testing is likely to play a pivotal role in the future of Non-Destructive Testing (NDT). Its versatility, accuracy, and adaptability to emerging materials and industries position it as a frontrunner in ensuring the structural integrity of critical components.


Glimpse into PAUT

PAUT, emerging from the annals of medical imagery, assumes its position as a cornerstone in the domain of Ultrasonic Testing, the harbinger of nondestructive evaluation.

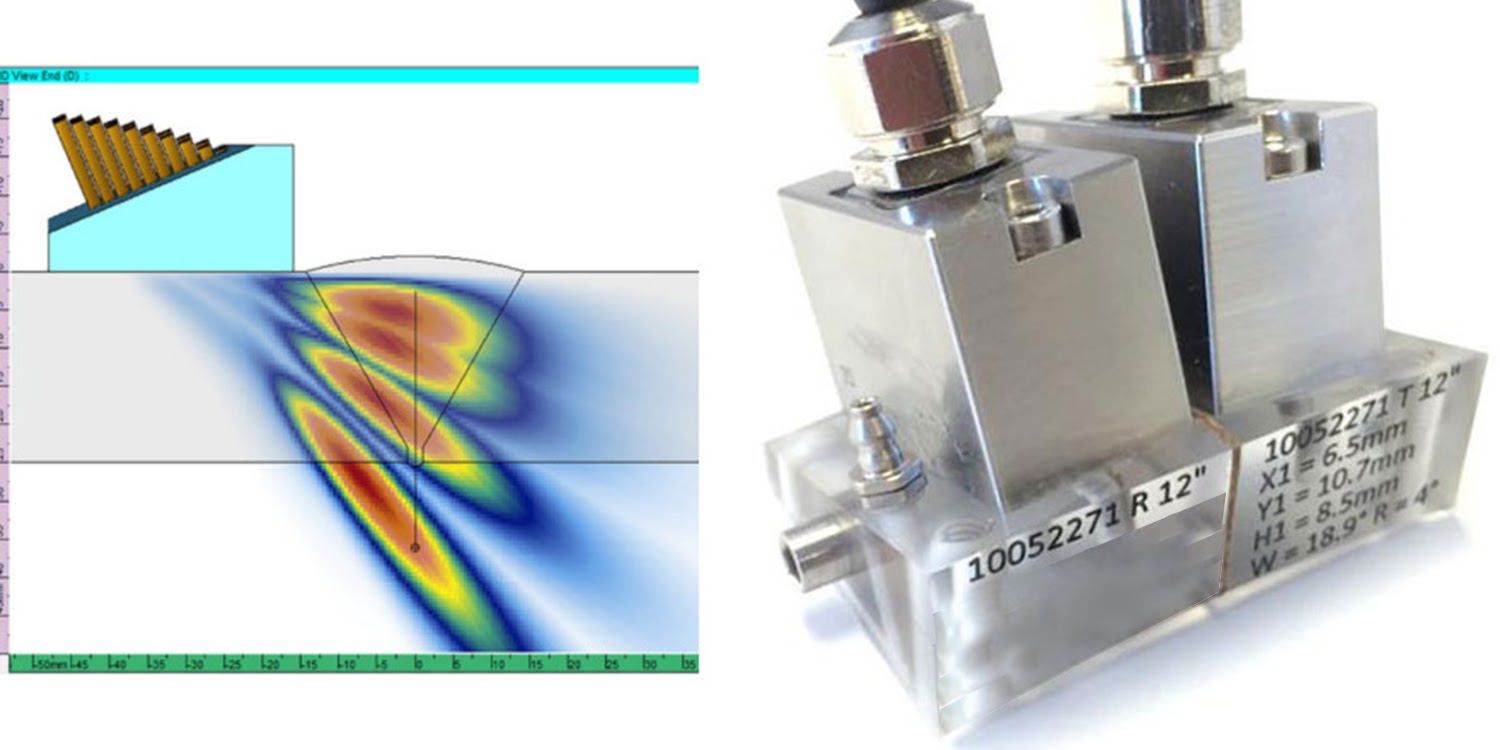

Rooted in a shared bedrock with its forebears, PAUT exudes sophistication, harnessing the core principle of propelling ultrasonic waves into surfaces to glean invaluable data. "Phased" alludes to the temporal orchestration intrinsic to PAUT, while "array" denotes the orchestrated choir of multiple ultrasonic emitters.

Departing from the confines of conventional UT, which relies on solitary-element probes with fixed angles, Phased Array Ultrasonic Testing showcases probes of multifarious elements, adroitly maneuvering through an array of angles, choreographed by the meticulous ballet of pulse control.

The geometry of the asset, its acoustic characteristics, and other factors intricately interplay to determine the tempo of these piezoelectric virtuosos' individual pulses at painstakingly calculated intervals.

Armed with the symphony of control sequences, the ultrasonic pulses pirouette at sundry angles, crafting a "sliced" vista that might unveil the elusive specter of hidden cracks and latent imperfections within an asset or bestow upon the seeker precise measurements of corrosion-induced thinning.


The electronic synthesis of ultrasonic pulses grows from every element in the array like a conductor skillfully putting together a symphony.

This allows for an infinite number of pulsing and receptivity techniques that can be made to fit the situation. Thus, the avant-garde: Full Matrix Capture (FMC) and Total Focusing Method (TFM), showcasing the tapestry of inventiveness unfurled by PAUT.

Also Read, Phased Array Ultrasonic Testing: A Ultimate Guide

Advantages of PAUT


PAUT, the scion of innovation, stands resolute and bears Radiography Testing. Its luster is unveiled through a prism of remarkable advantages:

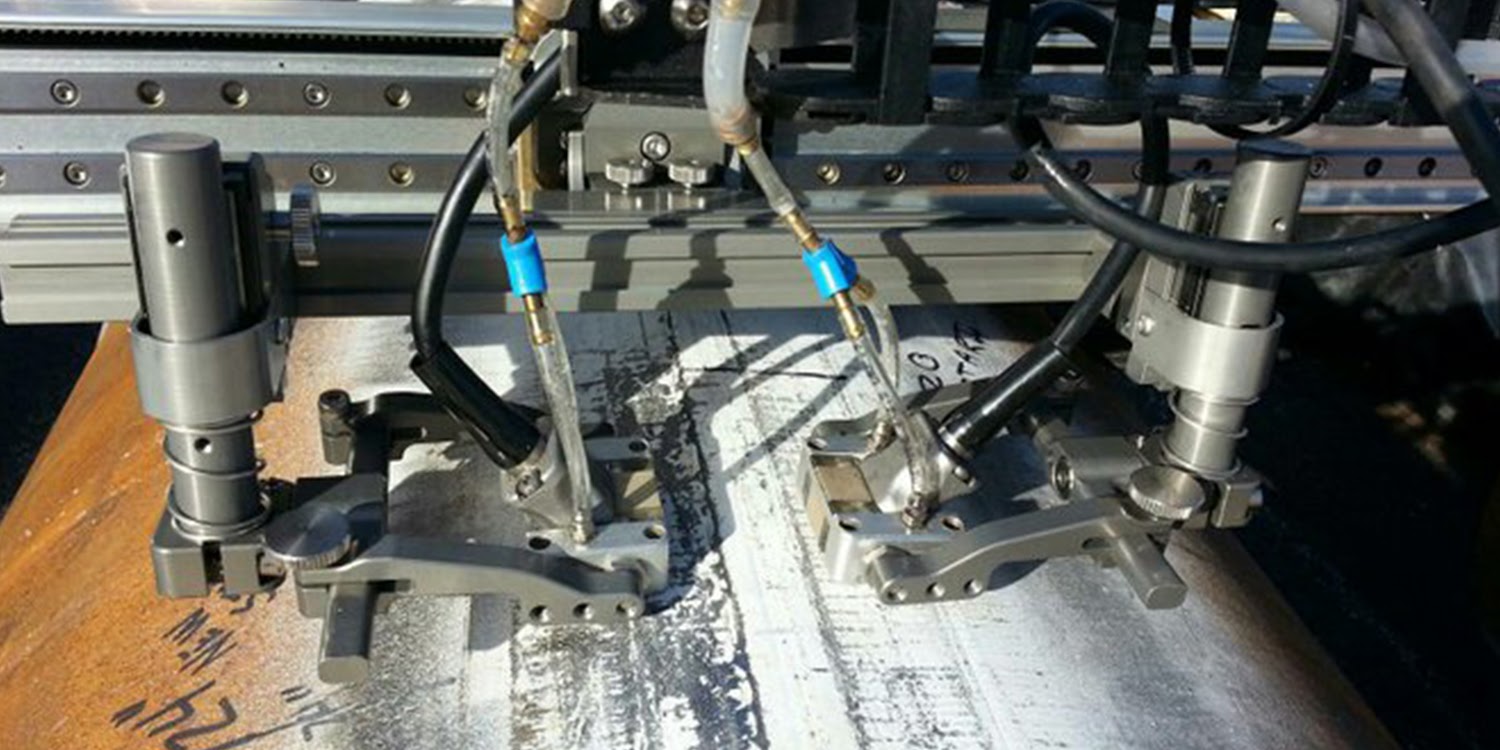

1. Unveiling the Intricacies

PAUT transducer beams, akin to the quill strokes of a maestro, craft intricate maps or trace sectorial trajectories, a tableau laden with a wealth of high-definition data, a symphony of documentation.


2. Elevating the Detection Quotient

The hallowed halls of Probability of Detection (POD) stand illumined, aglow with the radiance of PAUT's meticulous data dragnet, ushering forth a stark improvement over the conventional archetypes.


3. Chronicles of Alacrity

The tempo of PAUT marches to the beat of swiftness, its mantle of celerity outshining the more languid gait of single-probe UT. The virtuosity of software-driven beam angles stands in contrast to the toil of manual adjustments.


4. Maintaining Constancy

PAUT marches in unison like an unwavering sentinel, its harmonious rhythm making repeat scans an effortless pas de deux, supported by its unwavering precision.


5. Conquering Complex Terrain

The dance of PAUT proves triumphant on both the diminutive and the intricate stages, its sweeping nature akin to a ballet, enabling it to traverse even the labyrinthine contours of the most obstinate surfaces.


6. Eclipsing Perils


In the grand tapestry of safety, PAUT emerges as the archon of prudence. Robotic emissaries bear its banner, eliminating the need for scaffolds or perilous ascents, shielding personnel from the clutches of noxious agents and searing temperatures.

On the celestial plane of safety, PAUT ascends, replacing the antiquated dominion of radiographic testing for a pantheon of reasons, none more resplendent than the boon of a radiation-free vista.

On the note of safety, PAUT is increasingly being used in lieu of Radiography Testing (RT), for a number of reasons, including the significant advantage of no risk of exposure to radiation.

PAUT vs. Radiographic Testing

In the realm of industrial inspections, PAUT ascends as the luminary, casting its effulgence over the dominion once ruled by RT and offering a panoply of shared attributes, none as august as the sanctum of safety.

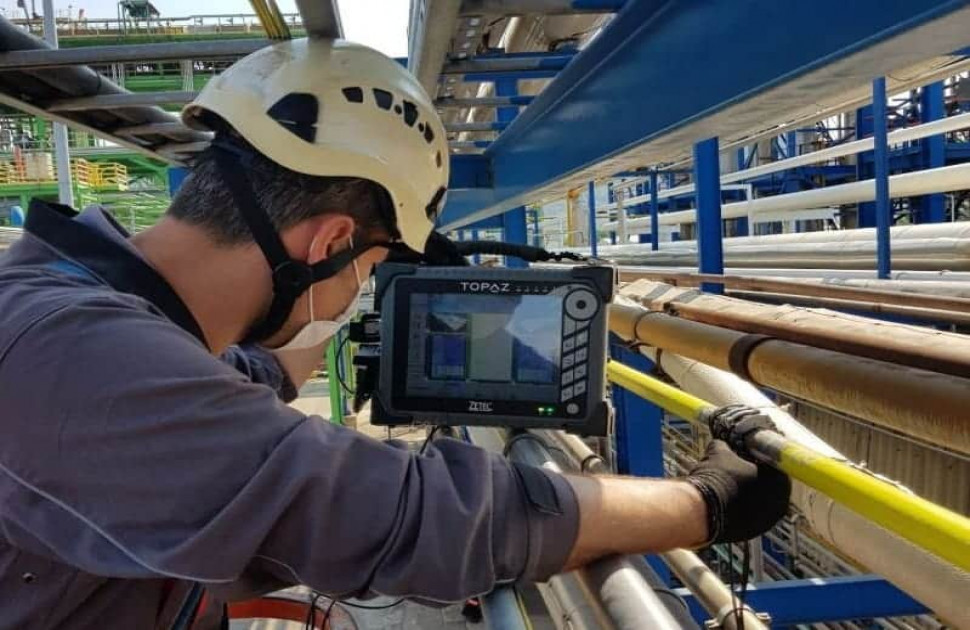

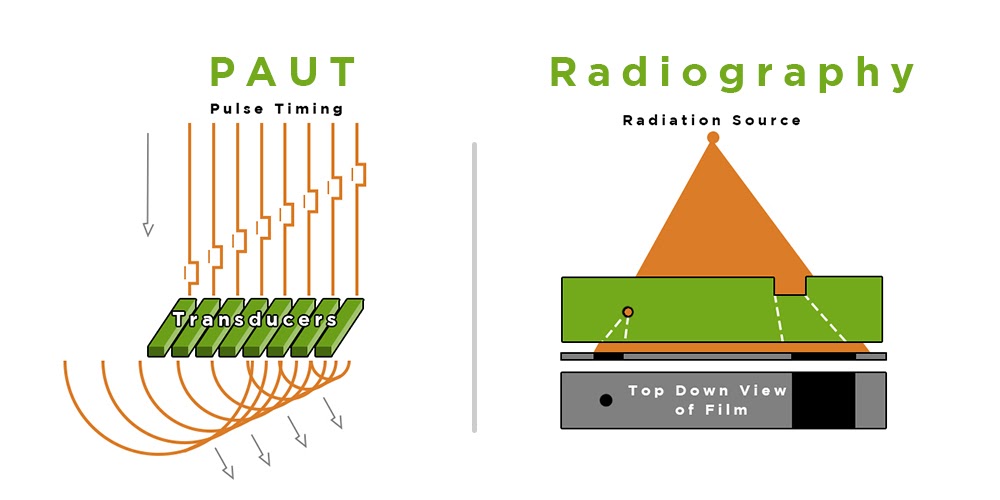

As implied by its name, RT's orchestration centers on the X-ray or gamma-ray beams that cascade onto the asset in a chiaroscuro ballet. The resultant images are ensnared upon the film, the beams' ethereal passage etched into 2-D visages (or a trinity of dimensions through the wizardry of computed tomography).

Entrenched in the annals of medical discernment, the specter of radiation looms a specter that casts its pall upon radiographers, cohabitants, and the citizenry at large unless wielded with an alchemist's touch.

Hence, during these radiographic rites, the enclave of laborers must decamp, and all activity in the periphery halts its waltz, yielding the stage to the probing radiance.

A retinue of sentinels stands sentinel, their vigil an insurance policy against misadventure. Thus burgeons the cost, not solely in terms of the retinue's coffers but also in the currency of thwarted productivity.

Conversely, the domain of Phased Array Ultrasonic Testing knows no such hiatus. The theatre of evaluation playing out at the center has no effect on life outside the perimeter, which continues in its vibrant cadence.


While the accouterments of PAUT leap from their abode, bearing with them the scrolls of instant revelation, the saga of RT scripts a prologue, the development of its celluloid epistles cloaked in temporality, contingent upon valves and robust dimensions.

Both PAUT and RT partake in the ritual of discontinuity detection, wielding the mantle of high POD. Yet, the choir of RT falters when confronted with the staccato of weld defects, the dissonance of fusion's absence escaping its symphony.

And though PAUT grapples deftly with the minuet of minuscule, volumetric blemishes, its aria penetrates even the layers of leviathan materials.

The workforce is becoming more familiar with PAUT, as these inspections can be complicated and an investment when considering training; thus, radiography has a higher percentage of qualified personnel. However, depending on where the testing is being done, RT requires certification and/or permits or special training.

Also Read, Radiography Testing: Definitive Guide to Flawless Insights


Conclusion

Phased Array Ultrasonic Testing beats Radiographic Testing with its precision, versatility, real-time imaging, safety, and environmental friendliness.

The NDT industry is evolving, and PAUT stands as a testament to innovation and excellence in flaw detection and material assessment.

Embrace the future of inspection with PAUT and be at the forefront of technological advancement.

As we bid adieu to traditional Radiography Testing and embrace the advancements of Phased Array Ultrasonic Testing, one can't help but wonder: What lies ahead for the field of non-destructive testing? Will AI and automation reshape the landscape? How will emerging materials and structures pose new challenges? Check out OnestopNDT for more insights on the exciting future of NDT!
