Liquid Penetrant Testing: Advantages & Disadvantages

Liquid Penetrant Testing: Advantages & Disadvantages

Table of Content

Amongst all the Non-destructive Testing methods, there are only a few that are suitable for all kinds of applications. For example, on the most complex components, electromagnetic testing methods might not be useful, whereas using radiographic testing procedures might help. Similarly, ultrasounds are adjustable, nonetheless, they require proper coupling and straight contact with the surface being tested, which might be possible every time.

Further, we will look at one of the simplest and easiest NDT Methods Liquid Penetrant Testing. LPT which is also called liquid penetrant inspection or Dye Penetrant Inspection is a popular and cost-effective solution. The initial use of LPT testing was documented in the railroad industry.

What is Liquid Penetrant Testing?

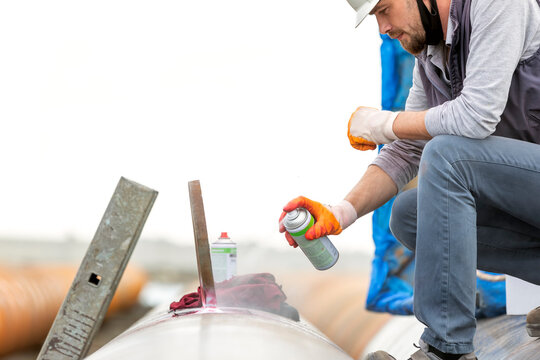

Liquid Penetrant Testing

LPT Testing is based on the principle of capillary action. In the LPT test, a specifically prepared liquid enters into a clean and dry surface gap. The penetrant is put on the component to be tested by either spraying, dipping, or brushing. Subsequently, some time is given for the penetrant to disseminate. After a while, the excessive penetrant is wiped off and the developer is spread over the component. The developer assists in dragging out any penetrant that is left in the fault so that it is easily visible to the LPT test inspector. LPT Testing is executed under ultraviolet light but it can also be carried out under white light, based on the kind of dye used and sensitivity needed.

After understanding the few basic principles of the LPT test. We now would want to analyze it. LPT testing although being one of the popular testing methods in NDT has its own set of advantages and disadvantages. In the coming section, we will evaluate both its benefits and limitations.

Also Read, Acceptance Criteria for Liquid Penetrant Testing

Advantages of Liquid Penetrant Testing

The advantages of liquid penetrant testing include its ability to detect surface-breaking flaws that may not be visible to the naked eye, and its cost-effectiveness compared to other testing methods. Here is a list of a few advantages of LPT.

Sensitivity to Surface Defects

Liquid penetrant testing is highly sensitive to surface defects, including cracks, porosity, laps, seams, and other discontinuities. Even minute defects that are not visible to the naked eye can be detected using this method.


One of the significant advantages of liquid penetrant testing is its versatility. It can be applied to a wide range of materials, including metals, plastics, ceramics, and composites. Moreover, it can be used on both non-porous and porous surfaces, making it suitable for various applications.


Compared to other non-destructive testing methods such as radiography or ultrasonic testing, liquid penetrant testing is relatively inexpensive. The equipment required for LPT is simple and affordable, and the testing process itself is quick and straightforward, resulting in cost savings for businesses.

Ease of Use

Liquid penetrant testing is relatively easy to perform and does not require highly specialized equipment or extensive training. With proper training and certification, technicians can quickly master the technique and conduct inspections efficiently.

Disadvantages of Liquid Penetrant Testing

While liquid penetrant testing is cost-effective and easy to use, it does have limitations. One disadvantage is that it can only detect surface flaws and may not be effective in inspecting internal defects. Here is a list of a few disadvantages of LPT.

Surface Accessibility

Liquid penetrant testing is limited to detecting defects that are open to the surface. It may not be suitable for inspecting internal defects or defects located in areas with limited accessibility.

Surface Cleanliness

For accurate results, the surface being inspected must be thoroughly cleaned to remove any contaminants or residues that could interfere with the penetration of the dye. Poor surface preparation can lead to false indications and unreliable results.

Material Compatibility

Liquid penetrant testing may not be suitable for all materials, particularly those that are highly porous or chemically reactive. Compatibility testing should be conducted to ensure that the penetrant and developer are compatible with the material being inspected.

Also Read, What Flaws Can Typically Be Found Using Liquid Penetrant Testing?

Skill Requirement

Although liquid penetrant testing is relatively easy to perform, it still requires skilled technicians to interpret the results accurately. Proper training and certification are essential to ensure reliable inspections and minimise the risk of false positives or negatives.

It is necessary to keep in mind that the penetrant used for testing is an extremely thin liquid created to leak into even a very small fissure. Subsequently, if any machinery has a sewn weld or material that is not sealed by a weld, the penetrant will move at the bottom of the welds and between coats of unfused material.

As a result, it will become almost impossible to extract penetrants from these places. The stuck penetrant will more likely lead to other flaws in the welds that will require further Welding to be implemented or it might draw out over time and pollute the process and paint solutions.
