What is Electromagnetic Testing?

Electromagnetic Testing, also known as ET, is Non-destructive Testing

It is a process that involves electric currents and magnetic fields, or both, inside a test sample to recognize the electromagnetic response.

If the test is established and conducted in a proper manner, then the defect present inside the test sample develops a measurable reaction.

This varies from the b noise in the background and enables the NDT Inspectors to identify and characterize surface and subsurface defects in conductive substances.

The term — Electromagnetic Testing is frequently aimed to imply just Eddy Current Testing.

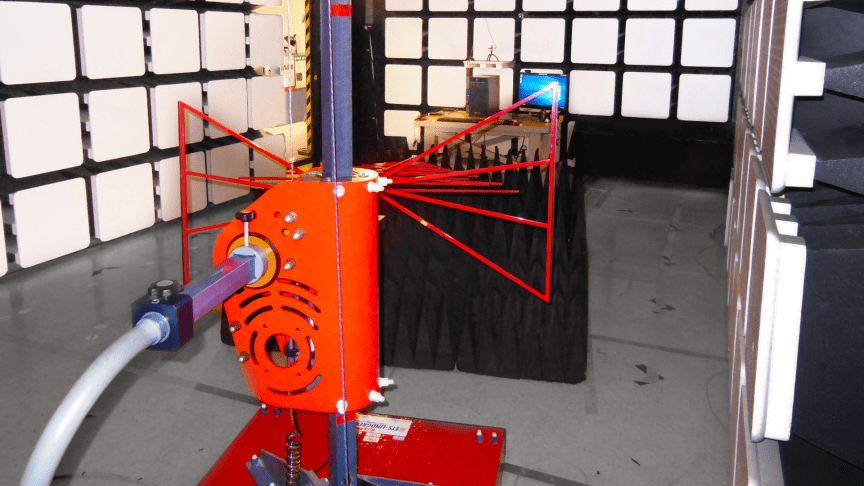

Electromagnetic Testing

However, with an augmenting number of magnetic and electromagnetic test methods, "electromagnetic testing" is more frequently utilized to define the whole class of electromagnetic test techniques, of which Eddy Current Testing is just one of them.

It is highly useful for testing the drill pipes. Electromagnetic Testing has a broad range of applications for tubing & surface inspections that can determine tight breaks as thin as 0.003 in.

Principal Of Electromagnetic Testing — Explained

In its simplest form, the sole component ECT probe, a coil that is of the conductive wire, is combined with a different electrical current.

The wire coil generates an alternating magnetic field around it in the direction determined by the rule of the right hand.

The magnetic field tends to oscillate at the exact frequency of the current driving through the coil.

When the coil reaches a conductive substance, currents opposed to those in the coil are induced in the substance, which subsequently pursues the circular paths. These circular currents are known as eddy currents.

The variations present in the test sample's electrical conductivity and magnetic permeability and the existing defects cause a shift in the intensity, flow pattern, and phase of eddy currents.

On the other hand, a corresponding change in amplitude and phase of the coupled magnetic field can be identified by gauging the impedance shifts in the coil. This is a sign of the presence of deformities and the basis of standard ECT.

Types of Electromagnetic Testing

1. Eddy Current Testing

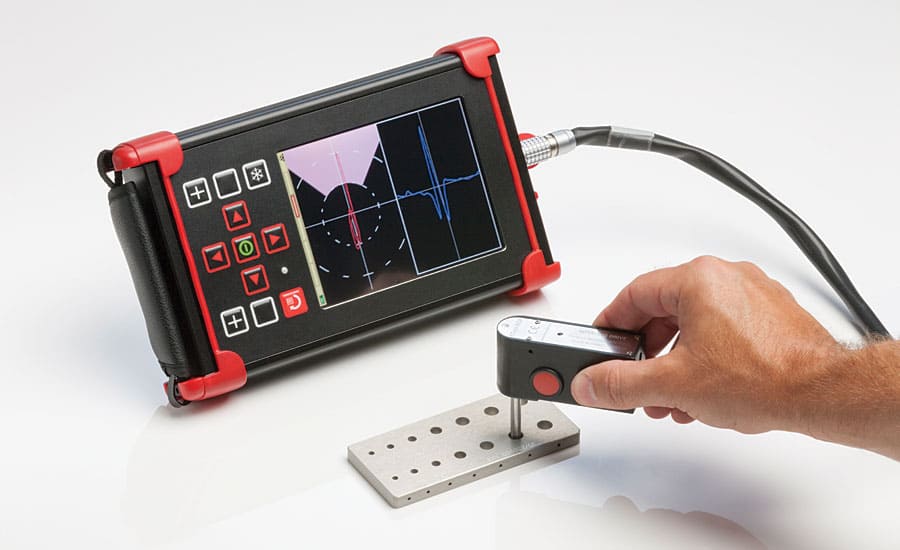

Eddy Current Testing

It is utilized to identify the surface & subsurface cracks and corrosion in metallic substances such as aircraft fuselage, structures, and tubes. Also known as Eddy Current Testing, it is mostly applied to non-ferromagnetic substances, as in ferromagnetic components, the penetration depth is relatively minor.

2. Alternating Current Field Measurement (ACFM)

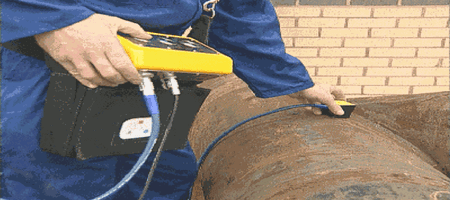

Alternating Current Field Measurement

Alternating Current Field Measurement is kind of similar to eddy current pertaining to steel.

The most general application is to identify and size cracks present in the welds.

3. Magnetic Flux Leakage Testing

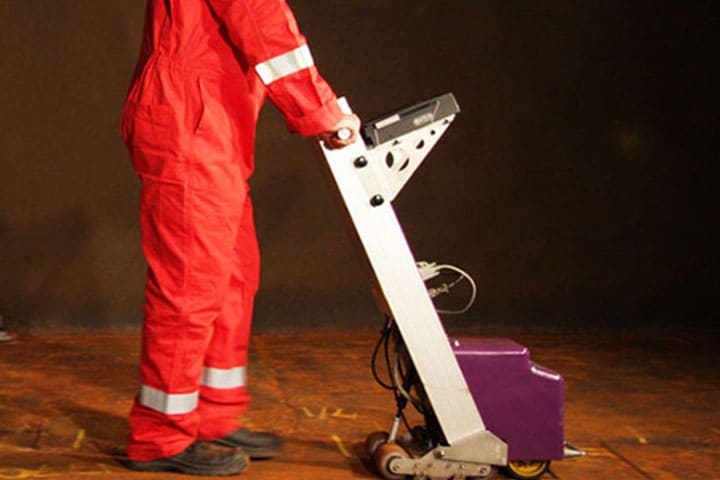

Magnetic Flux Leakage Testing

Magnetic Flux Leakage Testing is also utilized for non-destructive testing of pipes, tubes, and steel.

Currently, the RFT is more generally utilized in minor diameter tubes, and MFL is utilized in larger diameter pipes over long travel lengths.

4. Remote Field Testing

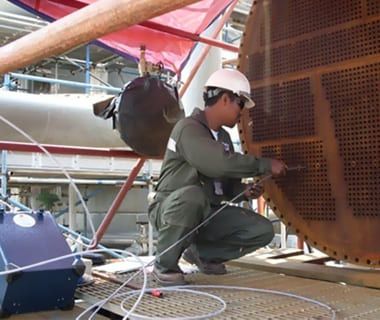

Remote Field Testing

Remote Field Testing is utilized for Non-destructive Testing of pipes, steel, and tubes.

5. Pulsed Eddy Current Testing

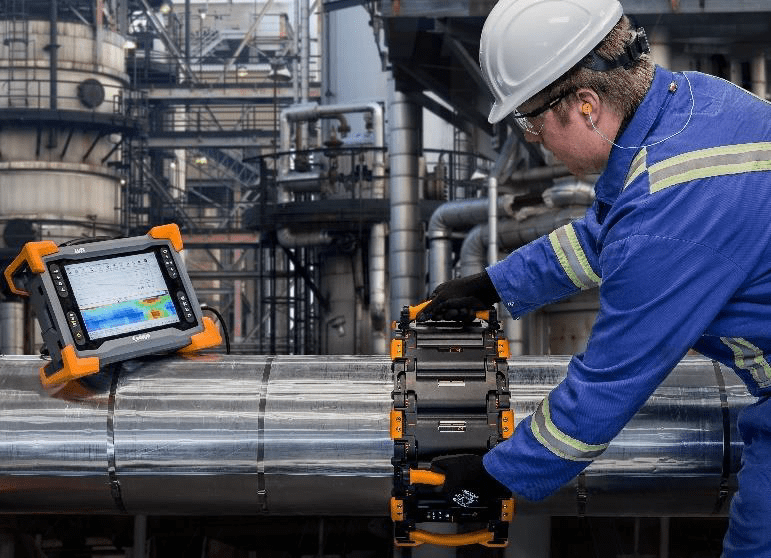

Pulsed Eddy Current Testing

It allows the identification of large-volume metal loss in steel components from a substantial stand-off, authorizing steel pipes to be examined without subtracting insulation.

6. Wire Rope Testing

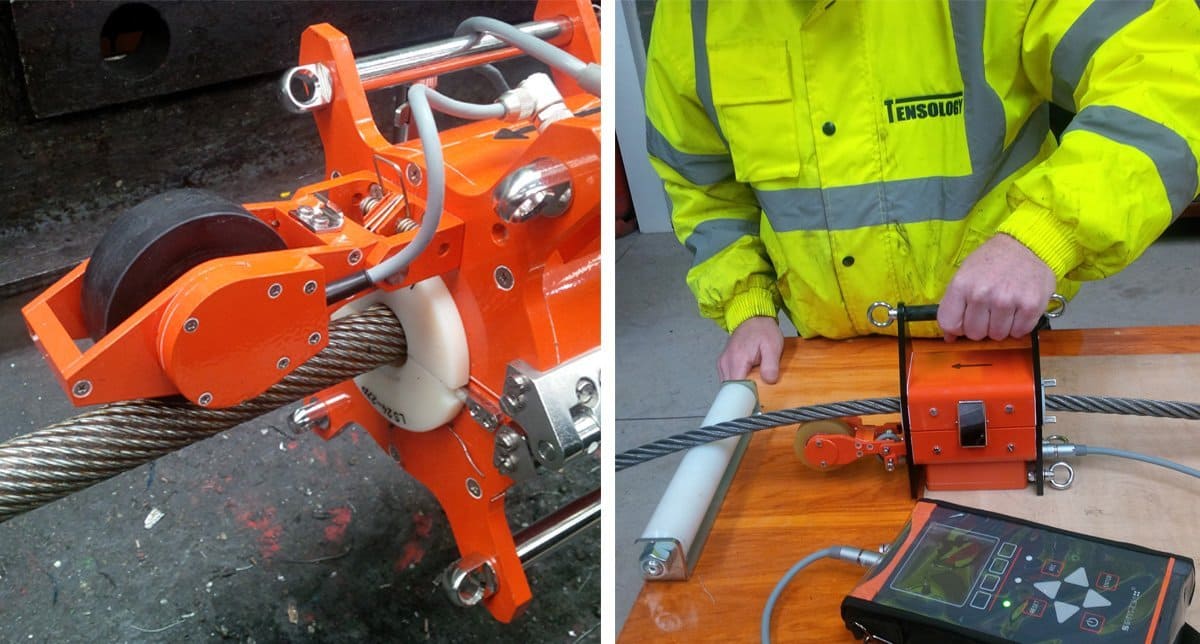

Wire Rope Testing

When it comes to Wire Rope Testing, MFL applies to steel cables in order to specify broken wire.

7. Magnetic Particle Inspection

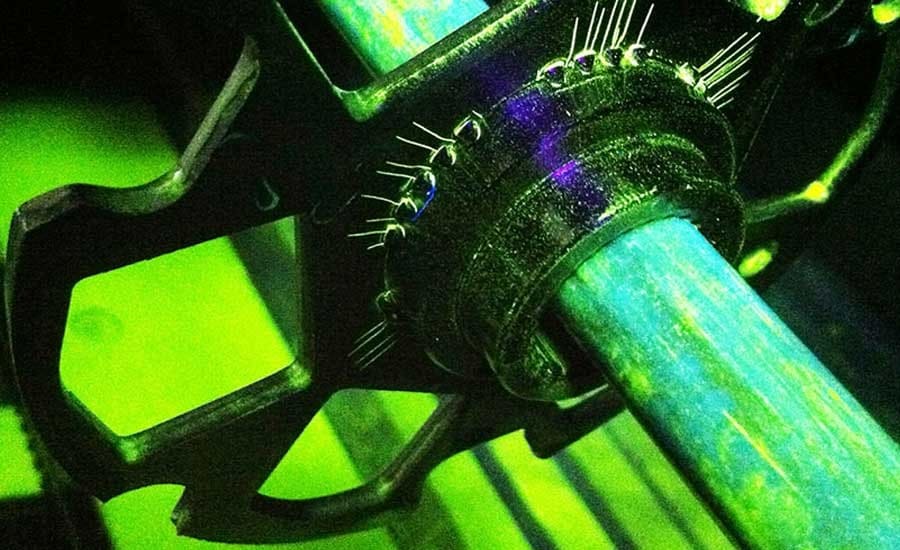

Magnetic Particle Inspection

It is a setup of Magnetic Particle Inspection, where tiny magnetic particles in the form of a liquid or powder are sprayed or sprinkled on the magnetized steel substance and collected at surface-breaking cracks.

Advantages Of Electromagnetic Testing

  • Portability.
  • It can be automated.
  • Cleaning is needed before conducting the test.
  • Quite sensitive to defects present on the surface.
  • Precise conductivity measurements.
  • It can be identified through various layers.
  • Specifies defects through surface coatings.

Disadvantages Of Electromagnetic Testing

  • Zero permanent records unless & until it is automated.
  • It is not able to identify defects that are parallel to the material's surface.
  • Quite gullible to the changes in magnetic permeability.
  • Unsuitable for bigger areas or complicated geometries.
  • It is only effective on conductive substances.
  • Requirement of a single interpretation.


Electromagnetic testing is a comprehensive test classification that comprises Eddy Current Testing, Remote Field Testing, and Alternating Current Field Measurement (ACFM), as mentioned above.

All of these NDT Methods utilize the induction of a magnetic field or electric current into a conductive aspect; then, the resulting consequences are documented and assessed.

Well, this was all about electromagnetic testing; we hope that this article was helpful to you. Moreover, if you have any queries or doubts about the subject, feel free to reach out to us.
