THERMALSCAN 700

More info about product

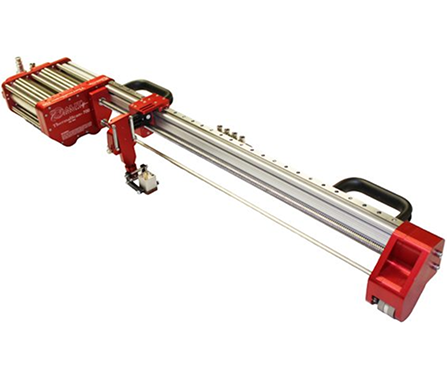

The ThermalScan-700 is the best and only solution for performing high temperature scans on surfaces up to 700° F. This air cooled automated 2-axis scanner can scan at up to 15″per second with wheel speeds up to 5″per second. It will scan on components ranging from 3 inches in diameter to flat surfaces. The modular design of the scanner enables in-field switching of scanning arms or motors in minutes. The scanner can perform conventional raster scans using special high temperature dual focused transducers for simple single-channel C-scans, or it can scan circumferentially utilizing linear 0-degree phased array for faster area coverage. The 24″ arm with the secondary drive wheel assembly prevents the scanner from having any tracking issues.
