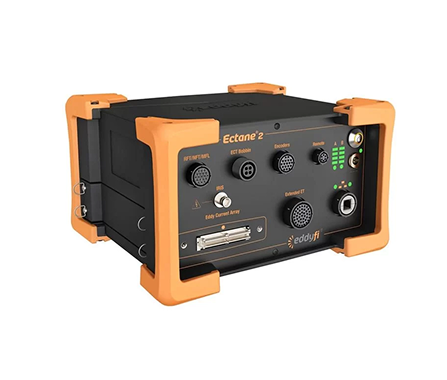

The Ectane 2 was designed with all the features that made the original successful, including the compact size, inspection software flexibility, ruggedness and smart design. But this instrument outshines its predecessor with a new CPU board, improved maximum frequency, current source saturation probes, motor drive for RPC probes, and other unique features.
The instrument’s new CPU board features a faster CPU, which provides better results during ultrafast probe nulling and real-time processing. This makes easy, quality inspections possible with any technology combination, including ECT, ECA, RFT, NFT, NFA, MFL and IRIS.
With a maximum ECT frequency of 10MHz, the new Ectane 2 offers better flexibility and performance in a variety of surface and tubing applications than ever before. The built-in current source which is available on the 41-pin Ectane 2 connector is programmable to control the current output, which feeds the magnetic bias ECT probes and partial saturation ECT probes.
The powerful built-in motor drive can operate motorized rotating pancake (RCP) probes, which is especially useful in applications where RPC probes are utilised to find longitudinal and circumferential cracks.
As further improvement on the Ectane, the Ectane 2 automatically identifies different probes, which makes setup a simple task. It also comes with eight probe inputs for RFT, NFT and MFL and has three programmable outputs to make automated inspection sequences more convenient than ever. A programmable alarm warns users when they reach the tube ends.
