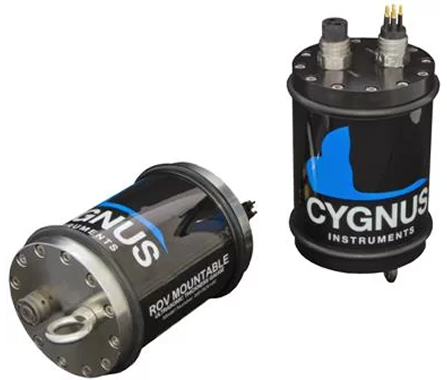

Specifically designed for underwater remotely operated vehicles, Cygnus offer two dedicated ROV Mountable thickness gauges, the M5-ROV-2K – 2,000 m depth rated, and the M5-ROV-4K – 4,000 m depth rated. These mountable measurement gauges again benefit from the multiple-echo technology found in all our ultrasonic measuring devices. They are truly versatile and designed to measure metal thickness through coatings in the harshest operating conditions.
Dedicated software reveals the date, time and thickness readings on the surface which may be logged or stored. In addition, a Topside Repeater (TSR) is available providing the ability to present the thickness measurements remotely and overlay them on to a video signal. This permits the measurements to be superimposed on the ROV camera’s monitor screen.
- Available in two models: M5-ROV-2K 2,000 m depth rated and M5-ROV-4K 4,000 m depth rated.
- Selectable Deep Coat mode for measuring through coatings up to 20 mm thick.
- Supplied with CygLink software to display and log thickness measurements from the ROV on a computer at the surface which can be saved to a file and printed out.
- CygLink has two data logging facilities: Quick Log for simple recording of thickness measurements and Structured mode with four templates available – Single Point, Multi Point, Grid Point and Key Point.
- The ROV Gauge sends thickness measurement data to the surface via an RS-422 serial link, Cygnus can supply the RS-422 umbilical cable up to 1,200 m in length. For longer distances the ROV Gauge can output data in RS-232 mode.
- Fitted with a safety Pressure Relief Valve and Securing Eye.
- Easy calibration at the surface via CygLink software or Topside Repeater (TSR) unit.
- Removable end plate for full serviceability with access to the Option Switches, Fuse and Status LED.
- Wet mateable ‘MC’ style underwater connectors.
