NDT Electronic Devices LTD.

NDT Electronic Equipments Import – Export and Distribution Co. Ltd. has been working since 1994 initially as the representative of Krautkramer GmbH and afterwards General Electric Inspection Technologies in Turkey.

Product

Turkey

Visit Website

Overview

NDT Electronic Equipments Import – Export and Distribution Co. Ltd. has been working since 1994 initially as the representative of Krautkramer GmbH and afterwards General Electric Inspection Technologies in Turkey.

It is one of the leading companies in a non-destructive Testing business in Turkey and has a qualified, experienced team for technical support and before & after-sales services.

Its customer portfolio in the Aerospace, Oil & Gas, Transportation, Automotive and Power industries includes a huge amount of important companies in Turkey.

They are providing high-quality non-destructive testing equipment for several industries and various fields of application.

Products & Services

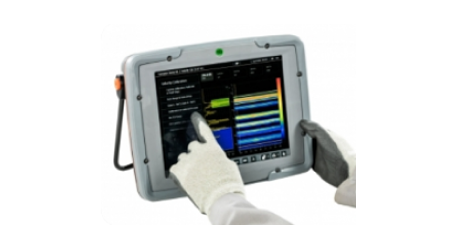

MENTOR UT Phased Array & TOFD UT Hata Detectors

Mentor UT Phased Array and TOFD Ultrasonic Fault Detector; It is an Ultrasonic Fault Detector specially developed for weld and corrosion mapping and widely used in pipe and tank inspections. MENTOR UT increases production efficiency by increasing inspection speed with its touch screen and various application possibilities.

SCREEN
Size	7" (Inch)
Active Range	152.4 x 91.44 mm2
Resolution	800 x 400 pixels
December	4 ... 14,108 mm (555") for longitudinal wave
Screen Lag	-15…3.500 µs
Probe Delay	0 … 1.000 µs
Speed	250 … 16,000 m/s
PRF	Auto optimize 15…2,000 Hz 3 Auto tuning modes: Auto Low, Auto Mid, Auto High and Manual.

LINKS
Probe Connections	2 x LEMO – 1 or 2 x BNC
USB Interface	USB type B connection
Service Interface	LEMO-18, 8 pin

Coup
Work Modu	Spike, optional square wave
Pulse Voltage (square wave)	120…300 V (in 10 V steps, 10% tolerance)
Pulse decrease/increase	Maximum 10 ns
Pulse Width (square wave)	30 – 500 ns in 10 ns increments
spike frequency	Low: 120V, High: 300V
Impact Energy (spike)	Low: 30 nS, High: 100 nS
damping	50 ohm, 1000 ohm

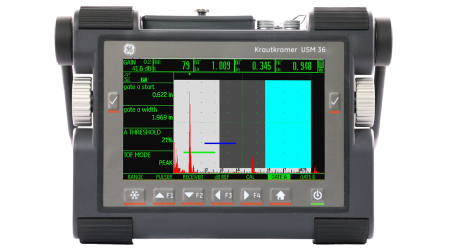

Krautkramer USM 36 UT Fault Detector

Krautkramer USM 36 Ultrasonic Flaw Detector, the newest product of the USM series, is quite advanced in terms of technical features compared to other flaw detectors in its class. The entire 7-inch screen with a resolution of 800 x 480 pixels conforms to the A-Scan view and the image quality is quite high.

The signals on the screen can be easily seen in sunlight and thus can be interpreted most accurately.

SCREEN
Size	7" (Inch)
Active Range	152.4 x 91.44 mm2
Resolution	800 x 400 pixels
December	4 ... 14,108 mm (555") for longitudinal wave
Screen Lag	-15…3.500 µs
Probe Delay	0 … 1.000 µs
Speed	250 … 16,000 m/s
PRF	Auto optimize 15…2,000 Hz 3 Auto tuning modes: Auto Low, Auto Mid, Auto High and Manual.

LINKS
Probe Connections	2 x LEMO – 1 or 2 x BNC
USB Interface	USB type B connection
Service Interface	LEMO-18, 8 pin

Coup
Work Modu	Spike, optional square wave
Pulse Voltage (square wave)	120…300 V (in 10 V steps, 10% tolerance)
Pulse decrease/increase	Maximum 10 ns
Pulse Width (square wave)	30 – 500 ns in 10 ns increments
spike frequency	Low: 120V, High: 300V
Impact Energy (spike)	Low: 30 nS, High: 100 nS
damping	50 ohm, 1000 ohm

Buyer
Digital Earnings	Dynamic range 110 db(adjustable in 0.2 dB steps)
Analog Bandwidth	0.5 … 20 MHz
Filters	Bant 1-5 MHz / 2, 2.25 MHz / 4, 5 MHz / 10 MHz / 13, 15 MHz
Rectification	Positive half wave, negative half wave, full wave, RF signal

Doors
Independent Doors	Doors A and B Door C
Measurement Mode	Check, flank, J-Flank, İlk check

Memory
card entry	Suitable for all standard SD Cards
Capacity	8 GB, SD card
Data	ASCII – UGO datasheet
Reports	JPG or BMP

General
Battery	The Li-Ion battery can be used for 13 hours when fully charged. It is charged in the standard way with a power adapter.
Power Adapter	International Power provider, 100…240 VAC, 50/60 Hz
Dimension	255 x 177 x 100 mm (10” x 7.0” x 3.9”)
Weight	Battery because 2.2 kg
Dil	Turkish, Bulgarian, Chinese, Czech, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish
Vibration	EN 60068 Part 2-6 2 g per axis
Coup	EN 60068 Part 2-27 1000 cycles per axis
Protection	IP66 / IEC 60529
Operating temperature	-10 …55°C
Cold Working	-10°C for 16 hours
Hot Working	55°C for 16 hours
Storage Temperature	-10°C for 16 hours
Cold Storage	- 20°C for 72 hours
Hot Storage	+ 70°C for 48 hours

Options
AWS	AWS Calibration equipment – AWS D1.1
DAC/JISDAC/CNDAC	DAC Calibration…. , 16 points, EN 1712, EN 1713, EN 1714, ASTM E164, ASME, ASME III, JIS 23060, GB11345 TCG:120 dB dynamic, 110 Db/µs slope
DGS	DGS calibration ….- EN 1712 EN 1713, EN 1714, ASTM E164
Data Recording	Grid file creation
3G	Gate C
SWP	For pulse parameter optimization: Voltage setting 120…300 V in 10 V steps Pulse width setting 30…500 ns in 10 ns steps
Phantom-PRF	Detection of false echoes caused by multiple reflections in low-damping materials
BEA	Rear Wall Echo Damping

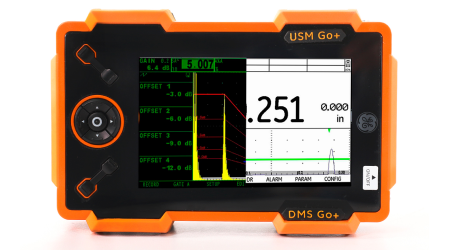

Krautkramer USM GO+ UT Fault Detector

USM GO+ ultrasonic flaw detector, the latest model of the USM series produced by Waygate Technologies, a Baker Hughes business; Thanks to its lightness, ergonomics and ease of use, it is a device suitable for all field conditions.

This device is produced for easy use in harsh working conditions and long-term applications in aviation, power generation plants, oil and automotive industries.

Screen	5 inch, 800 x 400 pixels, 108 × 65 mm (W x H), >200 cd/m2
Boyut (W x H x D)	175 x 111 x 50 mm
Weight	850 g with battery
Protection Class	IP 67
Operating temperature	0 – 55 °C
Battery	Li-Ion, rechargeable, 6 hours operation time
Power adapter/charger	100 – 240 V AC, 50/60 Hz
Probe Connection	2 x Lemo-00 (T/R)
PC Interface	Mini USB
Memory card	SD-Card 16 GB max
Reporting	Test report and A-Scan screen shot on SD-Card, Video recording of A-Scan
Pulses	120 – 300 V, 30 – 500 ns, flank < 10 ns, Spike, Square wave option
Puls Repetition Frequency	15 – 2000 Hz
Damping	50 and 1000 Ohm
Buyer	110 dB dynamic, 0.5 ~ 18.5 MHz analog bandwidth
Filtered	BB 1-5 MHz, 2,25 MHz, 4 MHz, 5 MHz, 10 MHz, 13 MHz, 15 MHz
Doors	A and B independent, B triggered by A, C option
Unit	mm, inch, µs
Options	AWS calibration tool (AWS D1.1), DAC 16 points according to EN 1712, EN 1713, EN 1714, ASTM E164, TCG 110 dB dynamic, DGS cal. tool according to EN 1712, EN 1713, EN 1714, ASTM E164, Data Logger, 3rd gate C, Square Wave Pulser
Standards	EN 55011,EN 61000-6-2: 2011, EN 12668, ASTM E 1324, E317, ANSI/NCSL Z 540-1-1994, MIL-STD 45662A, MIL-STD 2154

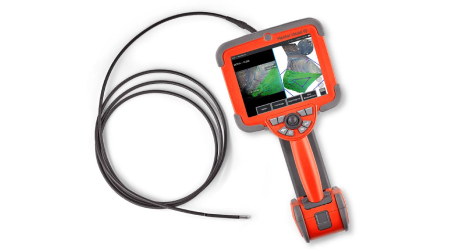

Mentor Visual IQ Videoskop Cihazı

With its easy-to-use, precise measurement ability and portability feature, Videoprobe™ offers users the highest level of technology in examination and analysis with 3D Phase measurement (3-dimensional measurement). Thanks to InspectionWorks connectivity, experts around the world can conduct joint inspections in real-time.

Mentor iQ meets the needs of all industries and applications with its 3 customized configurations.

Mentor Visual iQ Analyze sets industry standards by delivering 3D Phase measurement (3D measurement) and analysis software with excellent image quality for high detection sensitivity. Mentor Visual offers advanced processing capability with all the features of iQ Touch.

Mentor Visual iQ Touch is a highly capable borescope designed for excellent productivity with Quick Change probes, a touch user interface, 16 GB internal memory, on-device workflow management and reporting features. Mentor Visual offers all the features of iQ Inspect with superior versatility.

Mentor Visual iQ Inspect offers best-in-class image quality at an affordable price with an improved user interface and Wi-Fi and Bluetooth connectivity.

Every Mentor Visual iQ configuration is upgradeable. Touch and Inspection platforms can be upgraded with software with the desired measurement and detection sensitivity.

Mentor Visual iQ is designed by IP65, MIL-STD-810G and MIL-STD-461F protection standards against very harsh environmental factors.

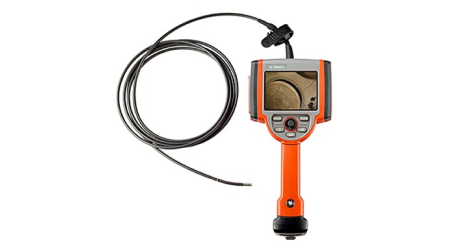

Everest XL Detect / XL Detect + Videoskop Cihazı

XL Detect VideoProbe system; With its portable and durable structure, it enables high-quality images and video to be obtained in harsh environmental conditions. In addition, thanks to the ability to distinguish colours precisely, it is possible to easily detect damage to the material.

The camera and LCD screen integrated into the system provide ease of use and provide images with much better resolution than old-type fiberscopes.

It is easily removed from the carrying case, the probe is inserted and the system is ready to perform inspection.

Clear, easy-to-use control unit.

All-Way® probe articulation in all directions with servo motor.

Option to use with AC cable or battery.

1GB Internal Flash memory.

1 USB® 2.0 port, VGA video output.

Type optics that can be safely attached and removed with its double-gear structure

Special carrying and protection bag with the system.

ERESCO Portable X-Ray Tubes

Highest power output with best-in-class image definition
A high X-ray dose allows short exposure times with associated increases in productivity
100% 'Duty Cycle' operation at 30°C for 1 hour run time
Lightweight and compact design
Tough Robust construction (IP65) enabling operation in environments
Low energy consumption, low energy costs
Range of designs suitable for radioscopy, including panoramic output and small focal point
Wide range of accessories, including stands and carts to facilitate positioning during exposure

32 MF4-C	32 MF4-C	42 MF4	52 MF4-CL	65 MF4	300 MF4-R
	Air-cooled, panoramic X-Ray tube designed for pipelines and butt-welds	Air-cooled X-Ray tube that can be used in applications involving welding inspections, Al casting and composite Materials	Panoramic and air-cooled X-Ray tube designed for pipeline and butt-weld inspection where high penetration power is required	Air-cooled X-Ray tube designed for inspection of welding, Al casting and composite materials where high penetration power is required.	Small focal point, real-time imaging unit conforming to EN 12453 standard; Designed for applications requiring geometric growth and/or rapid exposure.
Emissions	panoramic	Immediately	panoramic	Immediately	Immediately
Penetration in steel (10 min)	32 mm (1.26")	42 mm (1.65”)	52 mm (2.04")	65 mm (2.55”)	65 mm (2.55”)
Voltage Range	5 - 200 kV	5 - 200 kV	5 - 300 kV	5 - 300 kV	5 - 300 kV
Tube Current	0.5 - 10 mA	0.5 - 10 mA	0.5 - 6 mA	0.5 - 6 mA	0.5 - 6 mA
Tube Current at U max	3.0 mA / 200 kV	4.5 mA / 200 kV	2.0 mA / 300 kV	3.0 mA / 300 kV	3.0 mA / 300 kV
Continuous Rating	600 W	900 W	600 W	900 W	900 W
Nominal Focus Value	0.4 x 4 mm (EN 12543)	3.0 mm (EN 12543) 1.5 (IEC 336)	0.5 x 5.5 mm (EN 12543)	3.0 mm (EN 12543) 1.5 (IEC 336)	1 mm (EN 12543)
Anode	Tungsten (W)	Tungsten (W)	Tungsten (W)	Tungsten (W)	Tungsten (W)
Target Angle	22°	20°	20°	20°	15°
Emergent Beam Range	40° x 360°	Elliptical, 40° x 60°	38° x 360°	Elliptical, 40° x 60°	Elliptical, 30° x 60°
Inherent Filtration	0.4 mm Fe/Ni/Co+2 mm Al	0.8 mm ± 0.1 mm, Be	0.4 mm Fe/Ni/Co+ 3 mm Al	0.8 mm ± 0.1 mm, Be	0.8 mm ± 0.1 mm, Be
Test Cycle	100%	100%	100%	100%	100%
Current and Voltage Stability	± 1 %	± 1 %	± 1 %	± 1 %	± 1 %
Power Supply Requirement	160 V - 253 V AC, 80 V - 127 V AC, 50/60 Hz *	160 V - 253 V AC, 80 V - 127 V AC, 50/60 Hz *	160 V - 253 V AC, 80 V - 127 V AC, 50/60 Hz *	160 V - 253 V AC, 80 V - 127 V AC, 50/60 Hz *	160 V - 253 V AC, 80 V - 127 V AC, 50/60 Hz *
Tube head weight	31 kg (68.3 lbs)	26.8 kg (59.1 lbs)	36 kg (79 lbs)	40 kg (88.2 lbs)	40 kg (88.2 lbs)
Certification	CE Conformity, NFC 74100 , BfS Certification (PTB Approval)	CE Conformity, NFC 74100 , BfS Certification (PTB Approval)	CE Conformity, NFC 74100 , BfS Certification (PTB Approval)	CE Conformity, NFC 74100 , BfS Certification (PTB Approval)	CE Conformity, NFC 74100 , BfS Certification (PTB Approval)
