The oil and gas industry will experience some significant challenges in the coming months. With the sudden reduction in fuel consumption, there is a substantial global surplus of crude oil. This unique situation has seen storage facilities reach maximum capacity and even crude tankers being used to store unwanted product.
Retired storage facilities are being targeted for reinstatement, and operators are considering tank construction to increase capacity. With increased storage requirements and potential inspection deferrals, there is also an increased requirement to perform in-service tank inspection to assess critical components within the asset.
We have been monitoring the situation very closely and are working with our important client base to understand if technology efficiency can help with the potential demand in integrity assessments of aging storage facilities.
This article outlines some best practice inspection programs, courtesy of Oceaneering and their tank integrity and inspection department, that can help increase confidence in bringing storage facilities back online.
RISK BASED ASSESSMENT
Every above ground storage facility will have individual needs and requirements when it comes to integrity inspection, and it is important to work with qualified mechanical integrity engineers to develop a written scheme of examination. An experienced engineer will be able to assess the product type, historical conditions, construction information and years-in-service to perform a risk-based assessment (RBA) of the offline asset.
It is during this initial assessment that knowledge of inspection technology can help make better decisions. The examination is split into a sequence of identified integrity risks, and each component of this inspection can be aided with the correct technology selection.
RECOMMENDED TECHNOLOGY
As discussed, each tank inspection is unique and although the following inspection protocols are industry recognized, it is important to consider the information within the RBA before implementation.
Internal Floor/Annular/Sketch Plates
Magnetic Flux Leakage – Floormap and Handscan
A common failure mechanism is leakage through the floor that damages the tank foundation, leading to instability and possibly resulting in catastrophic failure. The most common technology used to inspect tank bottom plates for corrosion is Magnetic Flux Leakage (MFL) because of its sensitivity to volumetric variations.
MFL uses a strong magnet to induce a magnetic field in the bottom plate. When it encounters corrosion of a certain size, the magnetic field “leaks”. The more critical the proportional volumetric rate, the higher the leakage.
Leakage is detected by a combination of several types of sensors. On its own, MFL technology is incapable of detecting whether defects are on the top or bottom side of plates. For this reason, Eddyfi Technologies combines MFL with Surface Topology Air-gap Reluctance Sensors (STARS). This enables the mapping of storage tank floors with the critical benefit of determining if the corrosion is topside or soil side.

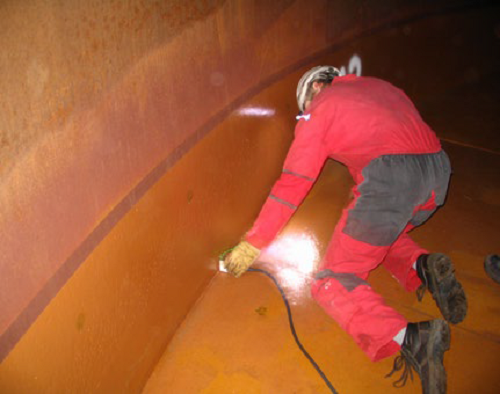

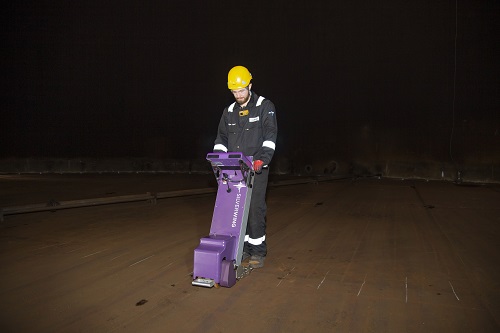

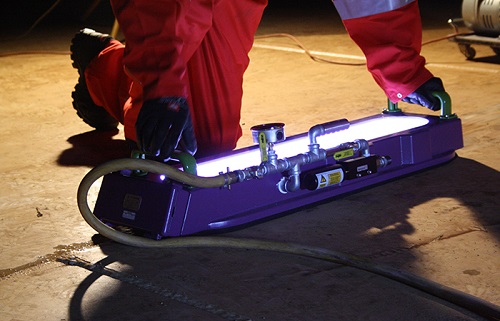

The Silverwing Floormap3DiM-R magnetic flux leakage floor scanner can efficiently map a tank bottom at speeds up to one meter (three feet) per second. For areas in a tank where the Floormap cannot map such as under heater coils, low-level pipework operators can utilize the Silverwing mini MFL scanner, the Silverwing Handscan.
Combining the two scanners reduces the time it takes to inspect tank floors while producing detailed and accurate reports, enabling engineers to determine optimum maintenance strategies.
Shell and Roof

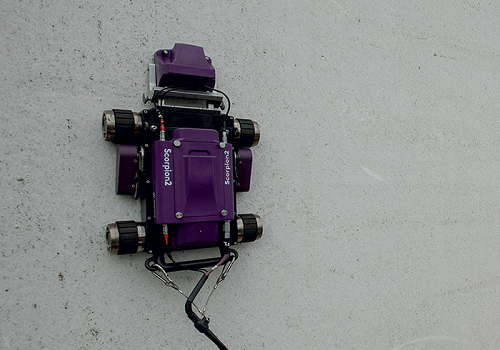

Scorpion 2
The most common method used to determine the condition of a tank shell or tank roof is with a remote access Ultrasonic Testing (UT) crawler. They are typically designed to perform cost-effective UT thickness measurements without the need for Scaffolding or rope access.
UT crawlers can operate automatically or manually. They perform line scans on the tank shell surface or scan specific areas, including the roof. In most cases, tank shells are divided into 8, 16 or more equal sections as specified by the inspection regulation. B-scan UT data is recorded for each section from bottom to top, showing the condition along each course. The speed of the UT crawler and the data acquisition rate plays a significant role in the efficiency of tank wall surface inspections. The battery powered Silverwing crawler can travel and inspect up to 180 millimeters per second (7 inches per second). Other system features include a dry-coupled wheel probe which eliminates the need for the complex water supply system usually associated with UT inspections. A simple probe setup procedure and floating and tracking UT gate results in a more accurate and reliable integrity assessment.

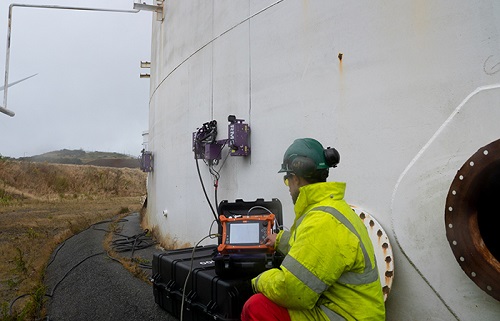

RMS PA

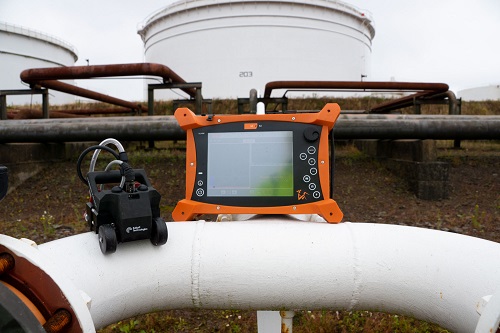

Phased array ultrasonic testing (PAUT) corrosion mapping has become more prevalent in recent years when a more detailed inspection is required or there is need for further investigation of a particular area of concern.
Phased array probes have a wide electronic footprint, and with a 1 millimeter (0.04 inch) resolution across the width of the beam, the required scanning coverage is achieved in significantly less time. The ability to collect high-resolution data at increased scanning speeds improves the probability of detection, enhances imaging, and improves defect characterization.
The Silverwing RMS PA high-resolution robotic crawler is up to 10 times faster than conventional corrosion mapping at a 1 x 1 mm (0.04 × 0.04 in) resolution.
Visual Inspection of All Critical Components

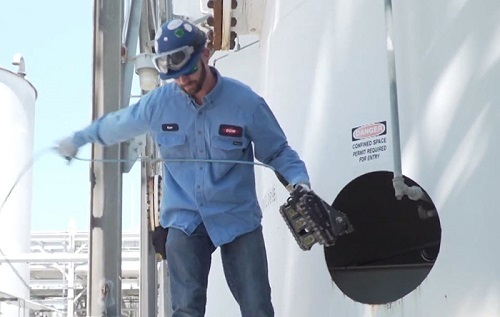

MaggHD
It is recommended to conduct a visual inspection of all critical components to identify problems and perform repairs before a significant leak occurs. Maintaining these critical components is key. Therefore, Remote Visual Inspection (RVI) with robotic crawlers like the quickly deployed Inuktun MaggHD™ provides data in real-time without the need for expensive Scaffolding or rope access. The Inuktun STIK™ is a turnkey tank inspection kit equipped with an automated scanning capability that offers full 360-degree internal tank inspections, including assessment of liners, welds, fasteners, and defects.

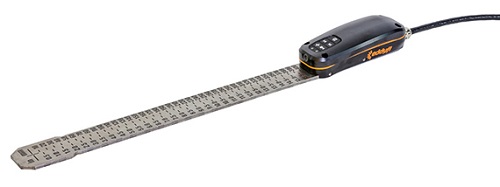

Full Crack Detection of Annular Internal and External Weld and Percentage Floorplate Welds
Amigo 2
The Alternating Current Field Measurement (ACFM®)technique was specifically developed to detect and size surface-breaking defects at welds and can work through several millimeters of non-conductive coating. Recognized by API, ACFM with instruments like the TSC Amigo™ 2 is a natural choice for inspecting storage tank welds and can be used in lieu of Magnetic Particle Inspection (MPI) to avoid expensive surface preparation and consumable chemicals.
