Introduction
Shearography is an advanced optical technology used to detect tiny deformations and defects on the surface of objects.
It is based on the principle of interference and detects possible structural defects by observing the slight displacement of objects under loading stress or environmental changes.
Leendertz and Butters first proposed this technology and began to attract attention in the early 1980s.
However, real breakthroughs and applications occurred in subsequent decades, especially in the late 1990s and early 2000s, as optical and computational technology advances made shear interferometry more reliable and precise.
In the operation of shear interferometry, the surface of the object to be inspected is first coated with a layer of photosensitive material, and then a laser beam is used to illuminate the surface.
This laser beam produces an interference pattern after reflection.
When an object is stressed or deformed, small displacements of the surface cause a change in the interference pattern. By recording these changes, defective areas can be identified.
Compared with the traditional NDT Method, the shear interferometry method has the advantages of non-contact, rapidity, and high sensitivity, and can accurately detect cracks, wrinkles, or other structural problems without damaging the object's surface.
In modern-day NDT, shear interferometry is widely used in high-end industries such as aerospace and automobile manufacturing to detect various defects in complex structures. Its high sensitivity and accuracy make it a viable NDT method.
Shearography and its Principles
Shearography, an advanced Non-destructive Testing (NDT) method, is a technique that detects defects in materials without causing damage.
It's widely employed by NDT Technicians to assess the integrity of various structures and components.
1. Mechanical Principles of Shearography
* Shear Sensitivity:
Shearography is sensitive to minute changes in material surfaces caused by stress or deformation.
NDT technicians utilize this sensitivity to identify defects like cracks, delaminations, or material inconsistencies.
* Interferometry:
Employing interferometry, Shearography compares the interference patterns between stressed and unstressed areas to pinpoint variations caused by defects.
This helps in Non-destructively evaluating the material's structural integrity.
2. Electromagnetic Principles
* Microwave Techniques:
In specific applications, electromagnetic waves, especially microwaves, can be employed in Shearography.
Microwave-based NDT Techniques exploit the interaction between microwaves and material defects for inspection purposes.
3. Theory of Elastic Wave Propagation and Scattering
* Elastic Wave Dynamics:
Shearography relies on the propagation of elastic waves through materials.
NDT Technicians analyze changes in wave propagation and scattering patterns caused by defects.
* Huygens' Principle:
This foundational principle elucidates how waves propagate, helping NDT technicians understand the behaviour of waves in materials and their interactions with defects during Shearography testing.
4. Instrumentation used in Shearography
* Laser Source for NDT Testing:
A coherent laser source is fundamental in Shearography for NDT purposes, generating the light used to detect deformations without causing harm to the material.
* Shearographic Interferometer in NDT:
This critical instrument splits, recombines, and analyzes light waves, enabling NDT technicians to identify and evaluate defects accurately.
* Phase Analysis Software in NDT:
Specialized software processes interference patterns, aiding NDT Technicians in quantifying phase differences to detect defects.
* Speckle Pattern Analysis for NDT:
Utilizing interference-based speckle patterns, technicians can discern subtle changes due to defects during Shearography in Non-destructive Evaluations.
NDT technicians proficient in Shearography use these principles, instruments, and techniques to ensure the structural integrity of various engineering components without causing damage.
Types of Shearography
Various Shearography techniques are integral to NDT (Non-Destructive Testing), employing specific apparatus and mechanisms to assess material integrity.

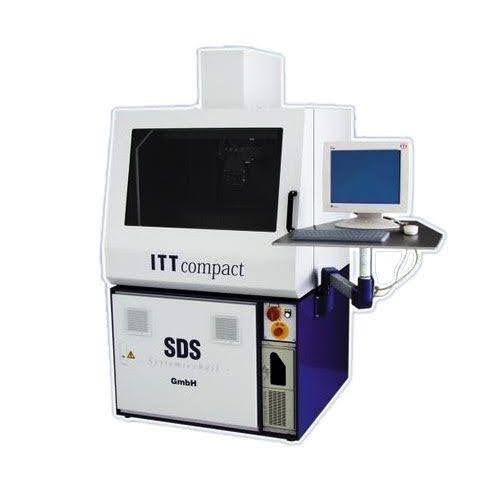

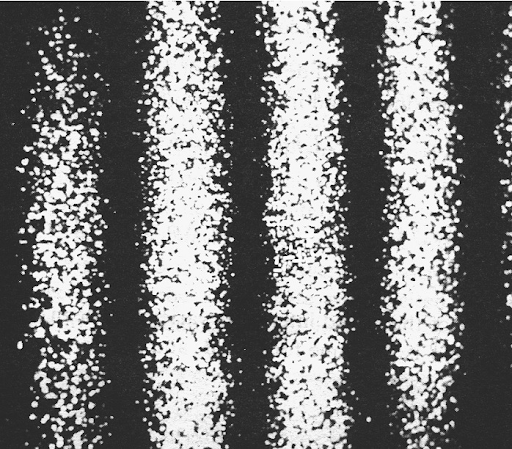

1. Electronic Speckle Pattern Interferometry (ESPI)
ESPI integrates a laser source, beam splitter, and high-resolution camera.
This method analyses interference patterns from speckle patterns of test and reference surfaces to measure deformation, a crucial aspect of interferometry in NDT Techniques.

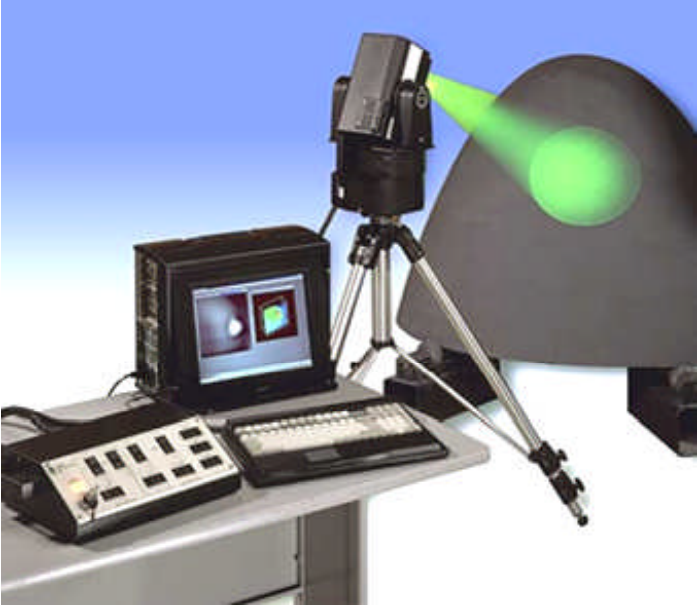

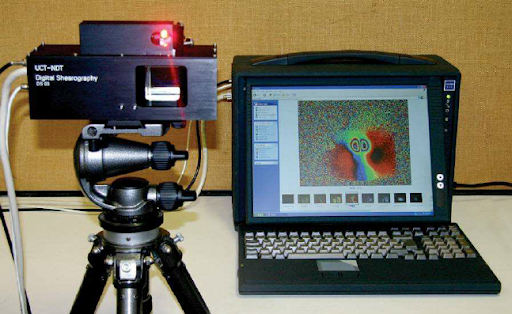

2. Digital Shearography
Digital Shearography uses digital cameras and computing systems for image acquisition and processing.
Digital Shearography captures and processes digital images, enhancing sensitivity and accuracy in detecting surface deformations.

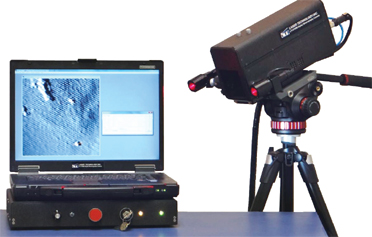

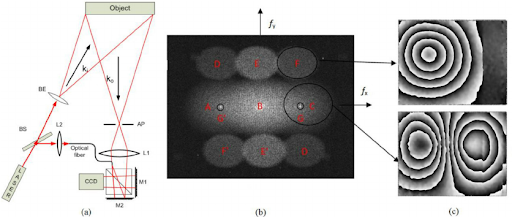

3. Phase-Shift Shearography
Phase-shift Shearography incorporates phase-shifting devices in the interferometer setup.
This technique alters the reference beam phase to increase defect detection precision, a key component in interferometry-based NDT techniques.
4. Vibration Shearography
Vibration Shearography utilizes controlled vibration sources like shakers or acoustic devices.
This type of Shearography analyzes deformation changes induced by vibrations to identify flaws or weaknesses, an essential aspect in NDT using Shearography principles.
5. Transient Shearography
The methodology for Transient Shearography involves pulsed laser sources and high-speed cameras.
This method captures rapid deformations within short time intervals to detect transient defects, vital for dynamic assessments in NDT techniques.
6. Thermal Shearography
Thermal Shearography uses heating elements or infrared sources.
This method is used to monitor temperature-induced surface deformations, revealing defects otherwise unseen, an advantageous feature of thermal-based Shearography in NDT evaluations.
7. Longitudinal Shearography:
Longitudinal Shearography incorporates longitudinal wave generators.
This technique utilizes longitudinal waves to detect subsurface defects or inconsistencies in materials, crucial in achieving comprehensive NDT assessments.
These Shearography variations offer distinct advantages and disadvantages in Non-destructive Testing (NDT), contributing significantly to the precision and depth of material evaluations without causing damage, a fundamental aspect of NDT techniques utilizing Shearography principles.
Advantages of Shearography
Shearography, in the domain of NDT, offers numerous advantages for NDT Inspectors seeking the best NDT services and Non-destructive Evaluation Techniques.
1. Large Area Testing:
Shearography systems enable efficient examination of large surface areas, facilitating comprehensive inspections and swift detection of defects without extensive dismantling.
2. Lifecycle Support:
Its ability to assess materials throughout their lifecycle aids in predictive maintenance, reducing downtime, and enhancing the longevity of components, a crucial aspect of Non-destructive Evaluation (NDE).
3. Material Use:
Shearography NDT allows meticulous evaluation of material integrity, ensuring optimal material usage and minimizing wastage in various engineering applications.
4. Inspection of Complex Structures:
The versatility of Shearography testing allows engineers to inspect intricate and complex structures, offering insights into otherwise challenging-to-reach areas, crucial for academic research and practical inspections.
5. Range of Detection:
Shearography composite testing boasts a broad detection range, identifying diverse defects, including delaminations, voids, and disbands, surpassing Other NDE Techniques in its ability to identify multiple flaw types.
6. Superior Technique:
Shearography inspection consistently demonstrates superior capabilities compared to traditional NDT Methods, proving its effectiveness in identifying defects and ensuring structural integrity in diverse engineering applications.
Shearography, a highly effective Non-destructive Evaluation Technique, provides engineers and academics with a comprehensive means to assess materials and structures without causing damage, making it a vital tool in the field of NDT Inspection and evaluation.
This technique's ability to cover large areas, support various material lifecycles, and outperform other NDT methods ensures its pivotal role in ensuring the safety and reliability of complex engineering structures and materials.
Applications of Shearography
Shearography, a crucial NDT method in engineering, excels in visualizing strain fields, assessing slope, curvature, and twist, and providing precise quantitative measurements.
Its capability finds applications across industries such as aerospace, automotive, and manufacturing, allowing for the accurate detection of structural weaknesses and anomalies.
1. Visualization and Measurement of Strain Fields:
Aerospace and composite manufacturing industries benefit from Shearography's precise strain field visualization for defect detection and stress analysis, crucial in NDT Tests.
2. Assessment of Slope, Curvature, and Twist:
This aspect of Shearography is applicable in automotive engineering and metal fabrication, aiding in understanding and ensuring the structural integrity of components, vital in NDT Techniques.
3. Quantitative Measurement of Strain, Slope, Curvature, and Twist:
Industries like civil engineering and material science leverage Shearography's quantitative measurements for comprehensive material analysis and defect detection in various structures and materials, an essential aspect of Shearography in NDT inspections.
Limitations of Shearography
Shearography, a significant NDT Method in engineering and academia, possesses limitations that influence its applicability in certain scenarios.
These limitations include potential material damage, challenges on smoother surfaces, and the complexity of interpretation.
Furthermore, additional limitations of Shearography encompass constraints in detecting subsurface defects, sensitivity to environmental conditions affecting measurements, and limitations in inspecting highly curved or complex geometries.
1. Constraints in Detecting Subsurface Defects:
Shearography primarily focuses on surface and near-surface defects, limiting its effectiveness in identifying deeper subsurface anomalies in materials.
2. Sensitivity to Environmental Conditions:
Factors like temperature variations or environmental vibrations can affect Shearography measurements, impacting the accuracy of NDT assessments.
3. Limitations in Inspecting Complex Geometries:
Shearography encounters challenges when inspecting highly curved or intricate structures, impacting its feasibility in assessing certain engineering components.
Future Advancements
The advancements in the Shearography technique showcase a promising future for the technique, offering enhanced precision, accessibility, and adaptability for Non-destructive Evaluation across various industries and applications.
Some of the upgrades are as follows:
1. Advanced Sensor Integration:
Future progress in Shearography might involve integrating advanced sensors capable of detecting and interpreting data with increased precision.
This could lead to enhanced sensitivity in defect detection, especially in complex materials and structures.
2. Machine Learning Algorithms:
Incorporating machine learning algorithms into Shearography systems could revolutionize defect recognition. These algorithms could continuously learn and adapt to various defect patterns, improving the accuracy and speed of defect identification.
3. Portable Shearography Systems:
The development of more compact and portable Shearography systems might be on the horizon, enabling on-site inspections in diverse industries. Such advancements would allow for increased accessibility and faster evaluations, particularly in remote or challenging environments.
4. Enhanced Resolution and Imaging Techniques:
Future technological innovations could focus on enhancing the resolution of Shearography imaging. Higher resolution would enable the detection of smaller defects, improving the overall precision and reliability of non-destructive testing.
5. Real-Time Monitoring Capabilities:
Advancements in Shearography may lead to the implementation of real-time monitoring features. This could facilitate continuous monitoring of structures or components, enabling timely detection of defects and ensuring ongoing structural integrity.
6. Automation and Robotics Integration:
Automation and robotics integration could streamline Shearography testing processes.
This could involve automated scanning systems capable of navigating complex geometries and conducting comprehensive inspections without human intervention.
7. Multi-Modal NDT Integration:
Future progress might involve integrating Shearography with other NDT Techniques, creating multi-modal systems for comprehensive material assessment. Combining Shearography with complementary methods could provide a more holistic view of material integrity.
8. Smart Data Interpretation Tools:
Development of sophisticated data interpretation tools specifically tailored for Shearography could simplify complex data analysis.
These tools might assist in accurate defect characterization and provide clearer insights for NDT Technicians and engineers.
9. Improved Environmental Adaptability:
Future advancements in Shearography might focus on enhancing adaptability to various environmental conditions.
Systems designed to compensate for temperature variations or external disturbances could enhance reliability in challenging testing environments.
10. Industry-Specific Customization:
Tailoring Shearography systems to specific industry needs might be a future trend.
Customized systems for aerospace, automotive, or construction industries could optimize defect detection for their unique materials and structural requirements.
Conclusion
Shearography, an advanced non-destructive testing method, embodies invaluable precision and sensitivity in detecting surface defects and deformations without damaging materials.
Although its inception dates back to the 1980s, substantial advancements in the late 1990s and early 2000s propelled its reliability and precision through technological innovations in optics and computational tools.
Shearography operates by illuminating a coated surface with a laser, creating interference patterns that reveal subtle surface changes indicative of defects or stress variations.
Its non-contact nature, speed, and superior sensitivity render it advantageous over traditional methods, effectively detecting defects like cracks and wrinkles without compromising the object's surface.
Yet, it is crucial to acknowledge Shearography's limitations, including its propensity to cause material damage, challenges with smoother surfaces, and complexities in interpreting results.
These challenges hinder its effectiveness in detecting subsurface defects, its susceptibility to environmental conditions, and its limitations in inspecting highly intricate structures.
Notwithstanding these constraints, Shearography remains a pivotal tool in industries like aerospace, automotive, and manufacturing, providing engineers with a reliable means to assess material integrity and ensure structural safety without destructive testing methods.
Key Takeaways
Shearography is an advanced non-destructive testing method relying on interference principles to detect surface defects and deformations without harming materials, offering non-contact, rapid, and highly sensitive defect detection.
Shearography involves illuminating coated surfaces with lasers, generating interference patterns that reveal subtle changes, aiding in defect detection like cracks and wrinkles without damaging the object's surface.
Widely used in aerospace, automotive, and manufacturing, Shearography provides accurate defect detection, ensuring structural integrity and safety in materials and components within diverse engineering sectors.
While offering non-contact, rapid, and high sensitivity advantages over traditional methods, Shearography faces limitations such as potential material damage, challenges with smoother surfaces, and complexities in interpreting results, impacting its efficacy in certain testing scenarios.
FAQs
1. What is Shearography used for?
A: Shearography is employed in Non-Destructive Evaluation (NDE) to detect surface defects and deformations in materials without causing damage.
It's extensively used in Shearography testing for various industries like aerospace, automotive, and manufacturing.
2. What is the Shearography method?
A: Shearography is an optical NDT method based on interference principles.
It involves illuminating a surface with lasers and analyzing interference patterns generated, revealing minute surface changes indicative of defects or stress variations.
3. What is laser Shearography?
A: Laser Shearography is a technique within Shearography NDT that utilizes lasers to illuminate surfaces and analyze interference patterns for defect detection.
It offers high sensitivity and accuracy without damaging the tested materials.
4. What are the advantages of Laser Shearography?
A: Laser Shearography offers numerous advantages in non-destructive testing, including non-contact testing, rapid defect detection, high sensitivity to surface deformations, and accurate identification of defects like cracks and delaminations in composite materials.
5. What is the function of the Shearography insight casing analyzer?
A: The Shearography Insight Casing Analyzer serves as an instrument for conducting Shearography composite testing.
It facilitates the detection and analysis of defects in composite materials by utilizing Shearography inspection techniques, providing insights into structural integrity without causing damage to the material.
