Advanced NDT Techniques to Incorporate in the Oil & Gas Industry

Advanced NDT Techniques to Incorporate in the Oil & Gas Industry

Table of Content

  • Introduction
  • Types of NDT Methods that are Used in the Oil and Gas Industry
  • Advancements in NDT Techniques integrated into the Oil and Gas Industry
  • Challenges for Performing NDT in the Oil and Gas Industry
  • Future of Non-destructive Testing in the Oil and Gas Industry
  • Conclusion


Introduction

The history of Non-destructive Testing (NDT) in the oil and gas industry is a chronicle of continual advancement and adaptation, underpinning the sector's commitment to safety and operational integrity.

Originating in the mid-20th century, NDT techniques initially relied on rudimentary methods such as visual inspections and magnetic particle testing to identify surface defects in crucial components like pipelines and pressure vessels.

The 1960s saw a transformative moment with the widespread adoption of Ultrasonic Testing, enabling the industry to detect internal flaws within materials, especially welds, without causing damage.

Subsequent decades witnessed the emergence of radiographic testing in the 1970s, offering a non-invasive means of scrutinizing the internal structure of materials.

Eddy Current Testing gained prominence in the 1980s, particularly for non-ferrous materials and the detection of cracks and corrosion.

The late 20th century and early 21st century ushered in an era of advanced NDT Techniques, including phased array ultrasonics, guided wave testing, and digital radiography, facilitating more precise and efficient inspections of complex geometries.

As the digital age dawned, NDT embraced real-time monitoring and data analytics, fundamentally altering maintenance strategies with predictive capabilities.

Furthermore, the integration of robotics and automated inspection systems into NDT practices, especially in hazardous environments, has revolutionized the industry's safety and efficiency standards.

Today, the amalgamation of NDTwith artificial intelligence and machine learning represents the pinnacle of its evolution, empowering the oil and gas industry with predictive maintenance and anomaly detection capabilities that redefine asset management in this dynamic sector.

Types of NDT Methods that are used in the Oil and Gas Industry

The oil and gas industry continually seeks more advanced Non-destructive Testing (NDT) techniques to enhance safety, reliability, and efficiency.

Here are some cutting-edge NDT Method that have been incorporated into the industry:

  • Phased Array Ultrasonics Testing (PAUT)

Phased array ultrasonics is a sophisticated technique that uses multiple ultrasonic elements to steer and focus sound waves.

This allows for precise control and imaging of flaws in materials, making it highly suitable for inspecting complex geometries, welds, and pipelines.

PAUT provides improved defect characterization and is commonly used in the oil and gas industry.

  • Guided Wave Testing (GWT)

GWT employs low-frequency sound waves that travel along the length of pipes or structures.

This technique is particularly useful for inspecting long pipelines, as it can cover significant distances from a single inspection point.

It's valuable for detecting Corrosion, erosion, and other defects in pipes and pressure vessels.

  • Digital Radiography (DR)

Digital radiography has replaced traditional film radiography in many applications.

It offers real-time imaging with lower radiation exposure and faster results.

In the oil and gas sector, DR is employed for inspecting welds, pipes, and critical components.

  • Computed Tomography (CT)

CT scanning, like medical CT scans, creates three-dimensional images of an object's interior.

In the oil and gas industry, CT can be used for detailed inspections of complex components, such as valves and turbine blades, to identify internal defects and assess structural integrity.

  • Electromagnetic Acoustic Transducers (EMAT)

EMAT is a contactless NDT Method that generates ultrasonic waves using electromagnetic fields.

It's advantageous for inspecting materials at high temperatures and in extreme environments.

Electromagnetic Acoustic Transducers is used to detect defects in pipelines, storage tanks, and other equipment.

  • Remote Visual Inspection (RVI)

RVI involves the use of remote cameras and robotic systems to visually inspect hard-to-reach or hazardous areas, such as inside pipelines or confined spaces.

It enhances worker safety and provides detailed visual data for assessment.

  • Laser Scanning and Profilometry

Laser-based techniques are employed to create precise 3D surface profiles of components.

This is useful for evaluating the wear, Corrosion, and surface integrity of critical parts in the industry.

  • Advanced-Data Analytics and AI

NDT data combined with artificial intelligence and machine learning algorithms enable predictive maintenance.

These technologies can analyze vast datasets to predict when equipment will require maintenance or replacement, reducing downtime and increasing efficiency.

Mobile robots and drones equipped with NDT sensors are used for remote inspection of pipelines, tanks, and offshore platforms. They can access difficult-to-reach areas and provide real-time data.

These NDT Techniques represent the forefront of technology integration in the oil and gas industry, allowing for more comprehensive inspections, reduced downtime, and improved safety.

As technology continues to advance, further innovations in NDT will likely emerge to meet the industry's evolving needs.

Advancements in NDT Techniques integrated into the Oil and Gas Industry

The oil and gas industry has embraced a spectrum of advanced NDT Techniques to bolster safety, efficiency, and asset integrity.

These cutting-edge methods, including Automated Ultrasonic Testing (AUT), Time-of-Flight Diffraction (TOFD), Long-Range Ultrasonic Testing (LRUT), Acoustic Emission Testing (AET), Magnetic Flux Leakage (MFL), and Alternating Current Field Measurement (ACFM), exemplify the industry's commitment to comprehensive inspections.

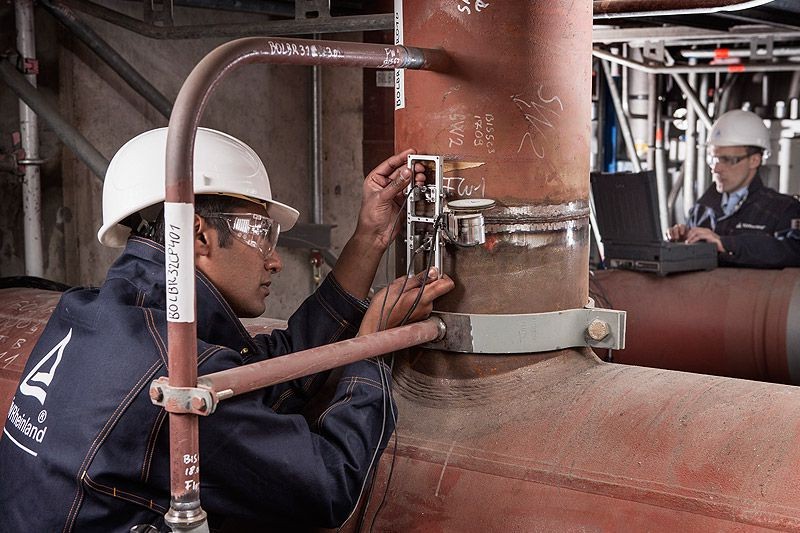

  • Automated Ultrasonic Testing (AUT)

It stands out as a pinnacle of efficiency, leveraging computer-controlled systems for swift, precise inspections.

Automated Ultrasonic Testing is indispensable for scrutinizing Welds, pipelines, and vital components, ensuring their quality and structural soundness.

  • Time-of-flight diffraction (TOFD)

On the other hand, introduces unparalleled precision in flaw detection and sizing, primarily employed for weld inspections.

Its capability to accurately pinpoint and measure flaws ensures weld integrity, a critical concern in the industry.

  • Long-Range Ultrasonic Testing (LRUT)

It addresses a distinct need by inspecting extensive pipeline sections from a single access point.

This low-frequency Ultrasonic Method excels in identifying corrosion and thinning, diminishing the requirement for extensive excavations, and reducing maintenance costs.

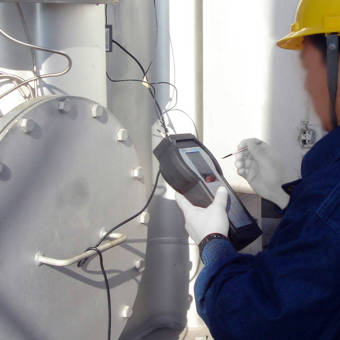

It detects and monitors the release of stress waves from materials when subjected to mechanical stress.

It's employed for monitoring the structural integrity of pressure vessels, tanks, and pipelines over time.

  • Magnetic Flux Leakage (MFL)

It has become synonymous with pipeline integrity. It harnesses magnetic fields to pinpoint corrosion, pitting, and anomalies in pipeline walls.

MFL tools play a pivotal role in pipeline inspection programs, ensuring the secure transport of hydrocarbons.

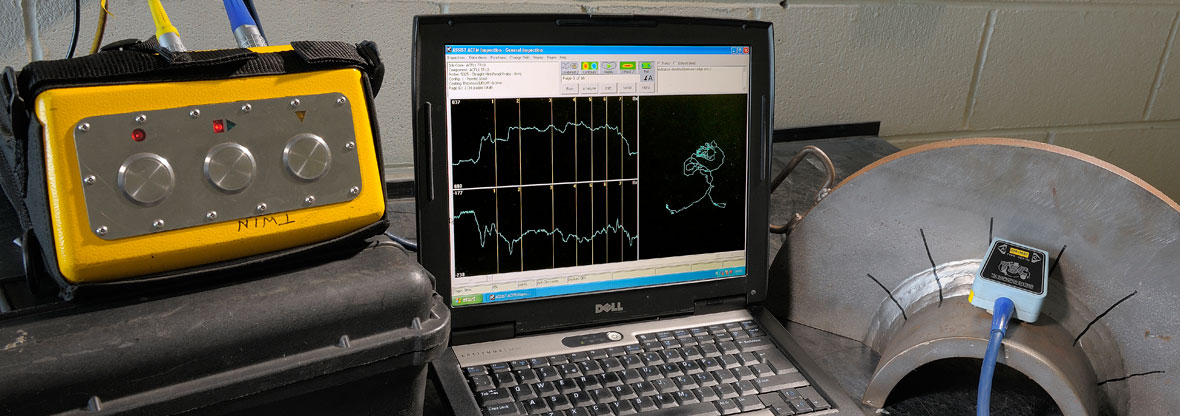

  • Alternating Current Field Measurement (ACFM)

With its electromagnetic prowess, excels in detecting and sizing surface-breaking cracks and defects, making it suitable for offshore platforms and pipelines, even in challenging environments and underwater settings.

These advanced NDT techniques signify the vanguard of technology integration in the oil and gas sector.

Their implementation results in enhanced precision, efficiency, and safety during the inspection of critical components.

This not only reduces downtime but also secures the long-term reliability and safety of vital infrastructure, aligning perfectly with the industry's unyielding commitment to excellence.

Challenges for Performing NDT in the Oil and Gas Industry

Performing Non-destructive Testing (NDT) in the oil and gas industry poses a series of formidable challenges due to the intricate and often unforgiving conditions in which these inspections occur.

These key challenges include:

  • Harsh Environmental Conditions

Oil and gas facilities are frequently situated in severe environments, ranging from offshore platforms to desert expanses and Arctic landscapes.

These settings feature extreme temperatures, corrosive substances, high pressures, and saline atmospheres, demanding specialized equipment and protective measures.

  • Limited Accessibility

Critical components, buried pipelines, or those concealed within structures, may present difficulties in accessing for inspections.

Overcoming these access constraints may involve the use of remote inspection techniques or the removal of protective coatings and insulation.

  • Safety Precautions

Safety is paramount in the oil and gas industry, characterized by potentially hazardous environments filled with flammable gases and toxic chemicals.

The rigorous application of safety protocols and protective measures is essential to mitigate these inherent risks.

  • Intricate Geometries

Oil and gas equipment, including welds, pipelines, and pressure vessels, often exhibit intricate geometries.

Ensuring comprehensive inspections to uncover defects and anomalies can be intricate, necessitating the deployment of advanced methods such as Phased Array Ultrasonic Testing and robotics.

  • Extreme Conditions

High temperatures and pressures are commonplace in many oil and gas operations.

NDT equipment and methodologies must be engineered to function accurately and reliably under these extreme conditions.

  • Corrosion and Erosion

The perpetual threat of corrosion and erosion looms over the industry, compromising material integrity over time.

Detecting and continuously monitoring these issues is paramount for asset safety but can prove challenging, especially when they manifest beneath protective coatings.

  • Subsea Complexity

Subsea pipelines and equipment entail specialized inspection techniques, often relying on remotely operated vehicles (ROVs) or autonomous underwater vehicles (AUVs).

Conducting inspections at substantial depths introduces complexity and increased costs to NDT operations.

  • Data Management

NDT generates substantial datasets, necessitating efficient collection, storage, and analysis.

Integrating data from multiple inspection methods and implementing predictive maintenance systems is a challenging but vital aspect of asset management.

  • Regulatory Compliance

Stringent regulations govern the oil and gas sector, guaranteeing safety and environmental preservation.

Aligning NDT procedures with these regulations and maintaining compliance can be demanding.

  • Budgetary Constraints

While NDT is indispensable for preserving asset integrity, inspection costs can be substantial.

Striking a balance between thorough inspections and budgetary limitations remains an ongoing challenge.

  • Personnel Expertise

Skilled NDT personnel are the cornerstone of accurate inspections.

Continuous training and certification of personnel to operate advanced NDT equipment and interpret results accurately pose ongoing challenges.

  • Aging Infrastructure

Numerous oil and gas facilities have aging infrastructure.

Ensuring the integrity of older equipment and structures presents a challenge, as they may not have been designed with modern inspection techniques in mind.

Effectively addressing these challenges demands the integration of advanced NDT technologies, stringent safety protocols, robust data management systems, and a steadfast commitment to ongoing training and adherence to industry regulations.

Overcoming these hurdles is imperative for safeguarding the safety, dependability, and efficiency of oil and gas operations.

Future of Non-destructive Testing in the Oil and Gas Industry

The future scope of Non-destructive Testing (NDT) in the oil and gas industry is poised for remarkable growth and transformation, driven by the industry's unrelenting pursuit of safety, efficiency, and sustainability.

This evolution encompasses several key facets that will redefine NDT practices in the sector.

Advanced inspection technologies will continue to progress, offering heightened precision, swifter inspections, and increased sensitivity.

These technologies encompass the development of more compact and portable equipment, ideal for deployment in remote and challenging environments.

Simultaneously, sensors and imaging technologies will evolve, ensuring more comprehensive assessments of critical components.

Robotics and automation will become exponentially integral to Non-destructive Testing processes.

Autonomous robots and drones, equipped with advanced NDT sensors, will be at the forefront of remote inspections.

These automated systems will help venture into inaccessible areas, significantly enhancing safety and efficiency while reducing human exposure to hazardous environments.

Data analytics and artificial intelligence (AI) will revolutionize Non-destructive Testing in the oil and gas industry.

The industry's vast data reservoirs will be harnessed by AI and machine learning algorithms to glean actionable insights.

Predictive maintenance models will help grow more sophisticated, empowering proactive asset management and significantly curbing downtime.

The adoption of digital twin technology will also gain momentum, and NDT data will serve as the bedrock for the creation of digital twins of critical assets.

These virtual replicas will enable real-time monitoring and simulations, facilitating predictive maintenance and optimizing asset performance.

Subsea inspections, crucial for underwater pipelines and infrastructure, will see significant enhancements.

Remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs) will be outfitted with cutting-edge sensors, enabling deeper and more comprehensive inspections, even at challenging depths.

Conclusion

In a world increasingly focused on sustainability and environmental responsibility, NDT will play a central role.

Advanced inspection techniques will help detect and mitigate leaks and emissions, thus reducing the industry's environmental footprint.

Evolving regulatory landscapes will also influence the trajectory of NDT.

As safety and environmental standards become more stringent, NDT practices will adapt to comply with these stringent requirements, ensuring the industry's adherence to regulatory mandates.

Extending the lifespan of assets will continue to be a key objective.

NDT evaluations of asset conditions will enable well-informed choices concerning maintenance, repairs, and rejuvenation, thereby enhancing investments, and prolonging the operational life of current assets.

The focus on education and workforce advancement will intensify.

Ongoing training and certification for NDT experts will be essential to meet the industry's ever-evolving needs, guaranteeing that proficient personnel operate state-of-the-art equipment and interpret findings with precision.

Lastly, the global expansion of NDT will persist. The oil and gas industry spans the globe, with exploration and production activities reaching new heights.

Consequently, NDT Companies will expand their operations worldwide to serve the industry's burgeoning needs on a global scale.

The Future of NDT in the oil and gas industry promises a landscape of innovation and adaptation.

The sector's progression will be grounded in technological progress, insights derived from data, automation, sustainability efforts, and adherence to regulations, all serving as the foundation for ensuring the industry's safety, reliability, and long-term sustainable development.
