Advanced Ultrasonic Testing Methods: A Complete Guide

Advanced Ultrasonic Testing Methods: A Complete Guide

Table Of Contents

  • Introduction
  • What is the Ultrasonic Method?
  • Types of Advanced Ultrasonic Testing
  • Automated Ultrasonic Backscatter Technique
  • Internal Rotating Inspection Systems
  • Dry-Coupled Ultrasonic Testing
  • Rapid Ultrasonic Gridding (RUG)
  • Conventional Ultrasonics
  • Advanced NDT Methods
  • Conclusion
  • Key Takeaways
  • FAQs


Introduction

In a world full of technological wonders, Non-destructive Testing (NDT)  ensures the safety and reliability of the structures and materials on which we rely.

Ultrasonic Testing Methods is a fascinating realm where sound waves play the leading role in NDT.

What is the Ultrasonic Method?

Ultrasonic Testing is a Non-destructive Testing method that uses ultrasonic waves to inspect materials without causing harm.

These waves penetrate materials, revealing internal structures and defects without a scratch.

The tester sends ultrasonic waves into the material, setting the tone, and when a flaw is detected, they bounces back, revealing its location and size, similar to a musician detecting a sour note.

Types of Advanced Ultrasonic Testing

In Ultrasonic Testing, each type plays a distinctive role, in ensuring the examination of materials.

Whether it's the gentle touch, the deep dive, or the precision of phased arrays, ultrasonic testing methods offer a diverse range of tools for flaw detection.

Ultrasonic Testing NDT material thickness to meet safety standards ensures it remains intact, like painting layers on a canvas.

Shear Wave Inspection, similar to underwater explorers, detects flaws in welded joints by moving perpendicular to the wave direction, allowing for a more accurate measurement of thickness.

Here are a few types.

Ultrasonic Transducers are devices that convert electrical energy into mechanical vibrations and vice versa, primarily used in NDT.

These waves then reflect back as echoes, which are then converted back into electrical signals.

They are used for flaw detection, thickness measurement, and bond integrity assessment.

  • Automated Ultrasonic Backscatter Technique

The Automated Ultrasonic Backscatter Technique employs automated precision to scan materials, providing an in-depth analysis without human error.

It's like having a tireless assistant, ensuring no flaw goes unnoticed with NDT techniques.

With their advanced algorithms and real-time data processing capabilities, the automated ultrasonic backscatter NDT Techniques can quickly identify and characterize defects, such as cracks or delaminations, with high accuracy.

This cutting-edge technology not only saves time and effort but also enhances the overall reliability of Non-destructive Testing in various industries.

  • Internal Rotating Inspection Systems

Internal Rotating Inspection Systems turn within structures, inspecting every nook and cranny with meticulous detail.

It's like a miniature explorer navigating the intricate passages, leaving no stone unturned. Internal rotating inspection systems are one of the ultrasonic testing methods for ultrasonic NDT.

These kinds of ultrasonic examinations are equipped with advanced sensors and imaging technology that can detect even the smallest flaws or defects, such as cracks or Corrosion, ensuring thorough inspections.

Internal rotating inspection systems give engineers and technicians a better view of the structure inside, which helps them make smart decisions about repairs and maintenance, which ultimately makes the ultrasonic inspection safer and last longer.

  • Dry-Coupled Ultrasonic Testing

Dry-coupled Ultrasonic Testing inspection adds a touch of elegance to the process.

It's like upgrading from a messy ink pen to a sleek, precise stylus, ensuring clarity without the mess.

With dry-coupled ultrasonic NDT testing, there is no need for messy coupling gels or liquids, making the process cleaner and more efficient.

This ultrasonic testing method also allows for better maneuverability and access to hard-to-reach areas, enhancing the overall effectiveness of the NDT test procedure.

  • Rapid Ultrasonic Gridding (RUG)

The Rapid Ultrasonic Gridding test is the sprinter of the ultrasonic world.

It combines speed and precision, swiftly covering large areas without compromising accuracy.

Imagine it as the Usain Bolt of flaw detection, leaving no room for imperfections to hide.

It is one of the advanced ultrasonic testing methods that plays a unique tune, contributing to the symphony of flaw detection and NDT Ultrasonic Testing.

Whether it's the robotic precision, the internal exploration, the elegant touch, or the swift coverage, these techniques elevate ultrasonic testing work to new heights.

  • Conventional Ultrasonics:

The conventional Ultrasonic method is generally used in all industries, since it was invented in the year 1940 by Dr.Floyd Firestone a U.S. researcher from the University of Michigan, and named it “Flaw Detector & Measurement Device”.

The method involves the generation of sound waves at high frequencies.

The crystal that creates the sound vibrates a minimum of 20,000 times per second.

The created sound is sent into the test material, and the sound returns back to show the traveled distance (i.e., the thickness of the material).

If the sound meets any defect on its path, then it also returns back and shows the depth of the defect.

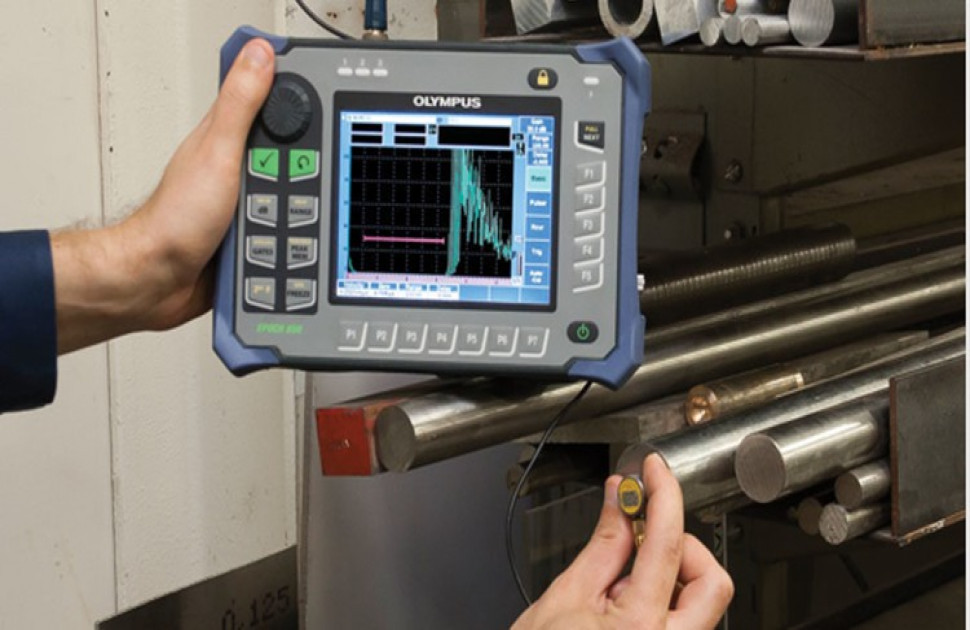

The Machine represents data in an echo pattern as shown here:

AQC-Ultrasonic testing

Conventional Ultrasonic nowadays is a familiar method in every industry including Medical Science.

The disadvantages of conventional Ultrasonic are

  • The sound has to be sent at different angles using different probes to detect defects t different orientation
  • The probe/ scanning unit has to be moved to and fro by a human hand to scan the full depth.
  • If there is no required area called Skip distance to move the scanning unit to and fro, then inspection cannot be done
  • The resolution is not great with the conventional UT view called the “A-scan view”.

Introduction to Advanced NDT Methods

Latest Inventions have given us advancement in technology,  a few are given below:

1. Introduction to Phased Array Ultrasonic Testing (PAUT)

AQC-Ultrasonic testing

A  Phased Array Ultrasonic scanning unit involves many crystals arranged in a manner that sends sound waves in different directions inside the material.

The sound from different crystals is timed by the computer at different phases – hence the name Phased Array (Timed elements & Arrangement of elements)

The major advantages of the technology are:

  • Inspection is quick since the manual to and fro movement by the user is not required.
  • More possibility of finding defects without using different angle probes, since a single probe scans in different directions.
  • PAUT gives multiple views of the defects through advanced presentation views such as B scan (depth of defect) view, C Scan View(Top view), S Scan view (sectorial view), and conventional A scan view (echo pattern ).

AQC-Ultrasonic testing

Complete scanning can be recorded and interpretation can be made later by many people. So the technology is believed to be a reliable process for inspection.

2. Introduction to Time Of Flight Diffraction UT (TOFD)

The technology is used for Crack detection at a rapid rate.

The method involves two Ultrasonic probes a “transmitter’ and a “receiver” attached to a fixture.

The fixture can be operated manually or robotic. The technology finds defects by analyzing the time of sound travel and sound diffracted from the crack tips, hence the name “ Time of Flight Diffraction”

AQC-Ultrasonic Testing

The TOFD methods give a visual representation of the defects, as shown here.

The technology exactly locates the defect and measures the size of the defect.

3. Introduction to Long Range Ultrasonic Testing / Guided Wave Testing

The Technology is used to scan a complete length of pipe for internal corrosion, cracks, or damages.

Long Range UT  involves multiple Probes fixed around the circumference of the pipe.

The sound is sent in a manner that travels through the wall of the pipe up to the end (Flange ) of the pipe and returns back.

The low-frequency sound waves are sent to avoid loss of sound due to scattering.

The sound reflected from the obstructions is shown on the screen.

The A-symmetrical sound echoes are identified as defects and the locations of the defect is shown in the sweep range of the screen.

The size of the defects is also can be interpreted by using Distance Amplitude Curve.

AQC Ultrasonic Testing

The major advantages of Guided Wave testing or Long Range UT are:

  • It is a speedy testing method, a long length of pipe can be scanned quickly
  • Full access to the pipe length is not required
  • Even Insulated or underground pipes can be scanned without excavation of the whole pipe length.

Still, there are more advanced Ultrasonic Testing Technologies such as Laser Ultrasonic Testing and immersion Ultrasonic Testing, we will keep you updated, so stay in touch.

Conclusion

Ultrasonic test is a crucial tool in aviation and pipeline health checks, ensuring structural integrity and cost-effective precision.

It detects flaws early, preventing catastrophic failures and ensuring the longevity of structures.

Ultrasonic testing is expected to continue evolving as technology advances, with miniature sensors and advanced algorithms revolutionizing flaw detection.

Key Takeaways

  • Ultrasonic Testing Methods is a fascinating realm where sound waves play the leading role in NDT.
  • The Automated Ultrasonic Backscatter Technique employs automated precision to scan materials, providing an in-depth analysis without human error.
  • Internal Rotating Inspection Systems turn within structures, inspecting every nook and cranny with meticulous detail.
  • Dry-coupled ultrasonic testing inspection adds a touch of elegance to the process.
  • Advanced NDT methods include Phased Array Ultrasonic Testing (PAUT), Time of Flight Diffraction Ultrasonic Testing (TOFD), and Long Range Ultrasonic Testing (LRUT).
  • PAUT uses multiple crystals to send sound waves in different directions, providing quick inspections and multiple views of defects.
  • TOFD is used for rapid crack detection, involving a transmitter and receiver attached to a fixture.
  • LRUT scans the entire length of pipes for internal corrosion, cracks, or damages without full access to the pipe length.
  • Advanced technologies like laser ultrasonic testing and immersion ultrasonic testing are on the horizon, redefining NDT standards.

FAQs

1. What is the ultrasonic method?

A: The ultrasonic method involves the use of high-frequency sound waves to inspect materials for defects without causing damage.


2. What can ultrasonic testing detect?

A: Ultrasonic testing can detect various flaws, including cracks, voids, and inclusions, providing a detailed assessment of a material's condition.


3. How does the transmission method work?

A: The transmission method involves sending ultrasonic waves through a material from one side and detecting them on the other, which is useful when accessing both sides is impractical.


4. What are the three types of waves in ultrasonic testing?

A: The three types of waves used in ultrasonic testing are longitudinal waves, shear waves, and surface waves, each serving specific purposes in the inspection process.


5. What is the basic principle of ultrasonic testing?

A: The basic principle involves sending sound waves into a material, analyzing their reflections, and using the information to assess the material's condition.
