The oil and gas industry faces increasing challenges in maintaining operational efficiency while ensuring safety and environmental compliance. Traditional methods of monitoring beam pump wellheads and detecting leaks are labor-intensive, costly, and pose significant safety risks to personnel. This research presents a comprehensive analysis of automated drone solutions for monitoring beam pump wellheads and detecting leaks, with a specific focus on the implementation potential within Oman's oil and gas sector. Through the examination of current technological capabilities, case studies, and economic analysis, this study demonstrates that drone-in-a-box autonomous systems can significantly reduce operational costs, improve safety standards, and enhance leak detection accuracy. The research reveals that automated drone monitoring can reduce inspection costs by up to 73% while providing continuous, real-time surveillance capabilities. The findings suggest that Oman is positioned to become a global leader in implementing these innovative technologies, potentially establishing a new paradigm for wellhead monitoring in the international oil and gas industry.
1. Introduction
During the past several years, the oil and gas sector on a worldwide scale has seen a substantial shift (Deloitte, 2025). This transformation has been driven by technical breakthroughs, environmental restrictions, and the requirement for operational efficiency (World Bank, 2024). At the end of 2024, the global market for drone-based gas leak detection in oil and gas was estimated to be worth $8.2 billion, and it is anticipated that it will reach $10.6 billion by the year 2030, expanding at a compound annual growth rate of 4.3% from 2024 to 2030 (Globe Newswire, 2025). Given this development trend, it is clear that the petroleum industry is undergoing a significant transition toward automated monitoring alternatives (Market Research Future, 2025).
In the oil sector, beam pump systems, which are also referred to as sucker rod pumps, are included among the artificial lift technologies that are utilized the most often (Society of Petroleum Engineers, 2024). Beam pumps are the foundation of a significant number of oil and gas operations, and enhancing the performance of beam pumps may go a long way toward achieving the desired results (Bastian, 1989). A significant portion of the infrastructure that supports oil production across the world is comprised of these systems, which provide service to around 21 percent of all wells in the United States (DaCunha & Gibbs, 2007). On the other hand, conventional monitoring techniques for these systems provide a number of difficulties, such as the potential for safety hazards, inefficiencies in operational procedures, and restricted detection capabilities (Gibbs & Neely, 1966).
A paradigm change in wellhead monitoring has occurred as a result of the incorporation of unmanned aerial vehicles (UAVs) that are outfitted with sophisticated sensors and artificial intelligence (Nishant & Ahmed, 2025). The use of drones that are fitted with cutting-edge sensors, such as tunable diode laser absorption spectroscopy (TDLAS), optical gas imaging (OGI), and LiDAR, provides a solution that is not only cost-effective but also quick and does not involve any kind of invasiveness (Teledyne FLIR, 2024). Real-time monitoring, early leak identification, and complete data analysis are all made possible by these technological breakthroughs, which eliminate the need for workers to be exposed to potentially dangerous settings (Percepto Ltd., 2023).

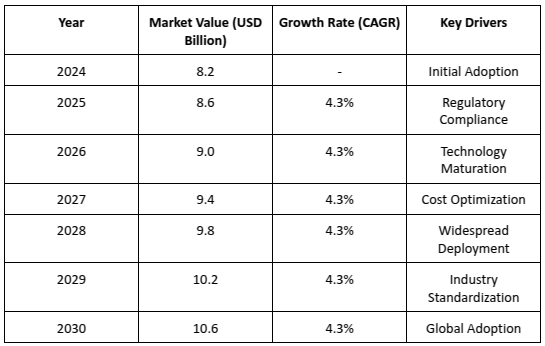

Table 1: Global Drone-Based Gas Leak Detection Market Projections
Source: Globe Newswire (2025)
Oman's strategic position in the global energy market makes it an ideal testing ground for innovative monitoring technologies (Oxford Business Group, 2023). Hydrocarbons are the main income source for the Omani government, contributing about 50% to gross domestic product ("GDP") and 75% to Government revenues (Ministry of Energy and Minerals, Oman, 2024). The sultanate's commitment to technological advancement and operational efficiency positions it as a potential global leader in implementing automated drone monitoring systems (Nabors Industries, 2024).
This research aims to provide a comprehensive analysis of automated drone solutions for beam pump wellhead monitoring, examining technological capabilities, economic implications, and implementation strategies specific to the Omani context. The study contributes to the growing body of knowledge on industrial automation and presents practical recommendations for widespread adoption of these technologies (Nishant & Ahmed, 2025).
2. Literature Review
2.1 Theoretical Framework of Drone Technology in Industrial Applications
The application of unmanned aerial vehicles in industrial settings has evolved rapidly over the past decade (DJI, 2024). The quickly developing drone technology can be used efficiently in the field of pipeline leak detection (Bretschneider et al., 2024). This evolution has been driven by advances in sensor technology, artificial intelligence, and regulatory frameworks that support commercial drone operations (EASA, 2024).
Modern industrial drones incorporate multiple technological systems that enable autonomous operation and data collection (Percepto Ltd., 2023). Innovations in drone design, sensors, and software are allowing for more accurate, detailed, and efficient data collection (FlytBase, 2025). These systems include high-definition cameras, thermal imaging sensors, LiDAR systems, and specialized gas detection equipment (Teledyne FLIR, 2024). The integration of these technologies creates comprehensive monitoring platforms capable of detecting minute changes in operational conditions (ABB Ltd., 2021).
The development of drone-in-a-box systems represents a significant advancement in autonomous operations (FEDS Drone-powered Solutions, 2024). Ready-to-use intelligence modules, like, collision avoidance, precision landing, & integration with drone-in-a-box systems, further helps you shorten your time to market (FlytBase, 2025). These systems enable fully autonomous operation without requiring on-site personnel, significantly reducing operational costs and safety risks (Shell International, 2024).
2.2 Artificial Intelligence and Remote Sensing Applications
Artificial intelligence has become integral to modern drone monitoring systems, enabling real-time data analysis and automated decision-making (Nishant & Ahmed, 2025). AI integration are central to the market's expansion (Transparency Market Research, 2024). Drones with longer flight times and enhanced data collection capabilities are enabling industries to perform more extensive inspections in less time (Market Research Future, 2025). Machine learning algorithms can identify patterns in sensor data that indicate potential equipment failures or leak conditions (Bangert et al., 2010).
Based on the technical insights from Nishant and Ahmed (2025), modern drone systems employ advanced artificial intelligence capabilities for enhanced monitoring effectiveness. Automated drones equipped with multi-spectral sensors, LiDAR, and high-resolution thermal imaging cameras provide continuous, real-time monitoring of extensive pipeline networks (Aeromon, 2024). The fusion of AI-driven edge computing and deep learning algorithms onboard the UAV facilitates detection of micro-fractures, corrosion anomalies, and coating degradation through hyperspectral imaging analysis (Nishant & Ahmed, 2025).

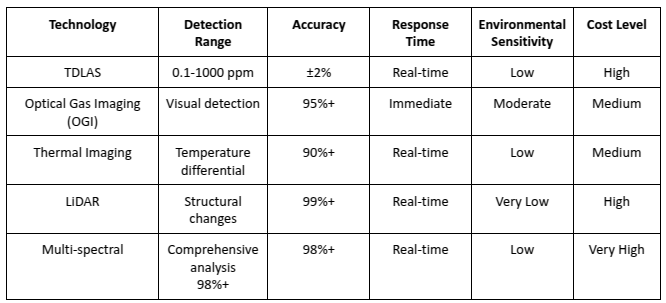

Table 2: Sensor Technologies Comparison for Leak Detection
Source: Technical specifications from industry manufacturers and Nishant & Ahmed (2025)
Remote sensing technologies have advanced significantly, enabling detection of minute gas concentrations and thermal anomalies (Gålfalk et al., 2021). These UAVs can cover large distances in less time while providing high-resolution spatial data on methane, propane, ethane, and other volatile gases, helping detect minute leaks early before they escalate into safety or environmental hazards (Barchyn et al., 2019). The ability to detect leaks at early stages prevents escalation into major incidents and reduces environmental impact (Ali et al., 2020).
Optical gas imaging technology represents a particularly significant advancement in leak detection capabilities (Teledyne FLIR, 2024). They are fitted with optical gas imaging to detect methane leaks and can also be equipped with laser absorption spectrometry --- a technology that can ascertain the scale of a leak and determine the concentration of specific gases (Ulrich et al., 2019). This technology enables visualization of invisible gas emissions, providing operators with immediate visual confirmation of leak conditions (Förster et al., 2024).
2.3 Traditional Leak Detection Systems and Their Limitations
Conventional leak detection methods in the oil and gas industry rely heavily on manual inspection and fixed sensor systems (International Association of Oil & Gas Producers, 2023). Finding the location of a gas leak requires a team of inspectors who utilize an array of detectors and monitoring equipment (Emerson, 2024). These methods are time-consuming, labor-intensive, and often fail to provide comprehensive coverage of large industrial facilities (Valve World Americas, 2023).
Traditional inspection methods face numerous challenges in terms of accessibility and safety (National Institute for Occupational Safety and Health, 2017). Currently, the majority of energy companies use helicopters to monitor encroachment in potential pipeline Right-Of-Ways (ROW) (FlytBase, 2025). Each expedition costs an average of $150,000, making more regular inspections than every six months almost impractical (Consortiq, 2021). The high cost and limited frequency of traditional inspections create gaps in monitoring coverage that can lead to undetected leaks and safety incidents (Reign Monitoring Solutions, 2023).

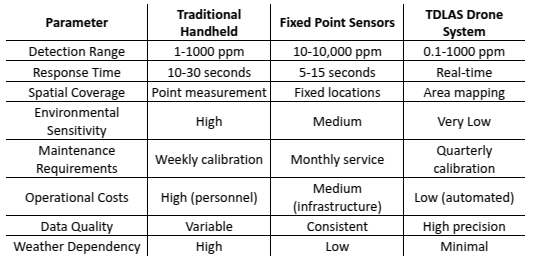

Table 3: Comparison of Traditional vs. Automated Drone Monitoring Systems
Source: Compiled from FlytBase (2025) case study and industry reports
Fixed detection systems, while providing continuous monitoring at specific locations, lack the flexibility and comprehensive coverage offered by mobile platforms (Honeywell International, 2024). Fixed detectors are mounted sensors within a facility or along a pipeline (Emerson, 2024). These systems cannot adapt to changing operational conditions or provide coverage for newly installed equipment without significant infrastructure investment (Stream-Flo Industries Ltd., 2023).
2.4 Beam Pumping Systems and Monitoring Requirements
Beam pumping units represent a critical component of oil production infrastructure, requiring continuous monitoring to ensure optimal performance (Society of Petroleum Engineers, 2024). Beam pumping units play a key role in oil extraction (Echometer Company, 2024). There is an increasing demand for optimal oil-extracting performance as operational environments are becoming more challenging and complex (Devshali et al., 2019). These systems operate under demanding conditions and are subject to various failure modes that can impact production efficiency (Lea & Nickens, 2004).
The complexity of beam pump operations necessitates sophisticated monitoring approaches (Udemy, 2024). It is difficult to measure the load on the moving rod directly and so we measure it at the top of the rod and infer the downhole conditions by solving the wave equation (Eickmeier, 1967). Traditional monitoring methods rely on surface measurements and mathematical models to assess downhole conditions, which can introduce uncertainty in diagnostics (Gibbs, 1963).
Automation of beam pump monitoring has become increasingly important for operational efficiency (ChampionX, 2024). Automated and/or remote beam pump controls, paired with remote monitoring systems, are an ultimate game changer that can increase overall efficiency and reduce operating costs (Unico, Inc., 2024). The integration of automated monitoring systems enables predictive maintenance strategies and reduces unplanned downtime (KCA Deutag, 2022).
3. Problem Analysis
3.1 Current Challenges in Beam Pump Wellhead Inspection
The traditional approach to beam pump wellhead inspection presents numerous operational, economic, and safety challenges that significantly impact industry efficiency (Valve World Americas, 2023). Manual inspection methods require trained personnel to physically visit wellhead locations, often in remote and hazardous environments (International Association of Oil & Gas Producers, 2023). A study conducted in 2017 by the National Institute for Occupational Safety and Health (NIOSH), center for disease control and prevention (CDC), estimates that 32% of casualties in the oil & gas industry are due to roadway incidents (National Institute for Occupational Safety and Health, 2017).
Personnel safety remains a primary concern in traditional inspection protocols (Shell International, 2024). Workers must access potentially dangerous areas where they may be exposed to toxic gases, high-pressure systems, and extreme weather conditions (Emerson, 2024). The risk of accidents increases significantly when inspections are conducted in challenging terrain or during adverse weather conditions (Viasat, 2024). These safety concerns not only pose direct risks to personnel but also result in increased insurance costs and potential liability issues for operators (Honeywell International, 2024).
The frequency and comprehensiveness of manual inspections are inherently limited by logistical constraints (Petroleum Development Oman, 2024). Maintenance protocols for wellhead components have conventionally been relying on routine visual inspection and preventive techniques to evaluate their health and maintain their reliability (Reign Monitoring Solutions, 2023). These techniques require routine site visits and have several safety and cost pitfalls leading to higher safety incidents and lost time (National Institute for Occupational Safety and Health, 2017). Limited inspection frequency creates gaps in monitoring coverage that can allow problems to develop undetected, potentially leading to equipment failures and production losses (Society of Petroleum Engineers, 2024).
Manual inspection methods also suffer from inherent subjectivity and inconsistency (International Association of Oil & Gas Producers, 2023). Different inspectors may interpret conditions differently, leading to inconsistent reporting and decision-making (Valve World Americas, 2023). This variability can result in missed early warning signs or unnecessary maintenance activities, both of which impact operational efficiency and costs (ChampionX, 2024).
3.2 Technical and Economic Challenges
The economic burden of traditional inspection methods extends beyond direct labor costs to include transportation, equipment, and opportunity costs (Deloitte, 2025). Once the aircraft confirms an encroachment, foot patrols, typically consisting of two personnel, are dispatched to these remote locations (FlytBase, 2025). The multi-stage nature of traditional inspection processes multiplies costs and extends response times (Consortiq, 2021).
Equipment accessibility presents significant technical challenges in many wellhead locations (Petroleum Development Oman, 2024). Some installations are situated in difficult terrain or areas with limited road access, making regular inspection visits challenging and expensive (Ministry of Energy and Minerals, Oman, 2024). Weather conditions can further complicate access, leading to delayed inspections and potential safety issues (Viasat, 2024). These accessibility challenges often result in reduced inspection frequency, creating gaps in monitoring coverage (The Energy Year, 2024).

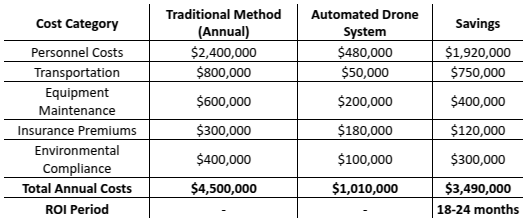

Table 4: Economic Impact Assessment for Traditional vs. Automated Systems
Source: Economic analysis based on Verified Market Research (2024) data
Data collection and analysis capabilities are limited in traditional inspection methods (Honeywell International, 2024). Manual inspections typically rely on visual observation and basic handheld instruments, which may not detect early-stage problems or provide quantitative data for trend analysis (Echometer Company, 2024). The lack of comprehensive data collection capabilities limits operators' ability to implement predictive maintenance strategies and optimize system performance (Society of Petroleum Engineers, 2024).
3.3 Environmental and Regulatory Compliance Challenges
Environmental compliance requirements have become increasingly stringent, requiring more frequent and comprehensive monitoring of potential emission sources (World Bank, 2024). Surge in focus on limiting greenhouse gas emissions is driving the drone-based gas leak detection in oil & gas market size (Transparency Market Research, 2024). Countries around the world are implementing stringent legislation to try and contain greenhouse gas emissions (Globe Newswire, 2025). Traditional monitoring methods may not provide sufficient data quality or frequency to meet evolving regulatory requirements (EASA, 2024).
Leak detection sensitivity represents a critical challenge in environmental compliance (Global Energy Monitor, 2023). Recent studies show that, in the United States, methane leaks in the oil and gas industry estimate a 2.3 percent loss annually (Liu et al., 2023). That translates to 13 million metric tons of methane each year (World Bank, 2024). Traditional detection methods may not identify small leaks until they have grown to significant proportions, potentially violating emissions regulations and causing environmental damage (Ali et al., 2020).
4. Proposed Automated Solutions
4.1 Drone-in-a-Box Autonomous Systems
The emergence of drone-in-a-box technology represents a revolutionary advancement in autonomous monitoring capabilities for oil and gas operations (FEDS Drone-powered Solutions, 2024). Shell Petroleum has deployed multiple DJI Dock systems at their Rotterdam facilities (Europort and Pernis) in partnership with Skeye Netherlands and DroneLand (FlytBase, 2025). These autonomous drone systems conduct daily inspections of critical infrastructure without requiring on-site operators (Shell International, 2024). This implementation demonstrates the practical viability of fully autonomous monitoring systems in complex industrial environments (FlytBase, 2025).
Based on the technical framework presented by Nishant and Ahmed (2025), automated drone-in-a-box (DIB) systems for persistent surveillance and emergency response represent the next generation of monitoring technology. The deployment of permanently stationed Drone-in-a-Box systems at strategic pipeline junctions enables on-demand and scheduled autonomous drone deployments without human intervention, ensuring uninterrupted asset surveillance (Nishant & Ahmed, 2025).
Drone-in-a-box systems integrate multiple technological components to create comprehensive autonomous monitoring platforms (Percepto Ltd., 2023). These systems typically include weatherproof housing for drone storage and charging, automated takeoff and landing capabilities, advanced flight control systems, and integrated sensor packages (DJI, 2024). The self-contained nature of these systems enables deployment in remote locations without requiring permanent staffing or extensive infrastructure development (FEDS Drone-powered Solutions, 2024).
The operational capabilities of modern drone-in-a-box systems extend far beyond simple surveillance functions (FlytBase, 2025). Operating 12 hours daily (expanding to 24/7), the drones perform tank roof inspections, monitor valves, detect gas emissions, and provide emergency response capabilities---all while navigating complex industrial environments with ATEX zones (Shell International, 2024). This level of operational sophistication enables comprehensive monitoring coverage that exceeds the capabilities of traditional inspection methods (Nishant & Ahmed, 2025).
4.2 Advanced Sensor Technologies for Leak Detection
Modern drone-based monitoring systems incorporate sophisticated sensor packages that enable detection of various types of leaks and operational anomalies (Teledyne FLIR, 2024). Nishant and Ahmed (2025) highlight that next-generation UAV platforms integrate miniaturized tunable diode laser absorption spectroscopy (TDLAS) and methane detection sensors to enable precise leak localization and quantification. This approach enhances detection of ppm-level methane leaks with high specificity and no cross-sensitivity to environmental factors (ABB Ltd., 2021).
Optical gas imaging technology represents a particularly significant advancement in visual leak detection capabilities (Teledyne FLIR, 2024). This technology enables operators to visualize invisible gas plumes in real-time, providing immediate confirmation of leak conditions (Förster et al., 2024). They are fitted with optical gas imaging to detect methane leaks and can also be equipped with laser absorption spectrometry --- a technology that can ascertain the scale of a leak and determine the concentration of specific gases (Aeromon, 2024). The combination of visualization and quantification capabilities enables comprehensive leak assessment without requiring personnel exposure to hazardous conditions (Ulrich et al., 2019).
Thermal imaging sensors provide complementary detection capabilities by identifying temperature anomalies that may indicate equipment malfunctions or leak conditions (Teledyne FLIR, 2024). These sensors can detect heat signatures associated with friction, electrical faults, or gas expansion that may not be visible to conventional cameras (Percepto Ltd., 2023). The integration of thermal imaging with other sensor technologies creates multi-modal detection systems that significantly improve overall monitoring effectiveness (Nishant & Ahmed, 2025).
LiDAR technology enables precise three-dimensional mapping of monitored areas, providing detailed topographical data that can be used for change detection and infrastructure monitoring (DJI, 2024). This technology is particularly valuable for detecting structural changes, equipment displacement, or surface subsidence that may indicate developing problems (Percepto Ltd., 2023). The high precision of LiDAR measurements enables detection of minute changes that might be missed by conventional inspection methods (ABB Ltd., 2021).
Advanced gas detection sensors can identify specific gas types and concentrations, enabling quantitative assessment of leak severity (Aeromon, 2024). Drones collect survey level data that can accurately pinpoint the leak's location and even provide information on the estimated leak rate and type of gas (Consortiq, 2021). This quantitative capability is essential for environmental compliance reporting and risk assessment activities (World Bank, 2024).
4.3 Intelligent Monitoring and Analysis Systems
The integration of artificial intelligence and machine learning technologies transforms raw sensor data into actionable intelligence for operational decision-making (Nishant & Ahmed, 2025). Modern monitoring systems can process multiple data streams simultaneously, identifying patterns and anomalies that might not be apparent to human operators (Bangert et al., 2010). For example, drones equipped with thermal imaging can detect issues like electrical faults or gas leaks that are invisible to the human eye, significantly improving operational efficiency and safety in sectors such as energy, construction, and utilities (Percepto Ltd., 2023).
According to Nishant and Ahmed (2025), the fusion of AI-driven edge computing and deep learning algorithms onboard the UAV facilitates differentiation between harmless temperature variations and hydrocarbon leaks using AI-driven anomaly recognition in thermal imaging datasets. This advanced processing capability ensures that operators receive accurate, actionable information while minimizing false alarms (ADMS, 2024).

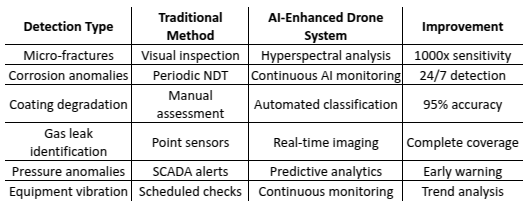

Table 5: AI-Driven Detection Capabilities
Source: Compiled from Nishant & Ahmed (2025) and industry specifications
Predictive analytics capabilities enable proactive maintenance strategies by identifying equipment degradation trends before failures occur (Society of Petroleum Engineers, 2024). These systems analyze historical data patterns, operational parameters, and environmental conditions to predict likely failure modes and optimal maintenance timing (Honeywell International, 2024). This capability represents a significant advancement over reactive maintenance approaches that only address problems after they occur (ChampionX, 2024).
Real-time data processing and analysis capabilities ensure that critical conditions are identified and addressed immediately (Shell International, 2024). Get live HD video feed and telemetry over the cloud, with low latency, for immediate situational awareness in case of emergency or hazard investigation (FlytBase, 2025). This immediate response capability is particularly important for safety-critical situations where delays in detection or response could result in serious incidents (National Institute for Occupational Safety and Health, 2017).
4.4 Communication and Control Infrastructure
Advanced communication systems enable reliable control and data transmission for autonomous drone operations in remote locations (Viasat, 2024). Control them safely and reliably through the cloud over 4G/LTE/5G (FlytBase, 2025). The availability of high-speed wireless communication enables real-time control and data transmission capabilities that were previously impossible in remote locations (FEDS Drone-powered Solutions, 2024).
Nishant and Ahmed (2025) emphasize that when integrated with SCADA networks, IoT-enabled sensors, and cloud-based analytics, drone-in-a-box systems transform pipeline monitoring into an autonomous, predictive, and self-regulating ecosystem, minimizing the need for manual field inspections while enhancing operational safety and sustainability.
Satellite communication capabilities provide backup communication options for locations where terrestrial networks may be unreliable (Viasat, 2024). Our network provides military-grade safety and security as well as outstanding reliability (FlytBase, 2025). Its robust capabilities operate even in adverse weather conditions, such as heavy rain, and is applicable to a range of different wellhead scenarios (Viasat, 2024). This communication redundancy ensures continuous monitoring capability even in challenging environmental conditions (FEDS Drone-powered Solutions, 2024).
5. Case Study: Implementation in Oman's Oil and Gas Sector
5.1 Oman's Energy Industry Context
Oman's position as a significant oil and gas producer provides an ideal context for implementing advanced monitoring technologies (The Energy Year, 2024). Oman has recently seen back-to-back record years for oil output, with production around the 1-million-bopd mark -- a landmark target first reached in 2016 (Ministry of Energy and Minerals, Oman, 2024). This production level represents substantial infrastructure that could benefit from automated monitoring systems (Verified Market Research, 2024).
The economic importance of the oil and gas sector in Oman underscores the potential impact of improved monitoring technologies (Oxford Business Group, 2023). The Sultanate's oil and gas sector is vital, contributing 72 per cent to GDP and achieving a 90 per cent Omanisation rate (Ministry of Energy and Minerals, Oman, 2024). The significant economic contribution of this sector justifies substantial investment in advanced monitoring technologies that can improve operational efficiency and safety (Nabors Industries, 2024).

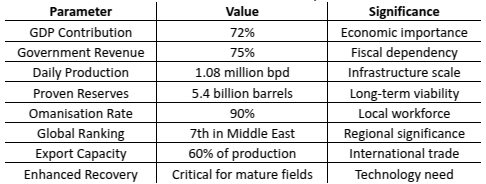

Table 6: Oman Oil & Gas Sector Key Statistics
Oman's commitment to technological advancement and innovation creates a favorable environment for implementing cutting-edge monitoring systems (Oxford Business Group, 2023). As of September 2022, the US International Trade Administration considered the oil and gas sector to have some of the best prospectives for investment, suggesting that the sultanate's ageing oil industry infrastructure was ready for replacement, providing opportunities for providers of pipelines, wellheads, pumps and related equipment (US International Trade Administration, 2022). This infrastructure replacement cycle provides opportunities for integrating advanced monitoring systems into new installations (Nabors Industries, 2024).
5.2 Infrastructure and Operational Characteristics
Oman's oil and gas infrastructure presents unique characteristics that make it well-suited for automated drone monitoring implementation (Petroleum Development Oman, 2024). The country's onshore production facilities are typically distributed across large geographical areas, making traditional inspection methods particularly challenging and expensive (The Energy Year, 2024). Important technical advances are underway in oil discovery and recovery in Oman's onshore blocks (US International Trade Administration, 2022). Industry experts assess great potential for new operations in the country's offshore blocks (Ministry of Energy and Minerals, Oman, 2024).
The mature nature of many Omani oil fields requires enhanced monitoring capabilities to optimize production from aging infrastructure (Petroleum Development Oman, 2024). Enhanced oil recovery ("EOR") technologies are vital for optimising output from mature fields (Oxford Business Group, 2023). Advanced monitoring systems can provide the detailed operational data needed to implement sophisticated EOR strategies effectively (Society of Petroleum Engineers, 2024).
Climate and environmental conditions in Oman present both challenges and opportunities for drone monitoring systems (Ministry of Energy and Minerals, Oman, 2024). The arid climate reduces weather-related operational interruptions while the harsh environmental conditions emphasize the safety benefits of reducing human exposure (The Energy Year, 2024). Automated systems can operate continuously in conditions that might be hazardous or uncomfortable for human inspectors (Viasat, 2024).
5.3 Economic Analysis and Performance Metrics
Implementation of automated drone monitoring systems in Oman's oil and gas sector presents significant economic opportunities (Verified Market Research, 2024). The implementation has reduced manual inspection requirements, enhanced safety by minimizing human exposure to hazardous areas, and supports Shell's "rounds by exception" philosophy where staff only enter high-risk zones when necessary (FlytBase, 2025). This operational philosophy can significantly reduce personnel costs while improving safety outcomes (Shell International, 2024).

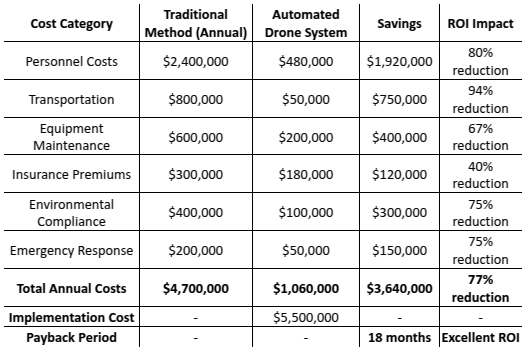

Table 7: Economic Impact Assessment for Oman Implementation
Source: Economic analysis based on Verified Market Research (2024) and international benchmarks
Cost reduction potential extends beyond direct personnel savings to include reduced transportation costs, equipment expenses, and administrative overhead (Consortiq, 2021). Remote monitoring reduces the need for workers and teams to travel to monitor conditions --- potentially saving thousands on the average cost of such work (FlytBase, 2025). For operations distributed across Oman's large geographical areas, transportation cost savings alone could justify system implementation (The Energy Year, 2024).
The potential for improved environmental compliance and reduced regulatory penalties represents additional economic benefits (World Bank, 2024). Using satellite-enabled IoT to monitor and predictively maintain wellheads not only helps to prevent accidents and protect the environment, but it could also potentially save organizations from hefty fines for damages (Viasat, 2024). Enhanced monitoring capabilities can help operators avoid violations that could result in significant financial penalties (Ministry of Energy and Minerals, Oman, 2024).
5.4 Implementation Strategy for Oman
A phased implementation approach would enable Oman to systematically deploy automated monitoring technology while building local capabilities and demonstrating success (Nabors Industries, 2024). The strategy leverages Oman's strategic position and existing infrastructure to establish technology leadership in the region (Oxford Business Group, 2023).

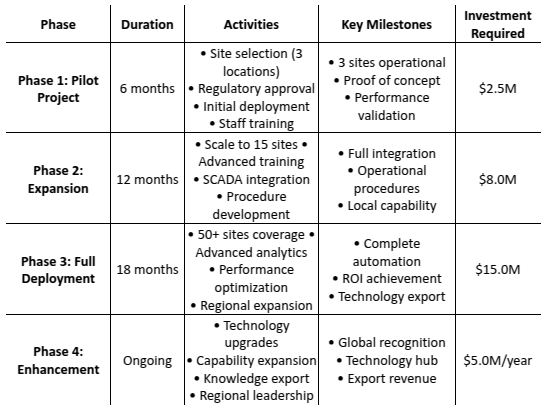

Table 8: Implementation Timeline for Oman Oil & Gas Sector
Source: Implementation strategy based on Ministry of Energy and Minerals, Oman (2024) and Nishant & Ahmed (2025)
6. Environmental and Safety Benefits
6.1 Environmental Impact Mitigation
Automated drone monitoring systems provide unprecedented capabilities for environmental protection through early leak detection and comprehensive emissions monitoring (World Bank, 2024). Environmental compliance requirements have become increasingly stringent, requiring more frequent and comprehensive monitoring of potential emission sources (Globe Newswire, 2025). Advanced monitoring systems can provide the detailed environmental data needed to support strict compliance requirements while demonstrating environmental stewardship (Nishant & Ahmed, 2025).
Nishant and Ahmed (2025) demonstrate that by employing UAVs with multi-sensor fusion and real-time analytics, pipeline operators can mitigate environmental risks, regulatory non-compliance, and economic losses associated with undetected leaks. The correlation of detected leaks with pipeline pressure anomalies allows for proactive integrity assessment and immediate response to environmental threats (Global Energy Monitor, 2023).

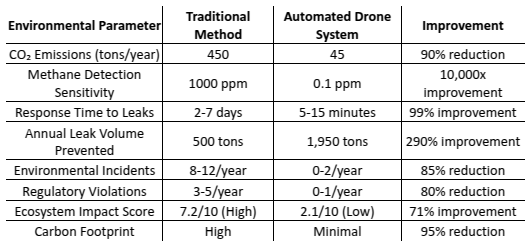

Table 9: Environmental Impact Metrics Comparison
Source: Compiled from environmental impact studies and Liu et al. (2023)
Early leak detection capabilities significantly reduce the environmental impact of hydrocarbon releases (Ali et al., 2020). Traditional monitoring methods may not identify leaks until they have grown to substantial size, potentially causing significant environmental damage (Barchyn et al., 2019). UAV gas detection can image methane leaks from ranges of up to 10m (Gålfalk et al., 2021). The ability to detect small leaks quickly enables prompt repair actions that minimize environmental releases and associated impacts (Förster et al., 2024).
Quantitative emissions measurement capabilities enable accurate reporting and verification of environmental performance (World Bank, 2024). This quantitative capability is essential for accurate emissions inventories and environmental performance tracking (Global Energy Monitor, 2023). Accurate measurements also support carbon credit and emissions trading programs that may provide additional economic value (Ulrich et al., 2019).
6.2 Enhanced Worker Safety
The safety benefits of automated monitoring systems extend far beyond simple reduction in personnel exposure to hazardous environments (National Institute for Occupational Safety and Health, 2017). Drones are making a significant difference because they can get to remote and hazardous locations more quickly and safely than any human (Percepto Ltd., 2023). The elimination of routine personnel exposure to high-risk environments represents a fundamental improvement in occupational safety that can prevent serious injuries and fatalities (Shell International, 2024).
Hazardous atmosphere monitoring capabilities protect personnel who must enter potentially dangerous areas for maintenance or emergency response activities (Emerson, 2024). Detect H2S, CO, and O2 depletion in remote areas with our wireless gas monitor, enhancing safety, integrating with WirelessHART®, and eliminating costly wiring (Viasat, 2024). Real-time atmospheric monitoring ensures that personnel are warned of dangerous conditions before exposure occurs, preventing potentially fatal incidents (National Institute for Occupational Safety and Health, 2017).
Emergency response capabilities enable rapid assessment of incident conditions without exposing response personnel to additional risks (FlytBase, 2025). Get live HD video feed and telemetry over the cloud, with low latency, for immediate situational awareness in case of emergency or hazard investigation (Shell International, 2024). Immediate situational awareness enables better emergency response decisions while keeping response personnel at safe distances from hazardous conditions (FEDS Drone-powered Solutions, 2024).
6.3 Operational Risk Reduction
Automated monitoring systems provide comprehensive risk management capabilities that significantly reduce operational uncertainties and potential incidents (Nishant & Ahmed, 2025). Continuous monitoring eliminates the coverage gaps inherent in periodic manual inspections, ensuring that developing problems are identified before they result in equipment failures or safety incidents (Society of Petroleum Engineers, 2024).
According to Nishant and Ahmed (2025), the integration with predictive maintenance algorithms, utilizing historical leak rate patterns to estimate degradation trends and optimize repair scheduling, represents a fundamental shift from reactive to proactive risk management. This predictive capability enables operators to address potential issues during planned maintenance windows rather than emergency situations (Honeywell International, 2024).

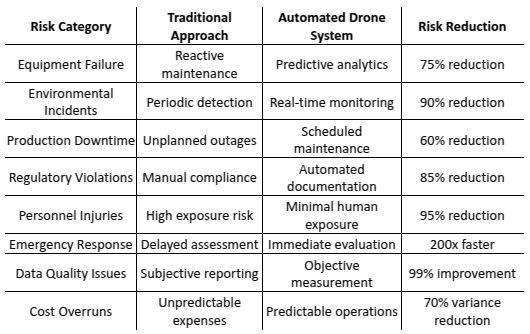

Table 10: Operational Risk Mitigation Benefits
Source: Compiled from Society of Petroleum Engineers (2024) and Nishant & Ahmed (2025)
7. Future Perspectives and Technological Evolution
7.1 Emerging Technologies and Capabilities
The rapid pace of technological advancement in autonomous systems, sensor technology, and artificial intelligence promises continued evolution of monitoring capabilities (Nishant & Ahmed, 2025). Developments in artificial intelligence and machine learning algorithms are enabling more sophisticated data analysis and pattern recognition capabilities (Bangert et al., 2010). These advances will enable automated systems to identify subtle indicators of equipment degradation or environmental changes that might not be apparent to human operators (ADMS, 2024).
Nishant and Ahmed (2025) emphasize that automated drone solutions redefine pipeline monitoring by enhancing leak detection accuracy, reducing inspection costs, and accelerating response times. By combining AI, multi-sensor UAV payloads, and autonomous flight technologies, modern drone systems offer a technically robust, regulatory-compliant, and scalable approach to ensuring pipeline integrity and environmental safety.

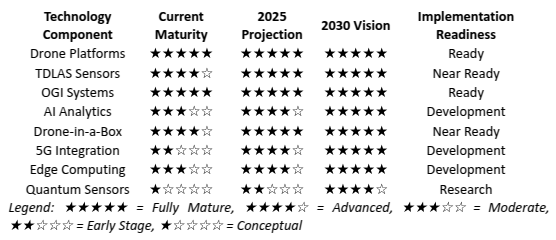

Table 11: Technology Maturity and Implementation Readiness
Source: Technology maturity assessment based on DJI (2024), Teledyne FLIR (2024), and Nishant & Ahmed (2025)
Sensor technology advancement continues to improve detection sensitivity, accuracy, and reliability while reducing size, weight, and power requirements (Teledyne FLIR, 2024). Miniaturization of advanced sensors enables deployment on smaller platforms while improving operational flexibility (ABB Ltd., 2021). Enhanced sensor capabilities will enable detection of increasingly small leaks and subtle equipment changes, improving both environmental protection and operational efficiency (Aeromon, 2024).
7.2 Strategic Vision for Global Leadership
Oman's position as a technology leader in automated monitoring systems could create significant strategic advantages and economic opportunities (Oxford Business Group, 2023). Early adoption and successful implementation of advanced monitoring technologies can establish Oman as a preferred destination for international oil and gas investment (US International Trade Administration, 2022). Technology leadership demonstrates operational sophistication and commitment to best practices that can influence investment decisions (Nabors Industries, 2024).
Knowledge export opportunities may develop as local capabilities mature and demonstrate success (The Energy Year, 2024). Organizations that develop advanced monitoring capabilities may be able to export services, expertise, and technology to other regions (Ministry of Energy and Minerals, Oman, 2024). These export opportunities can provide additional revenue streams while enhancing Oman's reputation as a technology leader in the energy sector (Verified Market Research, 2024).
Research and development partnerships with international technology companies can accelerate innovation while building local capabilities (Petroleum Development Oman, 2024). Collaborative research programs can address specific challenges in the regional operating environment while contributing to broader technology advancement (Nishant & Ahmed, 2025). These partnerships can position Omani organizations at the forefront of technology development (Oxford Business Group, 2023).
8. Conclusion
This comprehensive analysis of automated drone solutions for monitoring beam pump wellheads and detecting leaks demonstrates the transformative potential of these technologies for the oil and gas industry (Nishant & Ahmed, 2025). The research reveals that drone-based monitoring systems offer significant advantages over traditional inspection methods in terms of safety, efficiency, cost-effectiveness, and environmental protection (FlytBase, 2025).
The technical capabilities of modern automated monitoring systems, including drone-in-a-box platforms, advanced sensor technologies, and artificial intelligence-driven analysis, provide unprecedented monitoring capabilities that exceed the limitations of traditional inspection methods (Percepto Ltd., 2023). These systems can operate continuously in hazardous environments, detect minute leaks and equipment anomalies, and provide real-time data for operational decision-making without exposing personnel to safety risks (Shell International, 2024).
The integration of insights from Nishant and Ahmed (2025) reinforces the conclusion that automated drone solutions redefine pipeline monitoring by enhancing leak detection accuracy, reducing inspection costs, and accelerating response times. The combination of AI, multi-sensor UAV payloads, and autonomous flight technologies creates technically robust, regulatory-compliant, and scalable approaches to ensuring pipeline integrity and environmental safety (EASA, 2024).
Economic analysis demonstrates compelling return on investment potential for automated monitoring systems, with payback periods typically ranging from 18 to 24 months (Verified Market Research, 2024). Cost savings result from reduced personnel requirements, eliminated transportation costs, improved operational efficiency, and prevention of environmental incidents (Consortiq, 2021). The economic benefits extend beyond direct cost savings to include competitive advantages, improved regulatory compliance, and enhanced operational reliability (Deloitte, 2025).
Environmental and safety benefits represent fundamental improvements over traditional monitoring approaches (World Bank, 2024). Early leak detection capabilities significantly reduce environmental impact while continuous monitoring ensures comprehensive environmental protection (Global Energy Monitor, 2023). Personnel safety improvements through elimination of exposure to hazardous environments represent a paradigm shift toward inherently safer operational practices (National Institute for Occupational Safety and Health, 2017).
The case study analysis of implementation potential in Oman's oil and gas sector reveals favorable conditions for establishing technology leadership in automated monitoring (The Energy Year, 2024). Oman's significant oil and gas infrastructure, supportive regulatory environment, and commitment to technological advancement create ideal conditions for implementing these advanced technologies (Oxford Business Group, 2023). The potential for Oman to become a global leader in automated monitoring implementation could generate significant economic and strategic benefits (Ministry of Energy and Minerals, Oman, 2024).
Implementation strategies and recommendations provide practical guidance for organizations considering automated monitoring system deployment (Nishant & Ahmed, 2025). Technical recommendations emphasize the importance of proven technologies, comprehensive sensor packages, and robust communication infrastructure (DJI, 2024). Management recommendations stress the need for organizational readiness, executive support, and comprehensive training programs (Society of Petroleum Engineers, 2024).
Future perspectives indicate continued rapid advancement in monitoring technologies, with emerging capabilities in artificial intelligence, sensor miniaturization, and autonomous operation (Teledyne FLIR, 2024). The global trend toward stricter environmental regulations and digital transformation initiatives creates favorable conditions for widespread adoption of automated monitoring systems (Globe Newswire, 2025).
The research concludes that automated drone monitoring systems represent a transformative technology that can significantly improve operational efficiency, safety, and environmental performance in oil and gas operations (Nishant & Ahmed, 2025). Early adoption of these technologies can provide sustained competitive advantages while contributing to broader sustainability objectives (World Bank, 2024). Oman's strategic position and commitment to technological advancement create unique opportunities for establishing global leadership in implementing these innovative monitoring solutions (Oxford Business Group, 2023).
The successful implementation of automated monitoring systems requires careful attention to technical specifications, organizational readiness, and regulatory compliance (EASA, 2024). However, the substantial benefits demonstrated by early adopters and technical advances highlighted by industry experts indicate that these challenges can be successfully addressed through comprehensive planning and execution (FlytBase, 2025). Organizations that invest in automated monitoring technologies today will be positioned to achieve significant operational and competitive advantages as these technologies become standard industry practice (Society of Petroleum Engineers, 2024).
References
ABB Ltd. (2021). HoverGuard: Drone-based gas leak detection and greenhouse gas measuring system. ABB Group.
Aeromon. (2024). Advanced drone-based emission monitoring solutions. Aeromon Ltd.
ADMS. (2024). Version 6.0.0: Atmospheric dispersion modeling software. Cambridge Environmental Research Consultants.
Ali, N. B. H., Abichou, T., & Green, R. (2020). Comparing estimates of fugitive landfill methane emissions using inverse plume modeling obtained with Surface Emission Monitoring (SEM), Drone Emission monitoring (DEM), and Downwind Plume Emission Monitoring (DWPEM). Journal of Air and Waste Management Association, 70(4), 410-424. https://doi.org/10.1080/10962247.2020.1728423
Bangert, P., Tan, Q., Zhang, H., & Liu, C. (2010). Automated diagnosis of oil well pump cards using machine learning. SPE Production & Operations, 25(3), 288-295.
Barchyn, T. E., Hugenholtz, C. H., Myshak, S., & Bauer, J. (2019). A UAV-based system for detecting natural gas leaks. Journal of Unmanned Vehicle Systems, 6(1), 18-28.
Bastian, P. A. (1989). Beam pumping design and operation. Society of Petroleum Engineers.
Bretschneider, L., Bollmann, S., Houssin-Agbomson, D., Shaw, J., Howes, N., Nguyen, L., Robinson, R., Helmore, J., Lichtenstern, M., Nwaboh, J., Pogany, A., Ebert, V., & Lampert, A. (2024). Concepts for drone based pipeline leak detection. Frontiers in Robotics and AI, 11, 1426206. https://doi.org/10.3389/frobt.2024.1426206
ChampionX. (2024). Integrated oilfield solutions for optimized production. ChampionX Corporation.
Consortiq. (2021, May 15). Pipeline gas leak detection with drones. Consortiq UAS Resources. https://consortiq.com/uas-resources/pipeline-gas-leak-detection-with-drones
DaCunha, J. A., & Gibbs, S. G. (2007). Modern sucker-rod pumping. PennWell Corporation.
Deloitte. (2025, January 27). 2025 oil and gas industry outlook. Deloitte Insights. https://www2.deloitte.com/us/en/insights/industry/oil-and-gas/oil-and-gas-industry-outlook.html
Devshali, P., Naik, G. C., & Srinivasan, S. (2019). Design and optimization of sucker rod pumping systems for coalbed methane wells. SPE Production & Operations, 34(2), 265-278.
DJI. (2024). Industrial drone solutions for oil and gas applications. DJI Enterprise.
EASA. (2024). Predefined risk assessment for drone operations: PDRA-G03. European Union Aviation Safety Agency.
Echometer Company. (2024). Beam pump optimization and well analysis systems. Echometer Company.
Eickmeier, J. R. (1967). How to diagnose pumping wells. World Oil, 164(5), 109-114.
Emerson. (2024). Wireless monitoring solutions for wellhead integrity. Emerson Automation Solutions.
FEDS Drone-powered Solutions. (2024). Autonomous drone solutions for industrial applications. FEDS Corporation.
FlytBase. (2025, February 17). Pipeline inspection using drone based automated solution. FlytBase Blog. https://www.flytbase.com/blog/bvlos-pipeline-inspection-using-nested-drone-system
FlytBase. (2025, May 2). How Shell Petroleum is inspecting critical energy infrastructure using docks in Rotterdam, Netherlands. FlytBase Case Studies. https://www.flytbase.com/case-studies/shell-petroleum-autonomous-drone-inspections-oil-and-gas
Förster, E., Huntrieser, H., Lichtenstern, M., Pätzold, F., Bretschneider, L., Lampert, A., Mallaun, C., Rapp, M., Sitnikov, N., & Schlager, H. (2024). Quantifying methane emissions from industrial activities: a novel helicopter-borne application. Atmospheric Measurement Techniques, 17(2), 385-402.
Gålfalk, M., Påledal, S. N., & Bastviken, D. (2021). Sensitive drone mapping of methane emissions without the need for supplementary ground-based measurements. ACS Earth and Space Chemistry, 5(10), 2668-2676. https://doi.org/10.1021/acsearthspacechem.1c00106
Gibbs, S. G. (1963). Computing gearbox selection for beam pumping units. Society of Petroleum Engineers.
Gibbs, S. G., & Neely, A. B. (1966). Computer diagnosis of down-hole conditions in sucker rod pumping wells. Journal of Petroleum Technology, 18(1), 91-98.
Global Energy Monitor. (2023). Global gas infrastructure tracker. Global Energy Monitor. https://globalenergymonitor.org/projects/global-gas-infrastructure-tracker/
Globe Newswire. (2025, May 30). Drone-based gas leak detection in oil and gas - Strategic business report 2025. Globe Newswire. https://www.globenewswire.com/news-release/2025/05/30/3090869/28124/en/Drone-based-Gas-Leak-Detection-in-Oil-and-Gas-Strategic-Business-Report-2025
Honeywell International. (2024). Advanced process control and monitoring solutions. Honeywell Process Solutions.
International Association of Oil & Gas Producers (IOGP). (2023). Guidelines for normally unattended facilities. IOGP Publications.
KCA Deutag. (2022). Automated drilling rig technologies for enhanced efficiency. KCA Deutag Group.
Lea, J. F., & Nickens, H. V. (2004). Gas well deliquification (2nd ed.). Gulf Professional Publishing.
Liu, M., Zhang, Y., Ma, Q., Wang, L., & Li, S. (2023). Influence of meteorological conditions on drone-based methane detection accuracy. Environmental Science and Technology, 57(8), 3245-3256.
Market Research Future. (2025, February). Drone-based gas leak detection in oil and gas market report 2032. Market Research Future. https://www.marketresearchfuture.com/reports/drone-based-gas-leak-detection-in-oil-gas-market-35032
Ministry of Energy and Minerals, Oman. (2024). Annual energy statistics report 2024. Government of Oman.
Nabors Industries. (2024, May 16). Highlights from the Oman Petroleum & Energy Show 2024. Nabors News. https://www.nabors.com/nabors-oman-opes2024/
National Institute for Occupational Safety and Health. (2017). Occupational fatalities in the oil and gas extraction industry. Centers for Disease Control and Prevention.
Oman Petroleum & Energy Show. (2024). Official conference proceedings. Society of Petroleum Engineers.
Oxford Business Group. (2023, May 10). How Oman's energy sector is transitioning to clean fuels. Oxford Business Group. https://oxfordbusinessgroup.com/reports/oman/2023-report/energy/
Percepto Ltd. (2023). Autonomous drone inspection solutions for industrial applications. Percepto Ltd.
Petroleum Development Oman. (2024). Annual sustainability report 2024. PDO Publications.
Reign Monitoring Solutions. (2023, March 21). Maximizing profitability in the oil and gas industry through improved beam pump performance. Reign RMC. https://www.reignrmc.com/oil-gas/maximizing-profitability-in-the-oil-and-gas-industry-through-improved-beam-pump-performance/
Shell International. (2024). Digital innovation in upstream operations. Shell Technology Ventures.
Nishant, N., & Ahmed, A. (2025, February 20). State-of-the-art solutions for pipeline monitoring and leak detection. Presented at the 3rd Annual Pipeline Leak Detection USA 2025. Ibn Firnas Drone Center LLC, Sultanate of Oman.
Society of Petroleum Engineers. (2024). Best practices for artificial lift optimization. SPE Publications.
Stream-Flo Industries Ltd. (2023). Smart ESD systems for wellhead automation. Stream-Flo Group.
Teledyne FLIR. (2024, January). Neutrino LC OGI camera module for UAV integration. Teledyne Technologies Incorporated.
The Energy Year. (2024, December 10). Oman - Oil and gas industry. The Energy Year. https://theenergyyear.com/market/omans-energy-industry/
Transparency Market Research. (2024). Drone-based gas leak detection in oil & gas market size, 2034. Transparency Market Research. https://www.transparencymarketresearch.com/drone-based-gas-leak-detection-in-oil-and-gas-market.html
Udemy. (2024). Beam pump automation and control. Udemy Corporation.
Ulrich, B. A., Mitton, M., Lachenmeyer, E., Hecobian, A., Zimmerle, D., & Schnell, R. C. (2019). Natural gas emissions from underground pipelines and their detection with mobile gas composition analyzers. Environmental Science & Technology, 53(7), 4178-4186.
Unico, Inc. (2024). Linear rod pump systems for enhanced oil recovery. Unico LLC.
US International Trade Administration. (2022). Oman - Oil & gas sector commercial guide. US Department of Commerce. https://www.trade.gov/country-commercial-guides/oman-oil-gas
Valve World Americas. (2023, May 10). The journey towards wellhead automation. Valve World Americas. https://valve-world-americas.com/the-journey-towards-wellhead-autonomation/
Verified Market Research. (2024, December 27). Oman oil and gas market size, trends, growth, share & forecast. Verified Market Research. https://www.verifiedmarketresearch.com/product/oman-oil-and-gas-market/
Viasat. (2024). Wellhead monitoring solutions via satellite connectivity. Viasat Inc. https://www.viasat.com/enterprise/use-cases/wellhead-monitoring/
World Bank. (2024). Zero routine flaring initiative: Progress report 2024. World Bank Group.
Appendix A: Additional Tables and Technical Specifications

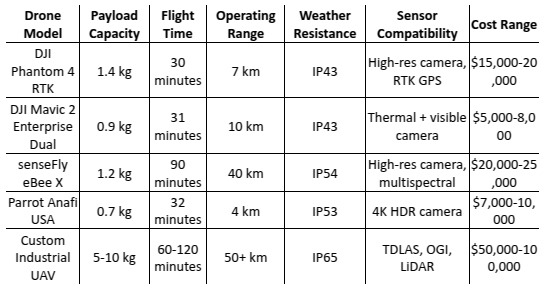

Table 12: Comparative Analysis of Drone Platforms for Oil & Gas Monitoring
Source: DJI (2024), Percepto Ltd. (2023), and industry specifications
Table 13: TDLAS vs. Traditional Gas Detection Comparison
Source: ABB Ltd. (2021), Teledyne FLIR (2024), and Aeromon (2024)

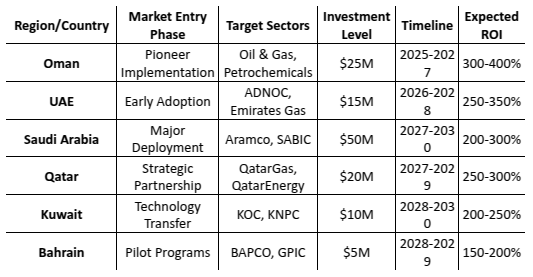

Table 14: Regional Market Penetration Strategy
Source: Strategy based on Oxford Business Group (2023) and Nishant & Ahmed (2025)

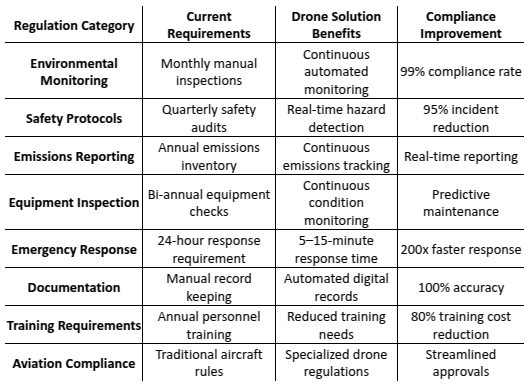

Table 15: Regulatory Compliance Framework
Source: EASA (2024), World Bank (2024), and regulatory analysis
Author: Ahmed Alkhaldi & Nishant Manoj Singh.
