NDT: Codes and Standards Overview

NDT: Codes and  Standards Overview

Codes and Standards

As seen earlier that basic NDT methods are VT, MT, RT, UT, PT

In order to meet the standard requirement, all NDT procedure must be carried out as per standard procedure to obtain desired test results. These procedures are derived from applicable code and standards.

Standards, Codes, and Specifications

A code is a set of rules, regulations, strictures, minimum requirements for “ethical conduct”. It is a group of general rules or systematic procedures for design, fabrication, installation, and inspection that are adopted by legal jurisdiction and made into law.

Codes are intended to set forth engineering requirements deemed necessary for safe design and manufacturing of critical machinery and components.

Code has the force of law, unlike standards that are voluntarily accepted guidelines which become mandatory only when incorporated into a business contract.


Standards are the documents, prepared by professional societies or committees, which are believed to be efficient engineering practices and which contain mandatory requirements. The users are responsible for the correct application of the same. Compliance with the standard does not itself confer immunity from legal obligations.

The major standards are shown below

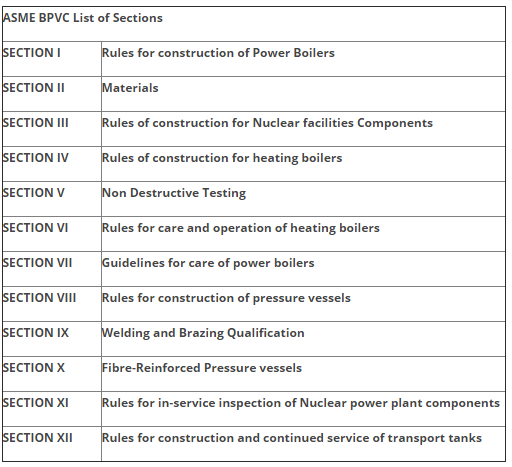

ASME Code BPVC (Boiler and Pressure vessel code) is a code of construction for boilers and pressure vessels formulated by ASME. It is a manufacturer’s code and is reviewed every year hence making it alive and up to date code.

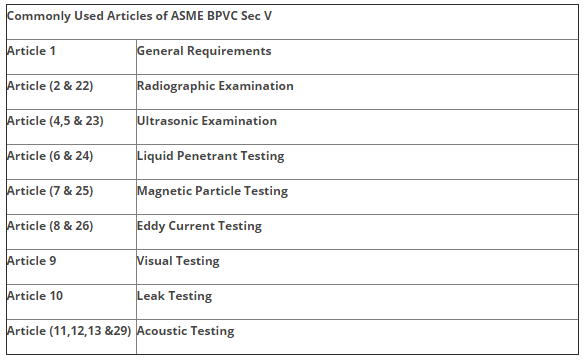

ASME Section V

ASME Section V paves the way for inspection procedure to be incorporated in BPVC

Read More: ASME Section V - A Complete Guide
