Advanced Pipeline Leak Detection Methods

Advanced Pipeline Leak Detection Methods

Sources - TTWeb

Executive Summary

Pipeline infrastructure plays a vital role in transporting oil, gas, water, and other fluids across vast distances. Ensuring the integrity and safety of these pipelines is paramount, and effective leak detection methods are crucial for early intervention and prevention of potential environmental hazards and financial losses.

In this white paper, we explore advanced pipeline leak detection methods categorized into three main groups: externally based methods, visual inspection methods, and internally computational-based methods. Each category encompasses innovative technologies and techniques designed to enhance leak detection accuracy and efficiency

Introduction

The detection of leaks in pipelines is a critical task that requires sophisticated technologies and methods to identify potential issues promptly. This white paper aims to provide insights into advanced pipeline leak detection methods and their application in maintaining the integrity and safety of pipeline networks.

Pipeline infrastructure is crucial for transporting various substances, including oil, gas, water, and chemicals. However, leaks in these pipelines can have severe consequences, including environmental damage, safety hazards, and economic losses.

List of Advanced Leak Detection Methods

Advancements in technology have led to the development of reliable Leak Detection techniques. These advanced methods utilise the latest technologies to detect leaks with higher precision and efficiency.

1. Externally Based Methods:

a. Acoustic Sensors:

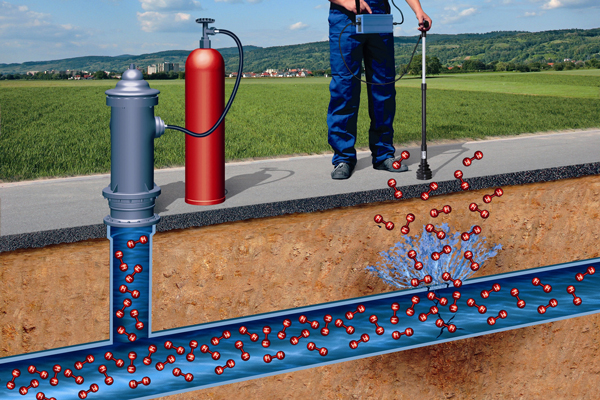

Acoustic Sensors

Acoustic sensors are devices that detect changes in sound patterns associated with leaks in pipelines. When a leak occurs, the escaping fluid creates distinct sound frequencies that are different from the background noise. Acoustic sensors are strategically placed along the pipeline route to continuously monitor for these sound variations. Once a potential leak is detected, an alert is triggered, prompting further investigation and necessary action.

b. Fiber Optics Sensing Cables:

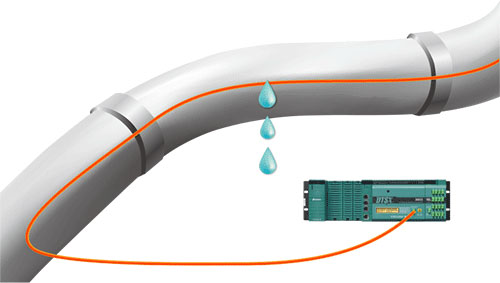

Fiber Optics Sensing Cables

Fiber optics sensing cables consist of optical fibers that transmit light signals. These cables are installed along the pipeline and can detect changes in temperature or strain caused by leaks or disturbances. When a leak occurs, it affects the temperature or strain of the surrounding area, causing variations in the light signals. By analyzing these disturbances, fiber optics sensing cables can accurately pinpoint the location of leaks.

c. Vapor Sensing Tube:

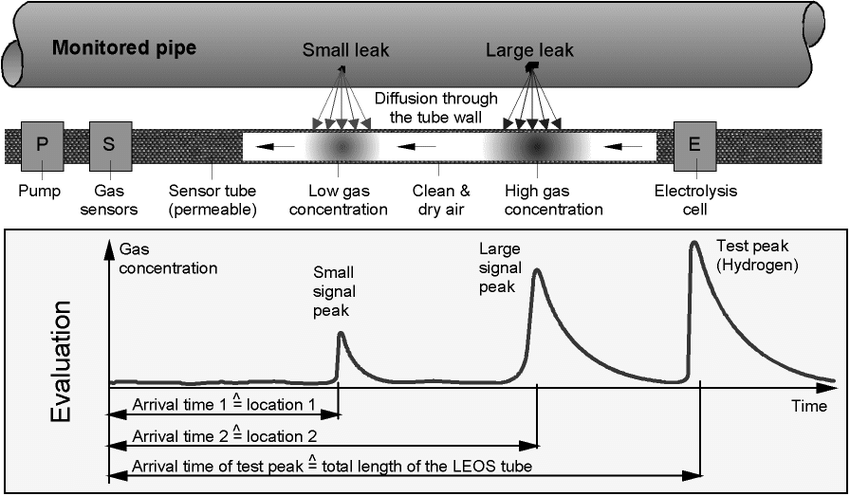

Vapor Sensing Tube

Vapor sensing tubes are equipped with sensors designed to detect the presence of volatile gases released from leaks. These tubes are placed in areas where leaks are likely to occur, such as valve joints or pipeline connections. When a leak releases gases into the atmosphere, the sensors in the vapor sensing tube detect these gases and trigger an alarm, alerting operators to the potential leak.

d. Liquid Sensing Tube:

Liquid Sensing Tube

Similar to vapor sensing tubes, liquid sensing tubes are designed to detect the presence of liquids escaping from pipelines. These tubes are installed at strategic locations along the pipeline route. When a leak occurs and liquid is released, it comes into contact with the sensors in the liquid sensing tube, triggering an alarm or notification to operators.

2. Visual Inspection Methods:

a. Human/Trained Dogs:

Trained personnel and specially trained dogs can visually inspect pipelines for signs of leaks or damages. They look for indicators such as stains, discoloration, vegetation damage, or unusual odors that may suggest a leak. This method provides on-the-ground assessments and allows for immediate visual identification of potential issues.

Human/Trained Dogs

b. UVA (Ultraviolet) Inspection:

UVA inspection involves using ultraviolet light to detect leaks or damages on pipeline surfaces that may not be visible under normal lighting conditions. Certain substances, such as leak detection dyes or fluorescent tracers, can be added to the pipeline. When exposed to UVA light, these substances fluoresce, revealing hidden leaks or defects.

c. Drones:

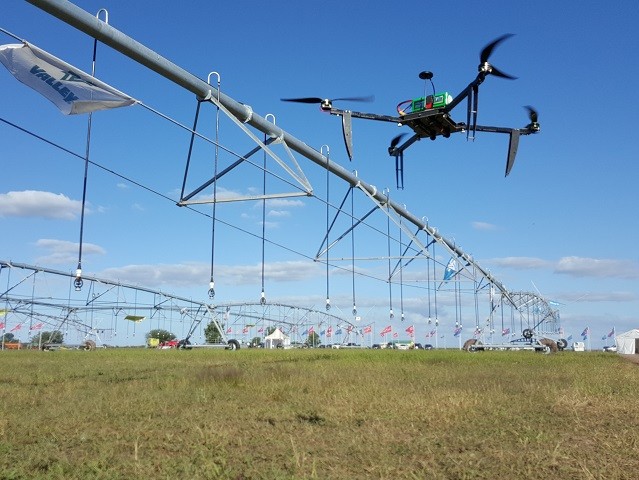

Drones

Drones equipped with high-resolution cameras, thermal imaging technology, and gas sensors can survey large sections of pipelines from the air. Thermal imaging can detect temperature variations caused by leaks, while gas sensors can detect escaping gases. Drones Inspection provides aerial views and data that can identify potential leak hotspots or anomalies, improving overall inspection efficiency.

d. Robots:

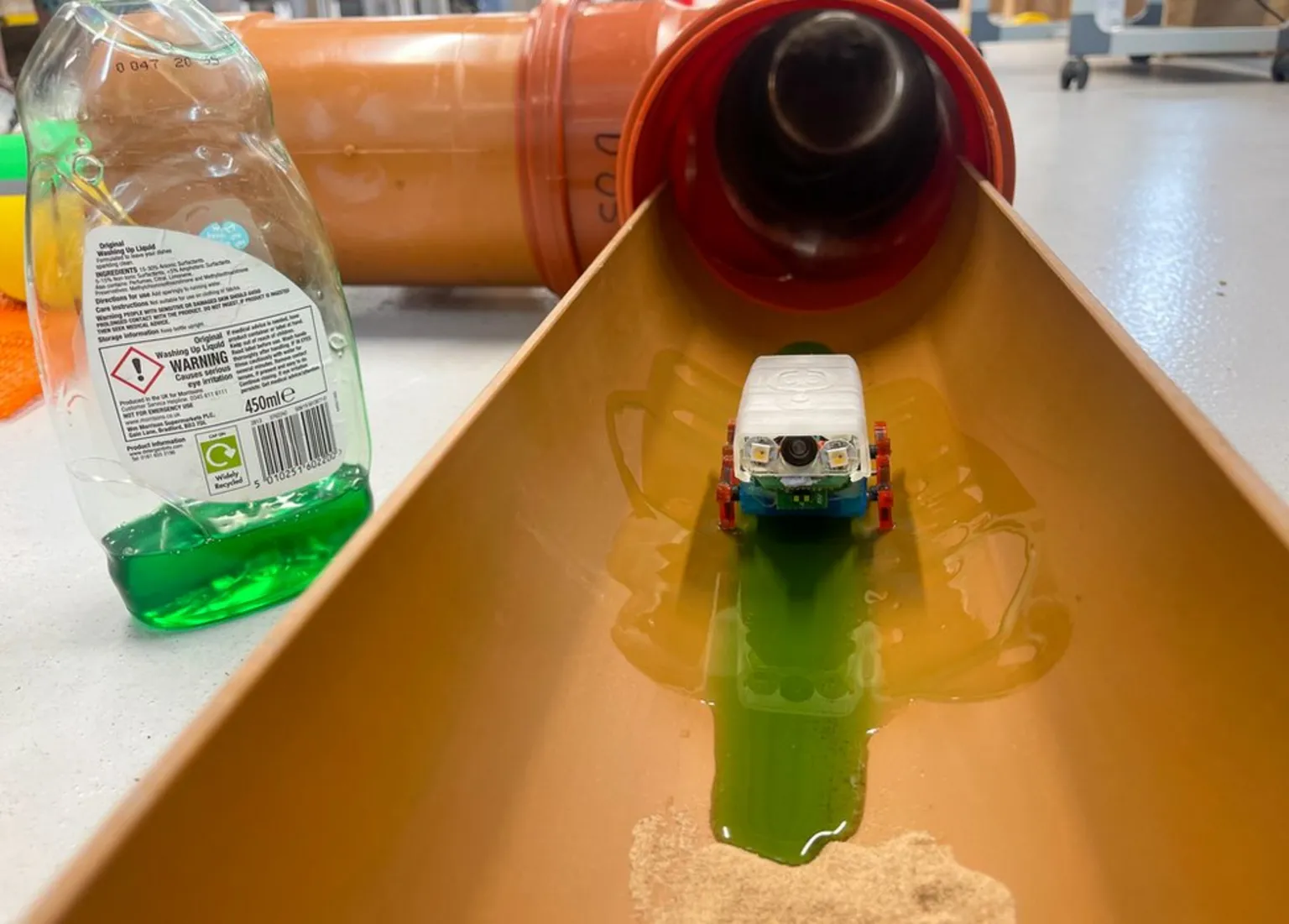

Robots

Robotic devices designed for Pipeline Inspection can traverse inside pipelines to conduct visual inspections and detect anomalies. These robots are equipped with cameras, sensors, and sometimes manipulator arms to inspect and assess pipeline conditions. They can detect leaks, corrosion, blockages, or other issues without the need for human entry into hazardous environments.

3. Internally Computational-Based Methods:

a. Balancing Systems:

Balancing systems monitor fluid flow rates and pressure levels within pipelines. Any sudden changes in flow rates or pressure can indicate the presence of leaks. By comparing expected flow and pressure values with actual measurements, balancing systems can detect anomalies and trigger alarms or alerts for further investigation.

b. Real-Time Transient Model:

Real-Time Transient Model

Real-time transient modeling uses mathematical algorithms to simulate fluid flow behavior in pipelines. These models analyze factors such as fluid properties, Pipeline Geometry, operating conditions, and transient events (e.g., pressure surges or flow changes). By comparing real-time data with the model predictions, operators can identify potential leaks or abnormalities in the system.

c. Pressure Flow Monitoring:

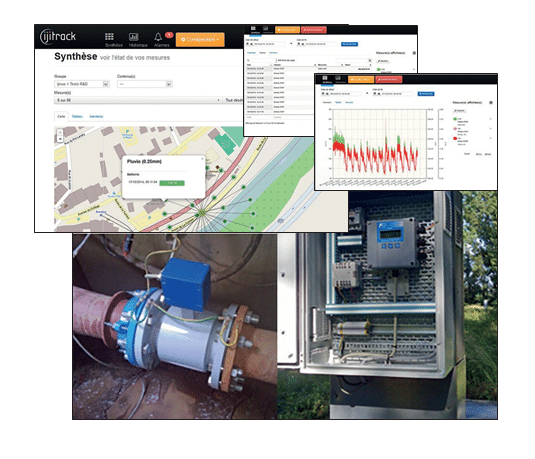

Pressure Flow Monitoring

Pressure flow monitoring systems continuously monitor pressure levels at various points along the pipeline. Deviations from normal pressure ranges can indicate leaks, blockages, or other operational issues. These systems use sensors and instrumentation to detect pressure variations and provide real-time alerts for corrective actions.

d. Negative Pressure Wave:

Negative pressure wave technology generates pressure waves within pipelines and analyzes the reflections to detect leaks. When a leak occurs, it disrupts the pressure wave pattern, causing reflections that are different from the expected pattern. By analyzing these reflections, negative pressure wave systems can identify the presence and location of leaks accurately.

 Negative Pressure Wave

e. Statistical Analysis:

Statistical analysis techniques involve analyzing historical data and patterns to detect anomalies indicative of leaks. Machine learning algorithms can be applied to historical operational data, sensor readings, and other relevant parameters to identify subtle deviations from normal operating conditions. These anomalies can be early indicators of potential leaks, prompting further investigation and preventive measures.

These detailed explanations showcase the diverse range of pipeline Leak Detection Methods available, each with its unique capabilities and advantages in detecting and mitigating leaks effectively. Integrating multiple detection methods and technologies can enhance overall leak detection reliability and minimize the risk of pipeline incidents.

Key Takeaways

  • Advanced pipeline leak detection methods offer a comprehensive approach to safeguarding pipeline infrastructure and minimizing environmental risks.
  • By integrating a combination of externally based methods, visual inspection techniques, and internally computational-based approaches, operators can enhance leak detection reliability and ensure the continued safe operation of pipeline networks.

References:

1. Media LICDN

2. Fluidhandlingpro

3. ResearchGate

4. UV Led Lamp

5. ICHEF BBCI

6. Sensortips

7. PQWTCS
