Leak test methods play a pivotal role in guaranteeing the integrity of products in various industries. From manufacturing to medical devices, ensuring that a product is free from leaks is critical for functionality and safety. There are several leak testing techniques available, each with its own set of advantages and applications. Understanding the diversity of NDT Methods allows industries to choose the most suitable approach for their specific needs.

What is Leak Testing?

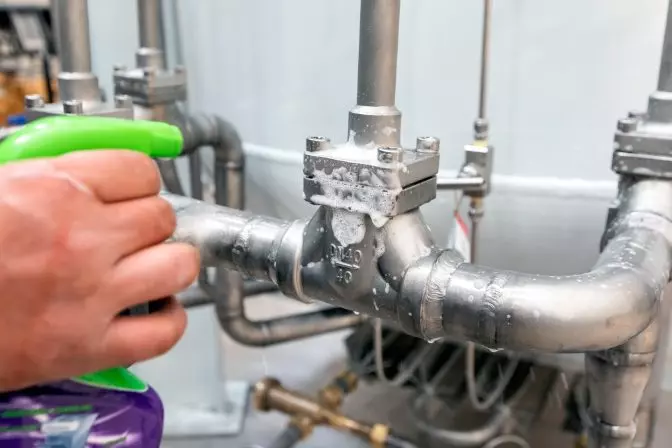

Leak Testing

Leak Testing, a prevalent NDT technique, identifies defects in materials causing leaks. The process capitalizes on the movement of elements from high to low pressure, using pressure to induce flow toward potential leaks while closely monitoring this flow. Leak Testing is not a one-size-fits-all process; its applications vary across industries. The Automotive Sector may focus on leak testing for fuel systems, while the medical device industry places a premium on ensuring the absence of leaks in life-critical equipment.

The effectiveness of a leak test heavily depends on the quality and appropriateness of the seals used. Choosing the right materials for seals is paramount for a successful test. Leak Testing is imperative when examining enclosed systems; its success is contingent on the object under scrutiny. Different materials respond diversely to the high pressures involved, leading inspectors to scrutinize for issues like holes, weak seals, cracks, or other imperfections. Industries spanning packaging, consumer goods, electronics, automotive, and medical devices commonly integrate leak testing into their maintenance protocols.

Read More: How is Leak Testing Done in the NDT Industry?

What are the Methods of Leak Testing?

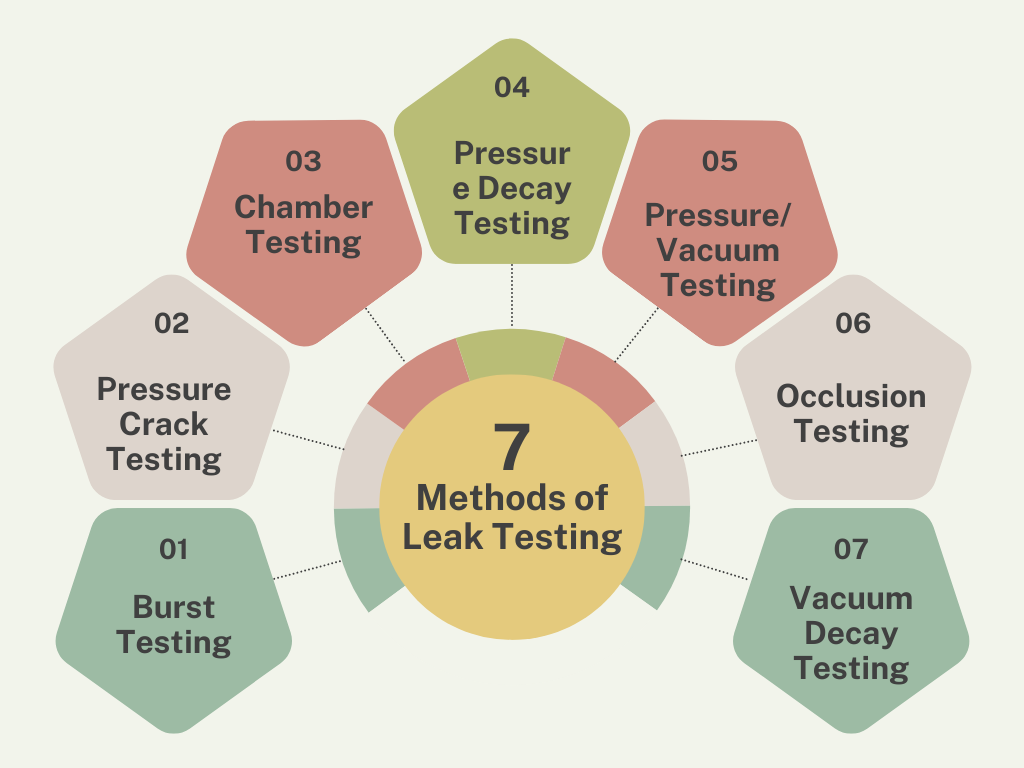

Methods of Leak Testing

Leak testing is a crucial aspect of the examination process, particularly in industries where the integrity of seals, devices, or packages is paramount. This process helps ensure that products meet quality standards and are safe for use by consumers. It also helps identify any potential defects or issues that could compromise the functionality of the product.

It encompasses a variety of methods falling under the category of non-destructive testing. Here are some of the common methods:

  • Burst Testing
  • Pressure Crack Testing
  • Chamber Testing
  • Pressure Decay Testing
  • Pressure/Vacuum Testing
  • Occlusion Testing
  • Vacuum Decay Testing

1. Burst Testing

Burst testing is a method where pressure is incrementally applied to a device until it ruptures. This can be conducted using NDT techniques or, if necessary, through destructive means to understand the limits of a device's integrity.

2. Pressure Crack Testing

This method involves closely observing valves for signs of "weeping," which indicates tiny cracks or leaks. Utilising a downstream sensor monitor enhances the precision of detecting such minute leaks, ensuring early identification and mitigation.

3. Chamber Testing

In chamber testing, sealed environments such as packages or devices are placed within a controlled chamber. By monitoring pressure differentials inside and outside these sealed units, defects leading to leaks can be identified accurately.

4. Pressure Decay Testing

This technique focuses on monitoring pressure changes within a sealed system under positive pressure conditions. Any deviation in pressure over time indicates potential leaks, allowing for timely intervention.

5. Pressure/Vacuum Testing

Pressurising both a test material and a reference volume, then comparing the pressure difference, is a highly effective method. Automated systems make this process efficient and reliable, with any variation indicating the presence of leaks.

6. Occlusion Testing

Occlusion testing is employed to detect obstructions within the gas flow path that could lead to leaks. By analysing the flow characteristics, any anomalies indicative of defects can be identified and rectified.

7. Vacuum Decay Testing

This method utilises pressure changes under negative pressure conditions to detect leaks. By subjecting the system to a vacuum, any increase in pressure signifies the presence of leaks, allowing for precise localisation and remediation.

Each of these methods offers distinct advantages and may be preferred, depending on the specific requirements of the application. By employing a combination of these techniques, industries can ensure the reliability and safety of their products and processes.

Key Considerations in Leak Testing

Leakage inspections require the input of pressure into an object to identify leaks, necessitating unique Leak Testing Considerations for this Non-destructive Testing method:

Acceptable Leak Rate

Inspectors must comprehend the acceptable leak rate for a material or system. While all leaks require attention, some might demand enhanced monitoring or immediate action. Various industries establish guidelines for acceptable leak rates.

Material Considerations

The material composition of an entity impacts the Leak Testing. If a substance is excessively brittle or malleable, pressure introduction can alter its shape, necessitating careful consideration during scheduling.

Manufacturing Considerations

The intended function of a part, system, or material influences leak testing. Materials may be designed to allow or prevent the passage of liquids, a factor crucial in leak testing.

Medium Considerations

The substance an object retains influences Leak Testing. Varying sizes of molecules and responses to pressure must be considered. Extreme pressure ranges can damage the object, while low ranges may yield inconclusive results.


1. What is the best method of leak checking?

A: Determining the best method depends on factors such as the object under scrutiny and the nature of potential leaks. Each method has its strengths. For instance, Pressure Decay Testing is effective for detecting defects causing leaks under positive pressure, while Vacuum Decay Testing excels under negative pressure.

2. What are the different types of leaks?

A: Leak types vary based on the nature of the defect. Common types include:

  • Holes
  • Weak Seals
  • Cracks
  • Other Imperfections

Understanding the specific defect is crucial in selecting the appropriate Leak Testing Method.

3. How do you measure leaks?

A. Leak Measurement involves assessing the rate at which a substance escapes. NDT Inspectors use tools and instruments like flow meters to quantify the leaks. The acceptable leak rate varies depending on the material or system being tested.

4. What tool is used to check for leaks?

A. Several tools are employed for leak checking, with the choice contingent on the testing method and the substance involved. Common tools include:

  • Mass Spectrometer Leak Detector
  • Flow Meters
  • Visual Inspection Devices
  • Pressure and Vacuum Gauges

The selection of the tool is integral to the accuracy and efficiency of the leak testing process.
