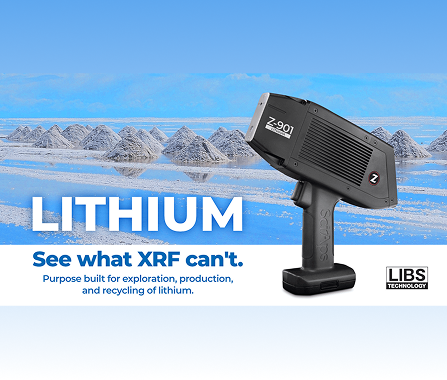

Z-901 Li Analyzer

Z-901 Li Analyzer by SciAps Inc.
The world’s only handheld that analyzes lithium in rocks, ores, and powders.

Exacting elemental analysis for Z-901 Li Analyzer:

• Factory calibrated for lithium in pegmatite, clays, and mica-schists, including relevant base elements in the 380 - 680 nm range.
• Microanalysis capability with 100 um laser spot size. On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.
• SciAps also offers the Z-903, containing a third spectrometer to extend the analytical range down to 190 nm for users testing brines for other elements, including boron, magnesium, calcium, and potassium.

Z-901 Li Analyzer  is engineered for field and lab:

SciAps LIBS series handheld analyzers, at just 3.87 lbs. (1.75 kg) with battery, have an internal camera for precise targeting of analysis locations; a macro camera for photo-documentation of samples, reading bar codes and QR codes; a patented “sample sensor” that allows Class 1 operation (subject to LSO approval); high-resolution, rear-facing display for easy viewing; rugged metal body for maximum durability; a narrow snout for difficult-to-access test locations; and user-replaceable argon that provides hundreds of tests at pennies per test. Pair with Profile Builder software for PC or tablet and achieve full bench top functionality.

Intuitive operations of Z-901 Li Analyzer:

Android operating system and app-based software assure quality testing by every operator. Built-in Wi-Fi and Bluetooth, with GPS capability, allow users to print, email, and connect to virtually any information management system for real-time, full-featured reporting. Automatically merge XRF and LIBS tests with SciAps Cloud Services. Easily manage operations from anywhere.
