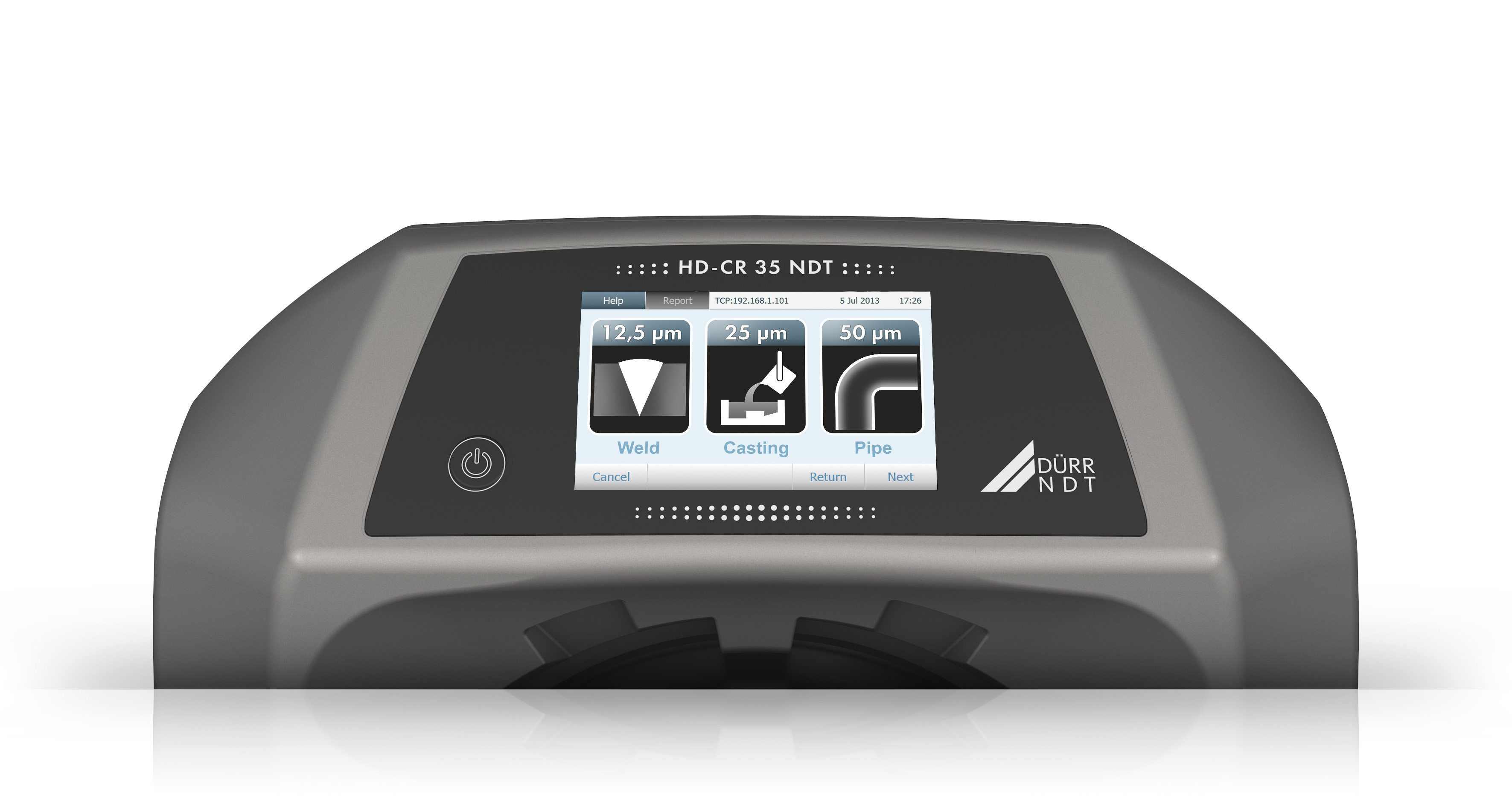

HD-CR 35 NDT - Computed Radiography Scanner

More info about product

HD-CR 35 NDT - Computed Radiography Scanner by DURR NDT!

Portable high-resolution CR scanner for all NDT radiography applications - weld inspection, profile images and aerospace.

• 30 µm SRb, certified by BAM
• Laser spot size 12.5 – 25 – 50 µm, TreFoc Technology
• Min./Max. imaging plate size (W x L) 2 to 35 cm x 3 to 100 cm (0.8 to 14" x 1.2 to 40")
• Fully complies to the relevant EN, ASTM and DICONDE standards
• Multi-focus laser adjustment for optimum SNR values and perfect image quality – film-like or better
• 5-Year Guarantee (guarantee conditions)
• Experience - Technology proven in more than 100,000 units
• MADE IN GERMANY - Development and production in Germany
• Intuitive handling - Easy transition from film
• Lightweight and rugged - With just 17,5 kg (38,5 lbs) it is the lightest full format scanner worldwide
• Stand-alone function - The build in Mini-PC allows the fully autonomous operation
• WiFi - The on board WiFi adapter allows to connect the device via WLAN
• Powerful D-Tect software

TreFoc Technology is the name for the our new laser focussing technology, uniquely in systems from DÜRR NDT. With TreFoc the laser beam is adjusted perfectly to give optimal image results and the highest signal-to-noise ratio in any application.

Inside the laser tube, an iris diaphragm adjusts the laser beam diameter. Since the perfect laser beam diameter can be selected for each object and image type, optimum results for any particular application can be easily achieved.

Regardless of the application – high-resolution image or low-exposure corrosion measurement – the unique TreFoc Technology give perfect image results with the best SNR every time. The principle of changing the laser beam diameter takes into consideration the maximum resolution of the Imaging Plates available on the market.
