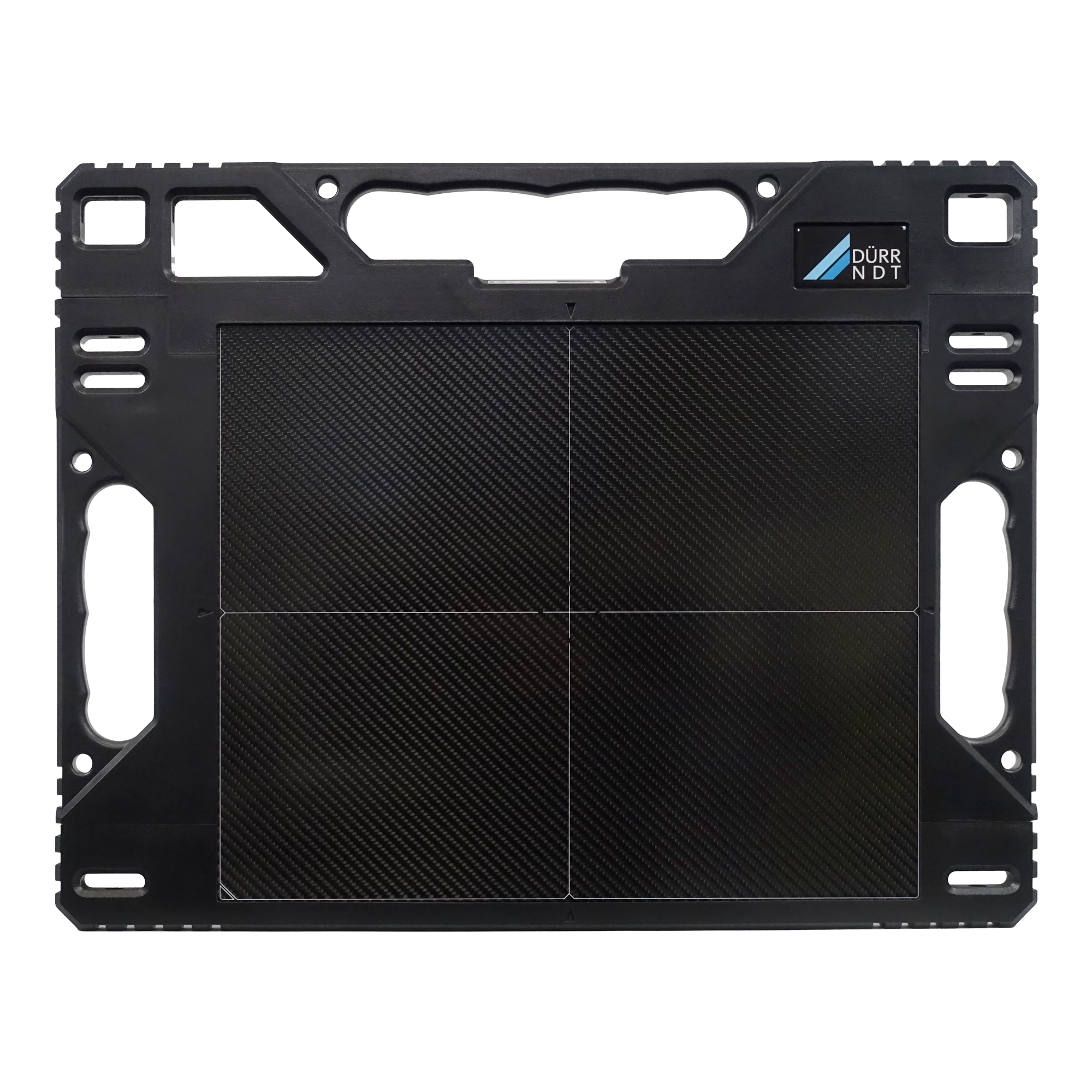

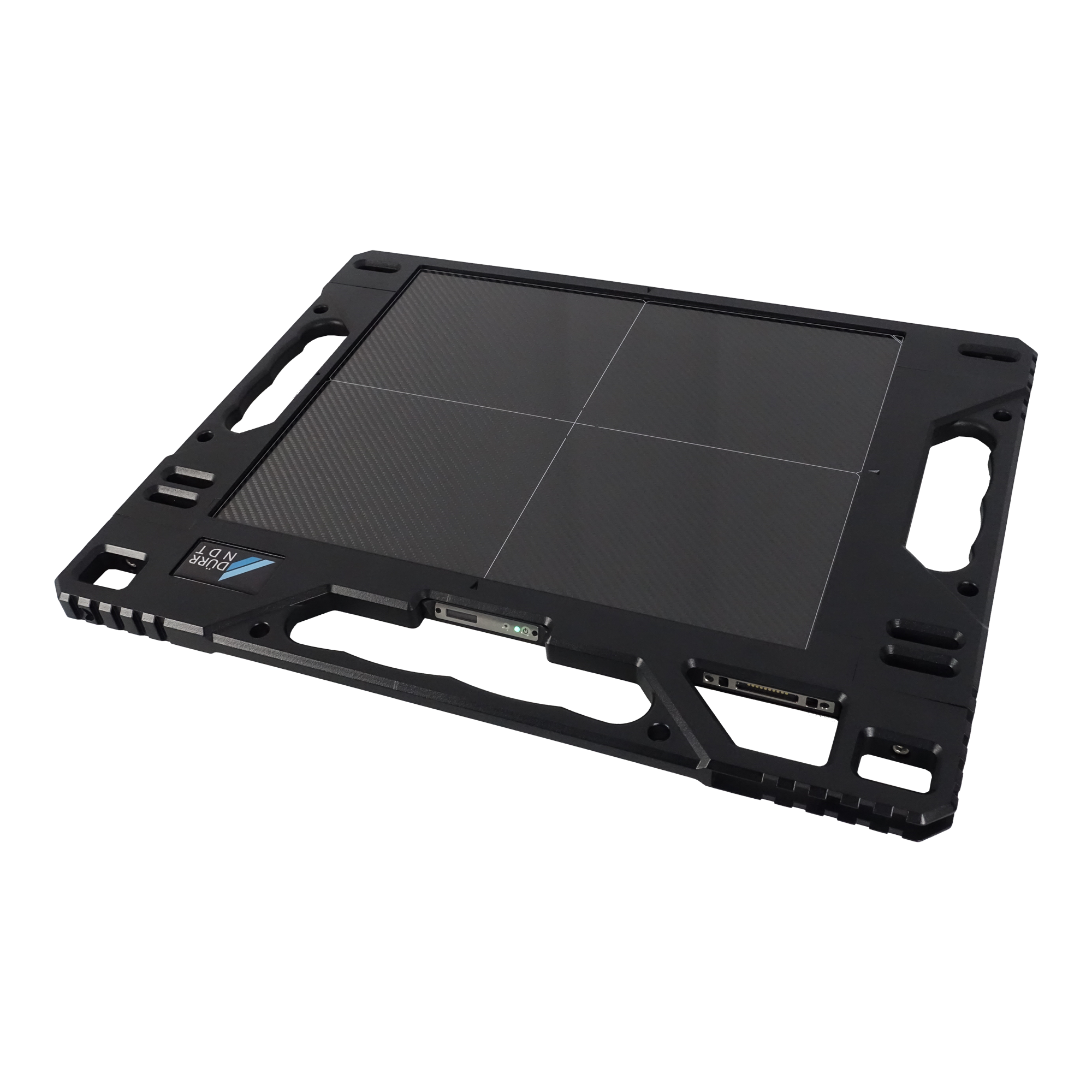

D-DR 3643 NDT - Flat Panel Detector

Name: D-DR 3643 NDT - Flat Panel Detector
Brand: DÜRR NDT - X-ray Systems & Software

Large size flat panel detector for profile images and large objects

More info about product

Large size detector designed for portability and the harsh conditions of industrial radiography. Perfectly suited for profile images and large

objects.

99 μm pixel pitch (5.0 lp/mm)
351 x 427 mm active area
Suitable for X-ray and gamma sources
Equipped with internal shielding for use up to 450 kV
Light-weight full size detector
Extremely robust non-glass TFT sensor

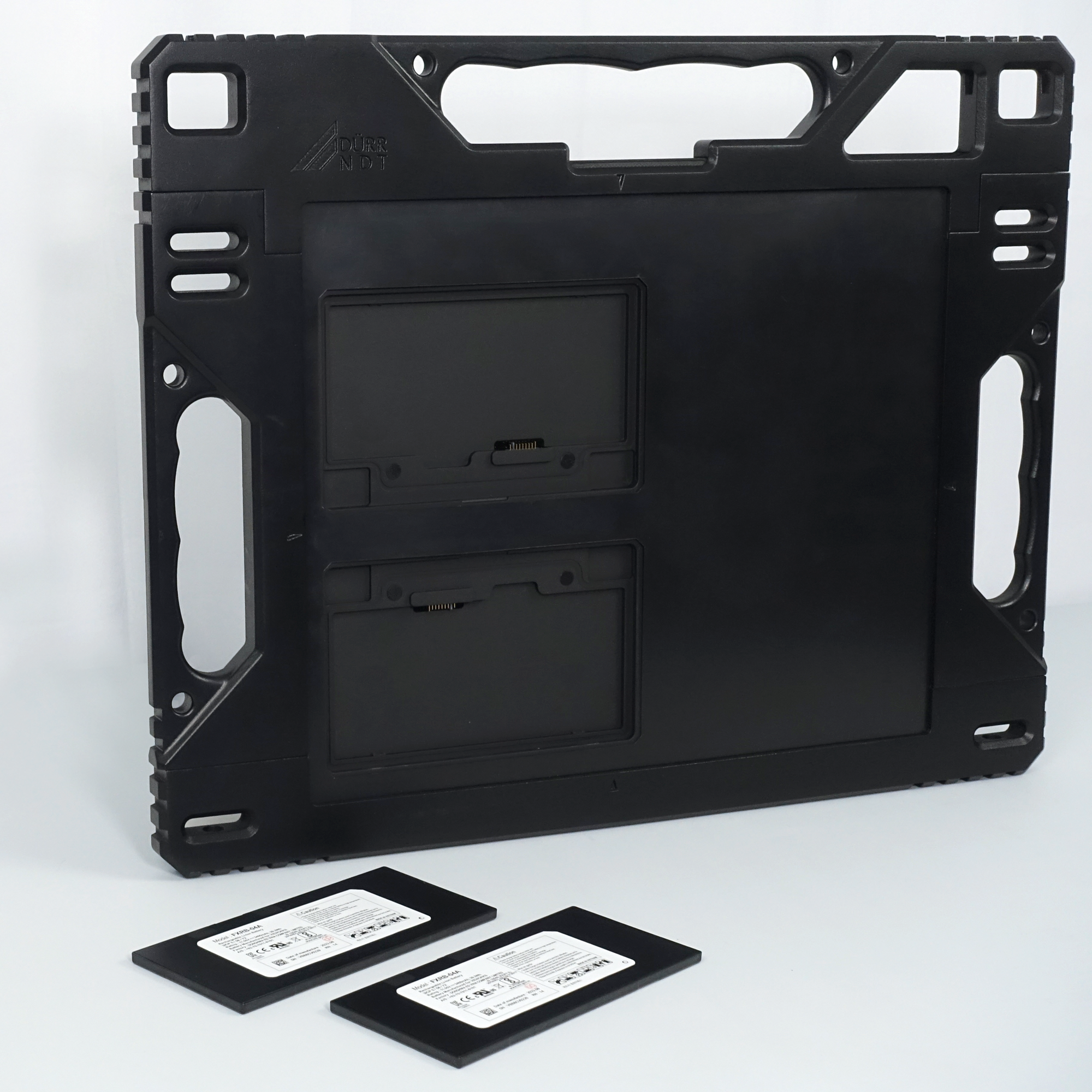

Hot-swap function enables battery change during operation
Built-in wireless access point
Connector for Gigabit Ethernet and power
1 meter drop test pass
Dust-tight and waterproof

Learn more

DÜRR NDT - X-ray Systems & Software

DÜRR NDT provides ultra-high resolution computed radiography (CR) scanners, bendable and flat panel detectors (DDAs), digital imaging software solutions and also X-ray film processors for mobile use, plus DÜRR NDT’s unique ‘green’ X-ray chemistry.

DÜRR NDT has committed to delivering to the customer products tailored perfectly to the market's needs. Through continuously optimising existing products and developing new solutions, DÜRR NDT has become one of the market leaders in nondestructive testing within a short time.
