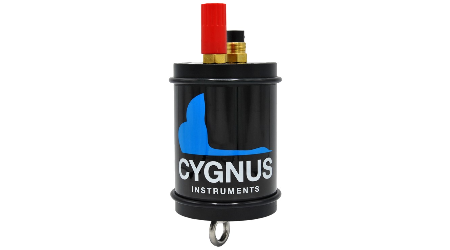

Cygnus ROV Mountable

More info about product

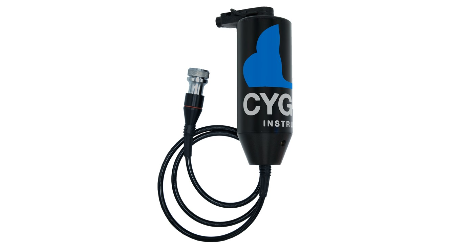

Specifically designed for Underwater Remotely Operated Vehicles, Cygnus offers a dedicated ROV mountable thickness gauge, and ROV MK5 UTG Kit (depth rated to 500 meters). This gauge is versatile and designed to measure metal thickness in the harshest subsea operating conditions – without the need to remove coatings. Ideal for UWILD or IWS class surveys, subsea inspection, repair, and maintenance (IRM) of infrastructure, and underwater equipment.

Key Features:

Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies

Supplied with CygLink software to display and process measurements on a computer at the surface

Selectable Deep-Coat mode ignoring coatings up to 20mm thick

Fitted with a safety Pressure Relief Valve and Secured Eye

Easy calibration at the surface via CygLink software or TopSide Repeater (TSR) unit

Removable end plate for full serviceability

Wet mateable ‘MC’ style underwater connectors

Optional Topside Repeater (TSR) unit allowing readings to be displayed remotely and superimposed onto ROV’s camera screen

Optional purpose-built ROV probe handlers for optimal alignment.
