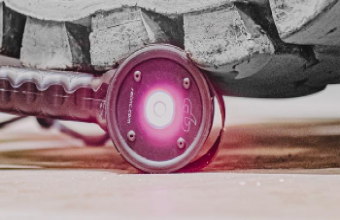

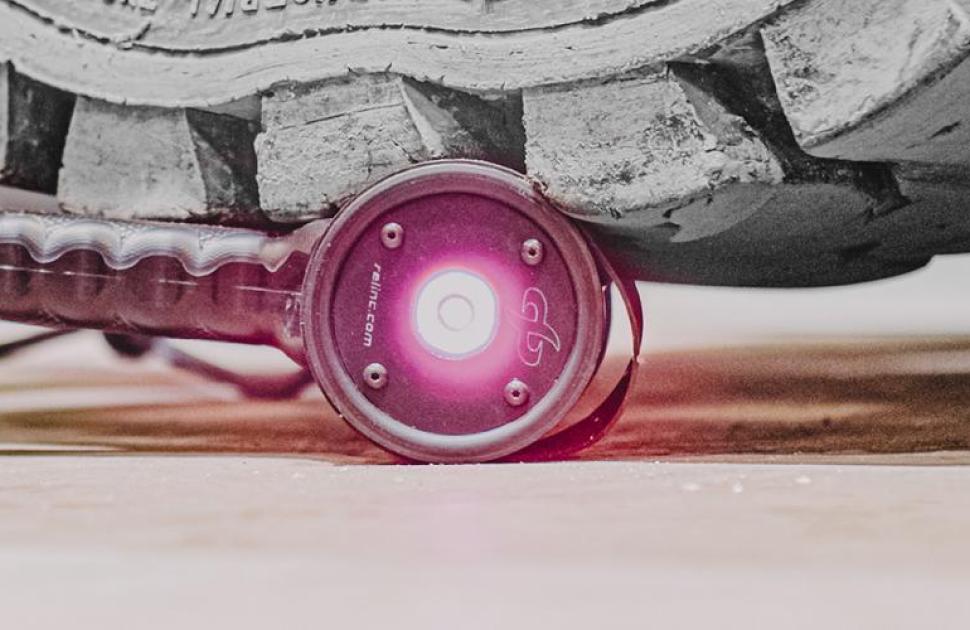

REL's Glo-Black C4 Magnum corded inspection lamps incorporate the latest high-output UV-A LED technology for non-destructive testing environments. This highly maneuverable, lightweight lamp is built to work as hard as you do and can be used in both handheld and mounted configurations for increased operator safety and efficiency. The C4 Magnum features a single high-flux LED UV emitter with a built-in static-electric discharge circuit that allows it to operate in any environment. Designed for Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI), the C4 Magnum delivers a 10-inch diameter of UV-A intensity above 1000 µW/cm2 at 15 inches. The integral filter in the C4 Magnum limits the visible light to 20 lux and 5 lux at 36 inches. Each lamp is housed in an engineered finned military-grade aluminum housing that is sealed and cooled, and has an IP67 rating that ensures the lamp can withstand any environment.
Features & Benefits:
- NSN: 5980-01-671-7903
- Single high-output UV-A LED emitter
- Engineered fin housing for maximum heat transfer in harsh environments
- Easy-to-use controls with clear indicators for lamp on/off operation
- Solid-state, piezoelectric switch to prevent contaminant ingress
- Built-in static-electric discharge unit for added safety
- 10-foot bolt-on power cord
- AC power: 120/240V
- Lamp dimensions: 7.6” H x 3.0” W x 4.1” D
- Lamp weight: 1.7 lbs.
- 2-year warranty
- Refurbishment & Recertification Services available
The Glo-Black C4 Magnum is tested and complies with ASTM E3022, Rolls Royce RRES 90061, and AIRBUS AITM 6-1001 standards, and meets ISO 3059 specifications. Each Glo-Black LED UV-A Inspection Lamp is serialized with its own Certificate of Conformance. With REL products, you can bring NDT to the forefront of your business. Contact us today at 906-337-3018 to request a quote or purchase REL LED UV-A Lamps.
