UniWest provides critical solutions for Non-Destructive Testing (NDT). We design and manufacture a variety of Eddy Current Instruments for a broad spectrum of Eddy Current flaw detection applications.

Let UniWest solve quality verification problems in your production environment with nondestructive testing (NDT) equipment. We build and customize eddy current and NDT instrumentation for use in engines, air-frame, bar, tube, wire, and component testing. We can provide a turnkey approach to your online systems integration needs, providing the entire signal path from the probe to instrumentation to computer or controller. UniWest’s nondestructive testing equipment is designed to fit seamlessly into your production process and meet your quality verification needs.

EVi  ECT / ECA Eddy Current Flaw Detector

EVi is UniWest's most technically advanced and operator-friendly portable Eddy Current Testing (ECT) / Eddy Current Array (ECA) system ever offered.

The EVi works directly with the EddyView family of probes and accessories, as well as eddy current array (ECA) probes up to 64 elements (128 elements with external multiplexer). UniWest’s unmatched selection of standard and advanced display features set a new standard for flexibility of applications, ease of use, interpretation of data and overall operator accuracy.

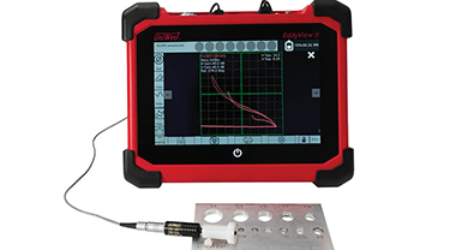

EddyView® II  ECT / ECA Eddy Current Flaw Detector

EddyView II is UniWest's latest advanced, user-friendly, portable Eddy Current Testing (ECT)  / Eddy Current Array (ECA) instrument.

Featuring:

• Touchscreen display with touch-gesture adjustments
• Industry-leading signal quality (signal-to-noise)
• Independent channel monitors probe to part coupling
• Multi-frequency
• Conventional or array probes up to 32 coils
• Compatible with ECS-1, ECS-4, and JF-15 rotating scanners
• Conductivity and non-conductive coating thickness
• Multiple display modes including impedance plane, C-scan, O-scope, and strip chart
• Exportable data for post-processing flexibility
• Lock screen & Freeze screen modes
• Basic setup with Smart Probes




US-525M Multi-Channel Eddy Current Flaw Detector

The US-525M multi-channel eddy current testing instrument is a rugged industrial rack-mounted instrument offering multi-channel testing, integral digital strip chart, as well as Ethernet control and data transfer to meet your in process testing requirements. This instrument offers up to eight channels, with a frequency range of 10 Hz to 10 MHz, a high signal-to-noise ratio, a bright 12-inch diagonal color LCD flat-panel screen, and data storage of 32 Gig. It offers input/output (I/O) capability, USB and Ethernet connectivity, as well as three discrete alarm gates with independent outputs per channel. for your on-line bar, tube, wire and specialty component testing needs.

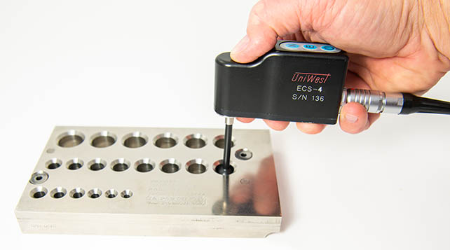

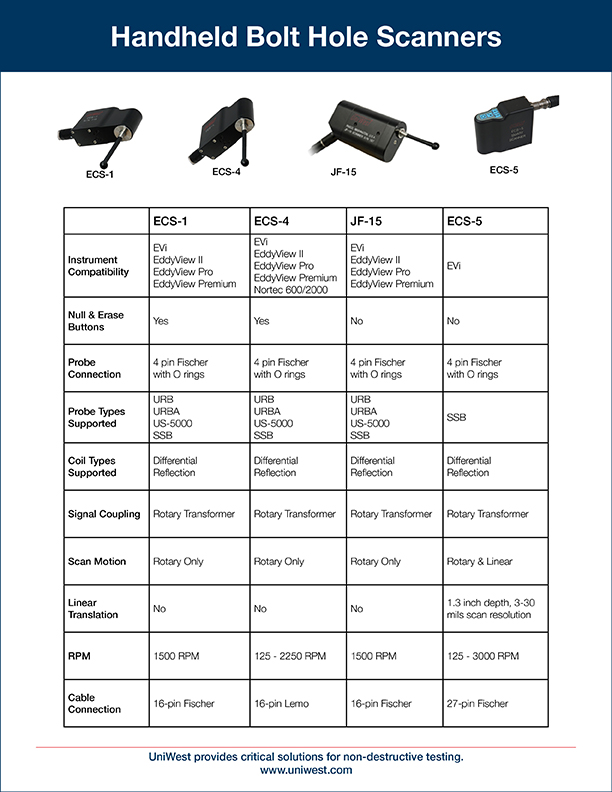

UniWest designs and manufactures multiple Rotating Eddy Current Scanners to meet a large variety of standard & custom applications.
With a wide range of features such as speed ranges from 125 to 3,000 rpm, frequency ranges from 20 kHz to 10 MHz, multiple connector types, and multiple probe types, our scanners offer a full range of application solutions.

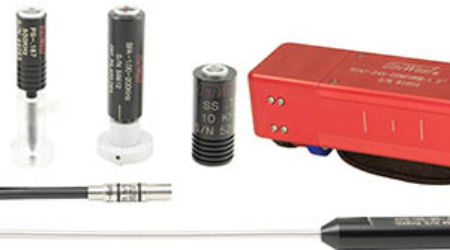

Having the right tool for the job is vital, especially when you’re ensuring materials and equipment are intact. Eddy current and other NDT probes at UniWest allow you to perform surface, subsurface, and other tests with confidence. We develop and build our own general and NDT inspection probes, which ensures the highest-quality product. You will find that many of our NDT probes are available in various working lengths with customizable tips, angles, and drops. Our NDT inspection probes for sale are listed below. If you have questions regarding any general probe or custom work, please reach out to our team. Our team will help you find or develop surface probes designed to test airframes or other structures.

Download our sensors catalog: www.uniwest.com/catalog

UniWest builds both custom and generic reference NDT calibration standards for all your nondestructive testing needs. We can CNC and EDM notch your specific primary or master reference standard with all needed documentation; or notch your customer supplied material needed for your special application.

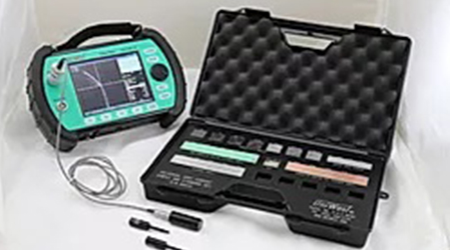

94910 Universal Eddy Current Sample and Standard Set

Available in a convenient kit form. Test samples for conductivity are FE, TI, 304 SST, CU/NI, MAG, 7075 AL, and 1100 AL. Surface notch standards are .008", .020" and .040" deep. Non-Conductive coating thickness samples are .003", .006", .009", .012", and .015". Conductive coating (CU) thickness samples are .003", .006", .009", .012" and .015". Gauging sample ranges from .010" to .050" in thickness. A wide range of training samples are provided as well as five spaces for your own test samples. This NDT calibration standard kit is extremely useful in the lab or in the field for checking instrument performance and for training operators.

99073 Aluminum Radius Standard

​

This standard has four different radii (0.500", 0.375", 0.250" and 0.125") with surface notches of 0.100", 0.080", 0.060" and 0.040" long EDM notches along the axis of the radius. Additionally, there are corner notches and notches on the flat of the same dimensions. General purpose standard for setting up common eddy current surface inspections.

99834 Fastener Inspection Standard

This fastener inspection standard includes a .010, .015 and .020 thousandths EDM notches to set up a range of Raised Head Fastener probes. The adjustable V-block design allows for quick adjustment for your specific raised head faster probe.

99859 Mini Radius Standard

This aluminum standard includes a 1/8th and ¼ inch radius geometry in addition to a flat, edge and corner notch for setting up common airframe geometry's. This standard can also be manufactured in Titanium or Steel depending on your specific application.

93558A General purpose Crack Standard

This standard comes with .010, .020, .030 and .040 thousandths EDM notches for common set up of eddy current surface inspections. (Available in; Aluminum, Magnesium, Steel, Stainless Steel, and Titanium.)

74499 Aluminum Bolt Hole Standard

This eddy current calibration standard has 12 notched holes.  With hole sizes ranging from 3/16 - 3/4 of an inch.  For calibrating bolt hole inspections.

​The standard also comes with .010, .020, and .040 thousandths EDM notches for common set up of eddy current surface inspections.

Ultrasonic Reference Standards

UniWest can also build a variety of standard or custom ultrasonic reference standards. Contact UniWest on how we can help with your specific Ultrasonic application.

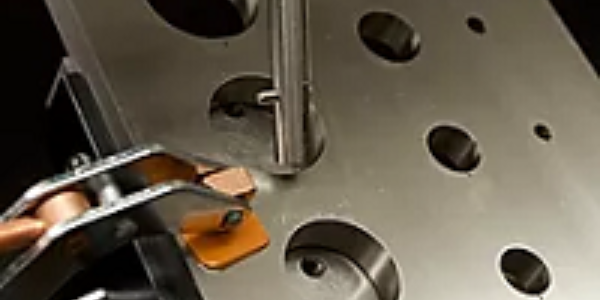

Electrical Discharge Machining (EDM) is an integral part of UniWest’s machining capabilities. UniWest has now added two new machines, as well as doubling the size of the machine shop. The new CNC controlled machines have been modified to hold large jet engine components (up to 40” diameter), allowing UniWest to handle even the most challenging parts. Electrically discharge machined notches, in a variety of sizes, shapes and locations, can be placed in almost all metals. The width of the notch can be tightly held and gives a fair representation of cracks typically found in the field. Calibration of eddy current measurement systems is an important factor for attaining the accuracy and precision of measurements required for quantitative nondestructive evaluation. UniWest’s unique and sophisticated EDM skills are called upon to do custom EDM work that others cannot perform. UniWest can CNC and EDM notch specific primary or master reference standards with all needed documentation; or notch customer supplied material for your specific application UniWest builds both custom and generic reference standards for all your Ultrasonic and Eddy Current testing needs.
