SIUI(Shantou Institute of Ultrasonic Instruments Co., Ltd.)

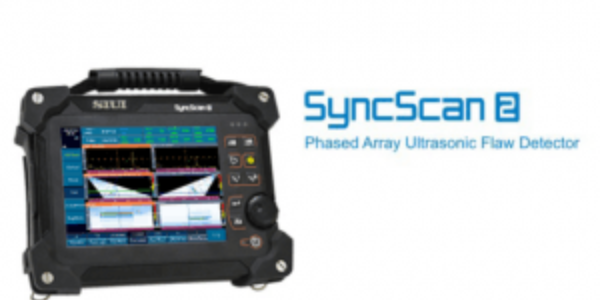

SyncScan 2 is a high-end ultrasonic flaw detector with PA32:128PR and 2-channel TOFD, which can maximize your efficiency for PA and TOFD.

Features

• High IP rate: IP 65
• Light weight: 4kg only including battery.
• 8.4" LCD with resolution 800×600 pixels.
• Working temperature: -10℃～45℃
• Faster scan speed.
• Removable electric fan: cool down the system when it works in high temperature.
• Support PA/TOFD/UT, suitable for weld, forging and plate inspection.
• 32-channel PA is more suitable for inspection on extra-thick wall and high-damping material.
• 32-channel PA and 2-channel TOFD work simultaneously, focusing on pressure vessel inspection.
• Support PR mode, focusing on pipe corrosion inspection when connect with high-end twin-crystal PA probe.
• System ports: encoder, VGA, standard SD card, USB 2.0/3.0.
• Probe ports: 4 ports for UT/TOFD probe, 1 port for phased array probe.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20181228/269.html

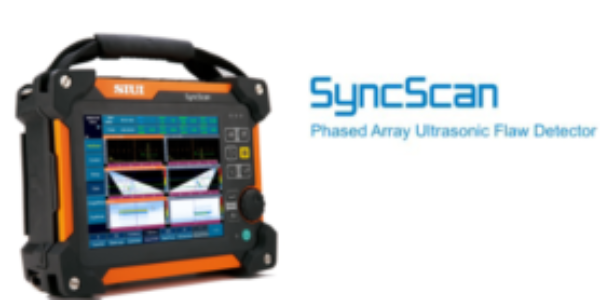

Third-generation Phased Array flaw detector from SIUI SyncScan incorporates the latest advancements in high-performance Phased ArrayTOFDand high end thickness measurement functions into one compact unit.

SyncScan can minimize your cost for Phased Array and TOFD inspection.

• IP rate: IP65
• Light Weight: 3.75 kg with battery
• Large touch screen: 8.4" LCD with resolution 800×600 pixels
• Upgradeable from conventional UT to phased arrayTOFD thickness measurement with powerful & complete optional software functions.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/45.html

• One-hand Operation
• Smart Test Wizard
• Weld Simulation
• Advanced Conventional UT & Thickness Measurement

Features

● High IP rate: IP 66
● Compact size: 198 (W)* 128 (H) *520 (D) mm
● Light weight: 0.9kg only, including battery
● 5.7" LCD with high resolution 640×480 pixels
● Adjustable pulse width, negative square wave transmission is up to 350V.
● Operating frequency range: 0.5~20MHz, multiple steps of wide broadband and narrow-band for selection.
● Easy operation: only a few buttons, well-defined intuitive interface, support right-hand and left-hand operation, outdoor mode.
● Multiple conventional UT functions
-Weld, plate and forging test wizards are available, which can guide users to perform setup easily and improve inspection speed.
-Peak memory, DAC curve, AGC (auto gain control), video record makes convenient and efficient flaw inspection.
-Optional functions such as B-scan, TCG, probe spectral analysis, CSC (curved surface correction), weld simulation, crack height measurement are available.
-Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.
● Multiple thickness measurement functions
-Standard A-scan thickness measurement(through coating measurement, echo to echo mode)
-Auto-search, velocity measurement, alarm and dataset management are available.
-Optional functions: coat thickness measurement, B-scan, multi-layer measurement, V-PATH, TDG and temperature compensation.
● -System ports: encoder, VGA, standard SD card, USB
● EN12668-1: 2010(for UT) & EN15317-2007(for TG) compliant

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20171212/223.html

New generation of ultrasonic flaw detector from SIUI with modular design and more powerful functions. The SUPOR represents the persistent fine tradition of SIUI: innovative technology advanced process small size light weight powerful functions and easy operation.

Features

• Grouping Scanning: It can be divided into up to six groups for one PAUT probe for different inspections.
• Support two PAUT probes working simultaneously with grouping function.
• Modular design: Phased array module (16/32 channels) Phased array +TOFD module Multi-channel TOFD module or conventional UT module…
• Simultaneous Inspection of PA & TOFD
• TKY software (Optional)
• Velocity Sensitivity Delay TCG calibration
• Weld simulation
• Scan setup wizard
• Real time A/B/C/D scan
• 8.4" touch screen LCD with resolution 800×600 pixels

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/44.html

Compact & Portable: The whole unit weight (battery included) is approx. 1.2kg, suitable for aloft and field work.
Easy to Use:There are just a few concisely-defined keys,easy to be operated with only one hand.
Environmental Protection:This system is designed based on IP65 standard,suitable for complex industrial flaw detection environment.
Super-low Consumption:The configured Li-polymer battery can support up to 7-hour continuous operation.
Strong Performance:High resolution and penetration, achieving precise flaw detection from thin plates to large forged pieces.

Features

• Max. sampling rate 240MHz; Measurement resolution 0.1mm.
• Operating frequency range: 0.5~10MHz.
• 20~2000Hz (step: 20Hz): avoid reverberation signals during flaw detection.
• The AGC (auto gain control) function for efficient flaw detection.
• The AVG/DGS curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
• The 5.7” color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
• Peak memory function facilitates quick scanning and measurement on workpieces.
• Three different color schemes can meet the requirements of different application environments and habits.
• Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/43.html

Compact & Portable: The whole unit weight (battery included) is approx. 1.2kg, suitable for aloft and field work.
Easy to Use:There are just a few concisely-defined keys,easy to be operated with only one hand.
Environmental Protection:This system is designed based on IP65 standard,suitable for complex industrial flaw detection environment.
Super-low Consumption:The configured Li-polymer battery can support up to 7-hour continuous operation.
Strong Performance:High resolution and penetration, achieving precise flaw detection from thin plates to large forged pieces.

Features

• Max. sampling rate 240MHz; Measurement resolution 0.1mm.
• Operating frequency range: 0.5~10MHz.
• 20 ~ 2000Hz PRF (step: 20Hz): avoid reverberation signals during flaw detection.
• The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo,enabling efficient flaw detection.
• The AVG/DGS curve can make three curves of different equivalent values with one known flat-bottom hole or large flat-bottom echo.
• The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
• The 5.7" color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
• Peak memory function facilitates quick scanning and measurement on workpieces.
• Probe angle (K value) measuring function.
• Three different color schemes can meet the requirements of different application environments and habits.
• Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.
• Support up to 9 kinds of language.
• AWS D1.1/D1.5, API and TCG functions are optional.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/42.html

Compact & Portable: The whole unit weight (battery included) is approx. 1.2kg, suitable for aloft and field work.
Easy to Use:There are just a few concisely-defined keys,easy to be operated with only one hand.
Environmental Protection:This system is designed based onIP65 (Optional IP67) standard,suitable for complex industrial flaw detection environment.
Super-low Consumption:The configured Li-polymer battery can support up to 7-hour continuous operation.
Strong Performance:High resolution and penetration,achieving precise flaw detection from thin plates to large forged pieces.
Complete Functions: Cineloop,probe frequency measurement,curved surface correction, RF display,USB storage, amplitude B-scan, AWSD1.1/D1.5, API 5UE evaluation standard.

Features

• Max. sampling rate 240MHz; Measurement resolution 0.1mm.
• Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.
• The gate magnifier function magnifies the echo area within the gate to the whole screen display.
• Ethernet communication: Achieving real-time communication with a PC and remote control.
• The convenient and useful probe echo frequency measure function enables the users to know the probe center frequency quickly,resulting in more precise flaw detection evaluation.
• Operating frequency range: 0.5~15MHz, highlighting advantages of high sensitivity and broadband.
• 20 ~2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.
• Measure crack height by edge peak echo method.
• RF (Radio Frequency) echo display: good to thin-wall material measurement,academic research or qualitative analysis.
• The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo,enabling efficient flaw detection.
• The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
• Three different color schemes can meet the requirements of different application environments and habits.
• Up to 500 sets of curve and waveform can be saved for various workpieces and flaw detection standards.
• Support up to 11 kinds of language.
• Thickness measurement function available

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/41.html

Adjustable spike & square wave pulser up to 500V
High-resolution display screen with 640×480 pixels
VGA video output
Adjustable damping
Operation Frequency up to 20MHz
High dust proof & water proof: IP65 (IP67 as option)

Features

• The CTS-9009PLUS is designed to increase productivity in various inspection situations.
• It is suitable for inspection flaw position and size,which can be widely used for various detection demands, such as pipes and tubes, welding seams, pressure vessels and airplane parts.
• Operating frequency range: 0.5~20MHz, highlighting advantages of high sensitivity and broadband.
• Adjustable pulse width square wave transmission is up to 500V.
• 20 ~ 2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.
• The convenient and useful probe spectrum analysis function enables the users to know the probe waveform, spectrum and center frequency,resulting in more precise flaw detection evaluation.
• Measure crack height by edge peak echo method.
• Max. sampling rate 240MHz; Measurement resolution 0.1mm.
• RF (Radio Frequency) echo display: good to thin-wall material measurement,academic research or qualitative analysis.
• The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
• The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo, enabling efficient flaw detection.
• Advanced thickness measurement function available.
• Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.
• The gate magnifier function magnifies the echo area within the gate to the whole screen display.
• Up to 500 sets of curve and waveform can be saved for various workpieces and flaw detection standards.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/40.html

High limit Sensitivity
Innovative Design
Compact & Handy
Easy Operation
Low Noise

Features

• The digital ultrasonic flaw detector CTS-2020E is suitable for various detection demands, such as forged pieces, welding lines, steel structural parts and airplane parts.
• Max. sampling rate 240MHz; Measurement resolution 0.1mm; Min. display range 5mm.
• Operating frequency range: 0.5~10MHz, at least 62dB detection sensitivity surplus,highlighting advantages of high sensitivity and broadband.
• USB port for saving system stored data and data waveforms to a USB disk,as well as easy printing detection reports.
• Variable PRF: avoid reverberation signals during flaw detection.
• Interface wave tracking function: Immersion detection or precision measurement can be easily achieved through the logic relation between gate A and B.
• Peak value memory function: for quick scanning and measuring workpieces.
• Complete DAC curve function: convenient for echo evaluation.
• Probe angle (K value) measuring function.
• Large memory for saving up to 500 data sets, including wave forms, curves,parameters,detection reports, etc.
• High-brightness color TFT LCD, bringing optimized effect for reading measurement.
• 10 waveform and character colors are available for selection.
• Large capacity lithium battery pack for continuous operation over 6 hours.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/39.html

High-speed Sampling
Ethernet Communication
High Limit Sensitivity
Adjustable PRF
Low Noise

Features

• The digital ultrasonic flaw detector CTS-4020E is suitable for various detection demands,such as forged pieces, welding lines and airplane parts.
• Probe frequency testing function.
• Probe angle (K value) measuring function.
• Variable PRF: avoid reverberation signals during flaw detection.
• Large capacity lithium battery pack for continuous operation over 6 hours.
• High-brightness color TFT LCD, bringing optimized effect for reading and measurement.
• Color differentiation display function for second echo signals, when detecting with an angle probe.
• Ethernet communication for achieving real-time communication with a PC(Host) and remote control
• Large memory for saving up to 1000 data sets, including wave forms,curves,parameters, test reports, etc
• USB port for saving system stored data and data waveforms to a USB disk,as well as easy printing test reports.
• 10 waveform and character colors are available for selection.
• RF (Radio Frequency) echo display: good to thin-wall material measurement,academic research or qualitative analysis.
• Peak value memory function and echo compare function:useful for fast scanning, measurement and comparison on workpieces.
• Cineloop function for recording dynamic scanning process.
• Operating frequency range: 0.5~15MHz, highlighting advantages of high sensitivity and broadband.
• Interface wave tracking function: Immersion detection or precision measurement can be easily achieved through the logic relation between gate A and B.
• Complete DAC and TCG curve function: convenient for echo evaluation,suitable for on-spot detection, such as detectionon large forged pieces and coarse-crystal material.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/38.html

The RailTek ultrasonic flaw detector for rail weld joint is the latest digital portable ultrasonic rail testing machine with powerful function and easy operation, which is the first choice for rail weld joint inspection.

Features

• Compact & Portable:The whole unit weight (battery included) is approx 1.4kg, suitable for aloft and field work.
• B Scan Mark Function: This function can automatically mark alarm signals on the rail weld joint cross section on B scan image.
• Easy Operation:There are just a few concisely-defined keys, easy to be operated with only one hand.
• Super-low Consumption:The Li-polymer battery can support up to 6-hour continuous operation.
• Strong Performance:High defect inspection rate can satisfy precise rail joint inspection.
• Dynamic Recording: Real-time Cineloop

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/37.html

RailRover is the latest digital hand pushed ultrasonic rail testing machine. It has 9 channels and an independent channel for hand held confirmation testing of welds and rail foot.

Features

• 9 individual ultrasonic transmit/receive channels for rail testing and an independent hand held channel for defect confirmation, sizing and manual inspection of the weld or rail foot.
• 3 modes(single A scan, multiple A scan and A+B scan) are available, and all of them have storage and recording function.
• GPS Location System is available.
• Self-Testing Function on Probes
• Save up to 4GB data files.
• DAC on all Probes

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/36.html

High Performance
Anti-Interference
Real-time Auto Alarm
Ethernet Communication
Remote Control
Flaw Detection Data Management

Features

• Multiple testing channels, multi-probe can be connected for testing at the same time.
• High detection sensitivity.
• Each detection channel has three alarm gates: A, B and C.An alarm threshold can be set, and when the echo is higher or lower than the threshold the system will alarm, so as to achieve multi-position and multi-method auto alarm.
• Interface wave tracking function: by tracking the logic relation between gate D and the alarm gates A, B or C, interface wave tracked by alarm gates isassured, which avoids error alarm or lost alarm in immersion testing due to water fluctuation.
• The automatic defect marking function can be set as delay marking or lengthened distance marking, with delay time or lengthened distance variable.
  Relevant alarm times selection: the relevant alarm times can be selected based on the actual situation,so as to avoid error alarm and improve anti-interference capability.
• Variable PRF, max. PRF as high as 2.5 KHz/channel.
• Large memory for saving up to 500 data sets, including echoes, curves,parameters, detection reports, etc.
• USB port for saving system stored data and echoes to a USB disk, as well as easy printout of test reports.
• Large screen and high-brightness color TFT LCD, bringing optimized effectfor reading & measurement. Echoes and detection data for up to 4 channels can be displayed at the same time.
• English / Chinese menu for selection, with text prompt during operation.
• LAN Ethernet port of the multi-channel flaw detector for real-time communication with a PC
• Special database and powerful data processing function can be found in the PC, which is convenient for data storage, edit, classification, query,printing and transmission.
• In combination of displacement signals of the tested material provided by a mechanical drive device, and flaw echo signals from the flaw detector, displaying flaw position and equivalent flaw size directly.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/35.html

Based on PC platform and by working with probe detection and mechanical devices,the new series can achieve automatic ultrasound testing with high accuracy, reliability and high efficiency.

Features

• It can support from 32 to 128 ultrasound channels (there are four types of housing for 32/64/96/128 channels).
• Each PCB has 8 independent T/R channels.
• For the same PCB, any transmission channel can combine with any receiver channel. Each PCB can have combination up to 8 groups.
• For the same PCB, the channels work in turn. Different PCBs can work at the same time or work in turn.
• Each ultrasound channel has conventional UT, with max. PRF up to 2.5KHz/channel.
• High performance T/R front-end. Square wave transmission can be up to 500V.
• Working frequency range: 0.5-20MHz.
• High-speed digital signal processing and transmission.
• A-scan real-time sound and light alarm function, passive measurement or marker interface, input and output control functions.
• B scan full time recording, measurement and calculation, and movie replay functions based on time or encoder.
• 2D rotary encoder connector.
• Automatic inspection of beginning/ending sensor input control.
• Data management and statistics functions.
• Remote control function by PC through LAN connector.
• Wifi transmission.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/34.html

Features

• Corrosion Application
• Compatible with different kinds of probes.
• Measurement range: 0.5~600mm.
• Compact size and weighs only 0.6kg including battery.
• 5” high resolution color TFT-LCD monitor with high-brightness LED backlight (visible under sunshine ),800x480 pixels.
• Auto search function can automatically adjust display delay, display range, gain and measurement gate based on the detected echo.
• Normal (R-B1, transmission pulse to the first echo), velocity measurement,through coating measurement or echo to echo (B1-B2, or Bm-Bn), coating measurement functions available.
• One-point, Two-points and Fast Zero point calibrations available.
• Single and dual element probes for selection. CTS-59 can support dialogue thickness gauge probe to realize probe auto-recognition function, which can reduce display measurement data error.
• A/B scan functions.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/48.html

Fast Scan
Two-point calibration
Multi-probe selection
Thru-coating measurement

Features

The CTS-30C is an entry-level & cost-effective thru-coating thickness gauge,especially good for thru-coating thickness measurement on painted and coated thin wall pipe in machinery, chemical,ship building, aeronautical and aerospace industries.Small size, light weight, super-low consumption and easy operation makes it suitable for aloft and field work.

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/47.html

The CTS-30A / CTS-30B ultrasonic thickness gauge, adopts micro-processor technology and advanced manufacture process design, can do measurement of thickness and acoustic velocity on metal and many materials based on ultrasound measurement principle.

Features

• Mono LCD (with backlight), 128×64 pixels
• Measurement range: 0.8mm-300mm/400mm (steel)
• Measurement accuracy: 0.01mm/0.1mm
• Various measurement modes available: Minimum measurement value capture,average measurement value, setup limit measurement value, difference measurement value, etc.
• Input the known thickness and the system may show the velocity of the inspected workpiece in real time.
• Up to 5000 sets of measurement data (refer to measurement value and acoustic value) and 100 sets of parameter data (refer to measurement value and system setup, etc.) can be saved.
• Compact size, light weight, low consumption and long operation period.Compared with CTS-30A, the CTS-30B model has more advanced functions, such as:
• Fast Scan
• Two-point calibration
• Multi-probe selection

http://www.siui.com/ax0/a/chanpinzhongxin/wusunjiance/20170824/46.html

The Phased Array low profile crawler LPS-01 and LPS-02 are compatible with Phased Array ultrasonic flaw detector which is used to perform circumferential weld inspection on small diameter pipes.

Features

• Compact lightweight portable water proof and rust-free.
• Probes and wedges can be quickly and easily changed.
• Support up to two phased array probes to cover the whole welds at one time.
• Covers standard pipes with outside diameters ranging from 20.32-114.3mm (0.84-4.5 inch)
• Can be operated within 15mm clearanceperfect for hard-to-reach area inspection.
• Encoder precision: 32.6step/mm
• The probe spacing can be adjusted in the range of 0-55 mm.
• Crawler can provide stable and constant pressure around the pipe full circumference.
• Urethane wheels help the crawler have smooth radial movement along the pipe and reduce axial drift.
• Positive inspection and reverse inspection with high reproducibility and good coupling.
• With its simple buckle design just easily buckle up and unbuckle the links for different pipe diameters(No need to disassemble the whole scanner).
• Two inspection methods: one-side inspection and dual-side inspection.

http://www.siui.com/ax0/a/gangguitanshangyi/20170824/54.html

The Phased Array and TOFD crawler UHTS-X02 is compatible with PA or TOFD ultrasonic flaw detector. It can be folded in the center for longitudinal weld and unfolded for girth weld enabling the crawler have better coupling stability to work on smaller pipes suitable for phased array or TOFD testing on plates and pipe workpieces (with diameter larger than 500mm).

Features

• Standard configured as two channels TOFD crawler
• Support Phased Array probes
• Support up to 3 pairs of probe holders simultaneously.
• The magnetic wheels can be attracted to the tested work piece for easy operation.
• Spring guide way structure which follows the tested surface maintaining good coupling between the wedge and the tested work piece.

http://www.siui.com/ax0/a/gangguitanshangyi/20170824/53.html

The Phased Array and TOFD crawler PTS-P05 is compatible with PA or TOFD ultrasonic flaw detector. It is suitable for phased array or TOFD testing on plates and pipe work pieces.

Features

• The magnetic wheels can be attracted to the workpieces for easy operation.
• Spring arm structure which follows the tested surface maintaining good coupling between the wedge and the tested work piece.
• The probe fixed arm spacing is adjustable which can be installed with wedges of various specifications to meet specific needs.
• The position of the probe holder can be adjusted to the actual testing needs convenient and flexible.

http://www.siui.com/ax0/a/gangguitanshangyi/20170824/52.html

Phased Array crawler PES-02 is compact flexible and easy to operate.It is suitable for phased-array single probe (with wedge) to perform ultrasonic phased-array testing on girth weld or longitudinal weld of flat butt welds pressure vessels or pipes (diameter > 60mm).

Features

• Waterproof (IP68)
• Compact size
• Aluminumalloy construction:withstand the harshest environments.
• High encoder resolution: 0.05mm/step.
• Compatible with long and short pivot arms to achieve flexible application.

http://www.siui.com/ax0/a/gangguitanshangyi/20170824/51.html

The TOFD crawler TSB-1-P05 and TSB-2-P05 are compatible with TOFD ultrasonic flaw detector as well as TOFD wedges. They are suitable for TOFD testing onplate-type work pieces.

Features

• The magnetic wheels can be attracted to the work piece for easy operation.
• Spring guide rail structure, which enables the probe holder to move up and down along the tested surface, maintaining good coupling between the wedge and the tested work piece.
• The rolling direction of the wheels is adjustable for transverse scan and vertical scan.

http://www.siui.com/ax0/a/gangguitanshangyi/20170824/50.html

SIUI can provide two kinds of irrigation device: auto irrigation device and manual irrigation device.

The IH-01, a manual irrigation device, is used to supply water to irrigation wedges during ultrasonic testing.

The IA-01, an auto irrigation device, is used to supply water to irrigation wedges during ultrasonic testing.

http://www.siui.com/ax0/a/gangguitanshangyi/20170824/49.html

SIUI can provide PA probes with different connectors compatible with PA equipments from other manufacturers.

Universal Probes
Small/ Medium/ Large-Size & Low Frequency Probes

Superior Features:
Sound Beam angle,focusing and scan step can be electronically controlled;
Wide scan coverage can be achieved by one single probe;
Replaceable angle wedge and delay block, with customizable surface curvature;
Array pitch and elevation can be customized.

Immersion Linear Array Probe

Superior Features:
Sound Beam angle,focusing and scan step can be electronically controlled;
Wide scan coverage can be achieved by one single probe;

Immersion Curved Array Probe

Superior Features:
Adopt immersion method for inspection;
Sound Beam angle,focusing and scan step can be electronically controlled;
Wide scan coverage can be achieved by one single probe;
The curvature radius of curved probes can be customized;

Small-size immersion curved array probe

Large-size immersion curved array probe

High Penetration Probes

Superior Features:
Good resolution and high penetration;
Replaceable angle wedge and delay block, with customizable surface curvature;
Array pitch and elevation can be customized.

Small Footprint Probe

Superior Features:
Compact size;
Cable connectorcan come out from either the side or the top;
Replaceable angle wedge and delay block, with customizable surface curvature;
Array pitch and elevation can be customized.

Custom Phased Array Probes
SIUI can produce custom phased array probes to suit specific applications and geometries.

Flexible Probe

Superior Features:
Soft structure can be shaped to have better coupling stability to work on various work piece surface shape, especially curved surface.
With thickness less than 3.0mm, the probe can be used for limited space inspection.

Wheel Phased Array Probe

Low-profile Probe

Superior Features:
With theLow-profile PA probe, the probability of small defects detection in small pipe can be increased.

Matrix Array Probe

Superior Features:
Sound Beam angle,focusing and scan step can be electronically controlled;
Two types for selection: flat or curved;
Hard-to-reach area can be inspected;
Immersion matrixarray probe can be customized.

Near-Wall Probe

Superior Features:
Small blind zones in both edges;
Larger scan coverage can be achieved.

http://www.siui.com/ax0/a/duotongdaotanshangyi/20170824/59.html

SIUI can provide a series of TOFD probes compatible with different TOFD flaw detectors;
Customization of TOFD probes and wedges with different specifications.

LEMO 00 Connector

http://www.siui.com/ax0/a/duotongdaotanshangyi/20170824/58.html

Normal Probe

Mainly used for testing defects parallel to or slightly tilted against the test surface (e.g.steel plate)

Replaceable Membrane Normal Probe

Mainly used for inspecting container flaws as well as flaws parallel to the inspected surface, applicable for checking coarse and slightly-curved surfaced objects.

Replaceable Delay Line Normal Probe

Mainly used for inspecting flaws parallel to/ near to the inspected object surface, applicablefor inspected objects with sharp edge.
If the delay line is made ofhigh-temperature material, it can also inspect high-temperature objects.

Angle Probe (Transverse Wave)

Mainly used for testing defects perpendicular to or obviously tilted against the test surface (e.g.welding line testing).

Angle Probe ( Longitudinal Wave )

Mainly used fortesting defects perpendicular to or obviously tilted against the test surface (e.g.welding line testing).

Thickness Gauge Probe
Mainly used for measuring work piece thickness.

High Temperature Probe (Up to 200℃)

Twin Crystal Probe

Delay Line Probe

Angle Probe With Replaceable Wedge

Dual-Element Angle Probe

Mainly used for testing defects tilted against the test surface or perpendicular to the test surface.

Dual-element Normal Probe

Mainly used for testing defects parallel to or slightly tilted against the test surface (e.g.steel plate);
Much more appropriate for detecting near surface flaws than normal probes.

Immersion Probe

Mainly used in situations where the work piece and the probe do not contact directly.
It is suitable for testing work piece with rough surface and automatic testing required to increase scanning speed and shorten testing time.

Variable-angle Probe

The reflection angle can be adjusted to meet different requirements.

Surface Wave Probe

Mainly used for surface defect testing and also for surface crack depth testing.

Spot-Weld Probe

Straight-beam probe with soft protective membrane, using water column as water delay coupling, so as to achieve optimal coupling between the probe and spot weld surface.
Especially good for spot-weld testing on thin plates of automotive industry.

Custom Ultrasonic Probe

SIUI can provide custom ultrasonic probes according to specific requirement.

http://www.siui.com/ax0/a/duotongdaotanshangyi/20170824/57.html

• Phased Array Wedge
• Wedge for Phased Array Probe
• High Temperature Wedge
• Curved Wedge
• Irrigation Wedge
• TOFD wedge
• Non-irrigation Wedge
• Irrigation Wedge
• Probe Cable

SIUI provides various of probe cables to be compatible with probes.
There are different kinds of cable connectors for your selection,such as BNC, LEMO 01,LEMO 00, Microdot, UHF etc.

Probe Test Report

Probe test reports are available as option.

Storage Boxes

Storage boxes are available.

http://www.siui.com/ax0/a/duotongdaotanshangyi/20170824/56.html

4/5/7-Step Block

Specifications:
ASTM E797
Calibration Function:
Straight Beam: thickness and linearity calibration, thickness gauging.
Calibration block No.1(V1)

Specifications:
EN12223
Calibration Function:
Calibration of shear and compression wave probes. Checking beam angle, emergent point and resolution. Calibration of time base and gain settings.
*We can provide V1 calibration block based on EN12223, BS2704, ASTM E164 and ISO 2400.
Calibration Block No.2 (V2)

Specifications:
EN27963
Calibration Function:
Small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain, engraved reference mark scales from 35 to 75 degrees.
*We can provide V2 calibration block based on EN27963, BS2704 and ISO 7963.
Phased Array Test Block Type A

Specifications:
ASME Code Cases 2541, 2557, 2558
Calibration Functions:
The Phased Array “Type A” Calibration Block is used during the initial setup and calibration of a phased array ultrasonic unit.
It can be used to perform tasks such as beam angle verification, calibration for wedge delay, sensitivity calibration, performing DAC/TCG for thickness up to 50 mm, and crack sizing.
Phased Array Test Block Type B

Specifications:
ASME CodeCases 2541, 2557, 2558
Calibration Functions:
The Phased Array “Type B” Calibration Block is used as baseline block to determine long-term instrument performance changes, generate DAC curves,
and evaluate linear/ angular resolution, focusing ability and beam steering capability.
Miniature Angle Beam (ROMPAS) Calibration Block

Specifications:
ASTM E164
Calibration Function:
Straight Beam: distance angle beam, index point, sound path angle (30°-70°).
DSC Distance/ Sensitivity Calibration Block

Specifications:
ASTM E164, AWS D1.1/D1.1M
Calibration Function:
Straight Beam: distance, amplitude. Angle Beam: index point, sound path angle (45°-70°),distance, sensitivity.
DC Distance Calibration Block

Specifications:
ASTM E164,AWS D1.1/D1.1M
Calibration Function:
Straight Beam: distance, amplitude. Angle Beam: index point, distance.
SC Sensitivity Calibration Block

Specifications:
ASTM E164, AWS D1.1/D1.1M
Calibration Function:
Angle Beam: sound path angle (45°, 60°, 75°), sensitivity.
DS Distance/ Sensitivity Calibration Block

Specifications:
AWS D1.1/D1.1M
Calibration Function:
Straight Beam: distance, horizontal linearity, sensitivity.
RC (AWS) Resolution Calibration Block

Specifications:
AWS D1.1/D1.1M
Calibration Function:
Angle Beam: resolution (45°, 60°, 70°).
IOW Beam Profile Block

Specifications:
API RP 2X
Calibration Function:
Angle Beam: beam profile (45°, 60°, 70°), probe angle.
ASME Basic Calibration Blocks

Specifications:
ASME BPVC-V (2010)
Calibration Function:
Used for establishment of primary reference responses for UT examination of welds.
ASME Basic Calibration Blocks for Pipe

Specifications:
ASME SEC V Ariticles 4 Fig.T-434.3
Calibration Functions:
The basic calibration block fabricated for customer supplied section of pipe of the same diameter, schedule, heat treatment and material type as the material being examined.
ASTM Area/ Amplitude (Set of 8)

Specifications:
ASME-E-127or ASTM-E-428
Calibration Functions:
Determining relationship comparisons of flaw size and echo amplitude.
ASTM Distance/ Area Amplitude (Set of 10)

Specifications:
ASME-E-127or ASTM-E-428
Calibration Functions:
Determining relationship comparisons of flaw size and echo amplitude.
ASTM Distance Amplitude (Set of 19)

Specifications:
ASME-E-127or ASTM-E-428
Calibration Functions:
Comparisons of distance amplitude relationships.

http://www.siui.com/ax0/a/duotongdaotanshangyi/20170824/55.html

LPS-01/02 is compatible with SUPOR phased array flaw detector to perform circumferential weld inspection on small diameter pipes.

• Covering standard pipes with OD (outside diameter) ranging from 20.32-114.3mm (0.84-4.5 inch).
• Achieving one-side inspection and two-side inspection.

http://www.siui.com/ax0/a/monitanshangyi/20170824/71.html

Use SUPOR flaw detector and ALPHA 1001 automotive/ semi-mechanized equipment to achieve the water-cooling plate C-scan inspection.

http://www.siui.com/ax0/a/monitanshangyi/20170824/70.html

Use SUPOR flaw detector and ALPHA 1000 automotive/ semi-mechanized equipment to achieve the copper bars batch C-scan inspection.

http://www.siui.com/ax0/a/monitanshangyi/20170824/69.html

Manually inspection to check if the bolt or nut have quality flaw with SUPOR flaw detector.

http://www.siui.com/ax0/a/monitanshangyi/20170824/68.html

According to the statistics, corrosion fatigue break accounted for a large proportion in the drill pipe break of the petroleum drilling accident.

http://www.siui.com/ax0/a/monitanshangyi/20170824/67.html

Crank shaft and cylinder block will have different internal flaws after long term usage.

It is necessary to have internal quality inspection to extend the life of crank shaft and cylinder block and ensure the production safety.

http://www.siui.com/ax0/a/monitanshangyi/20170824/66.html

Phased Array Inspection of U-Ribs Welding Penetration

http://www.siui.com/ax0/a/monitanshangyi/20170824/65.html

Pipeline production boosts the development of PE pipe, which can solved two problems of traditional metal pipes: corrosion and joint leakage.

We trail produce different kinds of phased array probes with various frequency and element, adjust phased array flaw detector parameters and perform multiple experiments to testify that the phased array image is totally the same as the anatomical specimen.

http://www.siui.com/ax0/a/monitanshangyi/20170824/64.html

T-K-Y weld joints structures are widely adopted in construction and offshore oil engineering such as various industrial plants, hangars, terminals, stadiums exhibition centers and so on.

http://www.siui.com/ax0/a/monitanshangyi/20170824/63.html

With rapid development of aerospace and military industries, the application of composite materials is increasingly being used, such as aircraft wings, missile shells, rocket tube.

http://www.siui.com/ax0/a/monitanshangyi/20170824/62.html

There is a lot of welding in spherical tank or storage tanks in special equipment industry need quality inspection to ensure the equipment normal use.

http://www.siui.com/ax0/a/monitanshangyi/20170824/61.html
