United KingdomScanna designs and manufactures portable X-ray and mail screening equipment for the Defence, Security and Industrial sectors. Based in the UK, they have operations in the USA and the Middle East and provide critical on-site support wherever their clients have a presence around the globe.
Their client list spans more than 100 countries and includes UK MoD, US DoD, NATO forces, federal and specialist agencies, national governments, plus a wide range of commercial organisations.
Every component of every device is engineered to the highest possible specification, ensuring optimum performance and outstanding imaging quality. Scanna screening equipment helps protect military bases, government and embassy buildings, as well as private-sector infrastructure and personnel around the world.

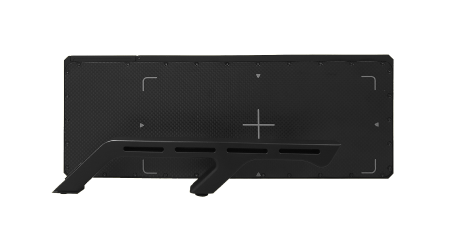

The new Scansilc 1024 will be a perfect choice for industrial radiography and weld inspection. It has the same active area size as common films used in this field, which means it can provide practical DR technology without disrupting your workflow when switching over from CR or Film-based techniques.
A reliable and portable solution for harsh industrial environments. The ultra-lightweight design, with a modular handle, allows for easy insertion into pipes - making this ideal for field inspection.
The Scansilc 1024 provides high-quality and high-resolution images, with a 76-pixel pitch and a resolution of 1,280 x 3,072 pixels.
A Scansilc DR System is much more cost-effective, compared with the associated lifetime costs of a film-based solution. It ensures an easy workflow and fast deployment time.
The active area is the same size as many common films used in industrial radiography
Removing the usual operator setup, SCANNO mode gives you the freedom to simply place your x-ray panel and source around the target, then fire and view the x-ray in one minute.
Operates with lightweight Golden pulsed X-ray generators or conventional CP X-ray sources.
On target weight of only 5 kgs for the entire x-ray system
Pre-configured for super fast deployment
The best-in-class imaging quality of 76 microns
Uniquely designed for industrial applications with a ruggedised unibody design - not a fragile medical panel in a protective cover
Unique IP67 environmental protection against dirt, dust and water ingress.
Active Image Area 175 x 223 mm

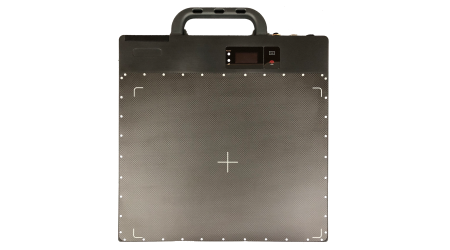

SCANSILC 2430-NDT is a new robust and compact X-ray panel for industrial X-ray applications.
The panel weighs only 7 lbs, is dust and watertight and drop-tested to over 3 feet.
The imaging area is 11.45 x 9” and offers 16-bit, 152-76 micron high resolution images.
The system is PB-protected and designed for operation with pulsed, CP and Gamma generators up to 300 kv.
Operates in AED (Automatic Exposure Detection) mode with your existing generator and laptop or can be supplied in a system with a Golden pulsed X-ray generator.
Scanna has been designing and manufacturing portable x-ray systems and detection equipment for the Defence and Security sectors for over 30 years, now Scanna is bringing its quality, reliability and expertise to the world of NDT.

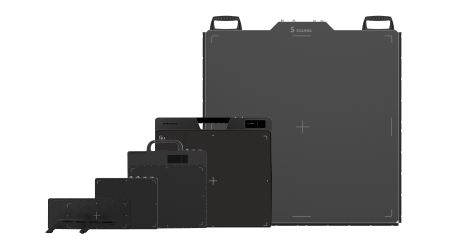

Scanna designs, manufactures, services and supports a comprehensive range of ruggedized, portable and static digital radiography systems for NDT applications. By working closely with our customers, we provide tailored solutions to meet specific challenges. Scansilc NDT X-ray systems are a packaged solution including a panel, generator, tablet/PC and software.
The integrated design of the Scansilc panels means fewer components and enables Scanna to offer smaller, lighter systems than other ruggedized portable X-ray units available on the market. Scansilc NDT Imagers have near edge-to-edge imaging and are impact and drop-tested. These unique IP67-rated panels are designed for use in all weather conditions and protect from mud, rain and even snow without any additional protective cover.
Scansilc NDT x-ray systems offer a best-in-class combination of high image quality and rugged NDT field performance. They are designed to deliver reliable results very quickly and can operate up to a full day on battery power alone. Scansilc panels are highly sensitive which means they can operate on lower x-ray exposure times without any loss of detail. The slim form factor of the Scansilc Panels makes them suitable for sliding into tight gaps and can operate via cable or wire-free to allow for fast place and fire operation and full flexibility of movement.
Without compromising reliability, Scanna's portable, high-performance, unique X-ray systems ensure simplicity and dependability. Scansilc NDT X-ray systems offer durability and robustness which ensures image quality even in the most challenging environments.
NDT applications include:
Digital Radiography in NDT enables:
Range of sizes: 10 x 24 cm, 18 x 24 cm, 24 x 30 cm, 36 x 43 cm and 86 x 86 cm
High resolution - 76 and 140 microns (6.5 and 3.5 lp/mm)
Impact and drop resistant to 1m
Dust, dirt and water resistant to IP67
Compatible with CP, Pulsed and Gamma X-ray sources

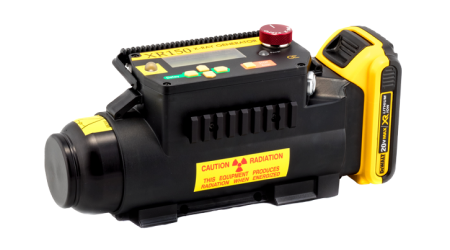

The XR150 X-ray generator is a 150kV, battery-powered, pulsed X-ray generator used primarily for security applications.
The XR150 weighs just over 2 kgs yet is capable of penetrating over 15 mm steel, making it ideal for use in remote locations or for lightscale security and defence operations.
The XR150 is now 35% smaller than its predecessor. The sleeker design makes it easier to slip the XR150 into pockets. Multiple connection points allow operators to use various fasteners to attach the XR150 to belts, zippers, or packs.
The new 20V model has 50% more penetrative capability.
