This innovation has come full circle in a historic sense.

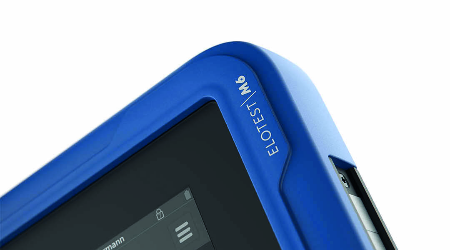

The Rohmann success story started in 1977 with the hand-held rototest and is now continuing with the new elotest m6. The digital single hand test instrument stands out due to the excellent quality of its signals. The new hand-held ELOTEST\M6 makes an impression thanks to an integrated C-Scan function for array probes and rotor applications.

More Information: https://www.rohmann.de/en/elotest-m6-en/

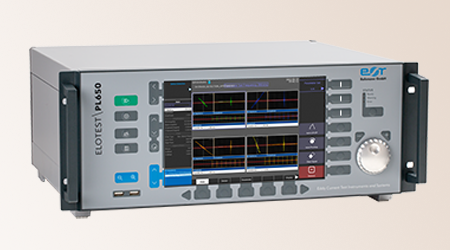

The ELOTEST\PL650 is an eddy current tester of the latest generation. It is characterized by consistent digital signal processing and is able to implement different methods of signal excitation and evaluation (classic eddy current testing, pulsed magnetization, harmonic analysis). On the basis of modular hardware and a user-specific configurable software platform, the complete spectrum of testing tasks can be covered, e.B crack testing, material and mix-up testing and grinding burn testing.

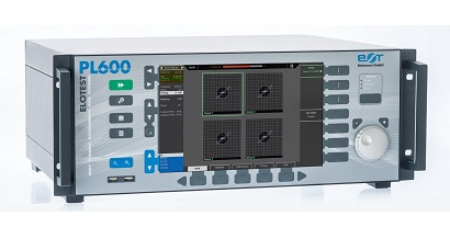

The ELOTEST\PL600 is an eddy current tester of the latest generation. It is characterized by consistent digital signal processing and is able to implement different methods of signal excitation and evaluation (classic eddy current testing, pulsed magnetization, harmonic analysis). On the basis of modular hardware and a user-specific configurable software platform, the complete spectrum of testing tasks can be covered, e.B crack testing, material and mix-up testing and grinding burn testing.

For Specifications and details visit https://www.rohmann.de/pl-600-en/

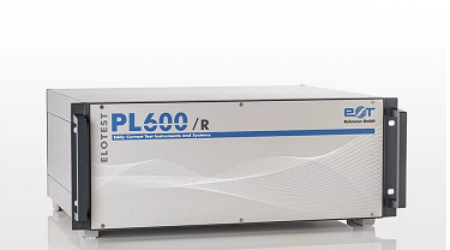

A “remote” version of the ELOTEST\PL600, equipped with an identical hardware configuration, but without a user interface, is available for specific needs. ELOTEST\PL600 R, 19“ casing with 15 free slots for additional modules, ELOTEST\PL600 RC, in half of a 19“ casing with 6 free slots for additional modules. The Eddy Current devices are used with a computer software under Windows or Linux. Without a computer connected via HDMI + USB to a touch display or a standard display with a mouse.

 https://www.rohmann.de/pl-600-en/

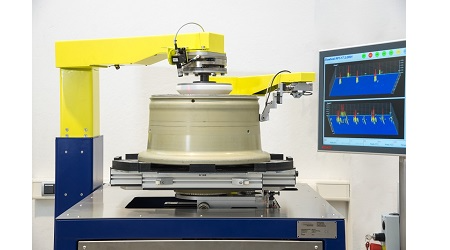

Rohmann GmbH is continuously developing the EloWheel testing system for the MRO sector. The rapidity of the inspection, the sensitivity of the defect search, the resolution and the reliability as well as the flexibility in the adaptation to different requirements are the key benefits of the inspection system.

By using a dual probe, this eddy current test system makes it possible to inspect aircraft wheel rims for the detection of cracks on the surface and also defects inside the material at the same time. The user-friendly interface is integrated into the tried and tested EloWheel evaluation software and its arrangement is perfect for inspecting wheel rim halves quickly and safely for different types of defects.

For more information or a specific request visithttps://www.rohmann.de/products/elowheel-rpt17/

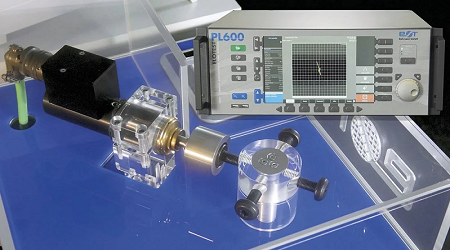

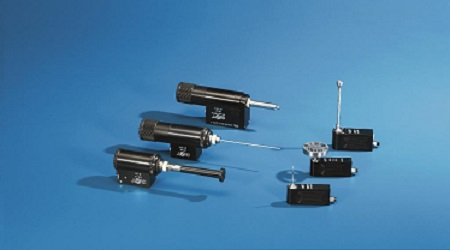

Industrial Heavy Duty Rotor (HDR) for the inspection of bore holes, bolt head, nuts, etc.

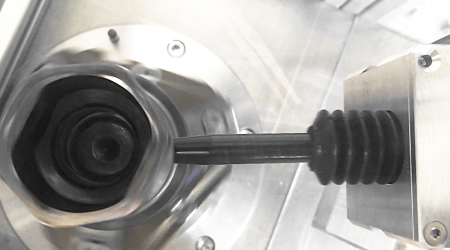

The distance of the sensor relative to the part being tested is the most decisive influencing factor for the sensitivity of eddy current testing. If the sensor distance cannot kept constant, 2 measures can be taken: By default, we deploy special distance compensation probes in combination with use of the electronical distance compensation from the Instrument ELOTEST PL600 which works for distance variations up to 1 mm (+/- 0,5mm).

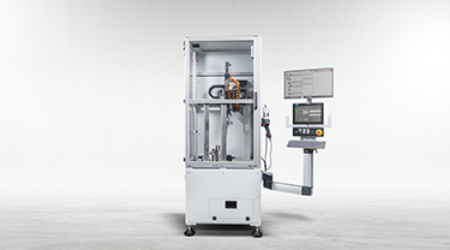

ELOTEST\PL600 with FLEXITEST and Scan\Alyzer

Flexible and precise 3-axis Eddy Current inspection system for the detection of cracks and grinding burn

For further information follow the link https://www.rohmann.de/en/products/flexitest-advanced-mit-elotest-pl600/

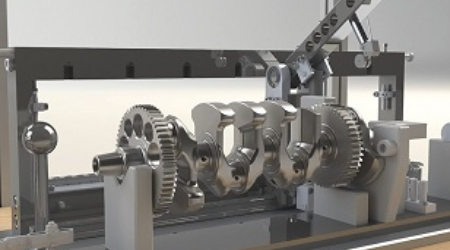

Crack testing on parts made of sintered material and layer thickness measurement on ferromagnetic base material.

CHARACTERISTICS

• Testing of all rotationally symmetrical components.
• Optional optical measurement of the component geometry.
• Cycle time 2s/part

• Quick adaptation to different test parts
• ELOTEST PL600 with KD-38 probe

For more information follow the link https://www.rohmann.de/products/qutec-sbc-und-qutec-deltas-mit-pl600/

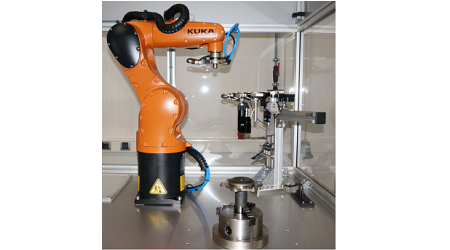

Today's non-destructive testing applications increasingly require complex movements of the sensor along the component to be inspected. So - based on our "large" universal test system EloScan- we decided to develop a new, compact robot cell. It can be adapted to various test tasks easily, e.g. by integration into the production line or if used for laboratory purposes. The system provides 2 different modes of operation. One mode allows the sensor to be moved along the contour of the component. The other mode concerns moving the component relative to the fixed sensor by use of an appropriate gripper. The robot cell can be completed by a tool changing station, additional measuring devices or user-specific installations. Last not least it is possible to expand the robot kinematics by adding further linear or rotational axes.

For further information follow the link https://www.rohmann.de/en/products/eloscan-compact/

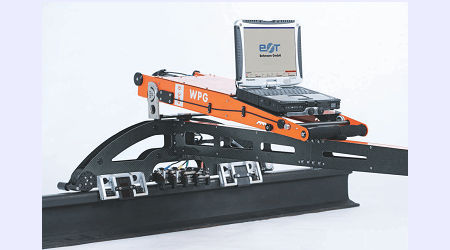

Railway rails and switches are highly stressed components by increasing traffic (load cycles), increasing axle loads and increasing speeds, especially on high-speed lines. Therefore, depending on the load profile, the installed rails must be carefully checked. The mobile ROHMANN WPG D340 inspection trolley is made of ultra-light carbon fiber and can be handled by just one person. Several sensors, each equipped with ceramic wear protection underneath, are guided very precisely along the running edge of the rail by a patented magnetic holder. The system integrates a multi-channel eddy current instrument, an industrial PC for inspections in rough environments and a specific software for data recording, analysis and documentaion.

For further information follow the link https://www.rohmann.de/en/products/draisine-wpg-d340/

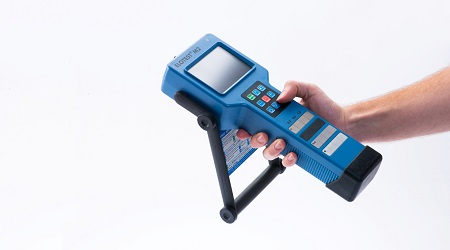

The ELOTEST M2 is a universal one-hand tester for surfaces, drill holes and hidden structures. It also measures the conductivity and layer thickness of all materials. The ELOTEST M2 allows a DUAL frequency test with mix and covers the complete range of frequency from 10 Hz to 12 MHz. It offers a signal optimization for static and dynamic tests due to all filter functions (LP, HP, BP ). The sharp LCD Display with LED illumination ensures an optimal visibility of the test signals, even in direct sunlight. Integrated calibration bodies simplify and accelerate on-site work. The device is operated with a well-structured keypad and clearly assigned functions. This allows even unexperienced users to work with quickly and safely. The user-friendliness is supported by clear text messages on the screen.

For further information follow the link https://www.rohmann.de/en/products/elotest-m2-v3/

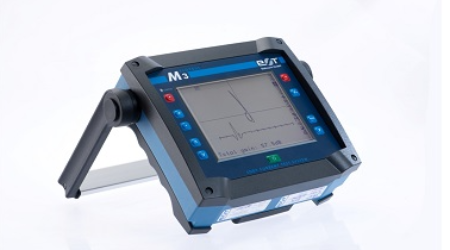

Universal testing technology with strong characteristics - Anyone who knows the world's smallest full eddy current tester ELOTEST M2 V3 will certainly welcome the latest member of this product family: the new ELOTEST M3 has the same performance data as the M2 V3, but it offers a much larger display. The new ELOTEST M3 is unbeatable whenever a particularly high screen resolution is required, when difficult tasks have to be performed, when both hands are needed and the instrument has to be switched off, or when several testers want to follow the display at the same time. The ELOTEST M3 is mainly used for manual testing of surfaces, drill holes and hidden structures and for measuring conductivity and layer thickness.

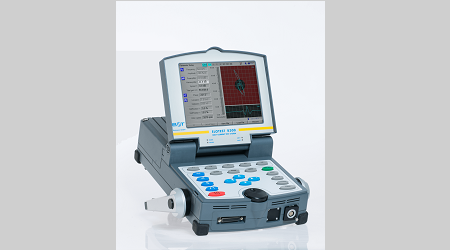

The multi-purpose eddy current test instrument Elotest B300 is suitable for various needs: for stationary applications in the laboratory or in the production line as well as for mobile use in the field. Based on its high variablity (equipped with 1, 2, 3 or 4 test channels), numerous interfaces and a wide range of functionalities not only simple tests, but also complex inspections can be done.

For further information follow the link https://www.rohmann.de/en/products/elotest_b300/

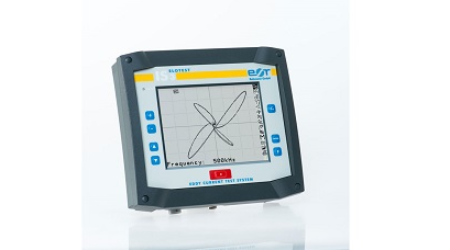

Single-channel eddy current testing instrument for automated testing. The ELOTEST IS3 is designed for installation in automated testing machines. The single-channel testing device, designed in protection class IP54, can be integrated directly into the production process, e.g. in automatic screw inspection machines. The integration into existing mechanics requires only little effort. With a frequency range from 10 Hz to 12 MHz, univeral signal filter and I/O interface, this testing device is an efficient alternative for fast crack detection and sorting tasks.

For further information follow the link https://www.rohmann.de/en/products/elotest-is3/

Grinding fire and crack testing of cylindrical parts. Universal test system for semi-automatic testing with the highest precision and repeatability.

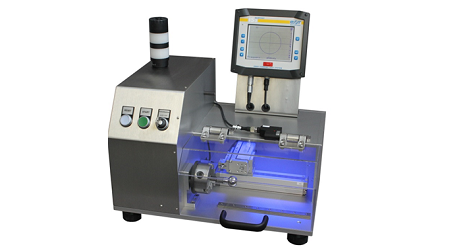

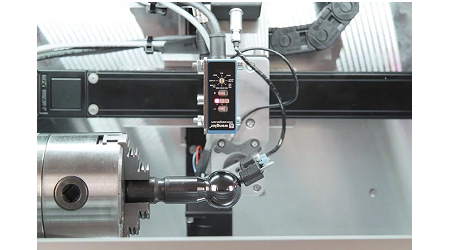

Flexible 2-axis Eddy Current desktop crack test system

SPECIFICATION

A compact and modular system

This compact and modular system closes the gap between a manual device and a fully automatic testing system. Once the test piece has been inserted, the automated test sequence starts. The spindle sets the test piece in rotation and a probe moves along the test piece by means of two interpolating servo axes. After completion of the test, the sorting result is displayed optically and acoustically.

• Key data: Table structure, weight approx. 15kg, connection 230V, integrated PLC, spindle speed 600 min-1 (optionally adjustable), axis feed 1-100 mm/s (optionally faster).
• Test parts: 5mm<Ø<20mm, 15mm<l< li=””> </l<> Inspection
• task: surface defects on cylindrical shell surface, with optional splitter mechanism or optional second axis also contours
• Options: Foot switch; tailstock manual or automatic; connection to automation (e.g. robot), additional axes, etc.

For further information follow the link https://www.rohmann.de/en/products/flexitest-with-elotest-is3/

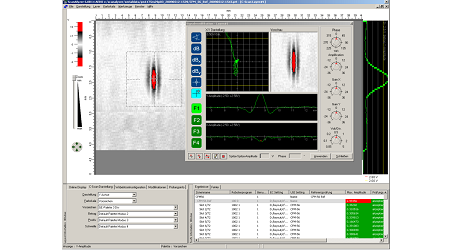

ScanAlyzer® is the perfect software tool for the fast and secure creation of C-Scans. It is a universally applicable testing, documentation and analysis software that is also designed for the rapid and reliable creation of C-Scans. Due to the serial scan function, it is also ideal for maintenance and production monitoring. The ScanAlyzer system combines powerful PC software with modern eddy current testing technology such as digitization, archiving, analysis and automated evaluation.

For further information follow the link https://www.rohmann.de/en/products/scanalyzer/

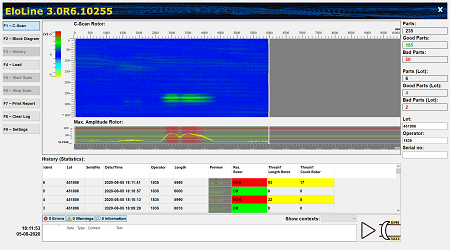

Software for documentation of test results on long products-a standard software for visualization and documentation of test results in eddy current testing of long products.

For further information follow the link https://www.rohmann.de/en/products/eloline/

Rotary testing of flat and round material offers special advantages: it enables dynamic testing for small damage with high spatial resolution and high sensitivity independent of the feed speed, which can also be very small - in extreme cases even " stagnant ". This ensures that the filter technology of dynamic testing is used to its full extent and most interference effects can be suppressed. Disc sensors are used for surface testing, hand rotors for smaller boreholes, internal rotors for larger boreholes and pipe inner surfaces and external rotors for the outside of the pipe. For both the inner and outer rotors, systems are available for the size range from 0.8 mm to 200 mm. Depending on the testing task, absolute, differential or multi-difference sensors are used.

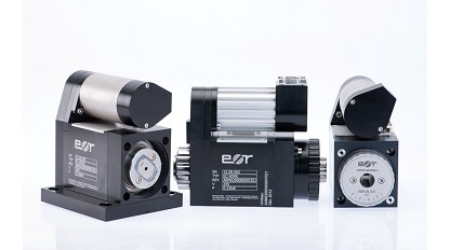

Compact high-performance rotor for contact-free continuous testing of round materials such as wires, bars and tubes in the dimension range 1.5 - 15 mm. Built in a solid and anodized aluminium case, this rotor is used for the detection of longitudinal and transverse defects with longitudinal components from 20 µ defect depth. Due to its compact design, the rotor can be easily integrated into existing testing or transport lines. The average run-through height is 35 mm. The fixed RD or adjustable RDE rotating test probes are available for testing in the entire dimension range from 1.5 - 15 mm. The test track width is defined according to the application by adapted sensors. The contamination-protected (labyrinth sealing), precision-beared rotor with contact-free, maintenance-free test signal transmitters

For further information follow the link https://www.rohmann.de/en/products/rotor-ec15/

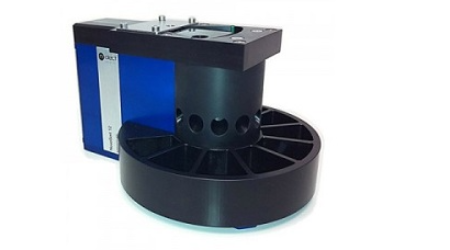

The NovoSort 9-way sorting gate is designed for diameter ranges up to 12mm and sorts with speeds from 0.9 seconds per part. The control and monitoring system is integrated into the sorting gate and designed for both manual and continuous operation in the production line. (Integrated sorting control: the switch and stopper are monitored by light barriers, the sorting coil is placed directly on the sorting unit). Individual settings and customized solutions are also available!

For further information follow the link https://www.rohmann.de/en/products/sortierweiche-novosort/

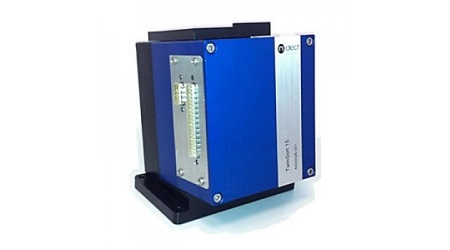

This 2-way sorting gate is available in two standard sizes: TwinSort 15 for diameters up to 15mm -> sorting speed from 0.8 seconds per part and TwinSort 50 for diameters up to 50mm -> sorting speed from 1.2 seconds per part. The control and monitoring system is integrated into the sorting gate, suitable for either manual or continuous operation in the production line. The control for the optionally available separator is pre-installed. Stopper and gate are monitored by proximityswitches. The sorting coil is located directly on the sorting unit. Easy maintenance / replacement of wearing parts.

For further information follow the link https://www.rohmann.de/en/products/sortierweiche-twinsort/
