RinnoVision Inc

RV-PRO 360 FEATURES

Innovative and Robust

• High-quality corrosion-resistant materials
• Impact and cold weather resistant design (-20 ° C to 40 ° C).
• Lightweight and waterproof 1 meter (3,2 ft)
• High-capacity lithium-ion rechargeable battery, with a 4.5-hour battery life
• 110/240V charger and 12V car adapter
• Fits into pipes with a diameter as small as 125 mm (4.9 in.)
• Certified for MACP manholes and access wells inspection
• Made in Canada
• One-year warranty
• Patent Pending

Other Uses

• Inspection of pipes, manholes, tanks, tunnels, wells, mine shafts, ducts, confined spaces and more

Ultra-Bright 360-Degree 3300 Lumens Light

• High-quality and high-performance LED lighting
• High-level colour rendering index
• 50,000-hour LED life span
• Includes a narrow spotlight for thorough inspection of side pipes

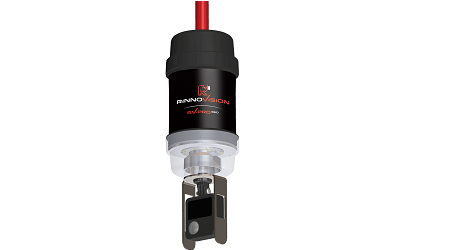

Virtual Reality 360-Degree Vision

• High resolution 360° virtual reality camera
• Provides 360-degree virtual reality footage of the interior of manholes
• Real-time viewing and camera control with your cellphone or the tablet included with the RV-Pro 360
• Charger, 128 GB memory card and additional battery

Telescopic Pole

• Extendable up to 9 metres (29.5 ft)—1.5 meters (5 ft) pole extensions available
• as an extra feature
• 1.5 meters (5 ft) pole extensions available as an extra feature
• Fiberglass tubing for electric and thermal insulation
• Ergonomic nonrotational oval pole shape
• Pole graduated in meter and in foot
• Protective carrying bag

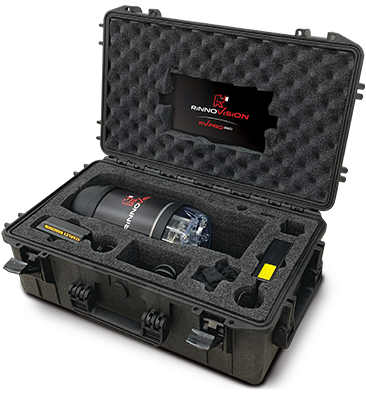

Tough Protective Case

• Pre-cut foam interior
• Waterproof and dustproof
• Integrated digital viewing tablet

The periodic inspection of manholes’ structural integrity is crucial to prevent costly and potentially hazardous damages. However, the traditional method of sending operators in for direct visual inspection can quickly become a big expenditure and also inefficiently allocates resources that are often scarce and required for other important tasks.In order to efficiently integrate a regular manhole inspection program, municipalities need a fast and effective solution that will allow them to perform a full survey of their manhole network while maintaining the impact on their manpower as low as possible.

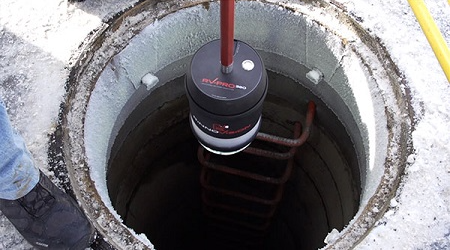

It is precisely to tackle this problem that the RV-Pro 360 manhole inspection system has been developed, a powerful tool which allows a single unspecialized operator to inspect up to 80 manholes per day. Moreover, the full sphere of 360° video data captured during the inspection can be offloaded to external analysts rather than being analyzed onsite by the camera operator, allowing maximum uptime in the field.

Using the RV-Pro 360 manhole inspection system instead of sending operators in for direct visual inspection also has the advantage of reducing the impact on traffic, improving the coding quality by keeping the operator’s attention focused on the task at hand and effectively lowering the cost of manhole inspections by increasing the amount of inspected manholes per hour/day.

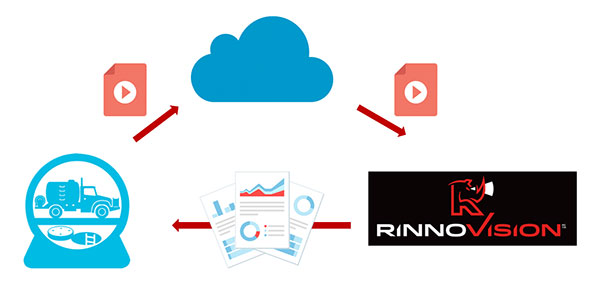

Moreover, RinnoVision now offers the remote coding of manhole inspection videos gathered using the RV-Pro 360 according to the NASSCO/CERIU standards in under 72h, allowing contractors to be paid faster by their clients and also giving them a greater scalability without having to train and maintain a dedicated internal resource for this task.

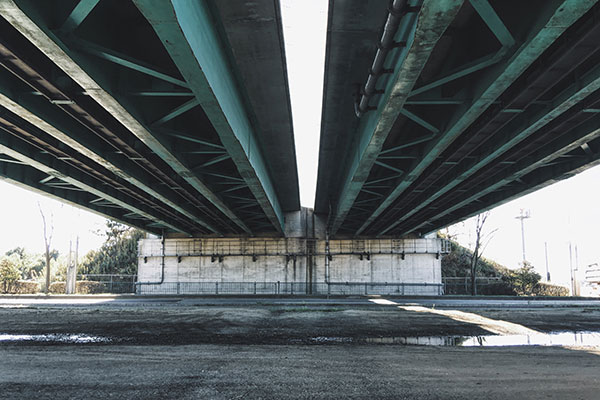

BRIDGE INSPECTION

Replacing existing bridges is an excessively complex and costly process, therefore cities and municipalities will always aim to stretch their useful lifetimes as much as possible without putting their population’s safety at risk.

The method traditionally used to perform bridge inspections is to send operators in a bucket truck to perform a direct visual inspection. However, this method has the disadvantages of being costly, slow, requiring multiple skilled operators and not providing full video backup for secondary analysis and data archiving.

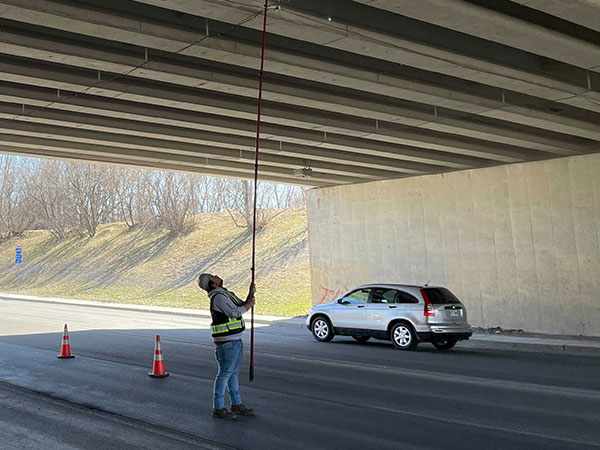

The RV-Pro 360 inspection camera system, which was initially developed as a manhole and confined space inspection tool, also has the versatility to perform the inspection of bridge undersides. Using this solution, a single unspecialized operator can perform a full in-depth inspection within a few minutes.

The usage of the RV-Pro 360 allows the average inspection costs to be greatly diminished in comparison with the traditional bucket truck-based inspections as there is no need to purchase or rent an expensive truck, have specialized personnel operate it and mobilize a large crew to perform this task.

Moreover, the impact of traffic is greatly reduced as inspections are performed promptly and from the underside, not requiring the traffic on the bridge (which is generally higher than the one under it) to be stopped at all.
