Qualité Nde Ltée
Founded in 1975, our business has gradually developed to become one of the largest suppliers of non destructive testing (NDT) equipment in Eastern Canada.
Service
Canada
Overview
Founded in 1975, our business has gradually developed to become one of the largest suppliers of non destructive testing (NDT) equipment in Eastern Canada. Quality NDE distributes, manufactures, repairs, calibrates and designs NDT equipment and accessories for companies working in industries such as aerospace engineering, nuclear energy technology, transportation, metallurgy and mining, oil and gas, pulp and paper, and many others.
With offices in both Quebec and Ontario, we can quickly and effectively respond to our customer demands. Quality NDE will work hand in hand with you to provide the right solutions for all your NDT needs.
Products and Services
- Liquid penetrant
- Magnetic particles
- Radiation safety products
- Leak testing
- Radiography equipment (x-ray, gamma)
- Cleaning products (aerospace approved)
- Remote visual inspection equipment (borescope, fiberscope, videoscope, etc.)
- Ultrasound equipment
- Eddy currents
- Service, calibration and repair on your products
- Financing available on credit approval
Products & Services
Hardness Testing

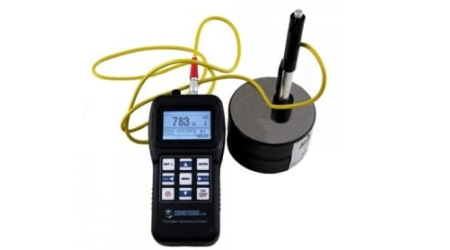

LEEB Hardness Tester – THX210
The THX210 is a basic portable hardness dynamic rebound tester (LEEB) with a 164×64 LCD display. The standard “D” probe converts the HL readings to HV, HB, HRC, HRB, HRA and HS (automatically records up to 600 group data). Come with upper and lower limits capability and (Okay/NOT good) display and alarm. Delivered with the DataPro software for measurements analysis. Two-year warranty.
THX-210D: THX210 unit with standard “D” probe 11N/mm2, LEEB certified test block, supporting ring, cleaning brush, probe cable, user manual, DataPro software, calibration certificate and carrying case.
THX-210C: Identical to the THX-210D but with the “C” probe 3N/mm2 (for surface hardened parts, coatings, thin walled or impact sensitive parts (small indentation)).
THX-210G: Identical to the THX-210D but with the “G” probe 90N/mm2 (heavy castings and forgings).
Options:
PROBE-DC: “DC” probe 11N/mm2 for very confined spaces (holes, internal measurements on assembled machines, etc.).
PROBE-D+15: “D+15” probe 11N/mm2 (for measurements in grooves or recessed surfaces).
PROBE-G: “G” probe 90N/mm2 (for heavy castings and forgings).
PROBE-C: “C” probe 3N/mm2 (for surface hardened parts, coatings, thin walled or impact sensitive parts (small indentation)).
PROBE-DL: “DL” probe 11N/mm2 for extremely confined spaces or at the base of grooves.
PRINT: USB Printer.
HARD-##-##: Certified hardness standard (specify the hardness and scale required).
Roughness Testing

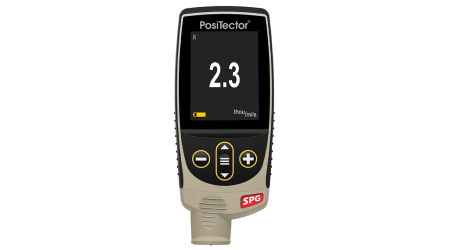

Defelsko Positector SPG Surface Profile Tester
The DeFelsko Positector SPG uses a spring loaded needle to measures and records the peaks and valleys of the surface (metals, concrete, etc.) – 50 readings per minute. The alumina wear face and the field replaceable tungsten carbide tip are designed for long life and continuous accuracy.
The PosiTector body accepts all PosiTector probes converting your surface profile tester to a coating thickness gauge, dew point meter, surface profile gauge, wall thickness gauge and more (see probe compatibility chart here attached).
USB, Wifi and Bluetooth connectivity to PosiSoft PC, MAC and Smarthphone software. Durable, it is solvent, acid, oil, water and dust resistant (IP65) and delivered with a 2 year warranty.
Standard kit includes: PosiTector SPG data logging unit with upper and lower limits capability and (Okay/NOT good) alarm, integral probe with field replaceable tungsten carbide tip, glass zero plate, roughness test plate, protective rubber holster, wrist strap, three AAA alkaline batteries, USB cable for data transfer and/or continuous power supply, PosiSoft software, user manual, calibration certificate and rigid transport case.
SPG-1: Positector SPG unit (250 readings per probe) with integral probe – Complete kit.
SPG-S1: Positector SPG unit (250 readings per probe) with 1.0m (39″) cabled probe – Complete kit.
SPG-CS1: Positector SPG unit (250 readings per probe) with 1.0m (39″) cabled probe for textured coatings – Complete kit.
SPG-TS1: Positector SPG unit (250 readings per probe) with 1.0m (39″) cabled probe for concrete profile – Complete kit.
SPG-3: Identical to the Positector SPG-1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
SPG-S3: Identical to the Positector SPG-S1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
SPG-CS3: Identical to the Positector SPG-CS1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
SPG-TS3: Identical to the Positector SPG-TS1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
Options:
SPG60: Replacement 60° tungsten carbide tip kit.
SPG30: Replacement 30° tungsten carbide tip kit.
SPGT: Replacement “T – Textured Coating” tungsten carbide tip kit.
SPGC: Replacement “C – Concrete” tungsten carbide probe tip kit.
SPGZERO: Non-certified metal shim & glass zero plate.
STDSPG: Certified SPG surface profile standards (kit).
PWR: AC power kit for continuous operation with 120VAC, 240VAC or via the built-in USB port.
PRINT: Lightweight Bluetooth thermal paper printer (advanced models ONLY).
