Oceanscan

Oceanscan is a leading international equipment company providing the very latest and most advanced technology to the oil and gas

Service

United Kingdom

Visit Website
Overview

Oceanscan is a leading international equipment company providing the very latest and most advanced technology to the oil and gas, defence, petrochemical, renewables and nuclear industries.

From its United Kingdom offices in Bridge of Don, Aberdeen and the Orbis Energy Centre, Lowestoft, and supported by worldwide network of partner companies, Oceanscan offers a 24/7 service to its customers.

We supply advanced hydrographic survey equipment, ROV Sensors, non-destructive testing and inspection systems to more than 1000 customers throughout the world.

Oceanscan is also a key supplier of personnel to the offshore survey and ROV markets. We can supply one person or complete teams of surveyors, engineers, ROV pilots, deck crew and project managers for short or long-term placements.

We help our customers increase their profits by solving their problems and de-risking their projects through innovative rental solutions and the provision of quality people.

Oceanscan operates a quality system which is registered to ISO 9001:2015 and is accredited by UKAS to ISO/IEC 17025:2017 general requirements for the competence of testing and calibration laboratories. We are proud members of the International Marine Contractors Association (IMCA)and the British Institute of Non-Destructive Testing.

Products & Services

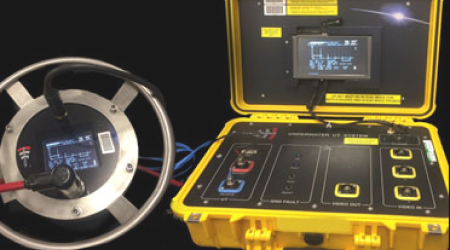

UNDERWATER UT SYSTEM

Available for rental, lightweight, portable and simple to operate, our underwater U/T systems are built with the customers’ needs in mind. The system has full topside control including DAC, Echo-Echo and data logging. A choice of flaw detector is supplied (Epoch 4B, 4, XT or 600) along with a Twin 0 degree 5 MHz compression probe and a full set of single crystal angle probes (45, 60 & 70) with wet mateable subsea connectors.

The Underwater UT Set is very user friendly, enabling the changing of probes subsea. The topside control unit features an Archos 7 Display which can be used to mirror the UT Set image, or display a combination of images selected by the operator.

The system receives up to three additional camera or video inputs which are displayed on a split screen with the option to record direct to PC or USB. Rated to a depth of 250m, the subsea head is connected to the topside unit by 250m of cable with the topside unit contained in a 1500 pelicase. The operator benefits from an ergonomically designed and neutrally buoyant diver held subsea head for thickness gauging, flaw detection and weld inspection.

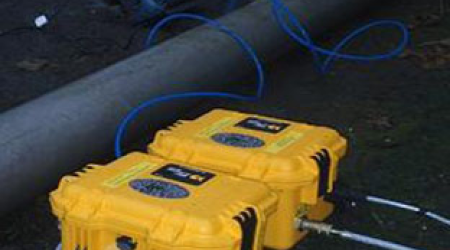

OCEANSCAN AUT PUMP SYSTEM

The AUT Pump System from Oceanscan is available for either rental, or to purchase directly.  Designed with user flexibility and maximum output in mind, the system can be operated manually or in conjunction with most NDT scanning systems.  To ensure its protection, it has been constructed to fit into durable Pelicases and built to withstand the harshest working environments; it really does lead the way in both on and offshore AUT work.

The system is available in both medium or high volume output and due to the utilisation of the uniquely designed Compact Self Priming Diaphragm Pump, we are able to accommodate a broad spectrum of use, from standard single probe inspection, to double sided simultaneous Phased Array and TofD inspections. An additional feature for both systems is the variable flow control and both are equipped with a 15 metre, 8mm diameter hose.
