North Star Imaging

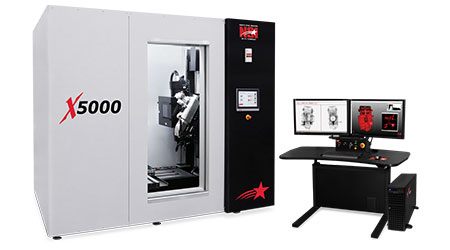

Our industrial X-ray scanners are designed with superior resolution and accuracy while maintaining an easy to use interface. Whether it’s high speed 3D scanning, failure analysis, or reverse engineering, our systems are built for efficiency and repeatability to ensure your components function safely and correctly each and every time. Ranging in size from compact to large vault options, you can seamlessly acquire full internal and external details of your components. From new product development to process development to quality control, X-ray technology saves time and money throughout the product life cycle. No nondestructive testing challenge is too small or too large for our attention.

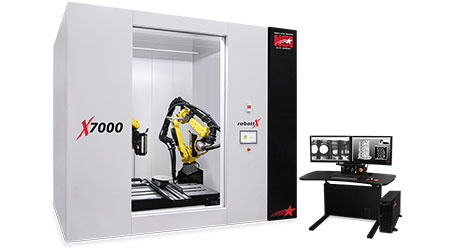

RobotiX Part Loaders

RobotiX part loaders allow for automatic part loading and unloading for reduced cycle times and increased productivity. Our RobotiX solutions, when combined with our Assisted Defect Recognition software, can significantly automate the X-ray inspection process. This is more important than ever in a tight job market where human capital is at a premium. Set-up and operation of our RobotiX loaders are effortless through a simple interface that allows the operator to easily create new robotic motion programs. RobotiX motion programs are created through NSI’s efX-DR acquisition software. This feature allows the user to program the robot and configure the image acquisition parameters all through a single software interface. This means your operators don’t have to learn another software program, which saves your company valuable time and money.

RobotiX Part Manipulators

RobotiX part manipulators allow you to scan more parts quicker for reduced cycle times and increased productivity. Scanning parts with complex geometries can require you to get scans from different angles. If done manually, someone is required to reposition parts and possibly change out fixtures. Time is wasted as each time the X-ray tube shuts off and the door has to open and close. Our RobotiX part manipulators can eliminate wasted time by repositioning parts as needed for each scan.

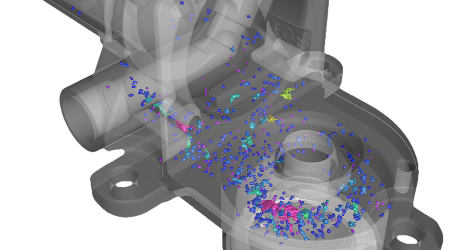

See beyond the surface of your parts in 3D to evaluate like no other technology can. See inside your products without destroying them. Our 3D Computed Tomography (CT) scanning services use the most advanced X-ray inspection technology to give you the clearest picture of your product inside and out, virtually eliminating any evaluation errors.

Computed Tomography works by taking hundreds or thousands of 2D Digital Radiography projections around a 360 degree rotation of an object. Proprietary algorithms are then used to reconstruct the 2D projections into a 3D CT volume, which will allow you to view and slice the part at any angle. CT scanning gives you enhanced capabilities with versatility and product information that you cannot receive anywhere else. Computed Tomography X-ray inspection is a completely nondestructive and noncontact method for obtaining internal and external information on just about any object ranging from microns to feet in size!

North Star Imaging is ISO 9001:2015 certified, ITAR registered/compliant, ASTM compliant, DOD 4145.26-M Compliant, and has ASNT & NAS 410 Level III certified employees.

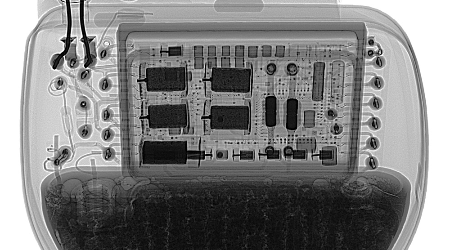

See inside your products without destroying them. Our 2D Digital Radiography (DR) X-ray inspection services use the most advanced X-ray systems to let you see beyond the surface of your product. Digital Radiography is a 2D X-ray inspection method using a digital X-ray detector in place of X-ray film. You can make scan adjustments on the fly and apply digital image enhancements quickly and easily.

North Star Imaging is ISO 9001:2015 certified, ITAR registered/compliant, ASTM compliant, DOD 4145.26-M Compliant, and has ASNT & NAS 410 Level III certified employees.

Available 2D Digital Radiography Services Include:

• Real-time product analysis helping you to identify the configuration, integrity and quality level of internal components.
• We will assist in your failure analysis efforts by providing high-resolution x-ray imaging from every conceivable angle and view.
• Live manipulation of your product while x-ray imaging to determine what is occurring under load and operation.
• Product screening for detection of contamination and/or foreign material FOD.
• And much more.

Remove the Questionable Interpretation - Better Penetration, Better Image Quality

High Energy scanning allows inspection of extremely dense and critical parts such as those used in the aerospace, defense, and automotive industries. Common applications that are readily scanned by our MeVX6™ High Energy system include large and complex assemblies, rocket engines and tanks, nickel-based alloys, combustion chambers, engine blocks, turbine blades and more.

North Star Imaging is ISO 9001:2015 certified, ITAR registered/compliant, ASTM compliant, DOD 4145.26-M Compliant, and has ASNT & NAS 410 Level III certified employees.

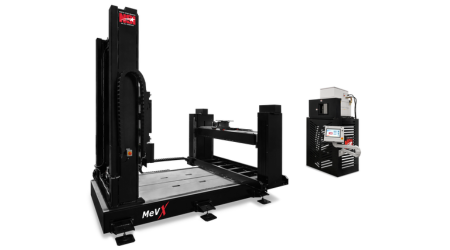

The MeVX Series

When you need to have the answers, what’s the true cost of not having enough energy? When inspecting large, dense, or thick materials; penetration can be difficult with energies of 450 kV and less. Noise, Scatter, and beam hardening artifacts negatively impact the image fidelity. The MeVX9 uses a 9 MeV linear accelerator (LINAC) to not only improve penetration but also image quality.

The Power of High Energy

Nine million electron volts paired with proprietary scatter reduction technology; NSI’s MeVX9 has the power to get through your most difficult parts. As you can see with the Turbo Pump shown here, the added penetration significantly reduces artifacts. The reduction of these artifacts allows for better defect detection, geometrical representations of part features, and surfacing of volumetric data for nominal comparisons.

Remove the Questionable

Accurately represent your true data with our MeVX Series scanning capabilities. Remove the questionable interpretation and gain insight into better data. Increase measurement accuracy, feature clarity, and overall image quality with higher penetration power.

X-ray University™ provides the technical training you need for Industrial Digital Radiography (DR) and Computed Tomography (CT). Our support begins with New Operator Training when you buy one of our systems or onboard a new operator. Your learning continues with in-person and online classes, on demand advanced training, and on-site training.

Preventative Maintenance

X-ray systems need regular maintenance to ensure that the X-ray set remains free from contamination. North Star Imaging offers 3 tiers of preventative maintenance, Silver, Gold, and Platinum. Purchasing a preventative maintenance agreement will: Prevent downtime due to unnecessary failures Extend the life of your system Maximize equipment performance Minimize maintenance costs

On-site Support

Factory trained and authorized system specialists are available for training, service, and installations. Our team installs new systems, replaces X-ray tubes, and performs preventative maintenance. X-ray system relocation support

System Relocation Support

North Star Imaging’s Service Department specializes in X-ray system relocation support. Whether you’re moving your system across town or across the globe, let us assist you with moving your system and help ensure that it is properly cared for during the disassembly and reassembly. Our team of technicians are factory trained and experienced with moving our systems and will be able to help ensure that the process goes as smoothly as possible. Helping to protect your investment is always one of our top priorities.

The easiest, fastest and most complete industrial computed tomography software on the market. 3D X-ray has never been easier with an intuitive interface, a guided wizard for easy CT reconstructions, automatic parallelization for systems with multiple CPUs and GPUs, and OpenGL based 3D volume rendering.
