Tailor Welded Blanks

The temate® SI-WB is the industry standard for automated inspection of laser welds in Tailor Welded Blanks. The temate SI-WB can be integrated on any line using the line conveyor, de-stacking robots or automated and manual scanners from Innerspec or other vendors.

Features

• Non-contact EMAT technique.
• Guided waves fill up the volume of the material and provide thru thickness inspection in one pass.
• Detects and discriminates “planar” defects such as lack of fusion, lack of penetration, concavity or mismatch, and “point” defects such as holes and porosity.
• Insensitive to cosmetic defects that do not affect the structural quality of the weld. No false positives, typical of vision systems.
• Less sensitive to probe positioning, no “rastering” motion or “phased array” of sensors necessary. Self-calibrated sensor. No need for teaching period or regular calibrations. Permits inspection at up to 1m/s in completely automated environments.
• Exclusive flexible sensor technology that conforms to the surface and undulations of the part.
• Multi-sensor capabilities with one system controlling up to three sensor heads.
• Most proven and reliable system in the market with hundreds of systems installed.

In-Line ERW Tube Inspection

The temate® BW-LT(ERW) is an automated system for inspection of longitudinal welds in ERW tubes. The couplant-free EMAT technique permits inspection immediately after welding and reliable detection of all API defects and poor ID scarfing.

Features

• Non-contact EMAT technique.
• In-line & fully automated.
• Inspection Immediately After Welding.
• Meets All API Standards.
• Real Time Process Control.

Weld Inspection with Eddy Current

WELdiscover is an automated system for on-line or off-line inspection of tube and pipe welds at production speeds.

Features

• Non-contact Eddy Current technique.
• In-line or off-line and fully automated.
• 10mm to 800mm (0.40” to 31.50”) diameter.
• Continuous inspection at production speeds.
• Detects all standard weld defects.
• Customer programmable alarms.
• Easy to set up and program.
• Automated flaw marking option.
• Robust mechanicals for precise product control, fast changeovers and low maintenance.

Other Weld Inspections

Weld Inspection

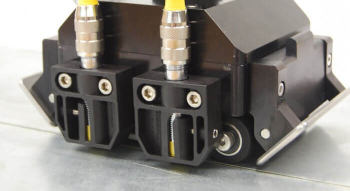

The following systems incorporate customized hardware, sensors and software for integrated weld inspection applications (in-line or off-line). The list below covers the most common applications.

Surface Inspection on Billets and Tubes

The temate® RB-S, SB-S, T-S are designed for surface inspections of round and square billets and tubes using guided waves. The temate RB-S, SB-S, T-S can be customized to meet your unique inspection needs.

Features

• Non-contact EMAT technique.
• Guided wave technique capable of detecting surface defects as small as 2-3microns in depth (0.001”).
• Requires minimum amount of sensors to cover large spans of material.
• Available for ferrous and non-ferrous materials.
• Exclusive flexible sensor technology that conforms to the surface of the material.
• Easy to install, simple to operate with very low maintenance and operating costs compared to other methods.
• Completely automated operation.
• Easy to program and to interpret results.

Hot-Rolled Steel Strip

The temate® ST-SC(HR) is designed for inspection of hot-rolled steel coils after pickling using guided waves. The temate ST-SC(HR) can be customized to meet your unique inspection needs.

Features

• Non-contact EMAT technique.
• Guided wave technique capable of detecting laminations and internal and surface defects.
• Permits inspection at up to 400m/min.
• Requires minimum amount of sensors to cover large spans of material.
• Completely automated operation. Easy to program and to interpret results.

Cold Bar, Wire and Tube Inspection - Rotary

ROTODiscover is an automated system for surface inspection of cold bar, wire or tube for longitudinal defects.

Features

• Non-contact rotating Eddy Current technique.
• In-line or off-line and fully automated.
• Inspects all cold rolled or drawn metals including carbon steel, copper, nickel, titanium and aluminum.
• 2mm to 230mm (0.08” to 9.05”) diameter.
• Temperature 0°C to 70°C (32°F to 158°F).
• Continuous or discrete inspection at production speeds.
• Detects longitudinal defects to 0.05mm (0.002”) in depth and 3.0mm (0.12”) in length.
• Lift-off compensation for accurate inspection of bent or out-of-round product.
• Customer programmable alarms.
• Easy to set up and program.
• Automated flaw marking option.
• Robust mechanicals for precise product control and low maintenance.
• Fail-safe product control to prevent wrecks.
• Exclusive research tools for post inspection analysis and long term improvement.
• Searchable database by lots, steel grades, diameter and any other recorded parameter.

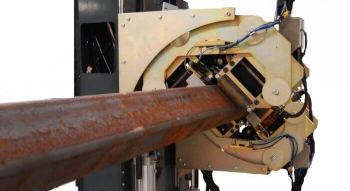

Other - Inspection Of Surfaces and Thin Strip/Rod

The temate® PI-NB is an automated ultrasonic system for volumetric inspection of metallic plates using normal beam sensors. The temate PI-NB can be customized to meet your unique inspection needs.

Features

• Non-contact EMAT technique.
• Detects planar defects using 0º sensors. Meets all relevant plate inspection standards, including EN10160, ASTM A435, and ASTM A578.
• Permits inspection at very high temperatures (up to 650º) and very low (-30ºC).
• Easy to deploy: EMATs do not need to be perpendicular to the inspected surface to give reliable data, and surface variations caused by oil, moisture, or oxidation do not diminish accuracy.
• Consistent results: EMAT coils are integrated circuits with virtually no variation from probe to probe.
• Scalable to meet any plate width.
• Off-line and in-line integration options available.

Bars and Tubes

PowerUT® IT-IL-NR (10-260mm)

PowerUT® IT-IL-NR (10-260mm) is a pass through inspection system designed for accurate and efficient Phased Array inspection of round and square bars which are traversing and non-rotating.

Features

• Phased Array inspection up to 128 elements.
• Full parallel firing of Phased Array elements.
• Effective for automotive and aerospace SBQ bars.
• Detects longitudinal, transverse and oblique defects.
• Speeds up to 2 meters per second.
• 1 to 3 Phased Array and conventional probes depending on configuration.
• Robust mechanicals for precise product control and low maintenance.

PowerUT® IT-IL-R (10-65mm)

PowerUT® IT-IL-R (10-65mm) is a pass through inspection system designed for accurate and efficient Phased Array inspection of small diameter tubes and bars which are traversing and rotating.

Features

• Phased Array inspection up to 256 elements.
• Full parallel firing of Phased Array elements.
• Effective for energy, aerospace and water treatment tubes
• Detects longitudinal, transverse and oblique defects.
• Measures diameter, wall thickness and eccentricity.
• Speeds up to 50 meters per minute.
• 1 to 3 Phased Array and conventional probes depending on configuration.
• Robust mechanicals for precise product control and low maintenance.

PowerUT® IT-IL-R (35-503mm)

PowerUT® IT-IL-R (35-503mm) is a pass through inspection system designed for accurate and efficient Phased Array inspection of tubes and bars which are traversing and rotating.

Features

• Phased Array inspection up to 256 elements.
• Full parallel firing of Phased Array elements.
• Effective for seamless and welded tubes
• Detects longitudinal, transverse and oblique defects.
• Measures diameter, wall thickness and eccentricity.
• Speeds up to 60 meters per minute.
• 1 to 3 Phased Array and conventional probes depending on configuration.
• Robust mechanicals for precise product control and low maintenance.

PowerUT® IT-OL-R (50-900mm)

PowerUT® IT-OL-R (50-900mm) is a gantry inspection system designed for accurate and efficient Phased Array inspection of tubes and bars which are stationary and rotating.

Features

• Phased Array inspection up to 256 elements.
• Full parallel firing of Phased Array elements.
• Effective for seamless and welded tubes
• Detects longitudinal, transverse and oblique defects.
• Optional surface inspection with ECT or MFL.
• Measures diameter, wall thickness and eccentricity.
• Speeds up to 60 meters per minute.
• 1 to 6 Phased Array and conventional probes depending on configuration.
• Robust mechanicals for precise product control and low maintenance.

Immersion Tanks

Acoustic Microscopy

PowerUT® IT-AM is a full immersion inspection system designed for accurate and efficient high frequency ultrasonic inspection of ferrous and non-ferrous metal samples. PowerUT IT-AM is available with low frequency for inspection of plate and long product pieces. Materials inspected include steel, aerospace aluminum, titanium and other metals.

Features

• High frequency UT acoustic microscopy for defects as small as 50 microns (0.05mm).
• Available with optional low frequency inspection of plate and bar samples.
• Materials inspected include steel, aerospace aluminum, titanium, other metals and composites.
• 4 axis of movement controlled in ultra-fine increments to 5 micrometers (0.005mm).
• 1 to 8 channels of UT inspection.
• Automated pulse-echo inspection.
• Low frequency inspection from 0.5 to 25 MHz.
• High frequency inspection from 4 to 200 MHz.
• Automatic Distance Amplitude Correction (DAC).

2.5D

PowerUT IT-2.5D is an automated full immersion inspection system designed for accurate and efficient inspection of aerospace engine parts, forgings, bearing crowns and other axisymmetric shapes. Materials inspected include steel, aerospace aluminum, titanium, other metals and composites.

Features

• Complete UT inspection of simple and complex parts.
• Materials inspected include steel, aerospace aluminum, titanium, other metals and composites.
• Specialized software for defining the acoustic path.
• 2 to 8 axis of movement.
• 1 to 8 channels of UT inspection.
• Automatic Distance Amplitude Correction (DAC).

Large/Specialized

PowerUT IT-L/S is an automated full immersion inspection system designed for accurate and efficient inspection of large parts or parts with unique inspection requirements. Materials inspected include steel, aerospace aluminum, titanium, other metals and composites.

Features

• Complete UT and PA inspection of simple and complex parts.
• For long parts such as aerospace profiles and long billets to 40 meters.
• For large diameter rings and billets up to 2.5 meters.
• For parts requiring special tooling, lifting, rotating, etc.
• Materials inspected include steel, aerospace aluminum, titanium, other metals and composites.
• 2 to 8 axis of movement.
• 1 to 8 channels of UT inspection.
• Pulse-echo or pitch-catch (through transmission).
• Phased Array inspection up to 256 elements.
• Automatic Distance Amplitude Correction (DAC).

Billets

PowerUT IT-B is an automated full immersion inspection system designed for accurate and efficient inspection of high quality metal billets. Materials inspected include stainless and other steel, aerospace aluminum, titanium and other high quality metals.

Features

• Complete UT inspection of billets 120mm to 600mm.
• Materials inspected include stainless and other steel, aerospace aluminum, titanium and other high quality metals.
• 8 channel UT inspection.
• Detects 0.8mm to 1.2mm FBH anywhere in the body of the billet.
• Automatic Distance Amplitude Correction (DAC).

Other Volumetric Inspections

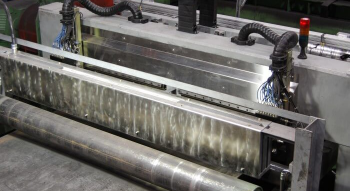

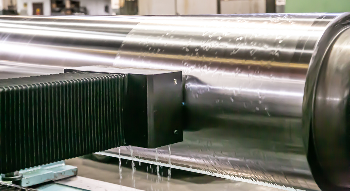

The Rollmate® permits inspection of rolls of any alloy, forged and cast, during the grinding process. The Rollmate is the newest and most advanced roll inspection system in the market, and the only one capable of detecting surface micro-cracks on any type of rolls.

Features

• Hybrid technique piezoelectric and magnetic (patented).
• Modular design that can incorporate all currently available inspection techniques into one sensor assembly:
  -     Surface (0-2mm) and sub-surface axial (2-58mm).
  - Surface (0-2mm) and sub-surface circumferential (2-58mm).
  -      Core-shell disbond.
  -      Bruise (soft area) detection.
  -      Shell thickness measurement.
• Detects surface micro-cracks as small as 0.1mm.
• Designed for seamless integration with any grinder. Options include:
  - Actuator is integrated within the instrumentation cabinet, and installs as one piece on the grinding carriage.
  -  The actuator can be seperate from the instrumentation and mounted at any angle on the roll.
• Performs inspection while grinding.
  Insensitive to roll magnetism, inspects rolls of any alloy.
• Expert system to monitor roll performance and estimate remaining life.
• Fully automated.

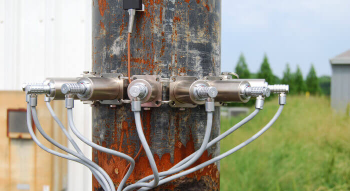

The temate® BAND is a permanent sensor array mounted on pipes and elbows to monitor corrosion at high-temperatures. The temate BAND can be customized to meet your unique inspection needs.

Features

• Non-contact EMAT technique.
• Sensor bands with 4-8 channels at 200ºC already available. Sensors for 350ºC currently under development.
• Results from the sensors can be ready using permanent or portable instrumentation (temate PowerBox H).

Flow and Liquid Level (High Temperature)

The temate® FLOW is a permanent sensor array used to measure the presence or height of liquid inside a vessel or tube at high temperatures. The temate FLOW can be customized to meet your unique inspection needs.
