Service, NDT Manufacturer
United KingdomWe Provide Guided Wave Technology Solutions for the Detection, Sizing & Monitoring of Corrosion & Erosion damage in Pipelines.

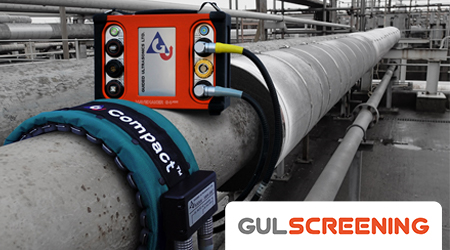

Detection of Corrosion and other damages in steel pipes using guided waves. The main applications includes:
| ✅ Corrosion under insulation (CUI) | ✅ Road Crossing Pipes |
|---|---|
| ✅ Erosion | ✅ Internal Corrosion |
| ✅ Corrosion under pipe supports (CUPS) | ✅ Weld Defects |
| ✅ Touch Point Corrosion (TPC) | ✅ Wall Penetrations |
| ✅ Buried Pipes | ✅ Slug Catcher |
| ✅ Welded Supports | ✅ Earth Wall |
| ✅ Tunnel Pipes | ✅ Overhead Pipes |
| ✅ Concrete Anchor Supports | ✅ Pipe Bridges |
| ✅ Sludge | ✅ Risers |
| ✅ Pitting Corrosion | ✅ Caissons |
| ✅ Sludge |
Inspection information includes:
📈 Axial location of defects 📈 Circumferential position of defects 📈 Damage extent in cross-sectional area loss
Relevant GUL Products:
Pipe Screening Rings | Wavemaker | WavePro Software

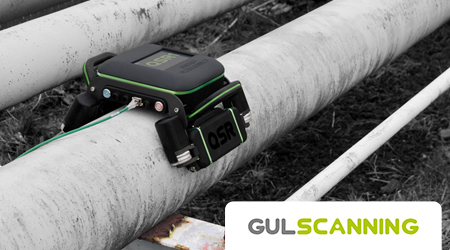

Sizing of Corrosion and other damages in steel pipes using short range guided waves. The main applications includes:
| ✅ Corrosion Under Pipe Supports (CUPS) | ✅ Touch Point Corrosion (TPC) |
|---|
Inspection information includes:
📈 Minimum remaining wall thickness 📈 Nominal wall thickness
Relevant GUL Products:
QSR1® Circumferential Scanner Demo Video : English | German | Mandarin | Mandarin (YouKu) | Japanese

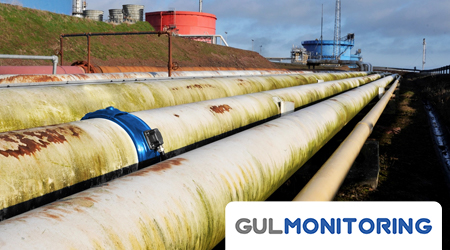

Monitoring of Corrosion and other damages in steel pipes using guided waves. The main applications includes:
| ✅ Corrosion under insulation (CUI) | ✅ Road Crossing Pipes |
|---|---|
| ✅ Erosion | ✅ Internal Corrosion |
| ✅ Corrosion under pipe supports (CUPS) | ✅ Weld Defects |
| ✅ Touch Point Corrosion (TPC) | ✅ Wall Penetrations |
| ✅ Buried Pipes | ✅ Slug Catcher |
| ✅ Welded Supports | ✅ Earth Wall |
| ✅ Tunnel Pipes | ✅ Overhead Pipes |
| ✅ Concrete Anchor Supports | ✅ Pipe Bridges |
| ✅ Sludge | ✅ Risers |
| ✅ Pitting Corrosion | ✅ Caissons |
| ✅ Sludge |
Large Area Monitoring information includes:
📈 Axial location of defects 📈 Circumferential position of defects 📈 Damage extent in cross-sectional area loss 📈 Damage Rates & Trends
Small Area Monitoring information includes:
📈 8 x Wall Thicknesses around the pipe circumference 📈 Wall Loss Rates & Trends
Relevant GUL Products:
gPIMS®

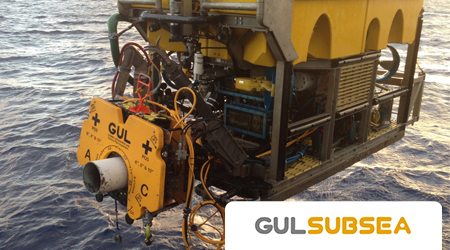

Detection of Corrosion and other damages in Subsea steel pipes using guided waves. The main applications includes:
| ✅ Jumpers | ✅ Flow Lines |
|---|---|
| ✅ Risers | ✅ Corrosion |
| ✅ Dents | ✅ Flow induced metal loss |
Inspection information includes:
📈 Axial location of defects 📈 Circumferential position of defects 📈 Damage extent in cross-sectional area loss
Relevant GUL Products:
Subsea GWT
As with all new and evolving inspection methods, good training of guided wave inspectors forms a critical part of the development of the technology. Experienced, skilled inspectors can make a significant difference in the reliability of the results that are obtained, especially in situations when any indicated defective areas cannot be measured by complementary methods. Therefore, Guided Ultrasonics Limited (GUL) has always been fully committed to developing and improving quality training modules that allow inspectors to learn as effectively as possible. We offer both classroom and on-site training, for both simple and complex applications. GUL has trained over 2,500 inspectors globally and continues to host more than 50 training courses each year.
In addition to being an Authorized Training and Test Center for the PCN qualification in guided waves (managed by the British Institute of Non-Destructive Testing - BINDT), GUL has maintained its own training and certification program that is specific to GUL equipment. The existing GUL scheme is now being transitioned to a new scheme that is managed by Guided Ultrasonics Ltd. Training (GULT), a division of Guided Ultrasonics Ltd. GULT fulfils the role of a certification and qualification body. GULT may also perform training as an authorised training organisation provided that impartiality is maintained, in accordance with ISO 17024:2012. Success in the qualification examinations leads to the award of GULT certification covering Guided Wave Testing using GUL equipment only.
