GOM Metrology - ZEISS Group

ScanBox is an optical measuring machine that supports customers with fast and precise measurements for quality control in the production and manufacturing process.

NDT Manufacturer

Germany

Visit Website
Overview

ScanBox is an optical measuring machine that supports customers with fast and precise measurements for quality control in the production and manufacturing process. Available in eleven models, the measurement systems deliver accurate and traceable results, guarantee high throughputs and are easy to operate thanks to an intuitive user interface and the Virtual Measuring Room (VMR) as central control and measurement planning software.

Products & Services

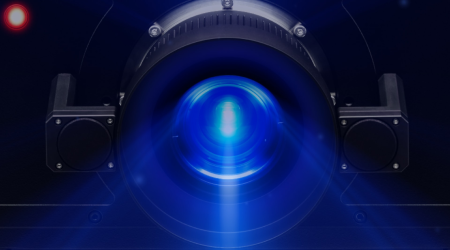

High Precision 3D Metrology

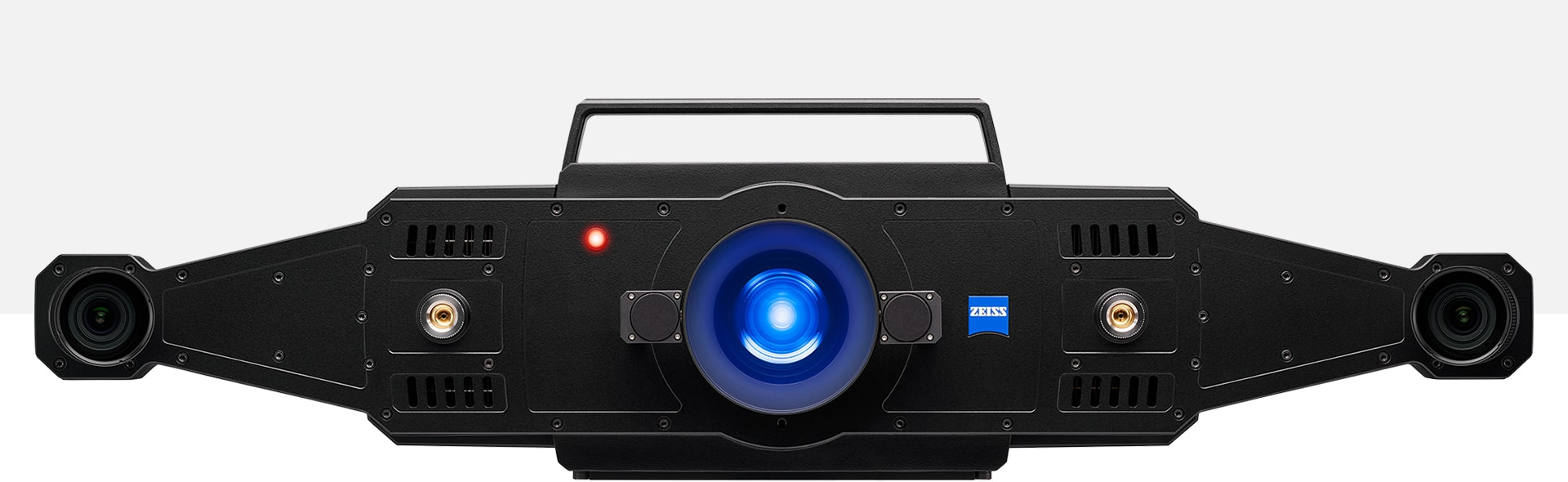

ZEISS ATOS LRX

Fast, Full-Field Data Acquisition of Large Measuring Areas

With an ultra-bright laser light source and a large measuring area of up to 4 square meters, ZEISS ATOS LRX delivers precise, full-field data in short time. The sensor captures up to 2 × 12 million coordinate points with just one scan.

3D Scanning System for Industrial Requirements

The sensor meets the high metrological demands of industrial users. The software guides you through the complete workflow within the ZEISS Quality Suite, from data acquisition to inspection and reporting.

Fast Digitization, High-Resolution Data


ZEISS ATOS LRX provides you with precise, full-field data with high resolution – even of complex geometries and freeform surfaces. The ultra-bright laser light source in combination with the large measuring area reduces the number of scans required.

Robust Design


The sensor is designed for industrial applications. The robust housing is protected against dust and splash water. To work reliably and precisely even in harsh production environments, the system monitors its calibration status by itself.

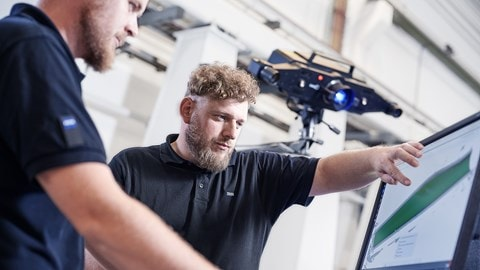

All-in-one Software


Scanning, inspection, and reporting in one single software: ZEISS ATOS LRX is managed by ZEISS Quality Suite. The software supports 3D scanning and inspection processes by providing detailed analyses and reporting functions.

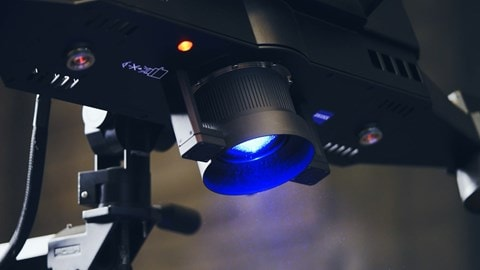

Next Generation Laser Light Source

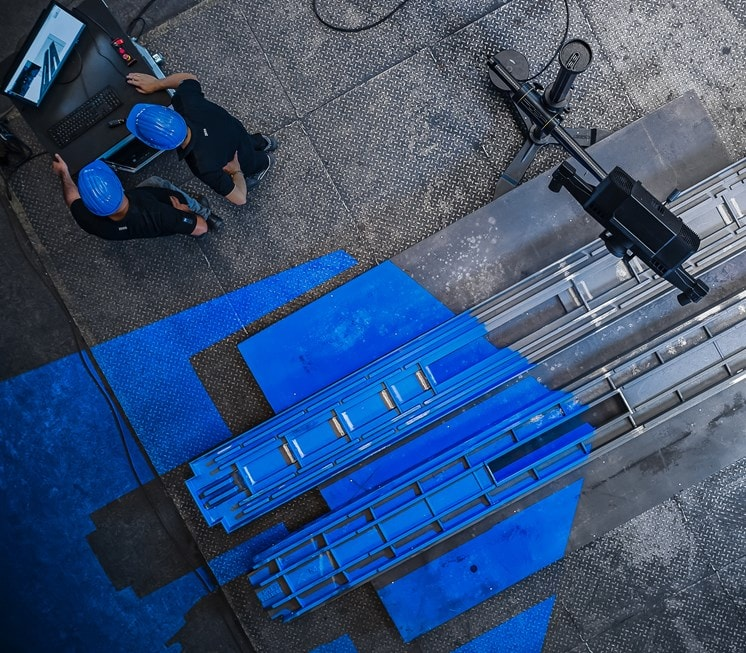

ZEISS ATOS LRX is equipped with an advanced, ultra-bright laser light source allowing for 3D scans even in normal ambient light conditions. By capturing large measuring areas, the system is the first choice for fast scanning of large surfaces, even if they are dark or shiny, and delivers precise, high-resolution data.


Laser Light Compressor

The integrated laser light compressor bundles several laser sources and generates a very bright light. It can illuminate the entire measuring area of up to four square meters at short exposure times, thus, speeding up the scan process.

Maximum Safety

ZEISS ATOS LRX offers maximum safety in manual use despite the laser light: An integrated sensor monitors the safety distance to the user via radar and reduces the luminous intensity, if necessary. The resulting assignment to the uncritical laser protection class 2 allows the system to be operated without any further protective measures.

Interactive Features

ZEISS ATOS LRX supports interactive features such as touch probe measurements, live tracking, and back projection. The sensor can be controlled either by computer or remote control.
