The automatic laser and camera testing system APIS-30 is developed for pipeline internal quality testing. The automatic robotic system comprises the C-Check oxidation evaluation subsystem and the L-Check geometric evaluation unit. The robotic unit can therefore perform non-invasive non-contact geometric size measurements at different wavelengths. Apart from the measurement units, the system also includes:

• Transceiver unit
• Power and rear view subsystem
• pipeline drive robot
• ALC acquisition unit
• Software for analysis, report generation, and data processing

The system is recommended for:

• measuring gas shielding welding
• monitoring oxidation defects monitoring
• measuring dielectric deposits that are not detectable with conventional NDT
• The robotic system is set in motion by manual push-puller control of 30 m in length allowing an overall measurement distance of 24 m.

Once the system is laid in the pipe to monitor, it delivers both 2D plane imaging of laser measurement and 3D solid model of weld imaging. The imaging system is calibrated before testing via the provided calibration block. The control software not only provides the reconstructed inner pipeline imaging but it is also used for the FPV motion control the data post-processing the alignment of the C-Check unit and the report making.

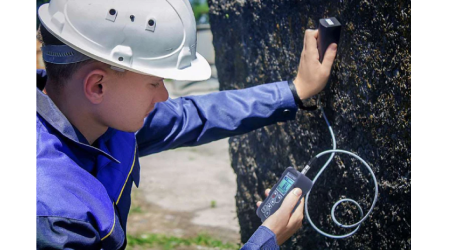

Concrete Cover Meter NOVOTEST Rebar Detector is used to measure the thickness of the concrete cover, determine the location, and estimate the diameter of rebar in reinforced concrete products in the conditions of enterprises, construction sites, buildings, and structures in use.

Important note: by purchasing this product you are also sustaining a Ukrainian business

Warranty: 1 year

DO NOT DELIVER TO BRAZIL, INDIA, KOREA

Key advantages

• As a result of the modernization, the Concrete Cover Meter NOVOTEST Rebar Detector, in comparison with the previous generation, got: dust, moisture, and shockproof housing for industrial use in harsh environments
• large contrast display
• the ability to adjust the brightness and contrast of the display, the choice of language, the choice of units of measurement (mm or inches)
• universal probe with built-in memory and stored calibration tables
• possibility of saving a backup copy of calibrations in the device
• increased accuracy and stable measurements

The cost of the device remained unchanged. Thus, you get a device with extended functional and operational characteristics at no additional cost.
