Endity Solutions

Endity Solutions are industrial players offering complete NDT solutions and services for product categories in replicable niches at the forefront in the field of Ultrasonic and Electromagnetic Testing.

Product

Spain

Visit Website

Overview

Endity Solutions are industrial players offering complete NDT solutions and services for product categories in replicable niches at the forefront in the Ultrasonic and Electromagnetic Testing field. They tackle technological challenges through innovation applied to inspection, including developing new inspection technologies and process automation.

Products & Services

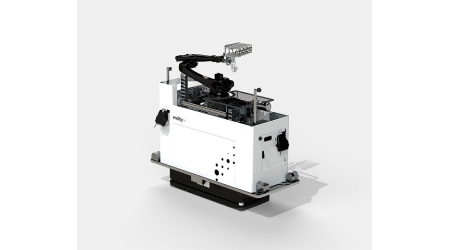

e-blade

Autonomous inspection system for a wide range of applications such as material integrity or verification of adhesive joints like CAP WEB, REAR WEB or TRAILING EDGE. It is possible to apply conventional or array technology with an inspection velocity of up to 500 mm/s.

Features:

Vision module to monitor the inspected area.
AI-based data evaluation process.
Inspection repeatability and reliability.
Adaptable probe head to integrate conventional (UT) or arrays (PAUT) transducers.
Auto-calibration functions.
Workpiece tracking.
+8 hours autonomy.

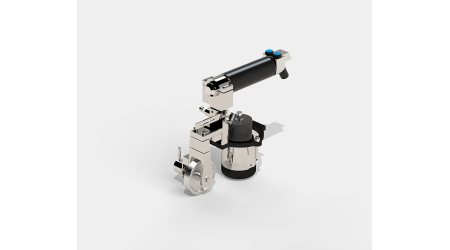

e-handscan

A battery-powered vehicle with a portable inspection head for a wide range of applications such as material integrity or verification of adhesive joints like CAP WEB, REAR WEB or TRAILING EDGE. Possibility of applying conventional or array technology to perform the inspection.

Features:

Ergonomic and easily portable design.
Designed for dusty environments.
Automatic data evaluation.
Laser guidance system.
Encoder for precise display accuracy.
+8 hours autonomy.
Compatible with any ultrasonic acquisition hardware.

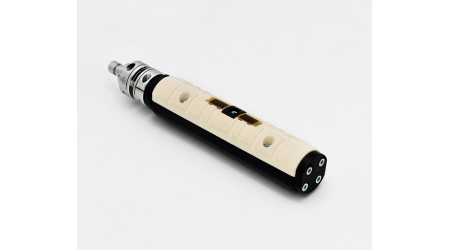

e-hollow

Portable unit with integrated UT probes and encoder for accurate flaw location over the full length of the axle. Inspection is performed manually and quickly from one side of the axle. Compatible with standard axle manufacturing steels (EA1T, EA4T, EA1N…) in compliance with EN 13261. Available in automatic version.

Features:

Adaptable to different axle internal diameters from 30mm.
Transverse defect detection from 2mm depth.
Guaranteed accuracy of 6dB.
Real-time data visualisation.
Conventional transducers with angles of 45º and 70º. (Automatic version)
Automatic rotational and axial movement. (Automatic version)

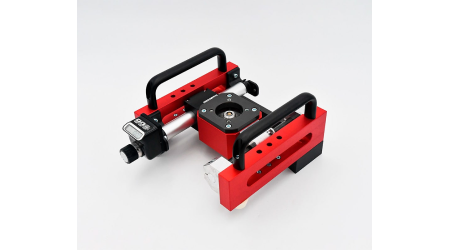

e-stress

Including acquisition hardware, visualization software and EMAT technology, this device is designed for manufacturing and maintenance operations. Compatible with standard wheel manufacturing steels (ER6, ER7, ER8, ER9) and inspection requirements in compliance with EN 13262 – Annex D.

Features:

Integrated electro magnetic acoustic (EMAT) technology.
Capable of penetrating surface coating and corrosion.
No beam steering errors were caused by the misalignment of the transducer with the surface.
Correct contact between sensor and wheel
Portable design.
Easy maintenance.

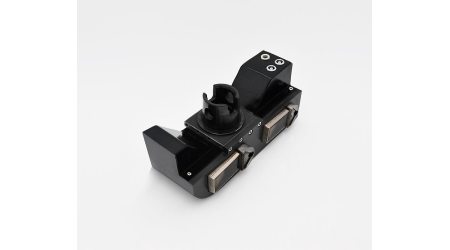

e-lathe

Integrated with the underfloor lathe, the solution includes acquisition hardware and conventional UT sensors, compatible with standard wheel manufacturing steels (ER6, ER7, ER8, ER9) in compliance with EN 13262 and it has been tested and evaluated by European OEMs for the railway industry.

Features:

Transverse defect detection up to 3mm deep notches in the tread and 3mm FBH up to 4mm below the tread.
Guaranteed accuracy of 3dB.
Adaptable to different wheel diameters.
No special calibration is required during the lifetime.
Interchangeable with the reprofiling tools.
Automatic coupling agent distribution system.
