FranceContrôle Mesure Systèmes (CMS) is a leader in Non Destructive Testing (NDT) with a complete range of products for eddy current and ultrasonic inspections since nearly 30 years.
Its range of products comprises high performance instruments, ultrasonic rotating heads (RotoUTscan) and eddy current rotating heads (RotoETscan), ET probes and coils, UT transducers, as well as EC and UT accessories.
CMS provides Non Destructive Testing solutions and complete turnkey systems including the associated mechanics and its carrying out complete design, planning, manufacture, installation and commissioning of such systems.
Contrôle Mesure Systèmes is a leading manufacturer of NDT equipments and NDT systems. We design, develop and manufacture a complete range of NDT equipments for eddy current and ultrasonic inspection. Our goal is to provide performing turnkey solutions aimed to improve safety, efficiency and profitability of our customers. We are also always willing to improve the performances of our NDT equipments and machines.
With our staff, composed of engineers in Software, Mechanics and Electronics, we invest and develop new technologies to meet customer’s quality requirements,which are more and more demanding : new electronics and software (Zet@ range), rotating heads (ET and UT which are able to turn around the part at high speeds), complete turnkey systems with associated mechanics. In addition, we operate a laboratory for design and manufacture of standard or special probes and coils on requirement.
Founded in 1988, CMS is a private and independent company based in Burgundy in its own building of 2500 m².
CMS continuously invest in R&D for design, develop and improve its range of NDT equipment and offering new solutions and products to it’s customers. CMS is involved together with partners, in European and Worldwide R&D programs intended to develop new technologies. Worldwide prestigious manufacturers in Steel, Automotive & Rail, Aerospace, Nuclear industries are using CMS products, because of their quality, reliability and support provided by us. By understanding the requierements of our customers and by the partnership with them, we are always willing to develop and improve the performances of our NDT equipments. Thanks to network agents, we are working in Europe (Italy, Spain, Czech Republic, Russia Turkey …) in Asia (China, Korea, India, Thailand…) South America (Brazil) …
CMS at a glance :
The major worldwide customers are trusting in CMS and are working together with it in partnership.

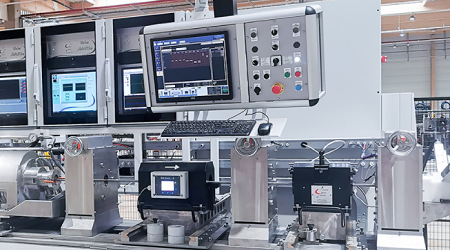

Remote assistance
A remote control in real time, via networking, allows CMS engineers to connect and underttake a remote control on your device, offering a high quality technical support with an unmatched speed of response. Through its products and its remote assistance, Contrôle Mesure Systèmes provides, all over the world, quality and productivity solutions for industrial applications.
Calibration & repairing
Our technical team calibrates CMS instruments and systems which are returned with a Certificate of Calibration. To ensure optimum performance of your instruments, we recommend that electronic calibration should be performed annually.
Instruments, systems, probes and coils (that are not provided by CMS only) can be repaired after investigation, quotation and agreement.
Please print out this form when completed, send it on adm@cmseddyscan mail, and include in the box with your product.
Feasibility tests
All special requests are handled with the utmost attention. We perform free of charge feasibility tests on customers parts samples, and provide a customized test report regarding the feasibility of this inspection.
Training
CMS provides high quality training to help you become more proficient and effective with your equipment on the use of inspection systems, so they can successfully operate on production line. Training can also be customized to meet customers’ needs, at CMS head office or on customer site. Training agreement number : 27 710258271.
Renting
CMS equipments rental solutions could be the most efficient option in case of tests of short production, or troubleshooting situations. Contact our Support team for more informations.
Regarding dimensional measurements, wall thickness measurements is based on the measurement of the time of flight of longitudinal waves in the inspected object.
At points where the acoustic impedance changes the ultrasonic waves are reflected more or less strongly. The wall thickness measurement takes advantage of this.
Outer diameter can additionally be determined with a known distance of the probe to the center of the rotation and measurement of the water path (acoustic path in the coupling water surrounding the part). The inner diameter, eccentricity, ovality (deviation from the circular shape) can be determined by the combination of the measurements results of the water path and wall thickness.
Some examples of application
Inspection of tubes and cables for Steel, Automotive and Nuclear Industries in production line, and for all type of materials : steel (ferrous or non-ferrous), fiber, plastic, glass..
By using an ultrasonic rotating head, the mesurements are made by 2 ultrasonic transducers which rotate all around the product in real time, and provides a complete measurement of it.
DIMENSIONAL MEASUREMENTS INSTRUMENTS
UT Electronics is a high accuracy multi-channel multi-frequency ultrasonic inspection instrument. It is intended for flaw detection and dimensional measurement of ID, OD, and thickness. Instrument operation is made fast and easy via windows based inspection screens and intuitive dialogue boxes for ultrasonic setup.
UT Electronic is intended to operate with ultrasonic rotating head RotoUTscan and dimensional rotating head RotoUTDim.
DIMENSIONAL MEASUREMENTS SOFTWARE
Probus is a supervision software which collect informations provided by NDT equipments and processes the data.
The Probus application is design to be integrated as a quality control tool in the customer’s production line. it’s main purpose is to collect the information provided by N.D.T equipments, in order to display signals and create inspection reports
DIMENSIONAL MEASUREMENT SYSTEM
CMS propose a large range of rotating heads, for longitudinal defects detection on wires, tubes and, bars
With six different sizes (products diameters range from 1 up to 220 mm), CMS rotating heads are adaptable to any production line. It can be associated with inserts and input and output centering devices, for guiding the product on the rotating head (from 4 mm product diameter)

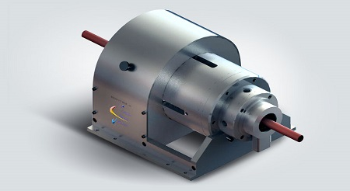

RotoUTDim is an Ultrasonic wall and concentricity measurement system, in real time, turning at 360° around the product. It provides very fast measurement (more than 500 measures by turn)
Two ultrasonic transducers are in rotation around the product while it is moving inside a water box..The pair of transducers turns around the product and the supervisor receives in real time the thickness from Probe 1 and Probe 2, calculates WT, ID, OD, ovality, concentricity, eccentricity.
The diameter range inspected is from 4 to 200 mm.
DIMENSIONAL TRANSDUCERS
CMS designs transducers for ultrasonic dimensional rotating head RotoUTDim.
DIMENSIONAL ACCESSORIES
CMS provides a large range of accessories, which, associated with eddy current instruments and ultrasonic instruments, allows a complete inspection of the products.
With its great experience and its known how, CMS can provide complete turnkey systems, a combination of mechanics , based on eddy current and ultrasonic technology in Steel, Automotive Rail; Aerospace and Nuclear industries.
Ultrasonic Testing method (UT) uses high frequency sound energy to conduct examinations and make measurements. Ultrasonic testing inspection can be used for flaw detection/evaluation, dimensional measurements, material characterization, and more. In high technology industries, ultrasonic techniques are increasingly used because it can perform non destructive testing of the product at different stages of its manufacture and during use. This kind of UT equipment is used for the inspection of various products
Some examples of applications:

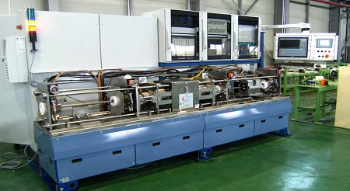

Our ultrasonic inspection systems are comprizing of ultrasonic instruments for automatic in line inspection of tubes, pipes, bars, parts (in Automotive, Aerospace, Steel and Nuclear industry), ultrasonic rotating systems such as rotating head for fullbody defects detection and dimensional measurements, ultrasonic local immersion tank for inspection of tubes and bars, and immersion tanks which are propose for the French market.
Our goal is to develop and create performing solutions to improve safety, efficiency and profitability of our customers. We are also always willing to improve the performances of our equipments and systems
CMS provides Non destructive testing solutions for all defects detection
NDT solutions for Ultrasonic testing line of tubes and bars
NDT Eddy current (EC) and Ultrasonic (UT) rotating systems for defects detection on long products
ULTRASONIC INSTRUMENTS
UT electronics for defects detection
Usc-100b for defects detection
UT MATE ultrasonic instrument
ULTRASONIC SOFTWARES
Probus Supervision
CSI Software
1000 gates
USPC7100
UTRASONIC SYSTEMS
Ultrasonic rotating head RotoUTscan
High precision ultrasonic system, it is intended for defects detection (longitudinal and transversal flaws) and dimensional measurements such as ID, OD, wall thickness, in tubes and bars in non ferrous metal such as carbon steel, stainless steel, titanium. Diameters range of product to be inspected is between 4 and 350 mm.
Ultrasonic local immersion tank
Ultrasonic water tank system for defect detection by local immersion on tubes and bars of internal defects
Ultrasonic immersion systems
Ultrasonic immersion systems are high resolution and high precision systems. Sell on the French market for inspection of large and forging parts such as disks, bars, shafts, billets …Extensively used in Aerospace industry and in many other applications.
ULTRASONIC TRANSDUCERS
CMS provides ultrasonic transducers such as :
ULTRASONIC ACCESSORIES
CMS provides a large range of accessories, which, associated with ultrasonic instruments, allows a complete inspection of the products such as :
ENGINEERING AND TURNKEY SYSTEMS
With its great experience and its known how, CMS can provide complete turnkey systems, a combination of mechanics , ultrasonic technology in Steel industry, Automotive industry; etc…such as : complete titanium tubes inspection, complete inspection line of bars with ET and UT methods, quality verification of bars, thick tubular product in rotation.
Widely used in metallurgical, automotive and aerospace industries eddy current testing method is one of many electromagnetic testing methods used in non destructive testing (NDT) making use of electromagnetic induction to detect and characterize surface and sub-surface flaws in conductive materials.”
Eddy current testing equipments thus can be used for a variety of applications such as cracks detection (discontinuities), measurement of metal thickness, detection of metal thinning due to corrosion and erosion, determination of coating thickness, and the measurement of electrical conductivity and magnetic permeability. Eddy current testing inspection is an excellent method for detecting surface and near surface defects when the probable defect location and orientation is well known.
Some examples of applications :

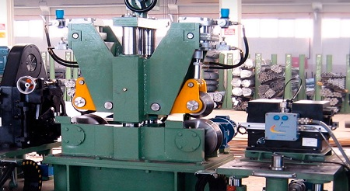

Our eddy current inspection systems are comprizing of of eddy current instruments for automatic in line inspection of tubes, pipes, bars, wires, cables (in Automotive, Aerospace, Steel and Nuclear industry), eddy current rotating systems such as rotating head for detection of longitudinal defects, magnetizing units for inspection of short defects by encircling coils , sectorial magnetizing unit deduced to weld inspection and also support coil for nonferrous metals.
Our goal is to develop and create performing solutions to improve safety, efficiency and profitability of our customers. We are also always willing to improve the performances of our equipments and systems.
Conductivity measurement on aluminium plates - NDT Solutions
EDDY CURRENT INSTRUMENTS
Zet@master : quality and process control for defects detection
Zet@Master is a powerful stand alone eddy current instrument with multi channel and multi frequency capability. It allows the connection of several EC systems with only one unit to work in all configurations, in line or off line.- It is used for flaws detection on tubes (welded or not), wires, bars, strip and automotive parts, made of austenitic, ferrous and non ferrous steel metal. – Can be used also for heat treatment verification, exchanger tubes inspection, and many other requirements. – As a versatible instrument, ZetaMaster is available in different versions : blind, rackable
Zet@premium : used for flaws detection and material sorting
Zetapremium is a complete and compact eddy current instrument, perfectly fitted in flaws detection on tubes, wires, bars, automotive parts made of austenitic, ferrous and non ferrous steel metal. Thanks to its options (second channel, production software, density factor…), and built in different versions, Zet@Premium is an easy-to-use instrument with all necessary functions which cover the most usual applications and can works in all conditions, on or off line.
Zet@Micro : is the most economical tester of the range
Zet@Micro is a stand alone eddy current device with latest digital electronic technology for automatic high resolution, one or two channels, on line or off line. It is intended in flaws detection in austenitic, ferrous and non-ferrous steel metal and material sorting. It provides all necessary functions for most standard applications and can be adapted to all customers’ configurations.
EDDY CURRENT SOFTWARES
Production software
The friendly and easy to use production software developed by CMS, allows to obtain accurate informations on defects detection on long and short products
Acquisition and recordviewer
The acquisition and recordviewer developed by our engineer allows to store acquisition and to analyze acquired data.
Probus software
Customized softwares
Customized softwares are developed by our engineers in partnership with our customer in accordance with their needs..Some examples are : hot rod inspection, conductivity measurement, rail inspection with profile measurement.
EDDY CURRENT SYSTEMS
Eddy current rotating head RotoETscan - is intended for longitudinal defects detection
Eddy current rotating systems - are designed for internal and external defects detection
Eddy current magnetizing units - allow short and transverse defects detection
Large range of monobloc and opening magnetizing units, for ferromagnetic products such as tubes, bars, wires, and pipes inspection for products from 1 up to 230 mm diameter. Inserts, guide sleeves and adaptators allow to adapt the size of the magnetizing unit to the product range. Opening version is intended for wires inspection to avoid cutting product.
Eddy current sectorial magnetizing units - are developed for weld inspection
Eddy current specific systems - are designed and developed for defects detection
CMS designs and develops custom tailored systems in accordance with specific customers applications such as continuous cast strip inspection for slug production, head checking on rail, inspection of gun barrels, control bench for inspection of part in rotation, rotating gun for thread and bore inspection, and more.
EDDY CURRENT PROBES AND COILS
CMS designs and manufactures standard and customized probes and coils. Six families as been developed by CMS, for all kind of applications. :
EDDY CURRENT ACCESSORIES
CMS provides a large range of accessories. Associated with eddy current instruments, accessories allow complete inspection of the products.
ENGINEERING AND TURNKEY SYSTEMS
With its great experience and its known how, CMS can provide complete turnkey systems, a combination of mechanics , Eddy Current technology in Steel, Automotive, Rail, Aerospace and Nuclear industries such as : conductivity measurement on aluminium plates, multi lines tube inspection, continuous cast strip inspection, testing of rods, full body inspection on cylindrical products.
