Agility NDE

WeldCheck 2 / +

For use within a wide range of industries including Offshore, Rope Access non-destructive testing (NDT) applications and other weld inpsection applications replacing Magnetic Particle and Liquid Penetrant Inspection especially on coated welds.

AeroCheck / +

The AeroCheck Flaw Detector offers the very best in Eddy Current performance with rotary inspection capabilities as standard.

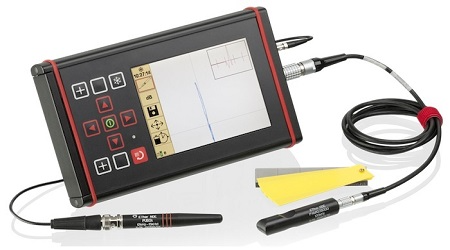

ETherCheck

The very best in Eddy Current and Bond Testing performance in a compact, rugged and lightweight package.

PhaseCheck

A dual frequency high-performance Eddy Current Flaw Detector with C-Scan capability

ETi-200 Advanced EC

Advanced multi-frequency and multi-channel flaw detection, housed in a cast aluminum chassis, built to withstand the harshest of conditions.

SteelCheck

Compact 3-Channel tube inspection unit for Carbon Steel (Ferromagnetic Tubes) using Magnetic Flux Leakage.

SigmaCheck 2

Fully-featured Eddy Current conductivity meter designed to provide the user with fast and accurate conductivity measurements.

VeeScan

Eddy Current aircraft wheel inspection system offering clients the choice of the highest degree of reliability in a well accepted industry standard format.

Eddy Current Probes & Accessories

A wide range of probes, cables and test blocks available from Agility NDE.

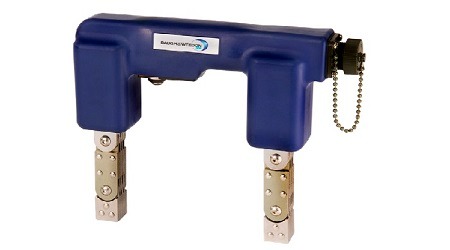

MY-3 Electromagnetic Yoke

The MY-3 is a compact, lightweight, handheld electromagnetic yoke unit featuring powerful AC magnetising, adjustable poles, ideal for one handed operation.

MY-2 Electromagnet

Conforming to specification BS EN ISO 9934-3:2002 & ASTM 1444-01. This is a lightweight handheld MPI yoke.

Portable AC Battery Pack for Yokes

This true AC 110V power pack has been developed as an alternative power source for the operator on the go.

Yoke Induction Light

A fast and convenient method of enhancing light conditions on areas of concentration when carrying out MPI inspections.

Vista+ UV Lamp

VISTA+ is the 2nd generation of the Vista Smart UV LED Lamps, offering a 13 MP HD camera, with a built-in UV filter to avoid glare in photos, OTG function and crack dimension measurment (with th Vista Eye)...

Opus UV Lamp

The Opus is a mains only, LED UV lamp featuring 4 powerful UV-A (365nm) LEDs, plus a convenient white light LED to quickly switch between fluorescent inspection and flaw location...

Iris UV Lamp

The Iris series of portable LED UV inspection lamps feature 3 powerful UV-A (365 nm) LEDs, plus a convenient white light LED to switch between fluorescent inspection and flaw location quickly, with adjustable light intensity.

Spirit UV Lamp

Spirit series of UV lamps are compact and lightweight, with explosion proof certification (CE, RoHS, Ex). They offer a very narrow spectra, with a peak wavelength of 365nm, featuring four powerful UV-A (365 nm) LEDs...

Jaguar UV Head Lamp

Ideal for fluorescent magnetic particle and penetrant testing, pipeline inspections, ship hull inspections and any environment that requires a portable, hands free inspection lamp. Two versions are available: Headlight and Spray bottle lamp.

Lumazon UV Lamp

The Lumazon is a hand-held dual LED UV and White Light Inspection Lamp for Magnetic Particle and Dye Penetrant Inspection. Lightweight and compact the Lumazon easily switches between ultraviolet and white light.

Lumatorch 2 UV Torch

A state-of-the-art inspection torch utilizing LED technology, making it a great tool for fluorescent MT, PT and leak detection.

Apollo Overhead UV Light

Apollo 365 Series overhead panels utilizes the state-of-art LED technology and modular design making them a great tool for fluorescent MT, PT and leak detection.

LumaCheck Dual UV/Ambient Light Meter

The LumaCheck Dual UV and White Light Meter has been designed to offer the user the most accurate results and versatile calibration options available on the market.

MagnaCheck Magnetic Field Strength Meter

The MagnaCheck can be used for the measurement of the tangential field strength during the magnetisation of a test piece and for the measurement of the residual field after the demagnetisation.

LumaFlux Combined Light & Field Strength Meter

The LumaFlux is a combined Dual UV / White Light Meter and Tangential Field Strength Meter in one rugged Instrumentation package.

Audit ST-1 Shot Timer

A precision hand-held electronic timer specifically designed to check timer controls fitted to MPI benches.

EBU MPI Bench

Their MAGAZON series of benches have a proven track record for reliability and durability, and are in daily use by most of the leading UK Aerospace companies.

SBU MPI Bench

The SBU version of the Magazon Series is ideal for smaller test pieces and components up to 1200mm long and requiring lower magnetising currents.

PBU MPI Bench

The PBU 350 Portable Magnetic Particle Inspection (MPI) Bench Unit offers great MPI performance teamed with the outstanding quality that Baugh & Weedon is known for.

Penetrant Lines

Designed and manufactured in the UK, the Baugh & Weedon Penetrant Plants are built using high quality stainless steel.

MPI Chemicals

Agility NDE are the Scottish partner for Pfinder NDT, an innovative German chemicals company who, in compliance with REACH, are collaborating with Atmosfair, a non-profit organisation based in Bonn, in order to reduce the climate-changing effects of NDT products.

4.5kg Yoke Test Weight

4.5kg Certified AC Electromagnetic Test Weight for testing to ISO 9934-3:2015 standard.

ASME Pie Gauge

For measuring the direction of magnetic fields.

MTU Reference Block

Cracked test piece used to check the sensitivity of magnetic particle materials.

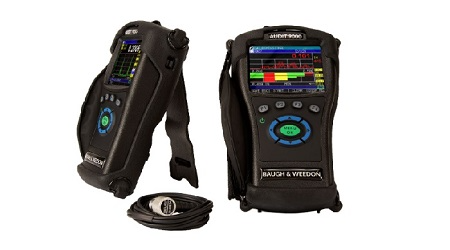

Audit 105 Thickness Gauge

The Audit 105 is pre-calibrated to measure mild steel and offers the ultimate in ease of operation.

Audit 106 Thickness Gauge

The Audit 106 offers the additional facility of ten preset calibration programs for a selection of commonly used engineering materials.

Audit 107 Thickness Gauge

The Audit 107 allows full operator calibration either by setting velocity or using testpieces of known thickness, of the material to be measured.

Audit 207 Thickness Gauge

The Baugh and Weedon AUDIT 207 UT Thickness Gauge is designed with measurement accuracy and durability in mind.

Audit 7000 Thickness Gauge

The AUDIT 7000 represents B&W's most advanced thickness gauge ever carrying a 3.5” high resolution sunlight readable colour display with live A-Scan.

Audit 9000 Thickness Gauge

The AUDIT 9000 represents our most advanced thickness gauge ever, offering a 3.5”, high resolution, sunlight readable colour display with live A-Scan, echo to echo to ignore coatings.

CG2 Thickness Gauge

The CG2 series gauges have a materials condition analyser and a BScan to generate real time graphic representations at speeds of up to 20Hz to inspect structures that may have defects such as corrosion or pitting.

Ultrasonic Probe Cables

Manufactured in-house, we can supply cables fitted with connectors to suit all applications and equipment, to allow connection of all types of probes.

Ultrasonic Probes

We are delighted to be able to offer B&W's first range of Ultrasonic Transducers; Twin Zero Degree and Single Angle Beam.

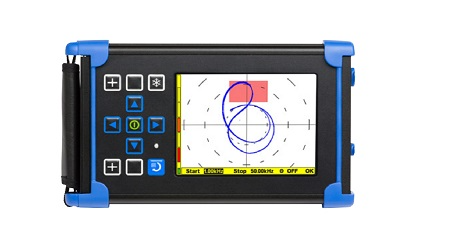

Baugh and Weedon BondCheck

The new BondCheck is a multi-mode bond testing flaw detector providing high speed bond inspection in pitch-catch or resonance modes, or mechanical impedance analysis (MIA), with excellent defect sensitivity. Inspection applications include those where carbon and metal honeycombs need to be inspected for delaminations, disbonds and core damage as well as small defect detection and dry coupling. The BondCheck is ideal for a wide spectrum of advanced material NDT of required in the aerospace, automotive, wind energy and advanced manufacturing sectors.

• Multi-mode Bond Testing instrument
• Unique calibration function for fast and easy set-up
• Lightweight and portable
• Dry coupled pitch-catch and MIA probes
• Automatic Test Frequency Optimisation
• Ideal for inspection on metallic bonded structures, composite and metallic honeycomb
• Two year warranty.

Easy to use menus and icon system

The BondCheck menu system is simple and fast to navigate. It has the ability to add individually selectable soft key menu items to the sidebar for rapid function access and a “quick-setting menu” for easy set-up, review and adjustment. With four operator selectable soft keys and a fifth slot for the last menu function used, technicians can quickly modify the system with their preferences. Each saved instrument setting can be associated with a unique, single press set of quick access soft keys. There are also two front panel hard keys that can be readily programmed for rapid single press access to frequently used functions.

Large, daylight readable, configurable colour screen

The BondCheck has a large 14.5cm (5.7 Inches) LCD Colour Screen of 640 x 480 pixels providing the operator with excellent signal resolution and presentation together with the choice of configuring their own colour schemes and display types. It is easy to optimise the screen presentation regardless of the lighting conditions. A secondary pane can be configured to create a split screen display or an inset window, with a choice of X-Y spot, frequency sweep, RF waveform and Spectrum displays.

BondCheck Resonance Probes

Now available in a number of frequencies (75, 90, 165, 200, 250 and 330kHz) which can be supplied as a 6 probe kit or individually. Ergonomically designed, they can be connected to the instrument using the same cable as the Pitch-Catch probes. The stainless steel probe with tough polymer hand grip and Alumina wear face provide robust performance. Like the pitch-catch probe the Alarm LED and digital ID allow ease of use and for serial number and settings to be stored. The BondCheck allows an air calibration to be carried out to determine most sensitive inspection frequency.

BondCheck Pitch-Catch Probes

The BondCheck Pitch-Catch probe offers the best in performance and durability. Ergonomically designed and manufactured from CNC machined Aluminium with rubber hand grips, the BondCheck Pitch-Catch probe is both comfortable to use and robust. The probe feet can be positioned by the user to suit the inspection task, and the hard wearing probe tips are interchangeable with rounded and flat tip profiles available. The probe is broad band and is suitable for a wide range of applications. The Stainless Steel transmit and receive sensors are positioned close to the edge of the housing, and a smaller probe form factor is also available to allow inspection in tight areas. An alarm LED on the probe can be triggered from the BondCheck alarm settings. The probe incorporates a digital ID which stores its serial number together with programmable default settings.

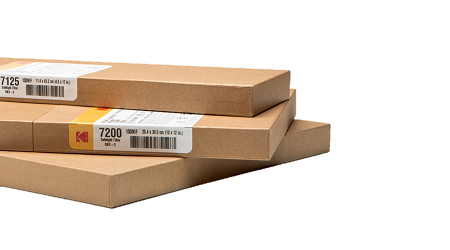

Kodak Industrial X-Ray Film

HIgh quality X-Ray film from one of the world's industry leaders.

Imaging Plate Cassettes

Flexible, semi-rigid and rigid cassettes.

MX1000 Borescope

Compact capacitive touchscreen borescope with 2-way or 360° articulating probe.

X1000 Plus Borescope

A compact capacitive touchscreen borescope with 2-way or 360° articulating probe.

MX500 Borescope

Compact capacitive touchscreen borescope with adjustable magnetic stand.

X2000-HD Videoscope

A powerful solution for visual pipe inspection and recording of data and imagery.

S2G2 Advanced Eddy Current Unit

Multi-faceted eddy current system combining a number of NDT testing technologies.

ETi-200 Advanced EC

Advanced multi-frequency and multi-channel flaw detection, housed in a cast aluminum chassis, built to withstand the harshest of conditions.

S2G2 Advanced Eddy Current Unit

Multi-faceted eddy current system combining a number of NDT testing technologies.

IRIS 9000+ System

Introducing the next generation of heat exchanger inspection. Representing the seventh generation of the IRIS system, the IRIS 9000 Plus has nearly 200 years of combined field inspection experience incorporated in its design.

SteelCheck

SteelCheck is a battery operated 3 channel (Hall Sensor and 2 coil) tube inspection unit for Carbon Steel (Ferromagnetic Tubes) using Magnetic Flux Leakage.

Maxwell Pulsed Eddy Current System

Maxwell NDT and Ether NDE offer the Maxwell NDT PECT system, a remarkably capable pulsed eddy current inspection system that has been designed with decades of practical in-service experience at it’s very core, by one of the founding fathers of Pulsed Eddy Current technology.

PEC is an advanced electromagnetic inspection technology used in detecting flaws and corrosion in ferrous materials typically hidden under layers of coating, fireproofing, or insulation.

Applications include CUI (corrosion under insulation), high-temperature thickness monitoring, corrosion under coatings, blistering and scabs.

Pulsed Eddy Current

As opposed to conventional eddy current testing (ECT) techniques where a sinusoidal pulse is generated, PEC uses a square pulse signal to induce eddy currents within the material under test.

When an eddy current probe is excited by an electrical current, a magnetic field is generated which, when positioned on a coated surface has the ability to penetrate those layers and settle in the conductive material beneath, inducing eddy currents. Once the excitation current has been removed, the magnetic field will dissipate and the induced eddy currents will decay, gauged by the probe and the factors used to calculate the wall thickness.

Maxwell’s new PECT instrument, comprising of a ruggedized tablet computer and data acquisition unit, is splash-proof, robust and easy to operate and incorporates rapid data collection (two measurements per second) and scanning mode. The collected data is analysed in real-time with various quality control features, allowing optimal results.

Fast and reliable PECT measurements require a high-energy magnetic pulse, delivered by a dedicated powerful battery inside the data acquisition unit. To ensure optimal power allocation, the tablet computer is powered separately by two long-life lithium batteries.

There are four standard probes, each for a different lift-off range. The probes are optimized for defect sensitivity and can either be operated from the probe itself or from the instrument.

Colour-coded wall thickness readings are displayed on the touch screen display during data recording after which an MS-Excel field report can be produced quickly.

In addition, PC-based software is provided for further analysis and reporting.

Manufactured in-house, we can supply cables fitted with connectors to suit all applications and equipment, to allow connection of all types of probes.

LEMO 1 to Subvis

With coax cable.

LEMO 1 to Microdot

With coax cable.

LEMO 00 to Subvis

With coax cable.

LEMO 00 to Microdot

With coax cable.

BNC to Subvis

With coax cable.

BNC to Microdot

With coax cable.

LEMO 1 to LEMO 00

With coax cable.

LEMO 00 to LEMO 00

With coax cable.

For further details visit http://www.agility-nde.com/1_78_ultrasonic-cables.html

We are delighted to be able to offer B&W's first range of Ultrasonic Transducers; Twin Zero Degree and Single Angle Beam. All of the probes available are designed and manufactured in house by a team with a collated experience of nearly 70 years, guaranteeing the highest possible quality, timely deliveries and competitive prices.

If you have a special application that requires a non-standard probe, please contact us and we will be happy to assist you.

Connectors: Subvis as standard, Lemo 00 or Micro-dot optional.

All of these probes are available in 8mm x 9mm rectangular crystals on request. Twin crystal angle beams available on request.

Agility NDE, in collaboration with ETher NDE, can offer a full range of standard probes, weld probes, special probe design services and a wide choice of probe accessories, including cables for all probes and instruments. With manufacture based in-house, we have the ability to guarantee you the quality you expect.

Probe Applications

Pencil Probes - Absolute & Bridge

Absolute Pencil Probes: For general purpose inspecton of surface breaking defects and metallurgy variatons. Uses a Micro connector.

Bridge Pencil Probes: ETher NDE newly developed “IB Tech Inside” absolute intrinsically balanced technology which further improves the signal to noise rato of conventonal Absolute Probes giving a signifcant improvement in inspecton reliability. Uses a Lemo 4-Way connector.

Specification:

• Double Shielded, used on Fe & NFe applicatons, Disconnectable
• Non Magnetc Stainless Steel Shanks - Straight, 90° Tip, 45° Crank, 15° crank + 90° Tip
• Plastic Handle with fnger scallops and neoprene grip
• Connector – Micro for Absolute and Lemo 4-Way for Bridge (IB Tech Inside)
• Centre frequency/Operatng range – 200kHz (50kHz – 600kHz), 500kHz (150kHz – 1.5MHz), 2MHz – (650kHz – 6MHz), 6MHz – (2MHz – 18MHz)
• Probe colour coding available.

Standard Weld Probes - Bridge

Differential Weld Probes: For in-service inspecton of welded structures.

Specification:

• Straight, 90° Inline, 90° Right Angle
• Diameters, 11.0mm (Small), 16mm (Medium), 32mm (Large)
• Disconnectable and integral probe cables
• Cable lengths from 1.5 to 100 meters
• Frequency range 100kHz, 20kHz, 100-600kHz
• Minimal lift off signal, can find cracks through paint, oil, conductve and non-conductive coatings
• Made from hard wearing PET
• Stainless steel and ceramic tips available on request.

Notes:

• 100kHz probes used on standard ferrous welds.
• 100-600kHz probe can be used on Aluminium and Stainless Steel welds.
• 20kHz probe can be used on multi-surface applicatons and Duplex.

Broadband Probes - Absolute & Bridge

Absolute Unshielded Broad Band Probes: For general purpose inspecton of surface breaking defects and metallurgy variatons and to estmate coating (Paint) thickness.

Bridge Unshielded Broad Band Probes: ETher NDE newly developed “IB Tech Inside “ absolute intrinsically balanced technology which further improves the signal to noise rato of conventonal Absolute Probes giving a signifcant improvement in inspecton reliability. Uses a Lemo 4-Way connector.

Specification:

• Broad range with centre frequency – 5kHz, 20kHz, 100kHz, 500kHz, 2MHz
• Plastic Handle with neoprene grip
• Connector – BNC for Absolute and Lemo 4-Way for Bridge (IB Tech Inside)

Notes: A range of balance loads are also available for use with some impedance plane instruments.

Thread Inspection Probes (Unshielded) - Absolute

Unshielded Absolute Thread Inspection Probes: For crack detecton in external and internal threads.

Specification:

• Micro connector • Centre frequency range - 200kHz 500kHz, 2MHz
• Operatng range – 200kHz (50kHz – 600kHz), 500kHz (150kHz – 1.5MHz), 2MHz – (650kHz – 6MHz)
• Used on Fe & NFe applicatons
• Disconnectable
• Chisel and Pointed versions available

Notes: This range of probes comes with either a pointed or chiselled tip.

Rotating Probes - Reflection

Differential Rotating Probes: For internal diameter inspecton of fastener holes, countersinks and counter bores.

Specification:

• Probe diameters from 1.6 to 50mm, available in 0.01mm steps.
• Fischer connector to ETher NDE Small and Large drive also compatble with Hocking, GE, Rohmann and Forster drive units.
• Frequency range from 200kHz to 2MHz.
• Comes in Rigid Stainless Steel and Delrin Flexible optons.

Notes: When ordering Rotatng Probes 0.1mm is automatcally taken of probe diameter during manufacture, this should be good for typical hole conditon and manufacturing tolerances. Where tolerances are poor allow for greater clearance.

Example: To inspect a 12.7 (1/2”) hole a 12.7mm dia. probe should be ordered which will be manufactured to a 12.6mm dia..

Internal Diameter (ID) Probes - Bridge

Differential ID Probes: For internal diameter tube inspecton, ideal for inspectng tubular heat exchangers.

Specification:

• Probe diameters from 7.5 to 150mm, available in 0.1mm steps.
• Disconnectable and integral probe cables.
• Cable lengths from 3.0 to 30 meters.
• Frequency range from 2.7 kHz to 1MHz, centre frequencies 2.7, 10, 24, 76, 190, 400kHz.
• Cross axis and driver/pickup optons also available on request.

Notes: When ordering ID probes allow 0.8 to 1.5mm less than the tube diameter, This should be good for typical tube conditon and manufacturing tolerances. Where tolerances are poor allow for greater clearance. Tape can be used were necessary to reduce probe ‘wobble’.

Low Frequency (Spot Face) Probes, Straight and 90°

Reflection Sub Surface Probes: for general purpose inspecton of sub-surface corrosion and flaws. This probe has excellent depth penetraton making it ideal for mult-layer inspectons.

Specification:

• Broad frequency ranges.
• Excellent low frequency performance.
• Integrated 4-way Lemo connector.
• Built in balance coils.
• Right angled probes are intrinsically balanced.

Notes: The lower the frequency the deeper the depth of penetration.

Eddy Current Probe Cables

Manufactured in-house, we can supply cables fitted with connectors to suit all applications and equipment, to allow connection of all types of probes, Absolute, Bridge and Reflection.

A range of test blocks for MPI, ultrasonic and eddy current

DAC Block

Distance Amplitude Correction (DAC) provides a means of establishing a graphic ‘reference level sensitivity’ as a function of sweep distance on the A-scan display.

IOW Block

Calibration block for shear probe beam profile measurement and resolution.

Step Wedge

Thickness steps of various spans and sizes.

V1 Calibration Block

Used for compression and shear probe calibration and beam angle verification.

V2 Calibration

For compression and shear probe calibration and beam angle verification.

Eddy Current Test Blocks

Test blocks both general purpose with 0.2 (0.008”), 0.5 (0.020”) and 1.0mm (0.040”) slots to enable correct calibration and coating thickness calibration standard with 0.5 (0.02”), 1.0 (0.04”) and 2.0mm (0.08”) slots including x4 0.5mm (0.02”) shims, used in conjunction with Broad Band (paint) Probe PUB100k to set sensitvity levels before weld inspection.

• Ferrous (Steel EN1A) + 4 x 0.5mm Shims
• Aluminium Alloy 7075-T6
• Titanium 6A14V
• Stainless Steel
• Stainless Steel 316
• Duplex + 4 x 0.5mm Shims

Conductivity Test Block

Used as a reference in the application of electrical conductvity measurement of non-ferrous metals. Ideal for both laboratory and field use. Blocks are supplied with calibration certificates. Calibration: Blocks are tested and are certified and traceable to National Standard (NPL, UK) Conductvity References. Blocks are calibrated at 20°C, at a frequency of 60kHz and to an accuracy of +/- 1.2% of the value or +/-0.4% IACS; whichever is less.

Materials: Copper Aluminium Alloy Aluminium Alloy, 6082-T6 Aluminium Alloy, 6061-T4 Aluminium Alloy, 2014A-T6 Aluminium Alloy, 2014A-T4 Aluminium Alloy, 7075-T6 Aluminium Alloy, 5083 Brass Phosphor Bronze Nickel Silver Stainless Steel Titanium, 6AL-4V

MTU Reference Block

The MTU-3 Test Block is used to check the sensitivity of magnetic particle materials.

MTU-3 Blocks are prepared in accordance with the EN ISO 9934-2 standard. Natural cracks on both sides Can be used with fluorescent or visible particles

B&W 4.5kg Test Block

4.5kg Certified AC Electromagnetic Test Weight for testing to ISO 9934-3:2015 standard.

Elite Flaw-Findr Matrix Couplant Gel

Thick non-drying gel with anti-rust.  Usable from -20° to 120°C.  Ready for use or can be diluted with water 1:1.

Elite Flaw-Findr FYr Couplant Gel

Yellow flourescent gel with anti-rust.  Ready for use or can be diluted with water 1:1.

Elite Flaw-Findr C333 Couplant Gel

Blue dense thixotropic, for use on corroded surfaces, castings, weldings and forgings. Ready for use or can be diluted with water 1:1.

Elite Flaw-Findr FYp Couplant Powder

Yellow flourescent gel with anti-rust. To be mixed with water to determine density.

Elite Flaw-Findr C333 Couplant Powder

Blue dense thixotropic, for use on corroded surfaces, castings, weldings and forgings. To be mixed with water to determine density.

Elite C200 High-Temperature Couplant Gel

For use in temperatures for use on surfaces of up to 600°C.

Sonagel Couplant

Yellow gel for general use.

Agility NDE are the Scottish partner for Pfinder NDT, an innovative German chemicals company who, in compliance with REACH, are collaborating with Atmosfair, a non-profit organisation based in Bonn, in order to reduce the climate-changing effects of NDT products.

Operators of penetrant and magnetic-particle testing consumables are increasingly focusing on the use of non-labelled, environment-friendly products.

The European Union REACH regulation, which is now fully in force, specifies the use of new CLP-compliant labelling designed to raise consumer awareness regarding the presence of chemicals with reduced risk for the user and less impact on the environment.

Pfinder’s constant further development of its testing consumables is designed to meet these requirements in full, while conserving the company’s tried-and-tested quality and performance.

As a pioneer in the use of readily biodegradable penetrants, Pfinder has over 20 years’ experience of making a particularly user-friendly and environmentally sustainable contribution to the economy. Pfinder was in fact the first ever manufacturer of penetrant and magnetic-particle testing consumables to consider the CO2 balance of the most widely used NDT consumables, with a view to minimising their impact on the environment. This allows users to make decisions not only on the basis of technical and economic criteria, but also regarding the reduction of possible environmental effects.

Agility NDE Ltd

The Green NDT campaign stands for the consideration of work safety, environmental impact and costs as criteria of equal imprtance in the development process of consumables for the penetrant and magnetic particle testing. Join our Benefits and choose PFINDER Products. Users have now the opportunity to make conscious and wise decisions: For modern PT/MT products, sustainable work and future-proof processes.

Agility NDE Ltd

PFINDER is working in collaboration with atmosfair, a non-profit organisation based in Bonn (Germany), on reducing the climate-changing effects of NDT products.

Atmosfair is dedicated to active climate protection based on the balancing and avoidance of, and compensation for, CO2 emissions.

Pfinder 150 Fluorescent Magnetic Ink

PFINDER 150 is a ready-to-use suspension of fluorescent magnetic particles in low-viscos carrier oil with special additives for magnetic particle testing. With PFINDER 150 surface defects of magnetizable materials can be indicated under UV-light (365nm).

APPLICATION

Apply PFINDER 150 undiuted while magnetizing. Indications will appear immediately under UVlight (365nm). The capability of the magnetic particle suspension should be checked regularly by means of own reference pieces or e.g. reference block 1 according EN ISO 9934-3.

Pfinder 251 Black Magnetic Ink

PFINDER 251 is a ready-to-use-suspension of black magnetic particles in low-viscos carrier oil with special additives for magnetic particle testing. With PFINDER 251 surface defects of magnetizable materials can be indicated under daylight conditions. The particle concentration of PFINDER 251 meets the requirements of ASTM / AMS.

APPLICATION

Cover surfaces to be tested thinly and evenly with white contrast paint PFINDER 280. Allow to dry. Apply PFINDER 251 while magnetizing. Black indications will appear immediately on the white background. The capability of the magnetic particle suspension should be checked regularly by means of own reference pieces or e.g. reference block 1 according EN ISO 9934-3.

Pfinder 280 White Contrast Paint

PFINDER 280 is a quick-drying white contrast paint for magnetic particle testing. In combination with magnetic particles, e.g. magnetic particle suspension PFINDER 251 surface defects of magnetizable materials can be indicated under daylight conditions. The product is applicated by direct spraying on the surface to be tested.

APPLICATION

Cover surfaces to be tested thinly and evenly with white contrast paint PFINDER 280. Allow to dry. Apply black magnetic suspension (e.g. PFINDER 251) while magnetizing. Black indications will appear immediately on the white background. The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3.

Pfinder 800 Dual Colour Contrast + Fluorescent Penetrant

PFINDER 800 is a hydrocarbon-free, directly water-washable and readily biodegradable colour contrast penetrant (red + fluorescent) for crack detection of surfaces. Due to its removability PFINDER 800 provides a low residual background even on rough surfaces and therefore a userfriendly interpretability of the indications. PFINDER 800 is qualified for penetrant testing at temperatures between -20°C to +100°C (temperature of work part) accoring to EN ISO 3452-5 and EN ISO 3452-6.

APPLICATION

The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3. For applications at temperatures below +10°C and above +50°C, penetration time has to be adapted.

Pfinder 860 Colour Contrast Penetrant

PFINDER 860 is a hydrocarbon free, directly water-washable colour contrast penetrant (red) for crack detection of surfaces. Due to its removability PFINDER 860 provides a low residual background even on rough surfaces and therefore a user-friendly interpretability of the indications. PFINDER 860 is qualified for penetrant testing at temperatures between -20°C to +100°C (temperature of work part) accoring to EN ISO 3452-5 and EN ISO 3452-6.

APPLICATION

The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3.

Pfinder 871 Developer - Fast Drying

PFINDER 871 is a solvent-based fast-drying wet developer for penetrant testing. It is suitable for colour contrast and fluorescent penetrant testing. PFINDER 871 can be wiped off from the surface or easily removed with water after testing. PFINDER 871 is qualified for penetrant testing at temperatures between -20°C to +70°C (temperature of work part) according to EN ISO 3452-5 and EN ISO 3452-6.

APPLICATION

The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3. Before use shake spray can thoroughly until mixing balls can be heard.

Pfinder 890 Cleaner/Remover

PFINDER 890 is a special cleaner based on isopropanol / acetone for penetrant and magnetic particle testing. PFINDER 890 is used as precleaner for removal of oils and greases from the surface to be tested, as approved remover of PFINDER penetrants or as remover of PFINDER contrast paint. PFINDER 890 is particulary suitable for general cleaning and removal of oils and greases. Material compartibibility (e.g. for plastics) has to be checked beforehand.

APPLICATION

For precleaning or as all-purpose cleaner: Applicate PFINDER 890 to the surface to be cleaned, if necessary allow time to react and if required wipe off with a cloth. For excess penetrant removal: Spray PFINDER 890 on a cloth and clean surface to be tested. Do not spray directly on the surface! For removal of PFINDER contrast paint: Spray on surface to be cleaned, if necessary allow time to react and remove paint by wiping off with a cloth or by additional spraying. The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3.

Pfinder 895 Cleaner/Remover

PFINDER 895 is a special cleaner based on isopropanol for penetrant and magnetic particle testing. PFINDER 895 is used as precleaner for removal of oils and greases from the surface to be tested or as approved remover of PFINDER penetrants. PFINDER 895 is particulary suitable for general cleaning and removal of oils and greases. Material compartibibility (e.g. for plastics) has to be checked beforehand.

APPLICATION

For precleaning or as all-purpose cleaner: Applicate PFINDER 895 to the surface to be cleaned, if necessary allow time to react and if required wipe off with a cloth. For excess penetrant removal: Spray PFINDER 895 on a cloth and clean surface to be tested. Do not spray directly on the surface! The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3.

Pfinder 902 Fluorescent Penetrant

PFINDER 902 is a dydrocarbon-free, directly water-washable and readily biodegradable fluorescent penetrant for crack detection of surfaces. Due to its removability PFINDER 902 provides a low residual background even on rough surfaces and therefore a user-friendly interpretability of the indications. PFINDER 902 is qualified for penetrant testing at temperatures up to +100°C (temperature of work part) accoring to EN ISO 3452-5.

APPLICATION

The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3. For applications at temperatures above +50°C, penetration time has to be adapted
