Visualize an airplane in the air, a high-pressure refinery pipeline, or a bridge with thousands of cars on it every day. In each of these, a single subtle imperfection, a crack on the surface of a weld or a void at the core of a casting, can unleash disastrous results. This is the reason why non-destructive testing (NDT) is required. NDT helps to protect human lives, assure adherence to standards, such as ASME or API, and guard against expensive failures in industries by inspecting materials and structures without any damage.
In the centre of NDT are two different types of approaches: surface method and volumetric method. Visual testing, liquid penetrant testing, magnetic particle testing, and eddy current testing are surface methods that are very successful in the detection of cracks, porosity or corrosion breaking through to the surface. Conversely, volumetric methods such as ultrasonic testing and radiographic testing are able to examine inside of it and identify internal defects that may cause structural integrity to be lost without any indication. All categories possess special strengths and trade-offs and it is important that the inspectors and engineers make the correct decisions.
The paper relies on the best industry practices in order to compare the advantages and disadvantages of the surface and volumetric NDT. You will learn how surface inspections are fast, easy and cost-effective, and how volumetric techniques help to provide deeper information at the price of complexity and increased cost. In conclusion, you will have a good idea of when to use each technique- or a mixture of both- in welds, pipelines, castings, and critical structures to maintain safety, reliability, and make informed decisions.
Surface NDT Methods: Overview, Pros, and Cons
Surface NDT techniques are intended to detect discontinuities that are open to the surface or lie too near the surface (around a few millimeters). They use physical or visual markers to point out the flaws without going into the interior of the material. Such techniques are highly applied in regular inspection situations where the integrity of surfaces is of greatest concern like in welding inspection or with aircraft maintenance.

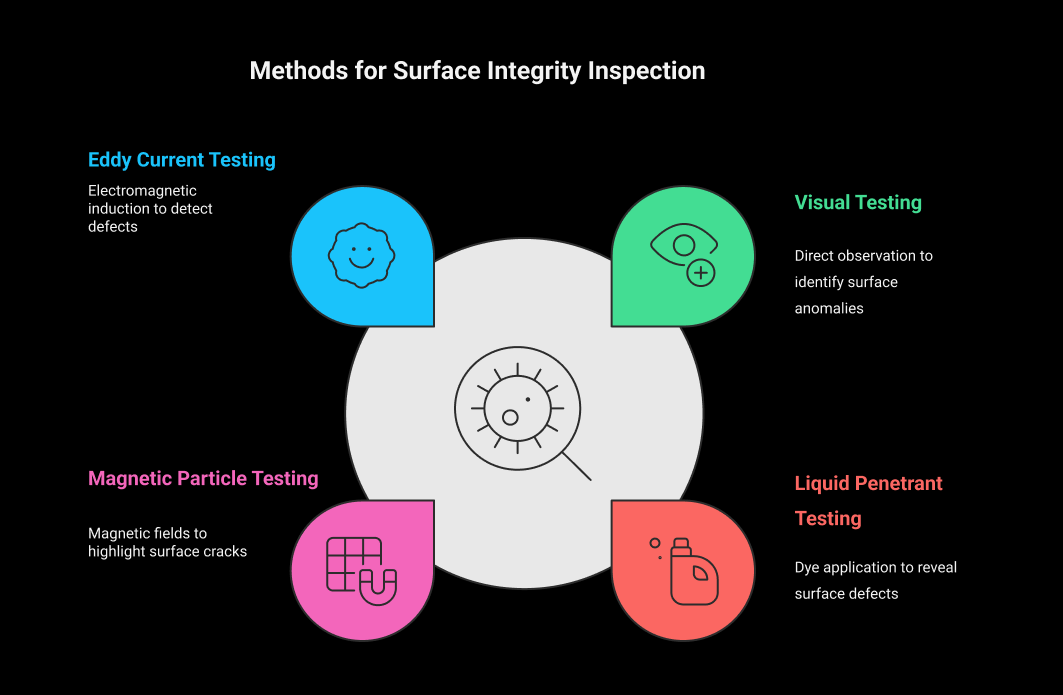

Key Examples of Surface Methods
- Visual Testing (VT): This is the simplest form, involving direct observation with the naked eye, magnification tools, or borescopes to identify surface anomalies like cracks, misalignment, or corrosion.
- Liquid Penetrant Testing (PT): A dye is applied to the surface, which seeps into open defects. After cleaning, a developer reveals the flaws under visible or UV light.
- Magnetic Particle Testing (MT): Applicable to ferromagnetic materials, it uses magnetic fields and iron particles to attract and highlight surface or near-surface cracks.
- Eddy Current Testing (ET): This electromagnetic method induces currents in conductive materials to detect surface and shallow subsurface defects, commonly used in tube inspections or aerospace parts.

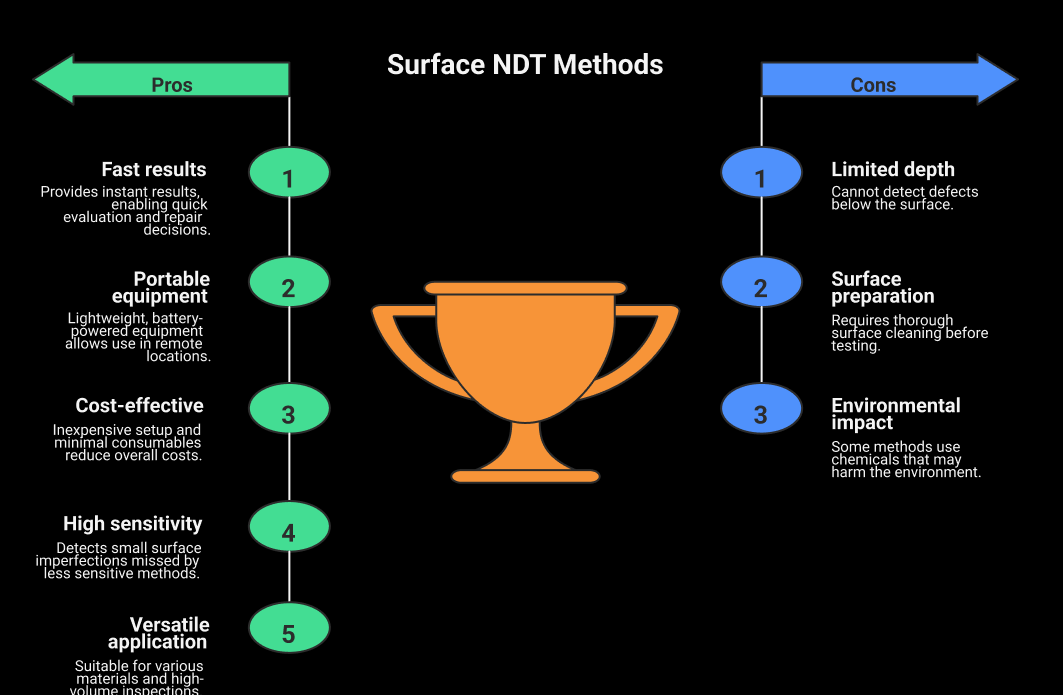

Pros of Surface NDT Methods
Surface methods have various benefits such that their use is unavoidable in a number of applications. First, they tend to be fast and give instant results, which enable inspectors to evaluate and go ahead to make repairs when necessary. As an example, a visual testing can be done within minutes and with the minimum of setup, thus it is an ideal first line of defense during quality control processes. Another major advantage is portability; equipment used to carry out these techniques is not heavy and is battery-powered, which means that it can be used in remote or constrained locations without cumbersome machinery.
One of the key attractions is cost-effectiveness because such methods are inexpensive to start, and consumables are minimal. Testing of liquids containing penetrant and magnetic particles, such as liquid penetrant or magnetic particle testing, does not require expensive dyes or particles and no special radiation sources or sophisticated electronics are necessary. They also have a high sensitivity to small surface imperfections e.g. small cracks or porosity that may not be seen by less sensitive methods. Also, basic implementation can be carried out with minimal training to eliminate the involvement of highly certified staff and allow the wider use in the workshop or field.
These techniques are the best at identifying surface-break defects in most types of materials, including metals and composite materials, and can be scaled to highly shaped or high-volume inspection. In manufacturing, where surface finish is a direct and determining factor in performance, their capability to offer real-time feedback is efficient production lines.
Cons of Surface NDT Methods
Although surface methods combine some strong aspects, they have significant limitations. Their highest limitation is the failure to identify internal or deep volumetric defects and their usage is limited to a shallow examination. In an illustration, a subsurface defect concealed behind layers of material would not be seen and thus it could cause disastrous failures of vital parts.
The surface preparation is almost always necessary and this may be quite time consuming and messy. Components should be washed to eliminate coating, oils or dirt and rough or porous surfaces can be obstructive to precision, this is evident in liquid penetrant tests whereby flawed components are covered by dirt or contaminants. Another disadvantage is that of material specificity; magnetic particle testing can only be carried out with ferromagnetic materials such as steel, whereas eddy current testing necessitates conductive materials, such as not plastics or ceramics.
Reliability is also susceptible to human error, particularly during visual testing, during which scratches or shadows are frequently misinterpreted as flaws. With techniques such as eddy current, roughness to the surface or lift-off (distance between probe and surface) may alter the outcome and require cautious calibration. Lastly, these methods in their portable form are not appropriate to large regions that are not to be scanned, which makes the inspection of large surfaces take up more time.
Volumetric NDT Methods: Overview, Pros, and Cons
Unlike surface NDT techniques, volumetric NDT lines penetrate through the surface to inspect the entire volume of a material, thus necessitating a volumetric test to reveal any concealed defects which may result in structural failure. They find use especially in high-stakes settings such as pressure vessels, pipelines or aircraft fuselage, where internal defects are dangerous.
Key Examples of Volumetric Methods

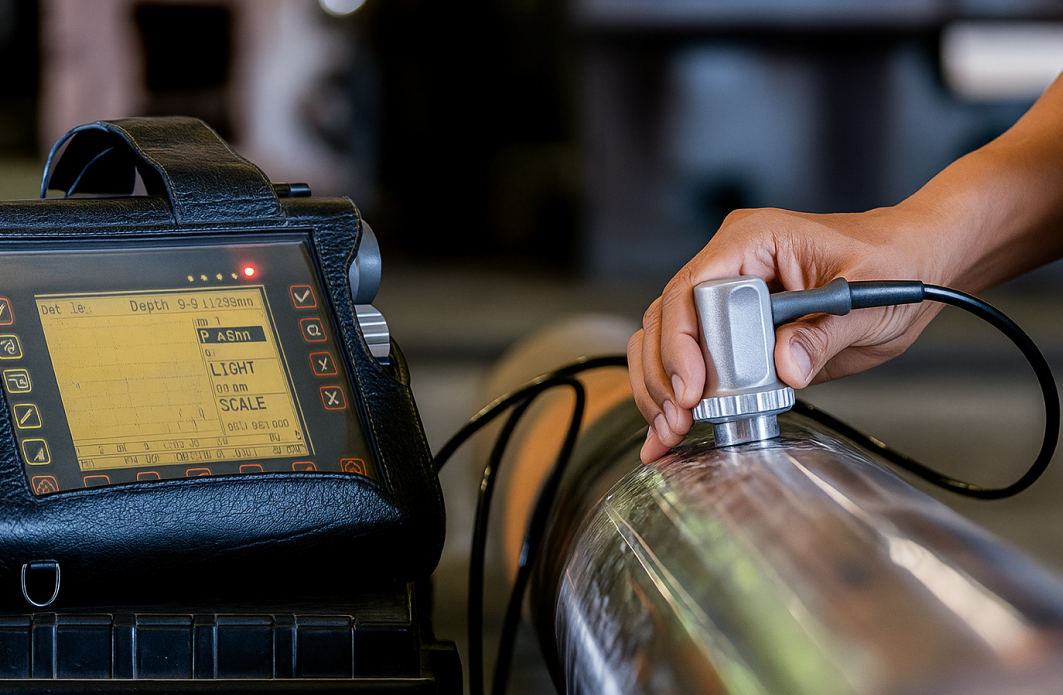

- Ultrasonic Testing (UT): High-frequency sound waves are transmitted into the material, and echoes from flaws are analyzed for location, size, and nature. Advanced variants include phased array UT (PAUT) for imaging.
- Radiographic Testing (RT): X-rays or gamma rays pass through the material to create images on film or digital detectors, revealing internal discontinuities like voids or inclusions.

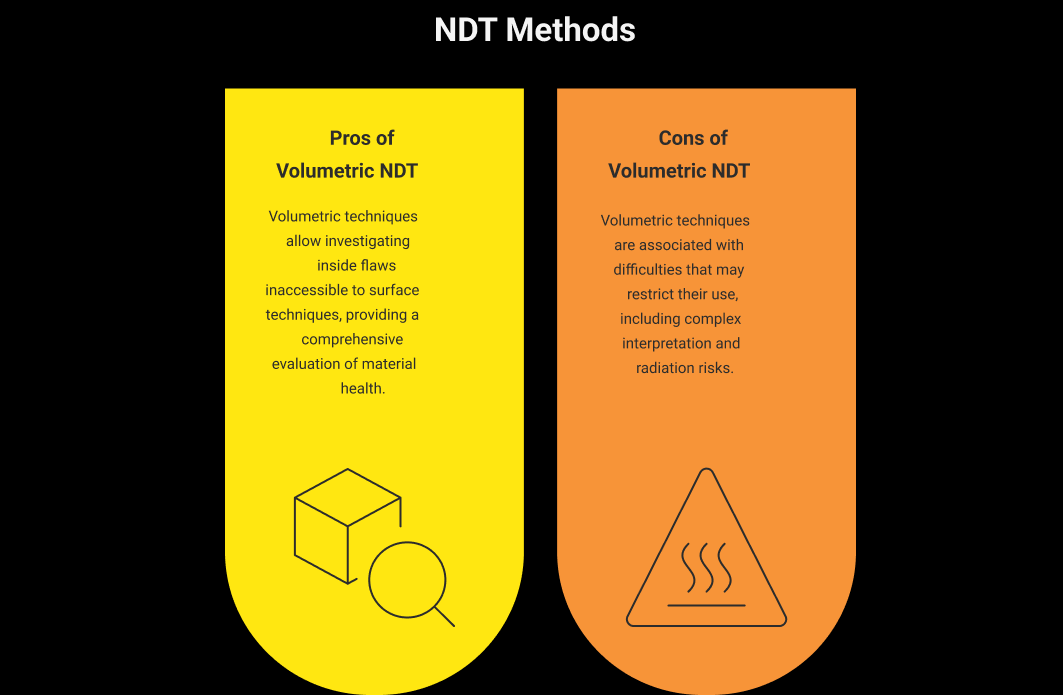

Pros of Volumetric NDT Methods
The main benefit of the volumetric techniques lies in the fact that they allow investigating inside flaws that are inaccessible to surface techniques at the same time, and thus give a comprehensive evaluation of the material health. Examples include ultrasonic testing that is very sensitive to cracks and voids, displaying instant digital output and having an ability to size defects very accurately. It is applicable in materials such as metals, composite, and plastics and can be applied in thickness gauging during corrosion monitoring.
A benefit of UT to the health care facility is its safety, since it does not utilize radiation and the checks can be made even when the facilities are actively operating. The potential of portability and automation makes it applicable to field work where devices such as portable flaw detectors are used to set up in a short time. Radiographic testing is the best in providing permanent high-resolution records to be used in documentation and compliance that is best in auditing in regulated industries.
The techniques are useful in complex geometries and thick sections where the penetration depth of UT and the capability of RT to inspect hidden sections shine. In general, volumetric methods add reliability, as they reveal flaws that may cause failures and underlie prevention maintenance.
Cons of Volumetric NDT Methods
Volumetric techniques are associated with difficulties that may restrict their use. Their interpretation is usually more complex; in the case of UT, interpretation of waveforms requires training and defects that are not in the sound beam may be missed. There are radiation risks in RT, and it requires safety measures, licensed individuals and restricted environments, which add up costs and logistical challenges.
Accessibility may be restrictive - RT usually requires access to both sides of the part to get set up, and UT needs a couplant and smooth surfaces so that signal loss does not occur. The techniques are often more costly and time-intensive than surface techniques, and RT in particular is slow owing to exposure durations and film development. There is also the problem of sensitivity to orientation; linear defects perpendicular to the beam in RT or UT could be undetected. Moreover, special probes are needed due to other environmental conditions such as high temperatures and this complicates matters.
Comparison: When to Choose Surface vs Volumetric Methods

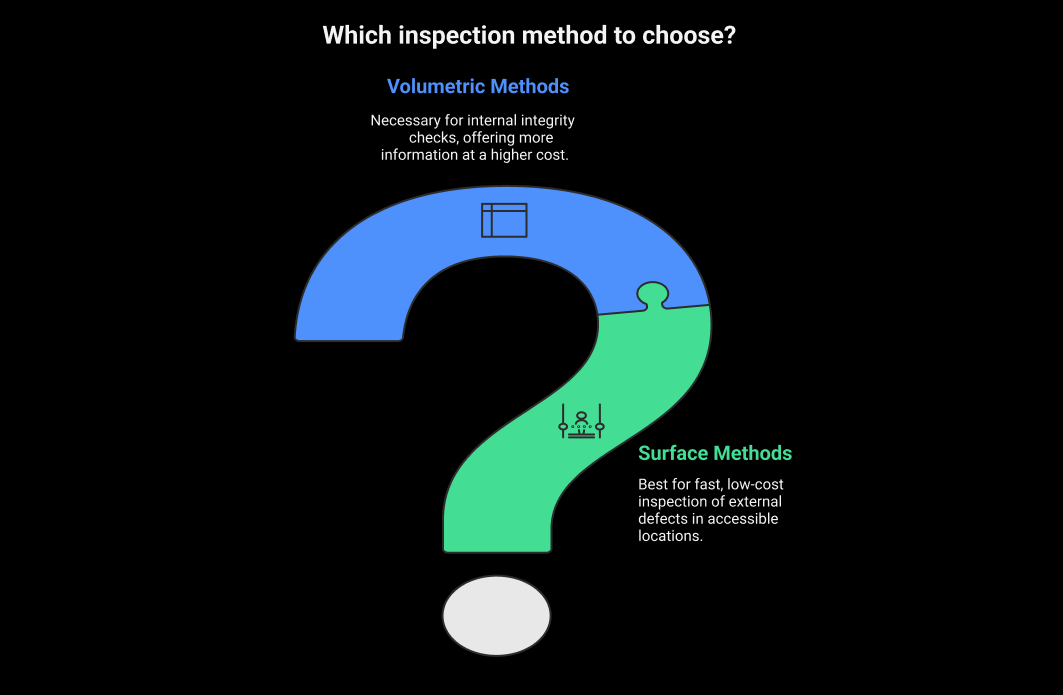

In making a decision between surface and volumetric methods, the decision depends on the goals of inspection and limitations. Surface techniques are best used in fast, low-cost inspection of external defects in accessible locations, including surface cracks in welds (PT or MT) or corrosion of pipes (ET). They are appropriate in high-volume production where it is important to have speed yet not depth.
Internal integrity, such as the presence of a void in a casting (RT) or delaminations in a composite (UT) only require volumetric techniques. They are more informative at higher prices and with a safety concern. Such factors are type of material (e.g. ferromagnetic in the case of MT), type of defect (surface or internal), accessibility (single-sided in the case of UT), and environment (high-heat adaptability in the case of UT). A mixed strategy of beginning with the surface techniques and upgrading to volumetric is likely to give the most optimal results.
- Aspect: Detection Scope
- Surface Methods: Surface/near-surface flaws
- Volumetric Methods: Internal/volumetric flaws
- Aspect: Speed
- Surface Methods: Fast, immediate results
- Volumetric Methods: Slower, more setup time
- Aspect: Cost
- Surface Methods: Low
- Volumetric Methods: Higher
- Aspect: Safety
- Surface Methods: Generally safe
- Volumetric Methods: Radiation risks (RT)
- Aspect: Portability
- Surface Methods: High
- Volumetric Methods: Moderate
- Aspect: Material Limitations
- Surface Methods: Specific (e.g., conductive for ET)
- Volumetric Methods: Broader versatility
- Aspect: Operator Skill
- Surface Methods: Low to moderate
- Volumetric Methods: High
This table highlights key differences, aiding in method selection based on practical needs.
Conclusion
Surface and volumetric NDTs have essential roles in the reliability of the materials, surface NDT techniques are fast and convenient to be used when one wants to identify external defects, the volumetric techniques are deep and accurate in revealing internal defects. Whereas surface approaches (VT and PT) are cheap and restricted in resolution, volumetric approaches (UT and RT) provide all-inclusive assessments at complex and expensive cost. Inspectors are able to choose the best approach by balancing advantages such as portability and disadvantages such as radiation risks and in most cases use multiple approaches to be comprehensive. In conclusion, NDT should be effectively employed to increase the safety and efficiency, hence the value of knowledge of these categories in contemporary industry.
FAQs
What is volumetric NDT?
Volumetric NDT describes methods that examine an object's interior structure to find internal defects like inclusions, voids, or cracks without causing harm to the object.
What is surface NDT?
The term "surface NDT" refers to non-destructive testing techniques created especially to find surface imperfections and discontinuities in materials without endangering the component.
What is the difference between surface and volumetric NDT?
Surface Non-Destructive Testing (NDT) methods, like Magnetic Particle Testing and Liquid Penetrant Testing, are used to find flaws on the exterior of a component. Volumetric NDT methods, such as Ultrasonic Testing (UT) and Radiography (RT), are designed to "look" inside the material to detect subsurface and internal defects that would otherwise be hidden.
Which two NDT methods are known as volumetric test methods?
This may include radiographic testing, which uses X-rays or gamma rays to produce images of the interior of a component, or ultrasonic testing, which uses sound waves to measure the thickness of a material or detect internal defects.
