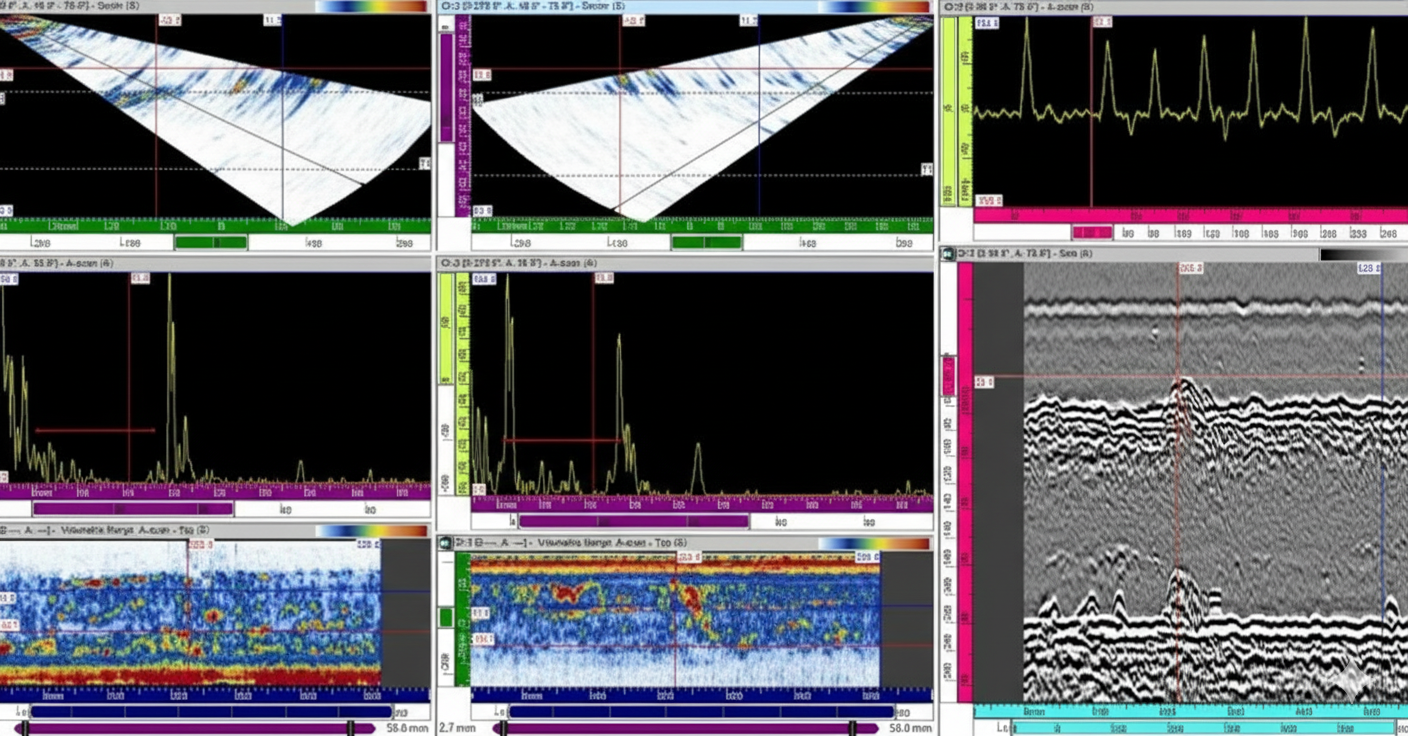

Difference: Phased Array Ultrasonic Testing (PAUT) vs. Time-of-Flight Diffraction (TOFD)

Table Of Contents

• Introduction: Evolving Precision in Ultrasonic Testing
• Fundamentals: How PAUT and TOFD Work
• Imaging Capabilities and Data Interpretation
• Detection Capabilities and Sensitivity
• Coverage Area and Inspection Speed
• Equipment and Cost Considerations
• Skill Level and Operator Dependency
•  Limitations and Challenges
•  Applications in Industry
• Conclusion: Choosing Between PAUT and TOFD

Introduction: Evolving Precision in Ultrasonic Testing

UT has been used as one of the major methods of assessing material integrity in the context of nondestructive testing (NDT) by frequencies of high frequency sound waves. With changes in industrial needs to precision and increased speed of inspection, more elaborate ultrasonic techniques like Phased Array Ultrasonic Testing (PAUT) and Time-of-Flight Diffraction (TOFD) have become more preferred compared to traditional UT. The two techniques are based on the same principle of ultrasonic wave propagation and reflection of message, but they vary essentially in the way the data can be generated, recorded, and discussed.

The PAUT operates independently controlled structures of steering and focusing of the ultrasonic beam in a transducer array. This gives highly detailed images in the form of sectorial scans (S-scans) and cross-sectional images (B-scans) of welds and parts. TOFD, by contrast, works on the principle of diffraction- it detects sound waves reflected around the edges of the cracks and this gives very precise sizing of defects and depth measurement of defects. Whereas PAUT has been shown to be superior in imaging and coverage, TOFD is commonly known to be highly sensitive in the characterization of flaws and is therefore useful in combination with PAUT in critical inspection in oil and gas, power generation industries, and aerospace as well.

This article will reveal to the reader the major distinctions between PAUT and TOFD, how they operate, their abilities, strengths, and weaknesses. It also discusses the best place to use each method and the combination of both to provide holistic weld inspection and how each can be used depending on the objectives of the inspection and geometry of components. Through such differences, NDT professionals are able to make sound decisions that will increase reliability, accuracy and efficiency in the ultrasonic inspection programs.

1. Fundamentals: How PAUT and TOFD Work

a. Phased Array Ultrasonic Testing (PAUT)

PAUT works with a combination of several tiny ultrasonic components within one probe. All elements may be pulsed (timed) individually making the beam electronically steerable, focusable, and sweepable through the test material. Through this dynamic control PAUT is able to scan a complex geometry with high precision and quicker area coverage.

• They (beam steering and focusing) enable the inspection of various angles of a fixed probe.
• Sectorial scanning gives the visual pictures of the faults in real-time.
• Effective at locating a weakness in the welds such as crack, lack of fusion, or porosity.

b. Time-of-Flight Diffraction (TOFD)

TOFD, in its turn, is founded on the diffraction of ultrasound waves. It involves a transmitter and a receiver on either side of the weld. As the ultrasonic pulse runs into the discontinuity some of the energy is deflected by the ends of the flaws. This difference between the time of arrival of these diffracted signals to the receiver is what is utilized to calculate both the location as well as the size of the flaw.

• Very precise in the measurement of defects, especially the cracks.
• Depth information in time-based signal measurement is very accurate.
• Puts into use longitudinal waves as opposed to reflected/refracted waves.

2. Imaging Capabilities and Data Interpretation

Among the significant aspects of PAUT and TOFD differences is the presentation and interpretation of the data.

a. PAUT Imaging

PAUT offers the visualization of images in high resolution, attending to the medical ultrasound scan. The operator is able to see sectorial scans (S-scans) and B-scans showing the internal structure of the material in a graphic form. The images are also intuitive and this enables quick study of the image and aids in the recognition of complex geometries.

• Provides real time imaging.
• More easily interpreted by surface-breaking flaws or volumetric flaws.
• Demands competent technicians in order to be evaluated to the full extent.

b. TOFD Imaging

TOFD monitors the associated time or flight of diffracted events to form a gray-scale image. These pictures are not as intuitive as PAUT images, but they are highly reliable in giving the tip-diffracted signals, especially in crack sizing.

• Great accuracy in sizing flaws.
• Can fail to see minor or shallow flaws because of the diffraction rule.
• Better an analysis of the signals than visualizing it.

3. Detection Capabilities and Sensitivity

a. PAUT Detection Strengths

• An outstanding product on volumetric flaws, porosity as well as lack of fusion and slag inclusions.
• Flexible on geometries and materials.
• Great sensitivity, variable depth focal and beam steering.

b. TOFD Detection Strengths

• Excellent in respect of planar defects such as cracks and poor fusion.
• Higher quality of depth sizing.
• Unsensitive to flaw orientation, hence being perfect to sense flaws regardless of orientation.

Important distinctions: PAUT out-performs TOFD best in imaging and volume coverage where TOFD has no competitor when it comes to quantitative flaw sizing particularly in through-thickness cracks.

4. Coverage Area and Inspection Speed

1. PAUT

• Enables large area coverage with a single scan with its sectorial scanning into use.
• Fast to set up simple welds, and longer the more complex.
• There may be the need to take multiple scans to capture flaws with varied positions.

2. TOFD Efficiency

• This offers entire through-wall coverage on one pass.
• Once calibrated and aligned the high-speed inspection will be made.
• When setting up, the probes should be properly aligned and spaced (usually 10 to 100 mm with regards to material thickness).

Possibly in the high-production environment where speed and reliability are the factor in demand, use of a combination of both PAUT and TOFD usually yields the best solution.

5. Equipment and Cost Considerations

a. PAUT Equipment

• Is a phase-array-probe, pulser/receiver and software.
• Needs higher calibration and trained staff.
• The array and imaging technologies and capabilities may lead to more expensive equipment.

b. TOFD Equipment

• It needs two standard UT probes, a digitizer and TOFD specific software.
• Cheaper hardware, yet requires good calibration and scanning.
• The generation of longitudinal waves streamlines the process of making a few choices related to the use of probes.

Although PAUT is usually more expensive to set up initially, TOFD requires greater alignment of the mechanical system, and may require supplementary scanning to cover small or shallow defects.

6. Skill Level and Operator Dependency

a. PAUT Requirements

• The operators should be trained to operate in setting up the beam, angle selection and software analysis.
• More convenient to the operators who know the traditional UT.

b. TOFD Requirements

• Requires solid knowledge of wave physics, signal processing, and flaw diffraction.
• Operators should be able to interpret the D-scan gray-scale images which cannot be as visual as the PAUT scans..

In both techniques, the ability of the operator is an important issue- TOFD, however, may demand greater knowledge of signal handling and timing measurement.

7. Limitations and Challenges

a. PAUT Limitations

• Difficulties in sizing cracks as accurately as possible particularly tip-to-tip sizing.
• Resolution in the near-surface is restricted on wedge and frequency.
• Unless well focused, beam spread can cause misunderstanding during the model of complex geometries.
•


b. TOFD Limitations

• Not the best option in finding surface-breaking defects or very small discontinuities.
• Very sensitive to the correct positioning of the probe and condition of the surface.
• May need to be complemented by methods such as PAUT to identify types of faults.
•


This is an indication of the fact that a lot of high critical applications utilize both methods simultaneously: PAUT to detect and TOFD follow up to achieve confirmation and size.

8. Applications in Industry

Both of the methods have gained popularity in most of the industries, including:

• Oil & Gas: Pipeline, pressure vessel and weld inspection.
• Power Generation: To assess components of boilers and turbines.
• Aerospace: Particularly PAUT, applicable in the inspection of composites and in-service structure.
• Structural Steel & Fabrication: TOFD is particularly popular to size flaws in thick welds.

The choice between PAUT versus TOFD often comes down to application needs: detection vs. sizing, geometry complexity, and flaw type.

Compliance and Standards

Both PAUT and TOFD are recognized and standardized in major international codes:

• ASME Section V
• API 1104
• ISO 13588 (PAUT)
• ISO 10863 (TOFD)

These codes present standards of calibration, equipment, scanning techniques, data interpretation and documentations. Adhering to these standards makes the reliability and compliance to be in line with industry standards.

Conclusion: Choosing Between PAUT and TOFD

Choosing between Phased Array Ultrasonic Testing (PAUT) and Time-of-Flight Diffraction (TOFD) ultimately depends on the inspection goal, type of defect, and asset geometry. PAUT is also well versatile as detecting volumetric defects and it provides real time imaging which improves operator interpretation. Conversely TOFD is very effective in measuring and also to identify planar defects particularly cracks in an astonishing way as it is a time-based measurement method.

Although both methods are powerful by themselves, they are not one-size-fits all as well. TOFD could miss near surface defects or very small indications, PAUT may not be able to size the crack tip. That is why the combination of these two methods is common in many inspection strategies of high-stakes enterprises, like oil and gas, or power generation. The combination provides an all-embracing fault finding and correct sizing, and the inspection outcomes are more certain.

With the combination of PAUT and TOFD, the NDT professionals overcome the limitations of both directions and provide the maximum advantage of both techniques, which can enhance the degree of reliability, be more consistent with international codes, and make more informed maintenance decisions.

FAQs:

1. What is the difference between phased array ultrasonic testing and TOFD?

Ans: While Phased Array uses numerous transducers to emit ultrasonic waves at different angles, TOFD uses diffracted sound waves, depending on diffraction to detect defect edges. This distinction impacts each method's efficacy in specific inspection settings as well as its sensitivity to specific defect kinds.

2. What is the difference between normal UT and PAUT?

Ans: PAUT covers a large area in a comparatively short amount of time, giving you a detailed image of the internal defects within a building. UT can then be used in smaller or more difficult-to-reach communities.

3. What is ultrasonic time of flight?

Ans: Ultrasonic distance measurement produces a brief, high-frequency sound pulse that is over the human hearing threshold on a cyclical basis. The pulse time-of-flight measurement for the sound between the object and the sensor can be used to calculate the distance to the object.

4. What is time-of-flight diffraction?

Ans: Time-of-Flight Diffraction (TOFD) is an advanced ultrasonic testing (UT) technique that is mostly used for non-destructive testing of structural materials, including welds, especially for sizing and fault detection. It makes use of the diffraction of ultrasonic waves from defect points to precisely locate and measure defects like voids and cracks.

5. What is the principle of ToF?

Ans: The foundation of the time-of-flight principle is the measurement of the wave's transit time from a source (a time-of-flight sensor) to an object and back.
