Introduction
As the global energy landscape shifts toward sustainable and low-carbon solutions, hydrogen and ammonia have emerged as pivotal energy carriers. Hydrogen, renowned for its high energy content and zero-emission profile when utilized, and ammonia, valued for its ease of storage and transport, are integral to the future of clean energy. However, the transportation and storage of these substances present unique challenges due to their chemical properties and the demanding conditions under which they operate.
Ensuring the integrity and safety of hydrogen and ammonia transport systems is paramount. Non-Destructive Testing (NDT) plays a crucial role in this context, offering techniques to evaluate the condition of materials and structures without causing damage. This article delves into the significance of NDT in the transport of hydrogen and ammonia, exploring the challenges, methodologies, and advancements in the field.
Challenges in Transporting Hydrogen and Ammonia
Hydrogen Embrittlement
Hydrogen embrittlement is a phenomenon where metals become brittle and fracture due to the diffusion of hydrogen into the material. This is particularly concerning for high-strength steels used in pipelines and storage vessels. The presence of hydrogen can lead to unexpected failures, posing safety risks and operational challenges.
Ammonia-Induced Stress Corrosion Cracking
Ammonia, while easier to store and transport than hydrogen, is a corrosive substance. It can cause stress corrosion cracking in certain metals, especially under high-pressure and high-temperature conditions. This necessitates rigorous inspection and maintenance protocols to prevent leaks and structural failures.
High-Pressure and Cryogenic Conditions
Both hydrogen and ammonia are often stored and transported under high-pressure or cryogenic conditions. These extreme environments can exacerbate material degradation and complicate inspection processes. Traditional inspection methods may be inadequate, highlighting the need for advanced NDT techniques.
Role of Non-Destructive Testing (NDT)
NDT encompasses a range of techniques used to evaluate the properties of a material, component, or system without causing damage. In the context of hydrogen and ammonia transport, NDT is essential for:
- Detecting Flaws: Identifying cracks, corrosion, and other defects that could lead to failures.
- Ensuring Compliance: Meeting industry standards and regulatory requirements.
- Preventive Maintenance: Facilitating timely repairs and replacements to prevent accidents.
- Extending Lifespan: Enhancing the durability and reliability of transport systems.

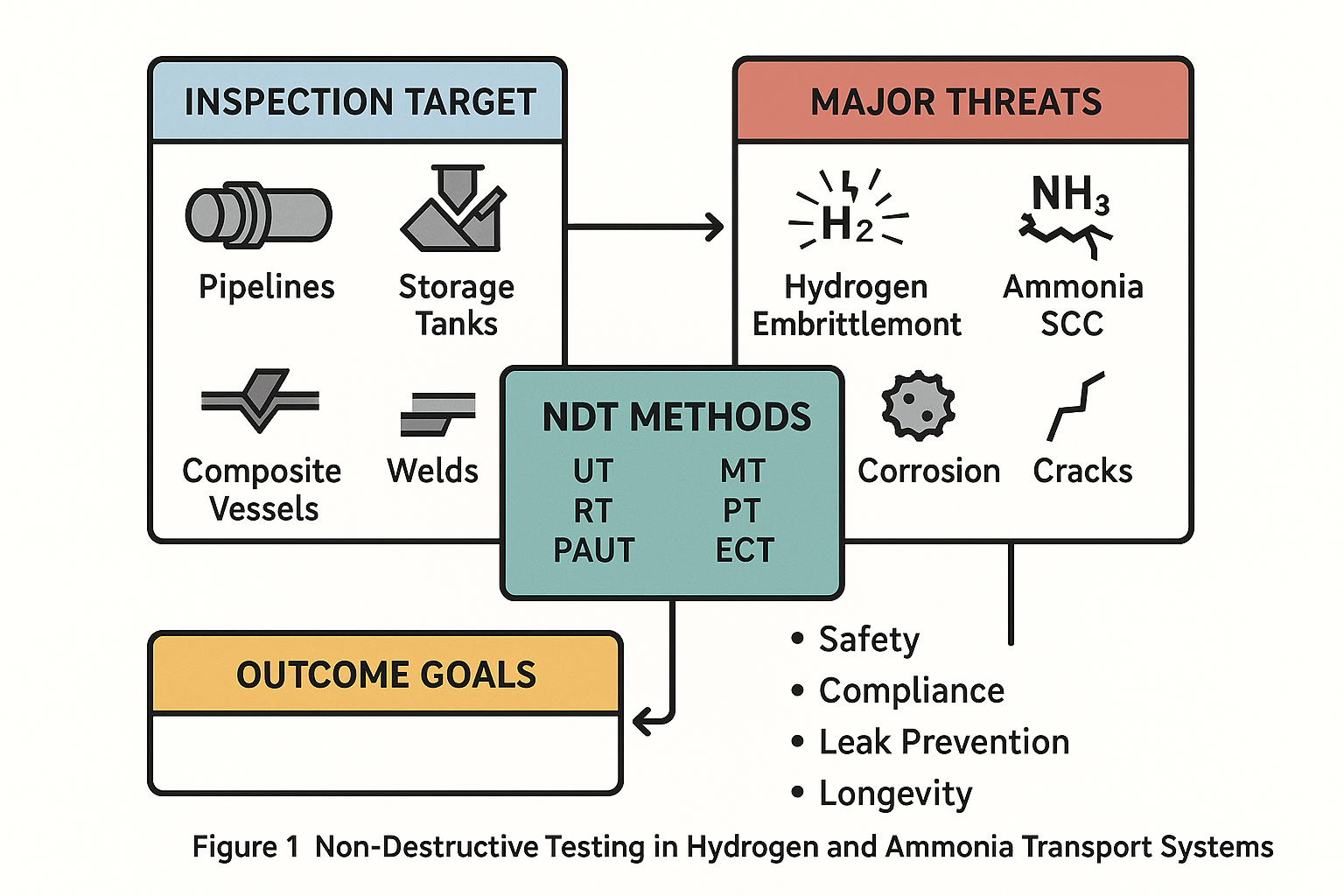

Figure 1: Non-Destructive Testing in Hydrogen & Ammonia Transport Systems (AI-Generated)
Key NDT Techniques in Hydrogen and Ammonia Transport
1. Ultrasonic Testing (UT)
UT uses high-frequency sound waves to detect internal flaws in materials. It's particularly effective for assessing weld integrity and detecting subsurface defects in pipelines and storage tanks.
2. Radiographic Testing (RT)
RT employs X-rays or gamma rays to produce images of the internal structure of components. It's useful for identifying internal cracks, voids, and inclusions, especially in welds.
3. Magnetic Particle Testing (MT)
MT is used to detect surface and near-surface discontinuities in ferromagnetic materials. It involves magnetizing the component and applying ferrous particles to reveal defects.
4. Dye Penetrant Testing (PT)
PT is a cost-effective method for detecting surface-breaking defects. It involves applying a liquid dye to the surface, which penetrates cracks and is then made visible under ultraviolet light.
5. Acoustic Emission Testing (AET)
AET monitors the release of energy from localized sources within a material, such as crack formation or growth. It's valuable for real-time monitoring of structural integrity under stress.
6. Eddy Current Testing (ECT)
ECT uses electromagnetic induction to detect surface and near-surface flaws in conductive materials. It's highly sensitive and suitable for inspecting tubing and thin-walled components.
Applications in Hydrogen Transport Systems
Hydrogen transport systems, including pipelines and storage vessels, require meticulous inspection due to the risks associated with hydrogen embrittlement and high-pressure conditions. NDT techniques are employed to:
- Assess Weld Quality: Ensuring that welds meet stringent standards to prevent leaks.
- Monitor Wall Thickness: Detecting corrosion and erosion that could compromise structural integrity.
- Detect Cracks: Identifying early signs of hydrogen-induced cracking.
- Evaluate Composite Materials: Inspecting composite overwrapped pressure vessels (COPVs) used for hydrogen storage.
Applications in Ammonia Transport Systems
Ammonia transport involves challenges related to its corrosive nature and the potential for stress corrosion cracking. NDT is utilized to:
- Inspect Storage Tanks: Detecting corrosion under insulation and assessing the condition of welds and joints.
- Monitor Pipelines: Identifying areas susceptible to cracking and corrosion.
- Ensure Safety: Verifying the integrity of transport systems to prevent leaks and environmental hazards.
Advancements in NDT for Hydrogen and Ammonia Transport
The evolution of NDT technologies has led to more accurate, efficient, and safer inspection methods. Notable advancements include:
- Phased Array Ultrasonic Testing (PAUT): Offers detailed imaging and faster inspections.
- Digital Radiography: Provides immediate results and enhanced image quality.
- Automated Inspection Systems: Utilize robotics and drones to access hard-to-reach areas.
- Real-Time Monitoring: Incorporates sensors and data analytics for continuous assessment.
Regulatory Standards and Compliance
Adherence to industry standards is critical in the transport of hydrogen and ammonia. Organizations such as the American Society of Mechanical Engineers (ASME), the International Organization for Standardization (ISO), and the American Petroleum Institute (API) provide guidelines for inspection and maintenance. Compliance ensures:
- Safety: Minimizing risks to personnel and the environment.
- Reliability: Maintaining consistent operation of transport systems.
- Legal Compliance: Meeting regulatory requirements to avoid penalties.

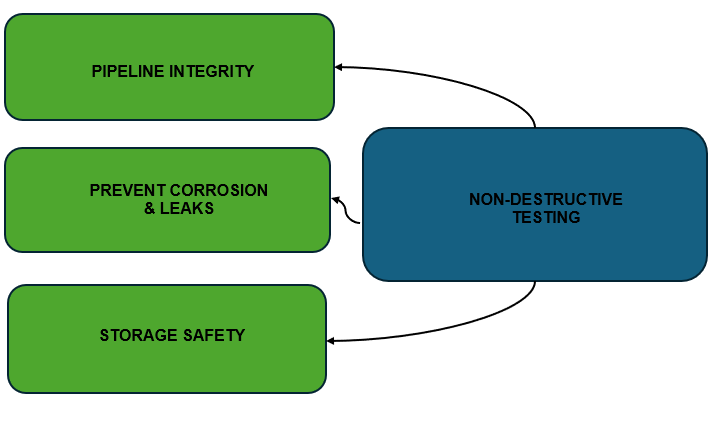

Figure 2: Key Roles of NDT in Enhancing Hydrogen & Ammonia Transport System Reliability
Figure 2 showcases the key roles of Non-Destructive Testing (NDT) in hydrogen and ammonia transport —ensuring pipeline integrity, preventing corrosion and leaks, and maintaining storage safety.
Figure 3: Importance of NDT in Hydrogen & Ammonia Transport System (AI-Generated)
Conclusion
The transportation of hydrogen and ammonia is integral to the advancement of clean energy solutions. However, the inherent risks associated with their chemical properties necessitate rigorous inspection and maintenance protocols. Non-Destructive Testing stands as a cornerstone in safeguarding these transport systems, offering techniques that ensure structural integrity without compromising the components.
As technologies evolve and the demand for hydrogen and ammonia increases, the role of NDT will become even more pivotal. Embracing advanced NDT methods and adhering to regulatory standards will be essential in fostering a safe, reliable, and sustainable energy future.
Author: Vineet Yadav & Kuldeep Sharma
